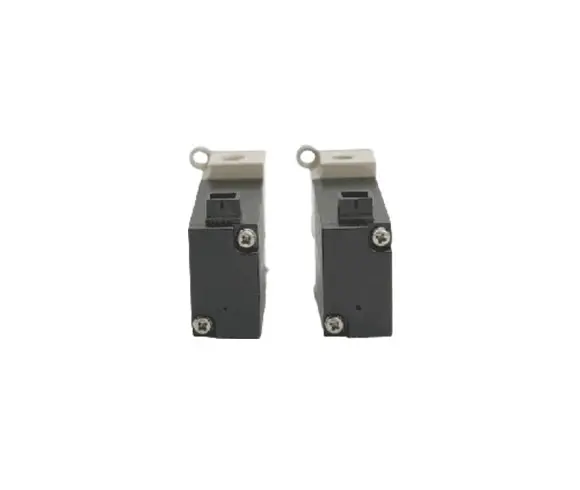

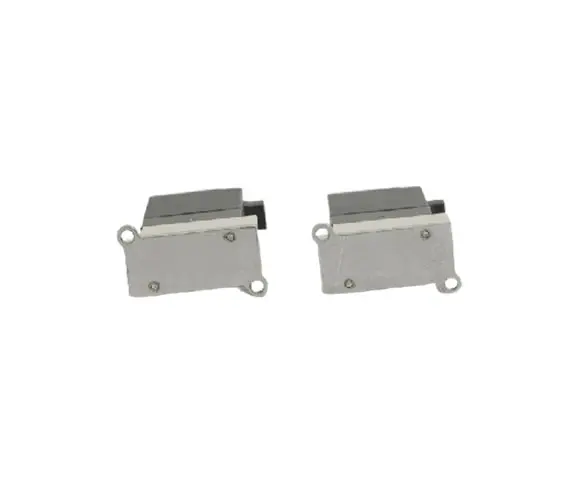

Rocker Diaphragm Solenoid Valve 1033

The main function is controlling the switch of fluid flow path.This series solenoid valve is a high performance, low cost and maintenance free diaphragm valve with multiple options, which are suitable for different reagents in different working conditions. Its life cycle can be more than 10 million.

Specifications Selection Table

Feature of Rocker Diaphragm Solenoid Valve 1033

Keyto 1033 series has strong corrosion resistance: the solenoid valve is made of high performance plastic and rubber, which can ensure the most reliable sealing of the solenoid valve at all times during operation. It also has fast response time: the port-to-port switching time of the solenoid valve in operation is <20ms. And low power consumption: less than 3.5W, which can effectively reduce the heat generation during long-lasting operating conditions.




Specifications of Rocker Diaphragm Solenoid Valve 1033

Valve construction

Rocker type diaphragm valve

Valve type

2-way N.C.

2-way N.O.

3-way

Number of ports

2

2

3

Orifice

1.6mm

Flow CV

0.045

Mediums

Water, air, weak acid, weak alkali (specific withstand medium is determined by the solenoid valve diaphragm and valve cover)

Operating pressure range

-75kpa~250kpa

Withstand pressure

0.3Mpa

Leakage

0 (at water pressure)

Response time

20ms or less

Volume of the valve chamber

25μL

Rated voltage

DC: 24V

Voltage fluctuation range

From -10% to +10%

Power

24V: 3.5W

Type of coil insulation

Class F


Note: Please kindly reach out to our sales team for design and specification final clarification and confirmation.


Valve 1033

Reasons to Buy Keyto Rocker Diaphragm Solenoid Valve 1033

  • 01
    Rocker type diaphragm structure

    Using a diaphragm to isolate the fluid area from the solenoid coil drive section, the solenoid valve diaphragm operates in a rocker type.

  • 02
    Strong corrosion resistance

    The solenoid valve is made of high performance plastic and rubber, which can ensure the most reliable sealing of the solenoid valve at all times during operation.

  • 03
    Fast response time

    The port-to-port switching time of the solenoid valve in operation is <20ms.

  • 04
    Small size

    The overall dimension of the 1013 series solenoid valve is small, and takes up extremely small installation space.

  • 05
    Small volume change

    The special internal construction of 1013 rocker type solenoid valves, the variation of action volume is basically 0.

  • 06
    Long lifetime

    10 +million cycles under various operating conditions.

  • 07
    Low power consumption

    The power consumption is less than 3.5W, which can effectively reduce the heat generation during long-lasting operating conditions.
