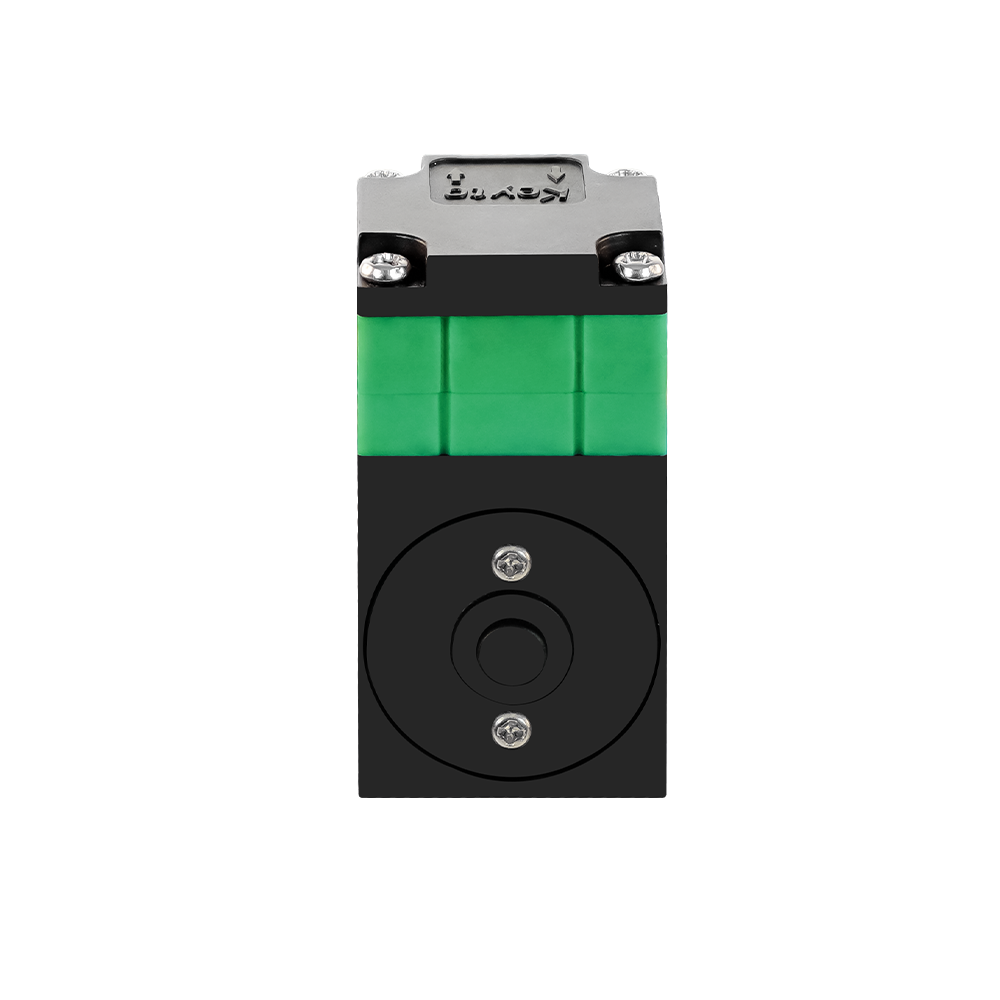

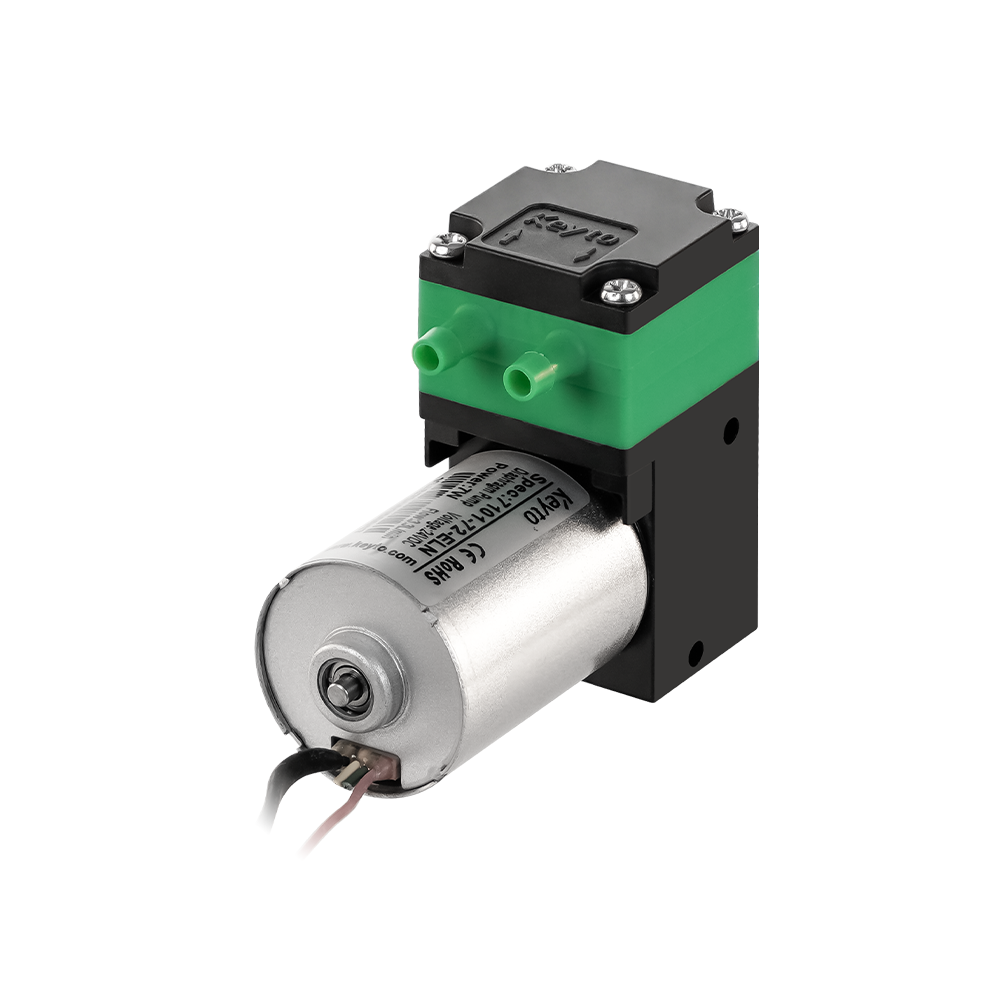

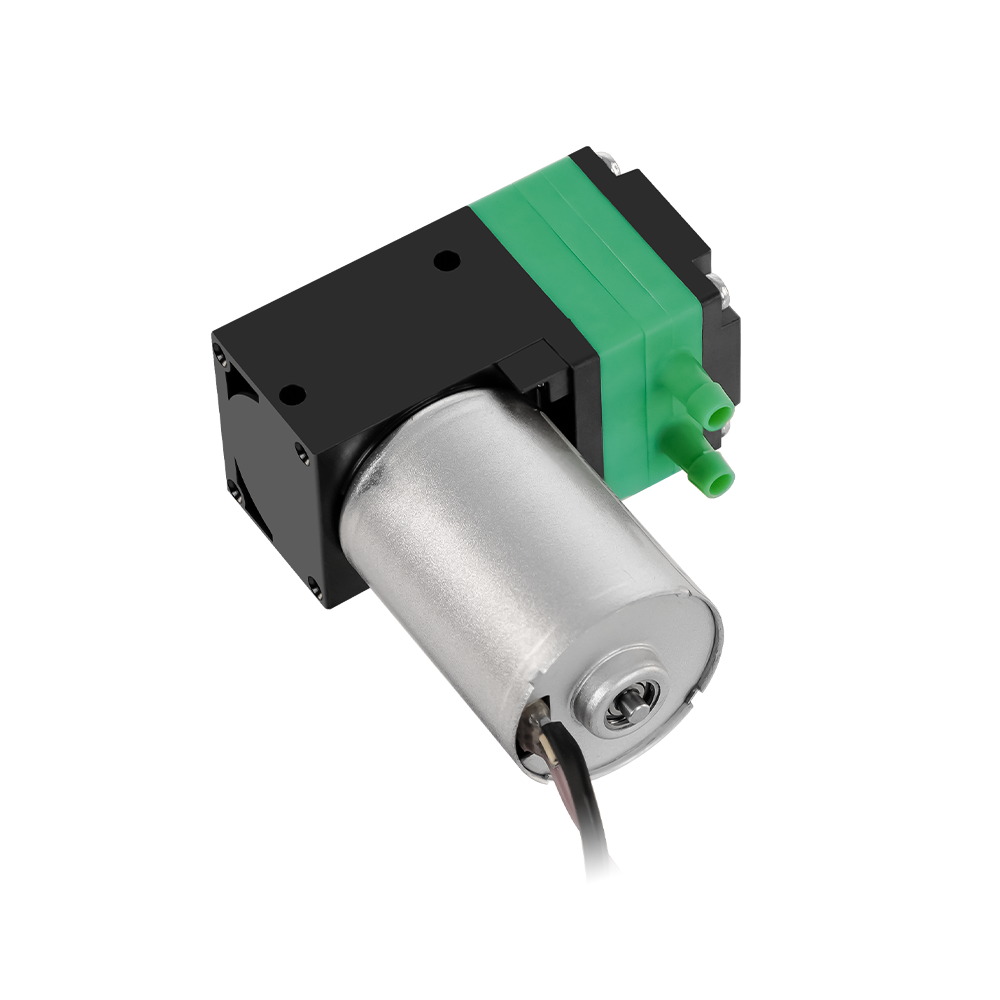

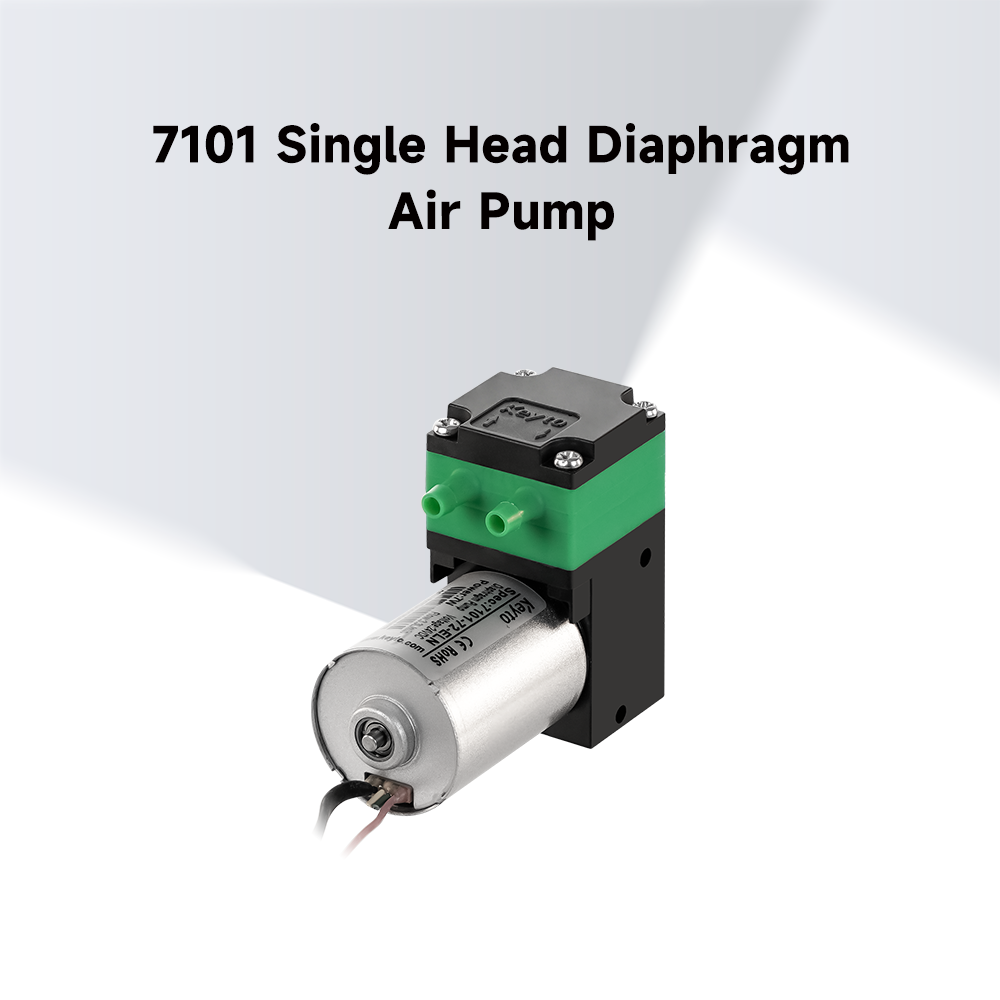

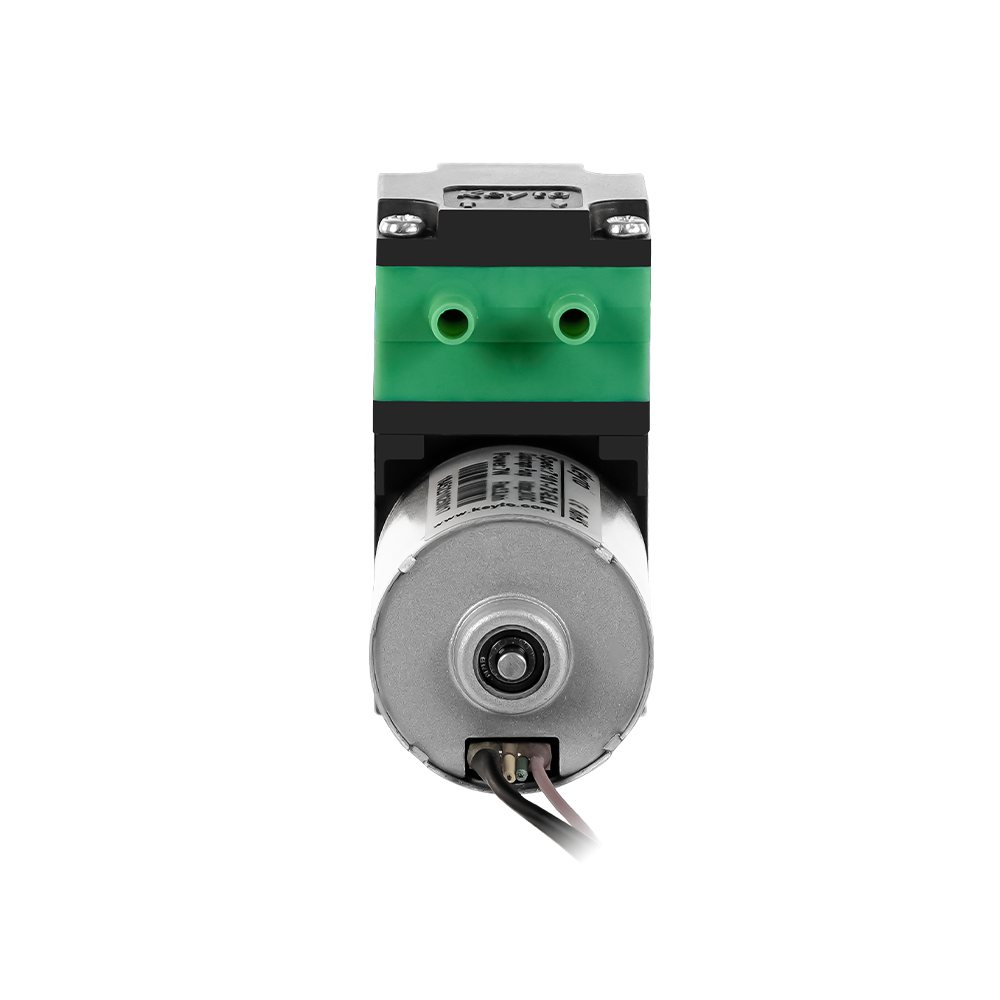

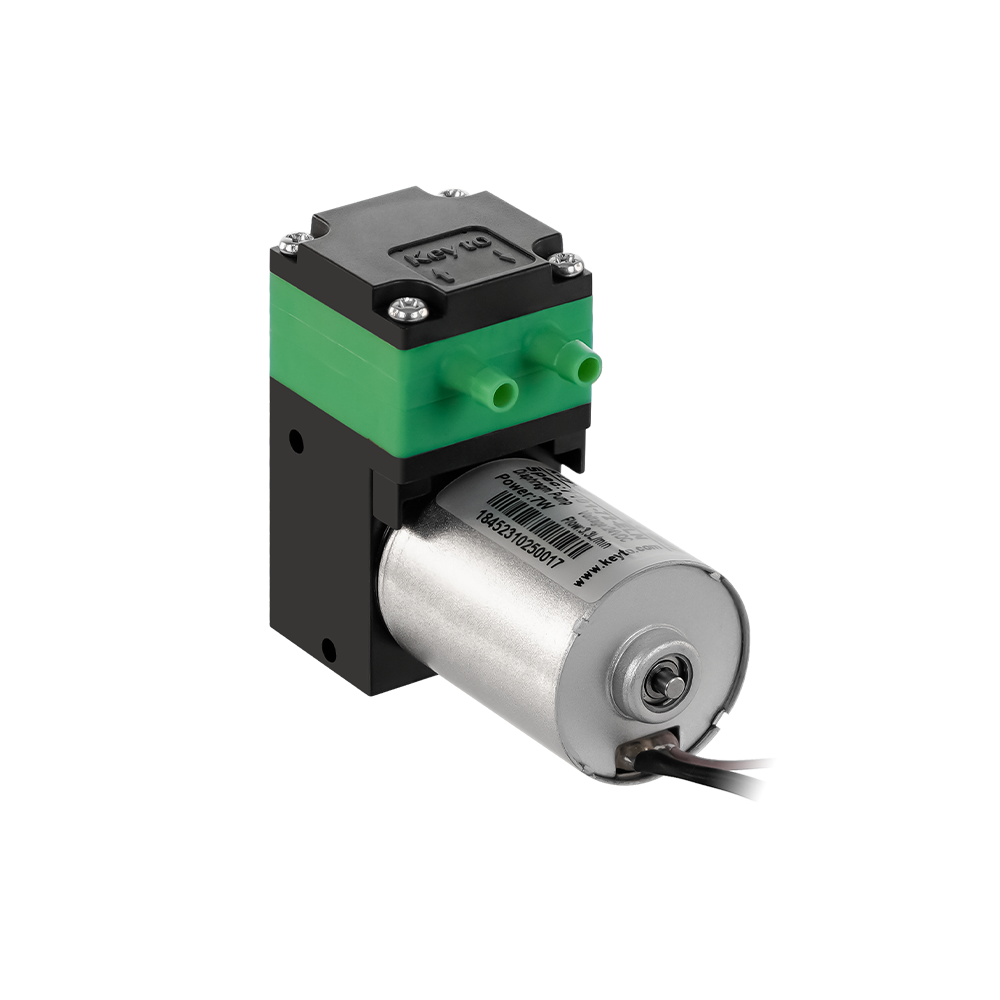

7101 Single Head Diaphragm Air Pump

The 7101 series diaphragm air pump is designed for high-end applications including medical devices, environmental equipment, instruments, chemical machinery, and household appliances. It offers reliable air transfer performance with a compact single-head design. The pump delivers consistent and efficient air handling, ensuring stability across various operating conditions. Its versatility and durability make it ideal for precision air movement in demanding environments.

Key Parameters:

Flow Rate

Voltage

Material Option

Motor Type

Reference Model:

7101

WhatsApp Contact

Online Message

E-mail Comparison/Performance

7101 Single Head Diaphragm Air Pump

Comparable Products

7521 High Pressure Resistance Liquid Diaphragm Pump

7121 30 Diaphragm Pump

7121 60 Diaphragm Pump

7122 Dual-head Diaphragm Liquid Pump

7102 Double-head Diaphragm Air Pump

7121 30 Diaphragm Pump with Brush

7121 60 Diaphragm Pump with Brush

Comparison/Performance

Back

Pump Type	7101-A Single Head Diaphragm Pump
FLow Rate at atm. Pressure	5L/min
Pump Head Material	PPS
Diaphragm Material	EPDM
Hose Connector	4mm inner Diameter Silicon Hose
Negative Pressure	≤-65kPa
Output Pressure	≥150kPa
Rated Power	12W
Rated Voltage（DC）	12V or 24V
Applicable Medium	Gas
Service Life	＞5000H（continue working）
Safety Protection Current	N/A
Rated Current	0.6A/0.3A
