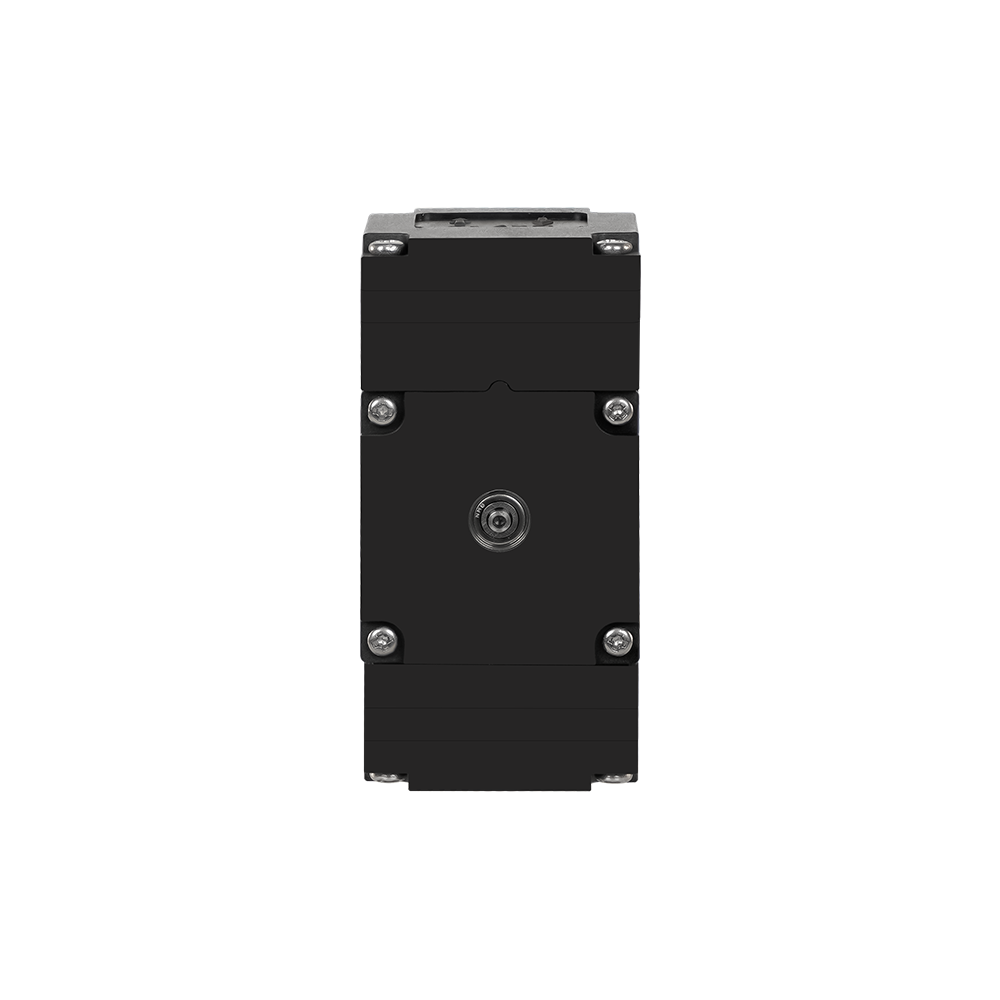

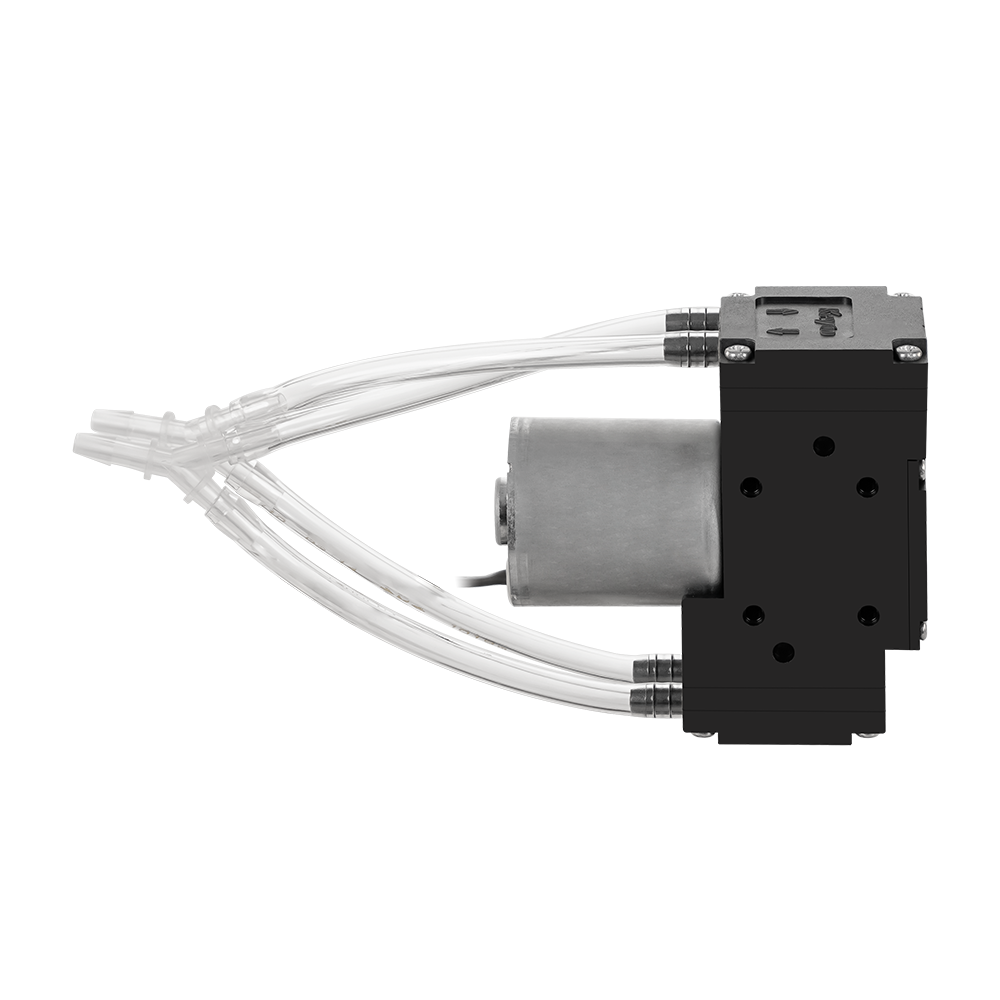

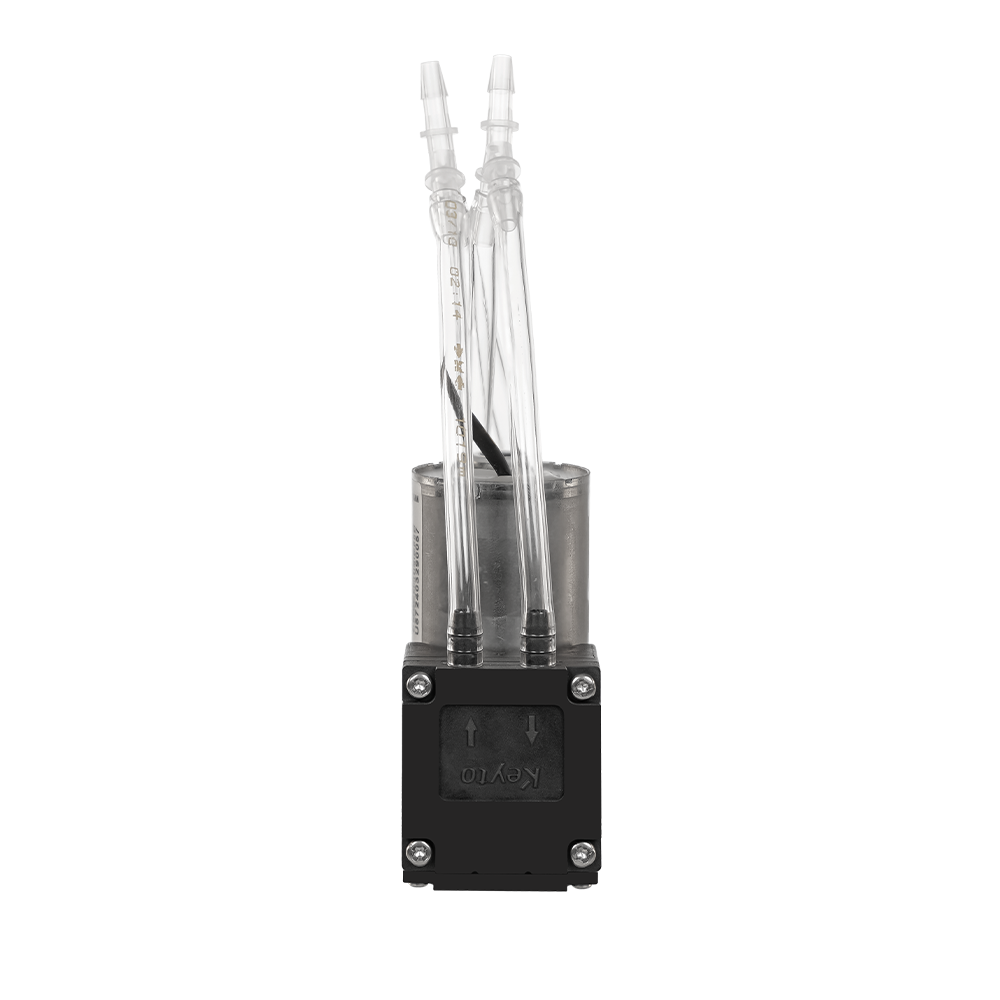

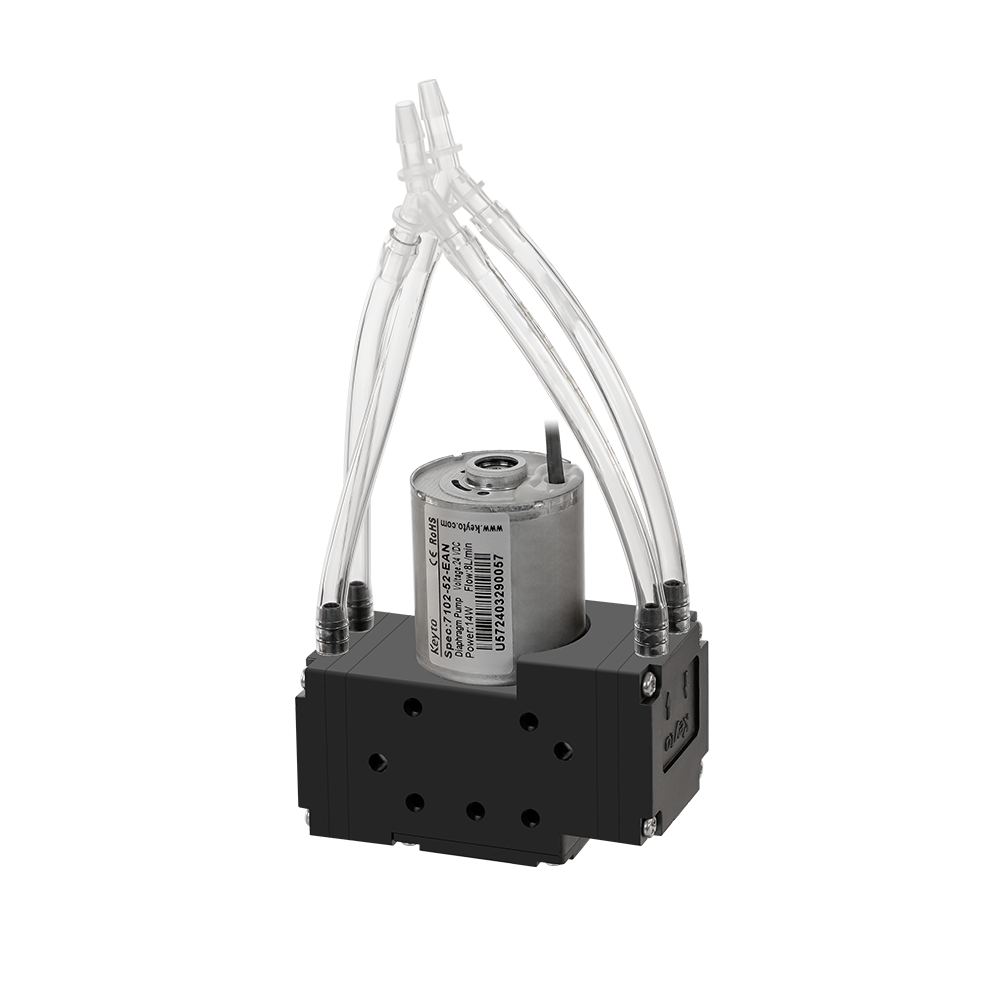

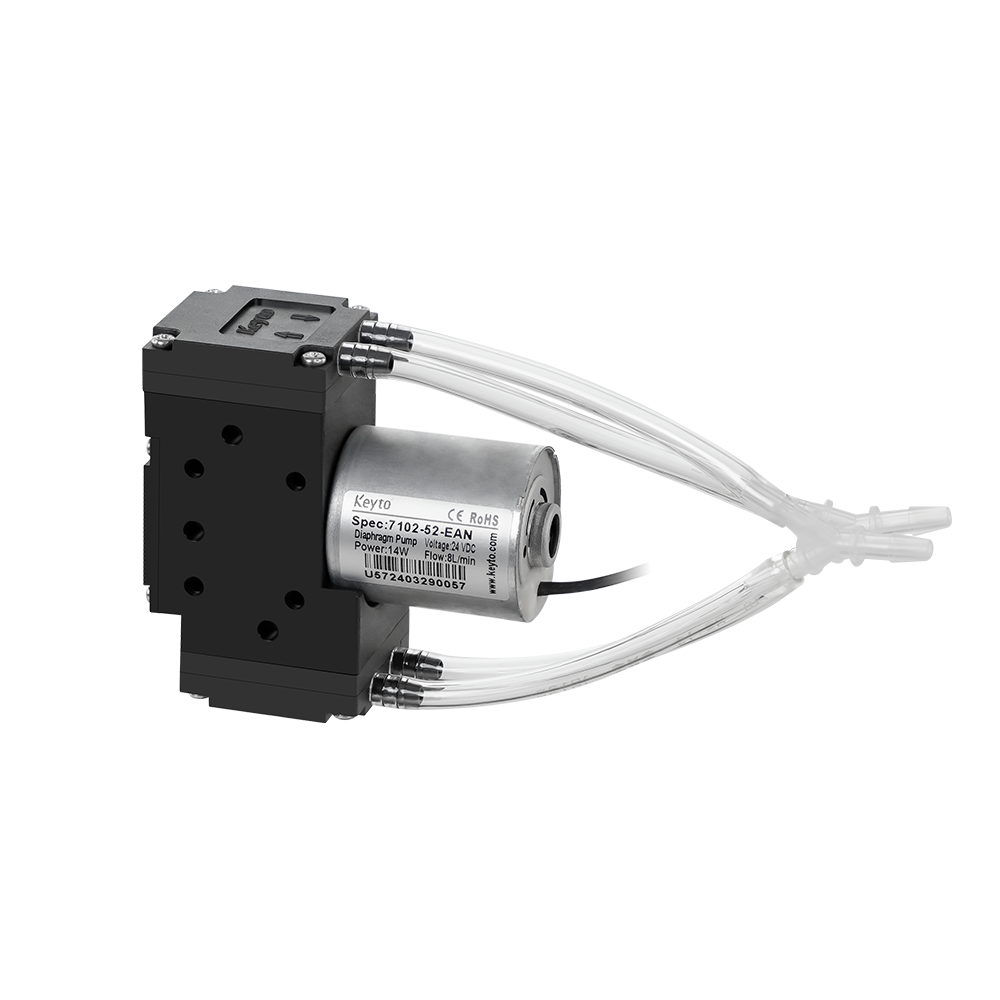

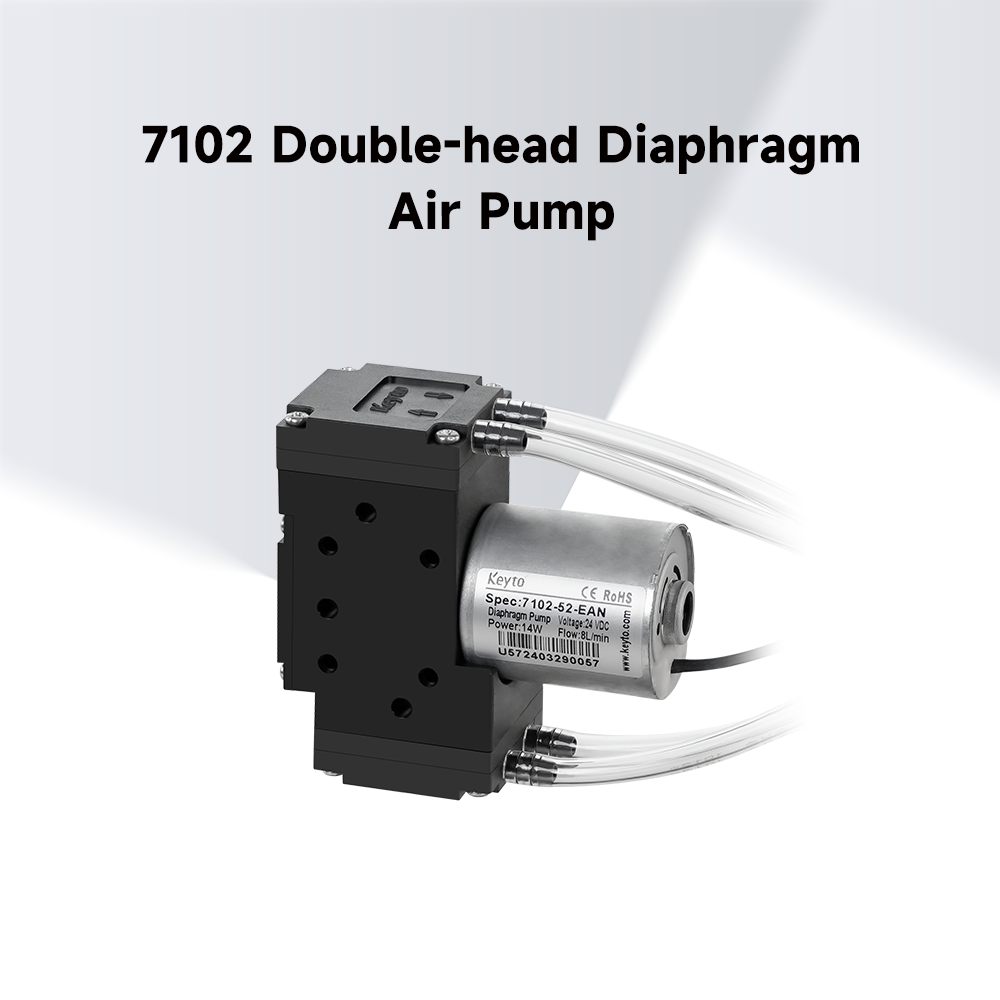

7102 Double-head Diaphragm Air Pump
7102 Double-head Diaphragm Air Pump
The 7102 series diaphragm pump operates with an eccentric wheel driving a flexible diaphragm for intake and discharge through check valves. It offers a clean environment with eansy maintenance design and long service life. The pump features low vibration, minimal noise, excellent sealing, and corrosion resistance. Its compact structure allows for easy installation across various applications.
Key Parameters:
Flow rate
Voltage
Material Option
Motor type
Reference Model:
7102
WhatsApp Contact
Online Message
Model Comparison
7102 Double-head Diaphragm Air Pump
Comparable Products
7521 High Pressure Resistance Liquid Diaphragm Pump
7121 30 Diaphragm Pump
7121 60 Diaphragm Pump
7122 Dual-head Diaphragm Liquid Pump
7101 Single Head Diaphragm Air Pump
7121 30 Diaphragm Pump with Brush
7121 60 Diaphragm Pump with Brush
Model Comparison
Back
Overview
Parameters

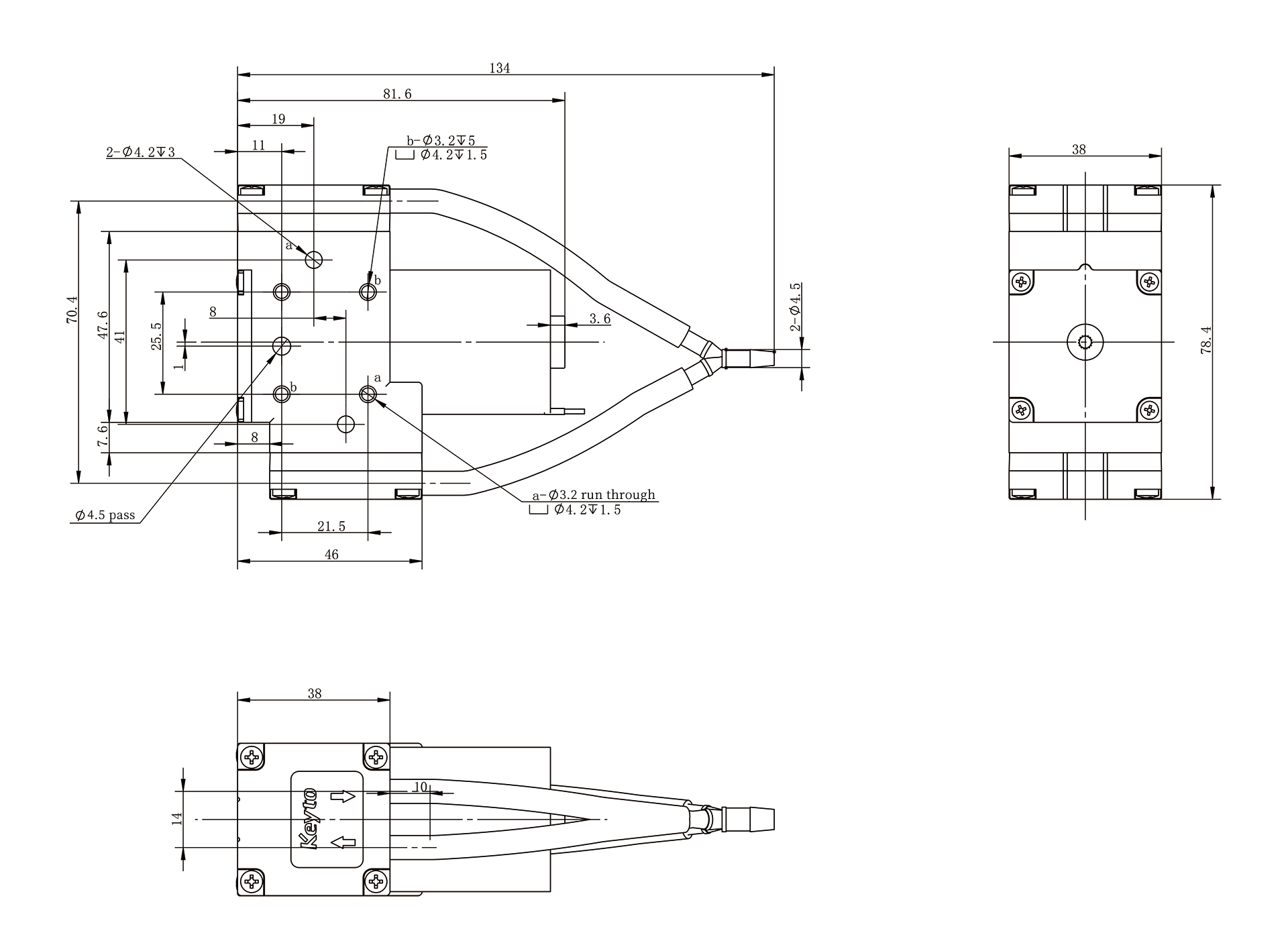

2D View
3D View
Pump Type 7102-5 Double-head Pump
FLow Rate at atm. Pressure
 8L/min
Pump Head Material PP
Diaphragm Material
 EPDM
Hose Connector 4mm Inner Diameter Silicon Hose
Pressure Range

Output Pressure≥120KPa，Vacuum ≤-70KPa

（Please refer to the datasheet under different conditions）
Rated Power 14W
Rated Voltage（DC）
 12V Or 24V
Applicable Medium
 Gas
Service Life
 >10000Hours（brushless motor）
Safety Protection Current
 3.5A
Rated Current
 12V 1A / 24V 0.4A
