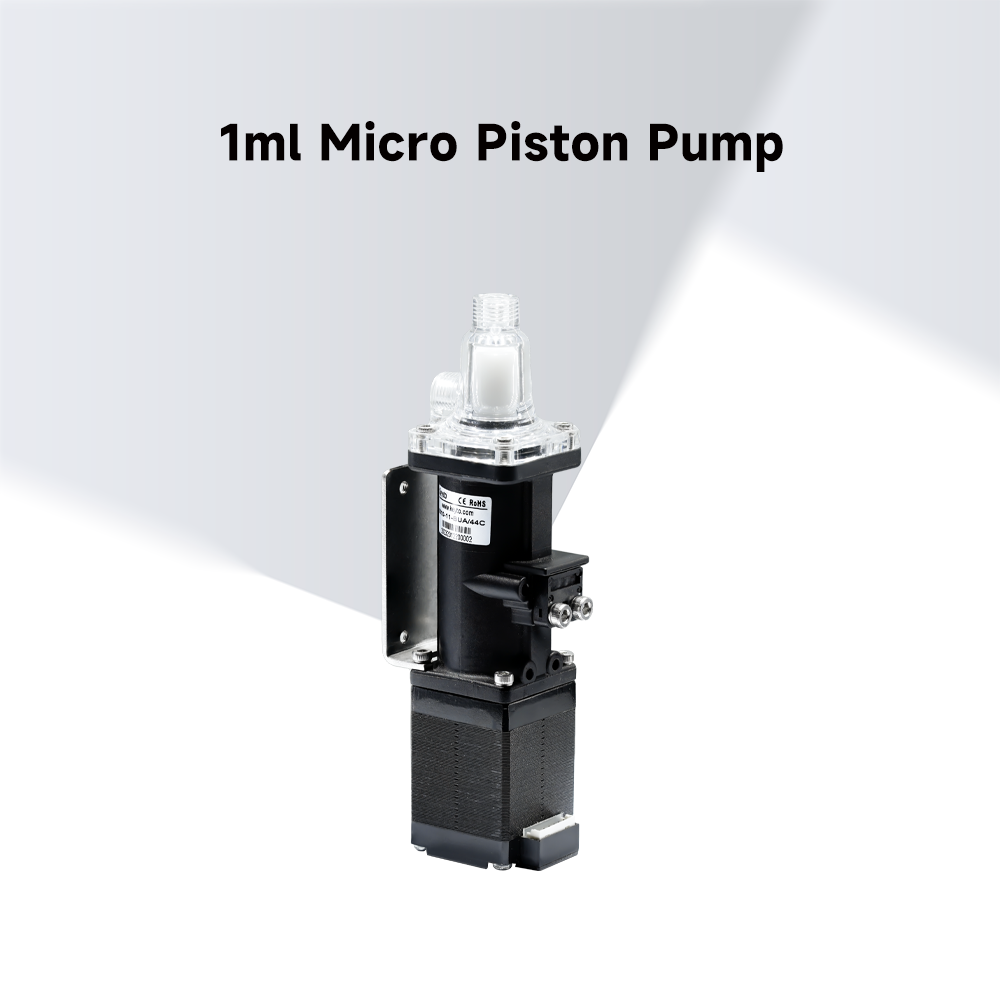

1ml Micro Piston Pump
1ml Micro Piston Pump
The 50xx series piston pump, developed by Keyto, offers high precision and repeatability in sampling and reagent addition, with a repeatability accuracy of less than 0.5% for displacements over 10%. Its transparent chamber design enables visual detection of internal bubbles, while its lifespan exceeds 5 million cycles. Covering a displacement range of 100μL to20 mL, it is a high-performance, maintenance-free pump widely used in chemiluminescence, biochemistry, POCT, and environmental analysis.
Key Parameters:
Current
Port type
Wetted materials
Reference Model:
5010
WhatsApp Contact
Online Message
Model Comparison
1ml Micro Piston Pump
Comparable Products
50XX-V Series Micro Piston Pump
10ml Piston pump
Machined Piston pump
S Series Machined Piston Pump
P Series Piston Pump
Model Comparison
Back
Overview
Parameters

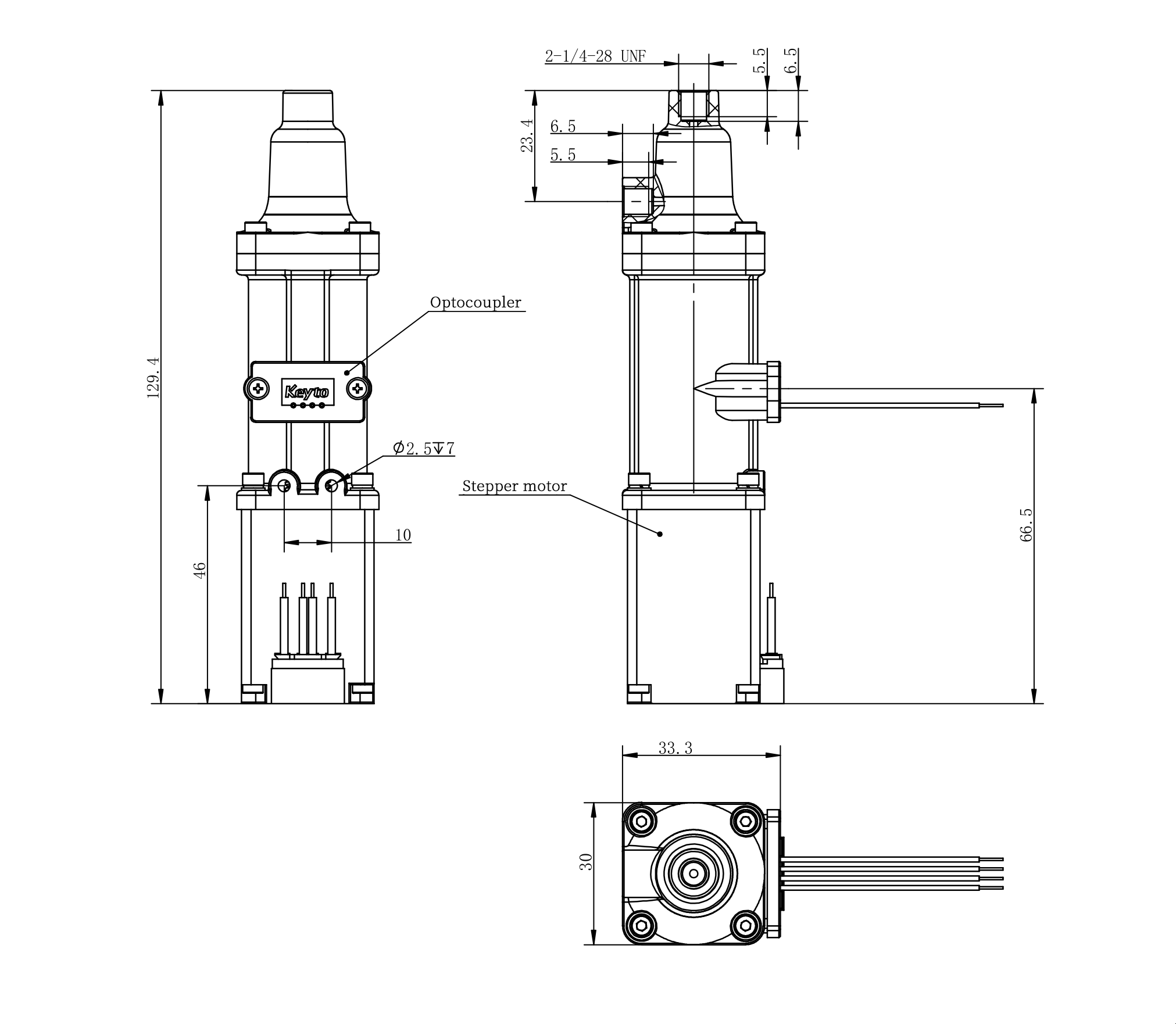

2D View
3D View
Parameter 1ml Micro Piston Pump
Max. volume (μL) 1000
Piston diameter (mm) 10.01
Volume per step (μL/step) 0.5
Stroke (mm) 12.7
Max. RPM (r/s) 8
Motor angle (°) 1.8
Lead (mm) 1.27
Stroke per step (mm/step) 0.00635
CV

CV <0.5%(full stroke)
CV <1.2%(2% stroke)
Life span 3 million cycles
Port type M6, 1/4-28 UNF
Dimension (mm) 173.1*42*49.5


Demo video
Product video
Factory video
