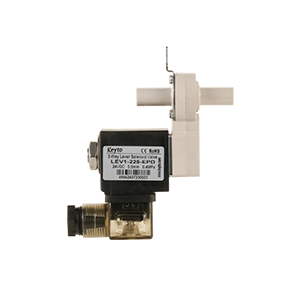

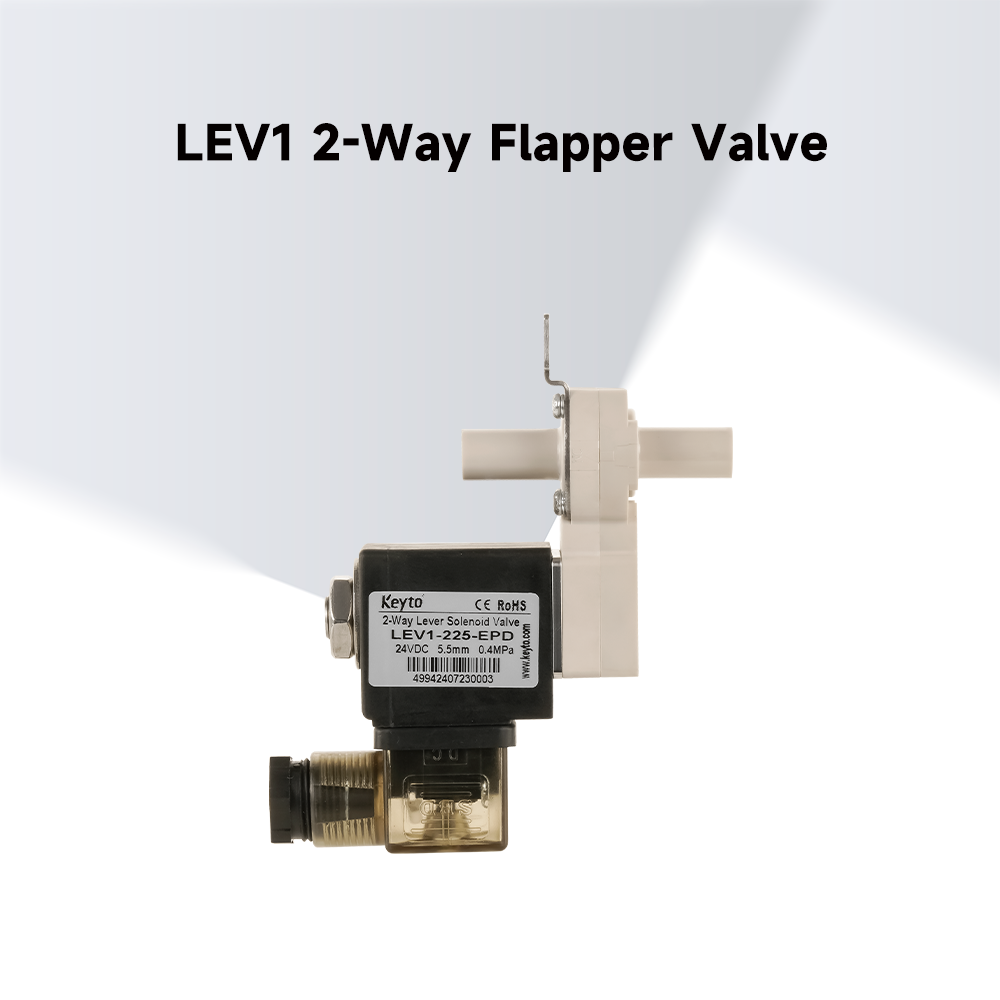

LEV1 2-Way Flapper Valve

The LEV1 series solenoid valve, featuring an advanced diaphragm design, ensures effective high-speed rinsing and efficient waste discharge while preventing clogging by impurities. Its robust construction, including PPS and EPDM materials, offers excellent chemical resistance, high-temperature tolerance, and outstanding sealing performance. With a large 5.5mm orifice, the valve delivers a flow capacity of about 50mL/s and can withstand up to 0.4MPa of working pressure. Its lifespan exceeds 2 million cycles, and its rapid response time is less than 25ms.

Key Parameters:

Voltage

Orifice

Diaphragm+Body

Port Connection

Reference Model:

LEV1-2

WhatsApp Contact

Online Message

E-mail Comparison/Performance

Overview

Parameters

2D View

Valve Structure	Lever-type solenoid valve
Valve Type	2-way, 2-position valve (normally open and normally closed)
Number of Ports	2
Orifice	5.5 mm
Flow Coefficient (Cv)	0.3
Applicable Media	Water, air, weak acids, weak alkalis
Ambient Temperature	-10~60℃
Pressure Resistance (In–Out)	0~0.4 MPa
Leakage	0
Response Time	<30 ms
Voltage Fluctuation Range	-10% to +10%
Power Consumption	10 W
