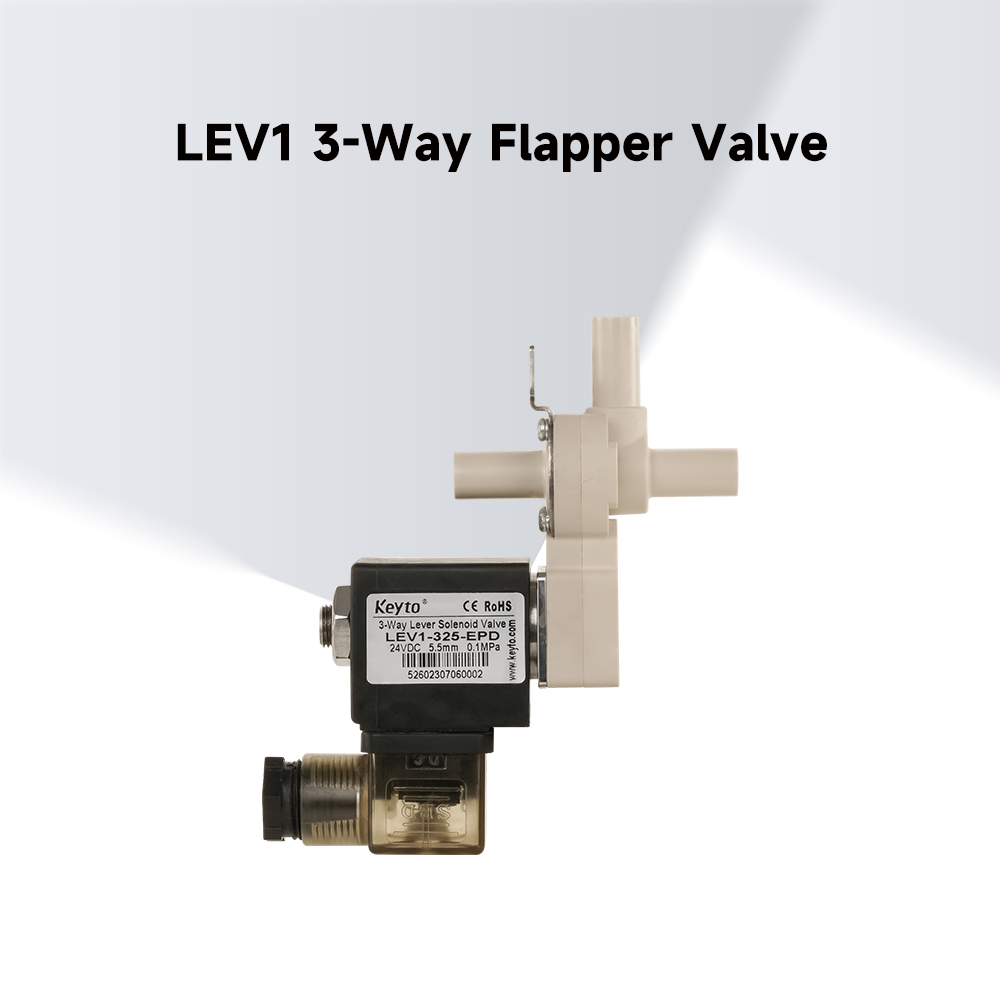

LEV1 3-Way Flapper Valve
LEV1 3-Way Flapper Valve
The LEV1 series solenoid valve, featuring an advanced diaphragm design, ensures effective high-speed rinsing and efficient waste discharge while preventing clogging by impurities. Its robust construction, including PPS and EPDM materials, offers excellent chemical resistance, high-temperature tolerance, and outstanding sealing performance. With a large 5.5mm orifice, the valve delivers a flow capacity of about 50mL/s and can withstand up to 0.4MPa of working pressure. Its lifespan exceeds 2 million cycles, and its rapid response time is less than 25ms.
Key Parameters:
Voltage
Orifice
Diaphragm+Body
Port Connection
Reference Model:
LEV1-3
WhatsApp Contact
Online Message
Comparison/Performance
LEV1 3-Way Flapper Valve
Comparable Products
Comparison/Performance
Back
Overview
Parameters

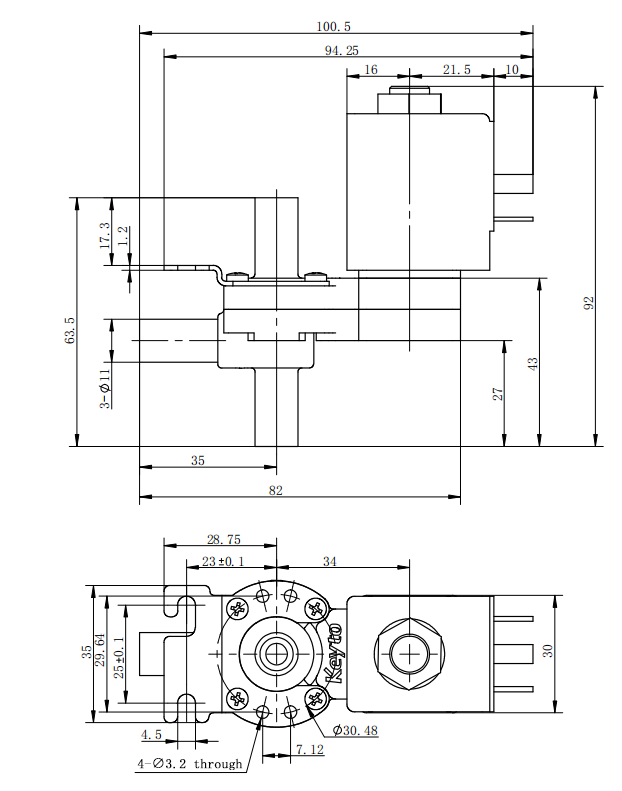

2D View

Valve Structure

Lever-type solenoid valve

Valve Type

3-way, 3-position valve (normally open and normally closed)

Number of Ports

3

Orifice

5.5 mm

Flow Coefficient (Cv)

0.3

Applicable Media

Water, air, weak acids, weak alkalis

Ambient Temperature

-10~60℃

Pressure Resistance (In–Out)

0~0.4 MPa

Leakage

0

Response Time

<30 ms

Voltage Fluctuation Range

-10% to +10%

Power Consumption

10 W
