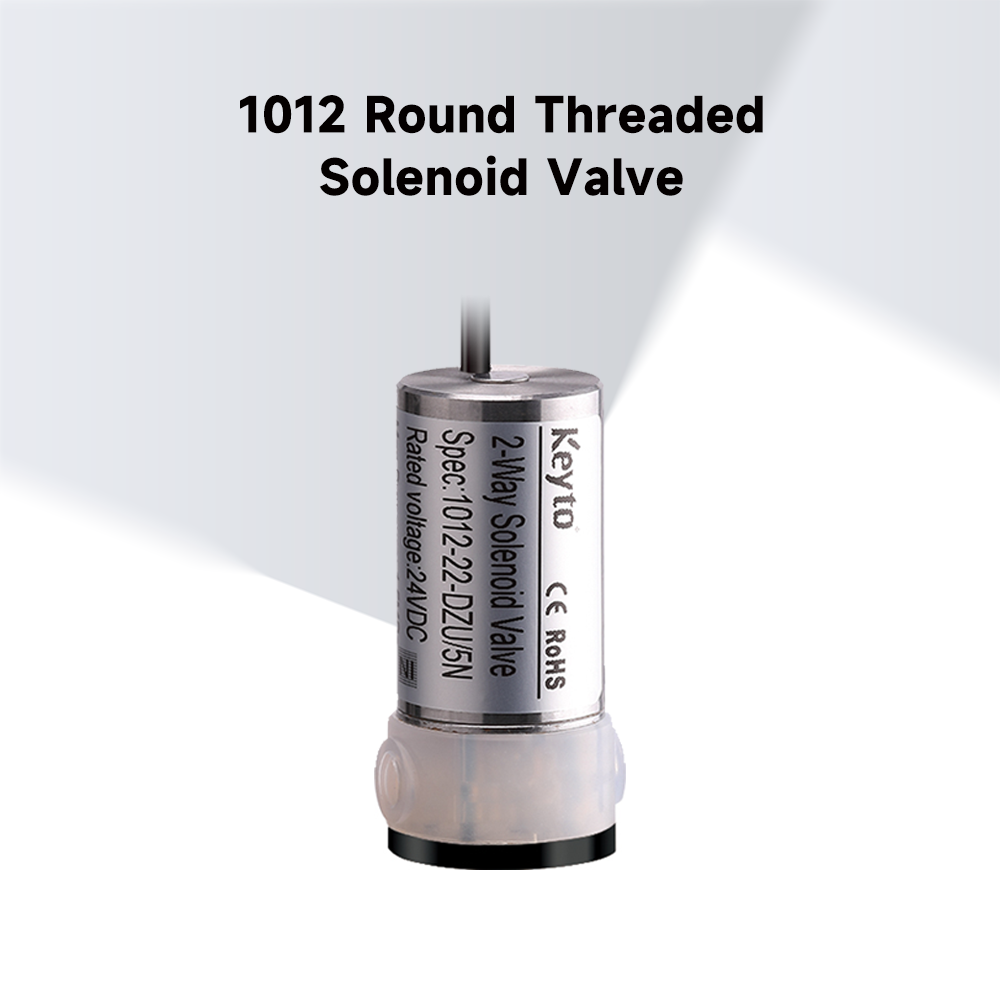

1012 Round Threaded Solenoid Valve
1012 Round Threaded Solenoid Valve
The 1012 series solenoid valve by Keyto is a 1.5mm orifice diaphragm valve designed for on/off liquid control, with resistance to strong acid, alkali, high temperature, and high pressure. Available in 8Kg and 15Kg options, it accommodates various reagents and conditions. With a service life of over 2 million cycles, it delivers high precision and reliability. This low-cost, maintenance-free valve is ideal for demanding fluid control applications.
Key Parameters:
Voltage
Wetted Material
Conection
Reference Model:
1012-22
WhatsApp Contact
Online Message
Model Comparison
1012 Round Threaded Solenoid Valve
Comparable Products
1013-2 way tubing type valve
1013-3 way tubing type valve
1013-2 way tubing type valve (normally open)
1013-2 way base mounted type valve
1013-3 way base mounted type valve
1013-2 way base mounted valve (normally open)
1013-2 way threaded type valve
1013-3 way threaded type valve
1013-2 way threaded type valve (normally open)
1013-3 way Sector threaded type valve
1022-2 way tubing type valve
1022-3 way tubing type valve
1022-2 way threaded type valve
1022-3 way threaded type valve
1032-2 way tubing type valve
1032-3 way tubing type valve
1042-2 way threaded type valve
1042-2 way base mounted type valve
1042-2 way tubing type valve
1042-3 way tubing type valve
1021 2-way Base Mount Solenoid Valve
1021 3-way Base Mount Solenoid Valve
1021 2-way Base Mount Valve (Normal Open)
1021 2-way Threaded Type Solenoid Valve
1021 3-way Threaded Type Solenoid Valve
1021 2-way Tubing Type Solenoid Valve (vertical version）
1021 3-way Tubing Type Solenoid Valve (vertical version)
1021 2-way Tubing Type Solenoid Valve（vertical version）
1021 Tubing Type Solenoid Valve(horizontal version)
1021 3-way Tubing Type Solenoid Valve (horizontal version)
Model Comparison
Back
Overview
Parameters

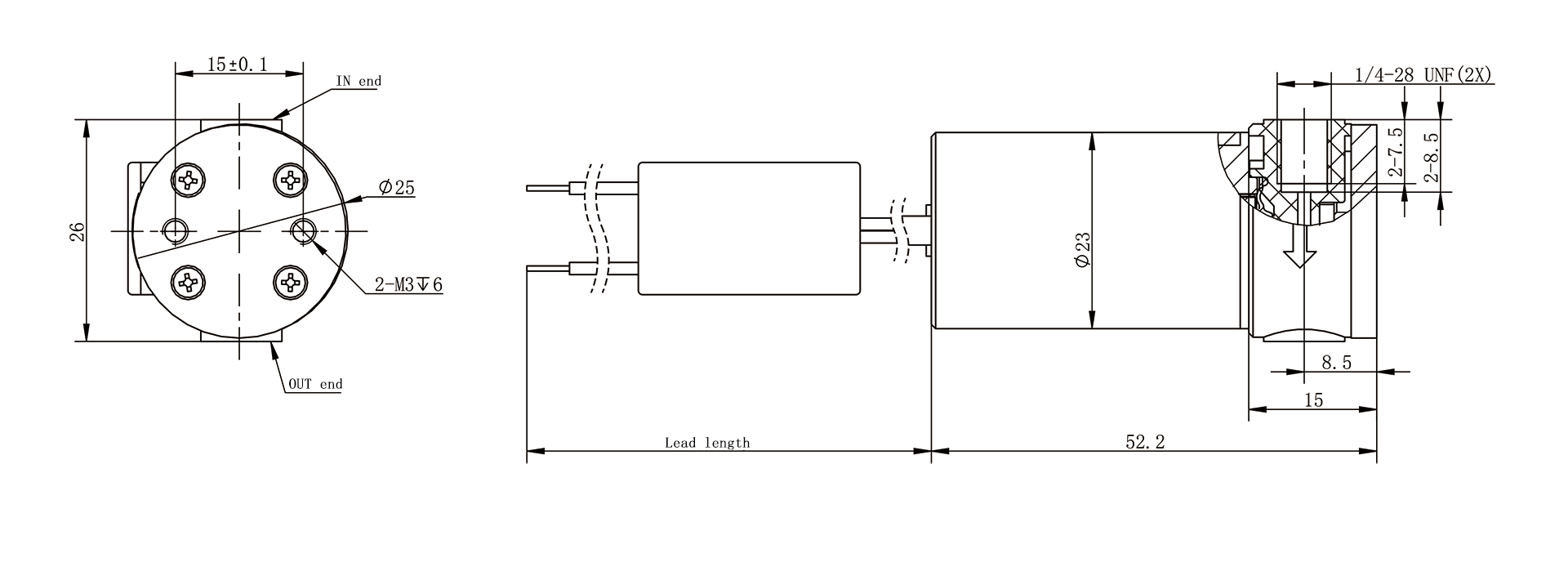

2D View
3D View
Valve Type 1012 2-way Round Threaded Valve
Structure Direct-operated Solenoid Valve, 2-way N.C.
Port Number 2（Assigned Inlet & Outlet）
Body Material PTFE、PVDF
Diaphragm Material FFKM
Voltage 24V
Orifice 1.3mm
Pressure 0-1500kPa
Flow Rate 5.1g/s（25℃，50KPa，Purified water）
