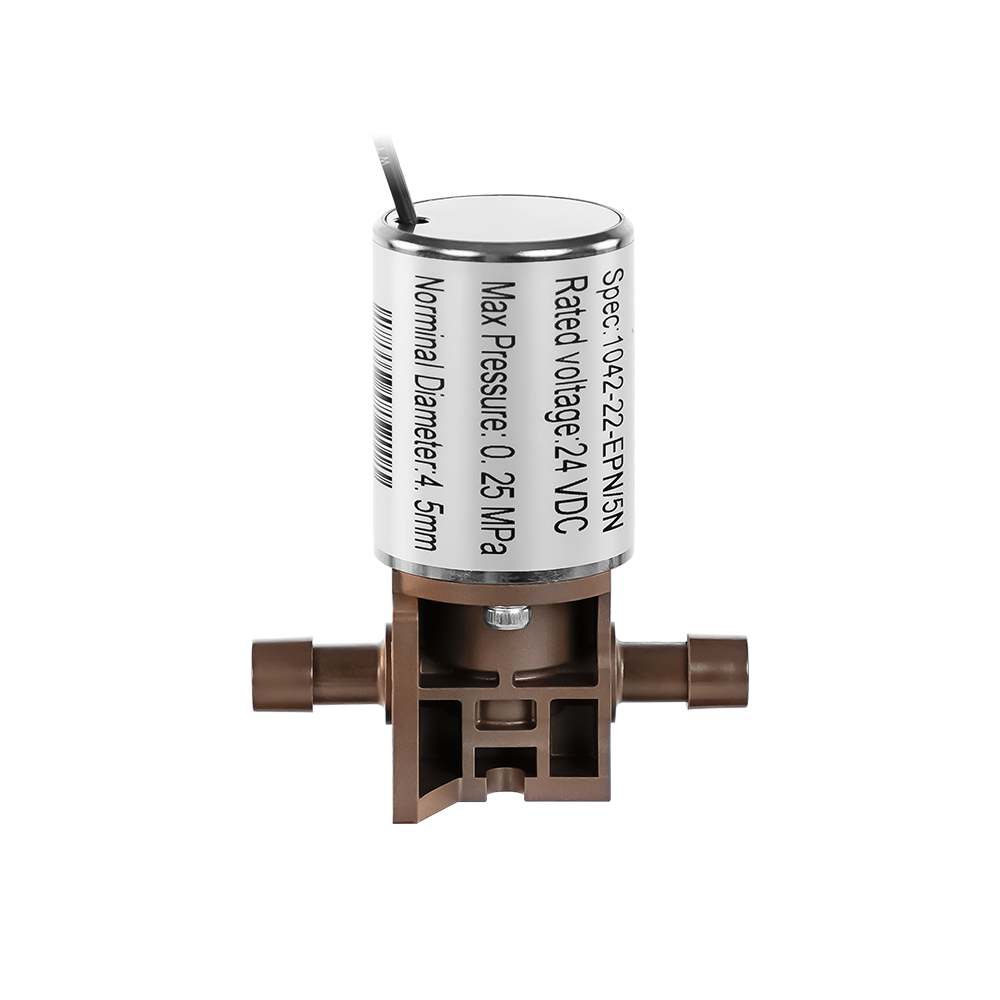

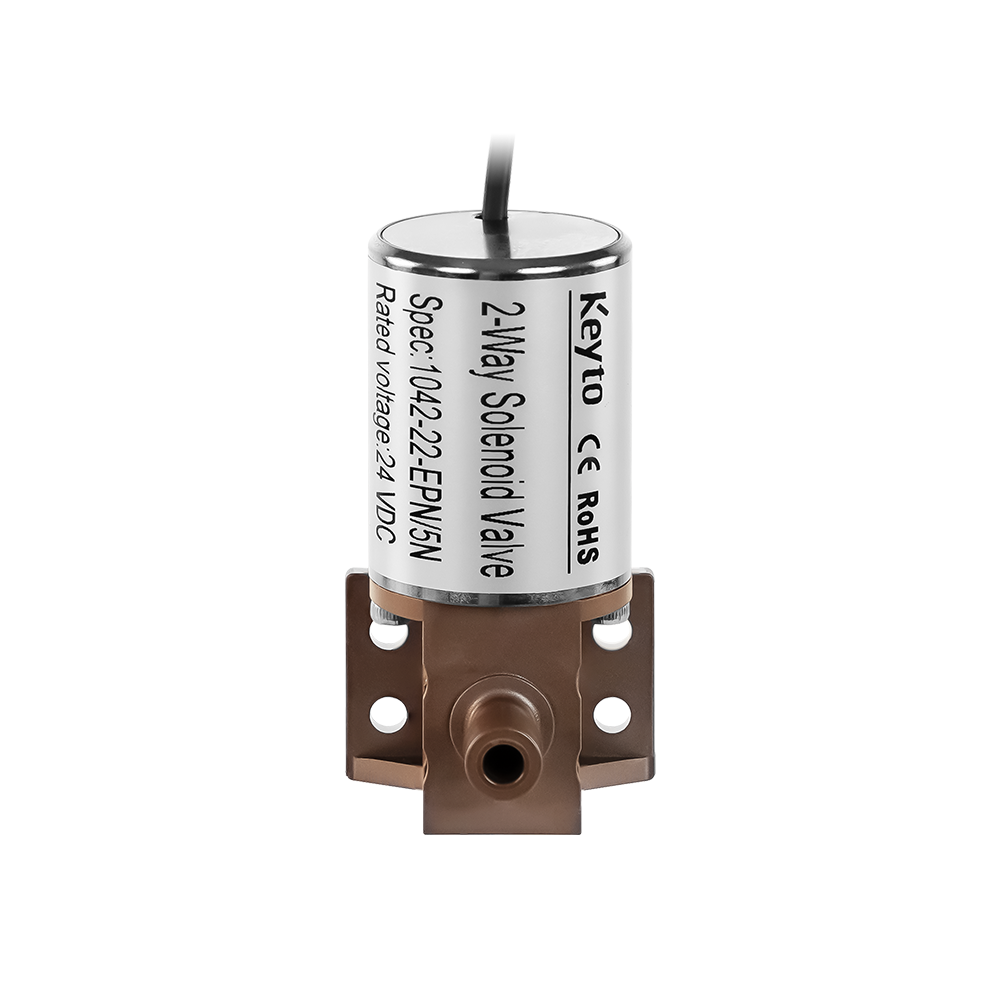

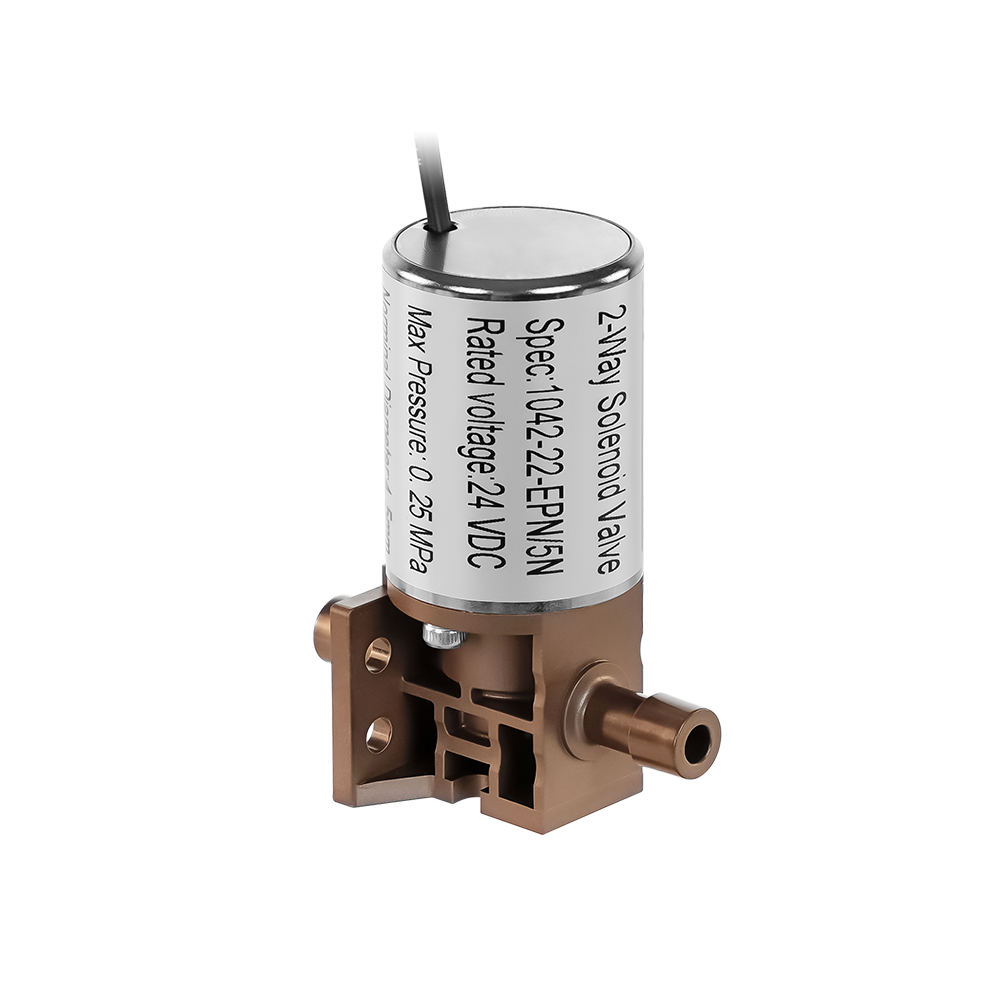

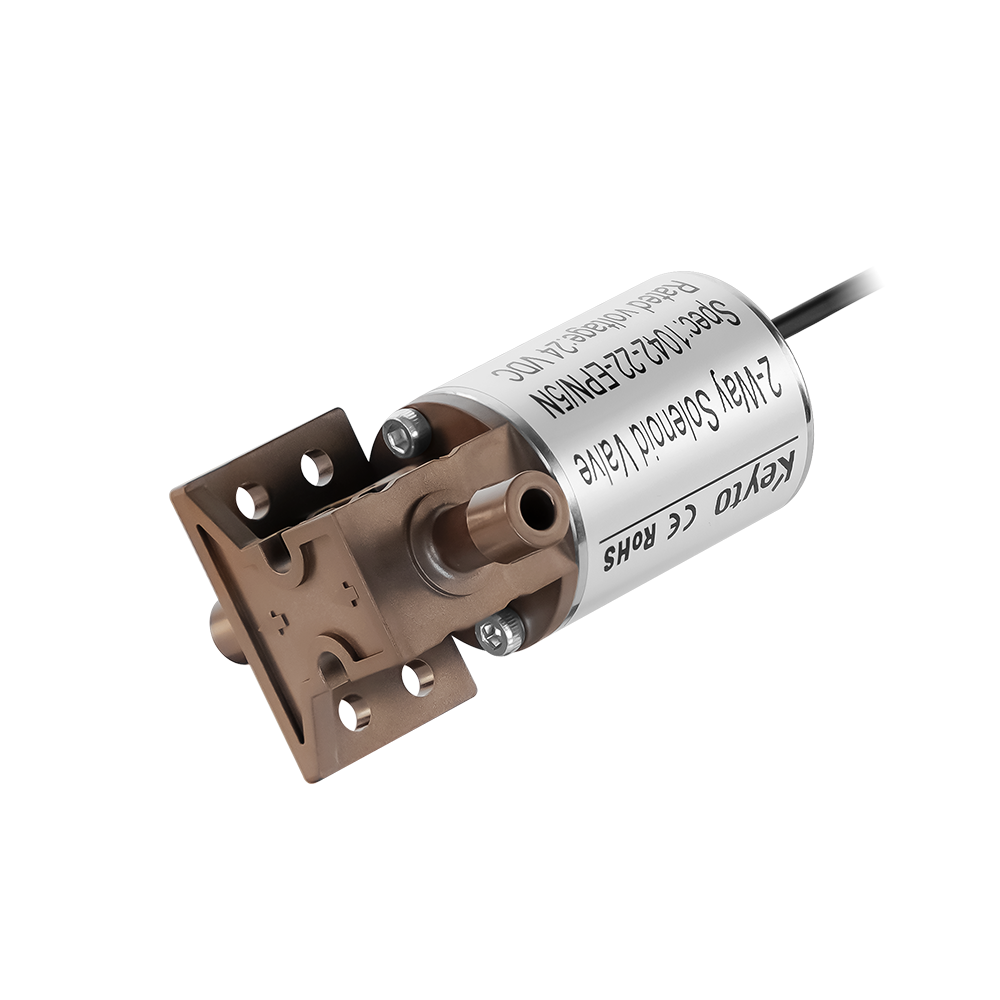

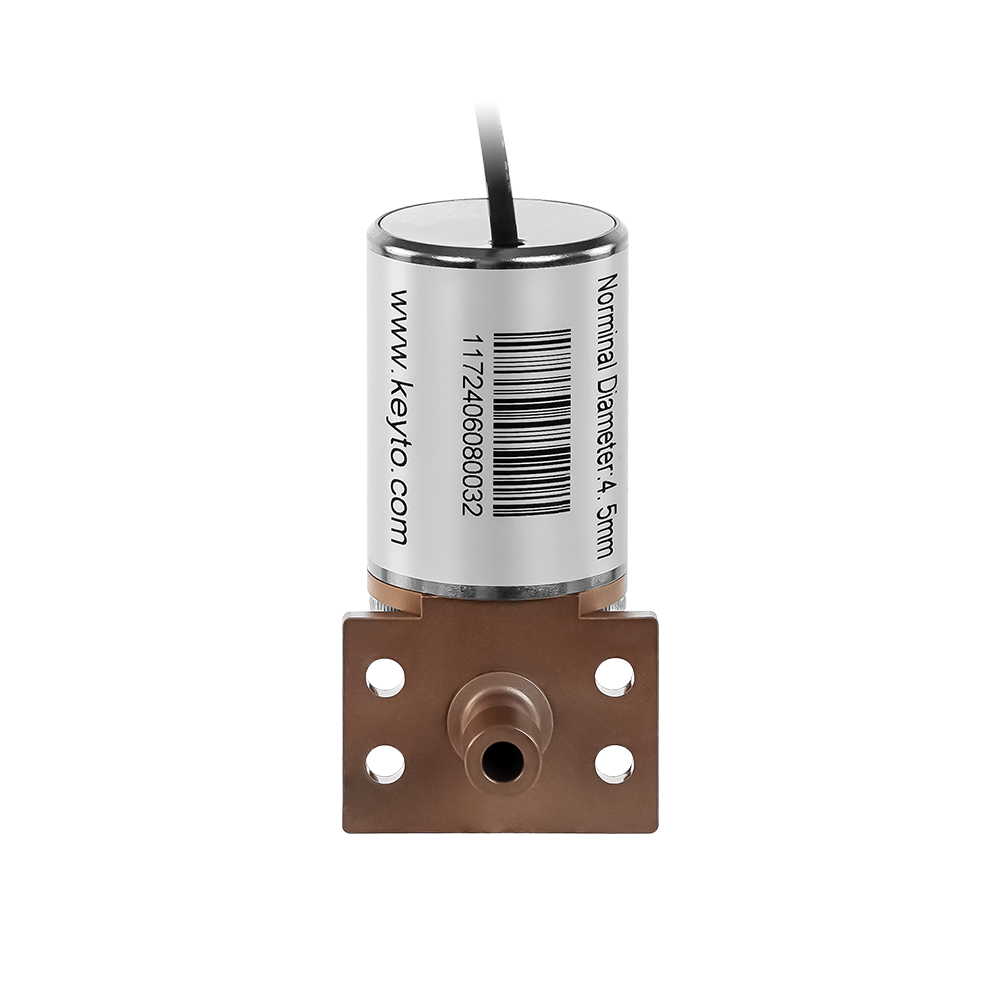

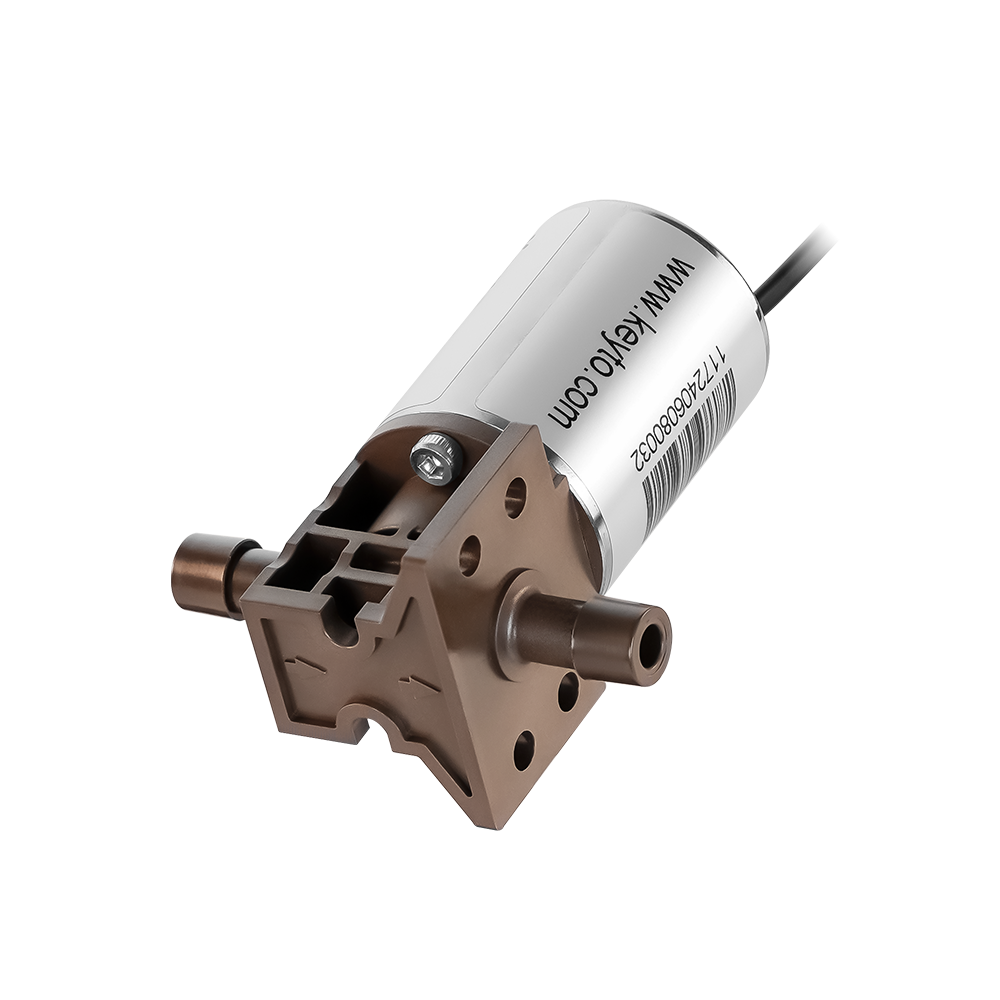

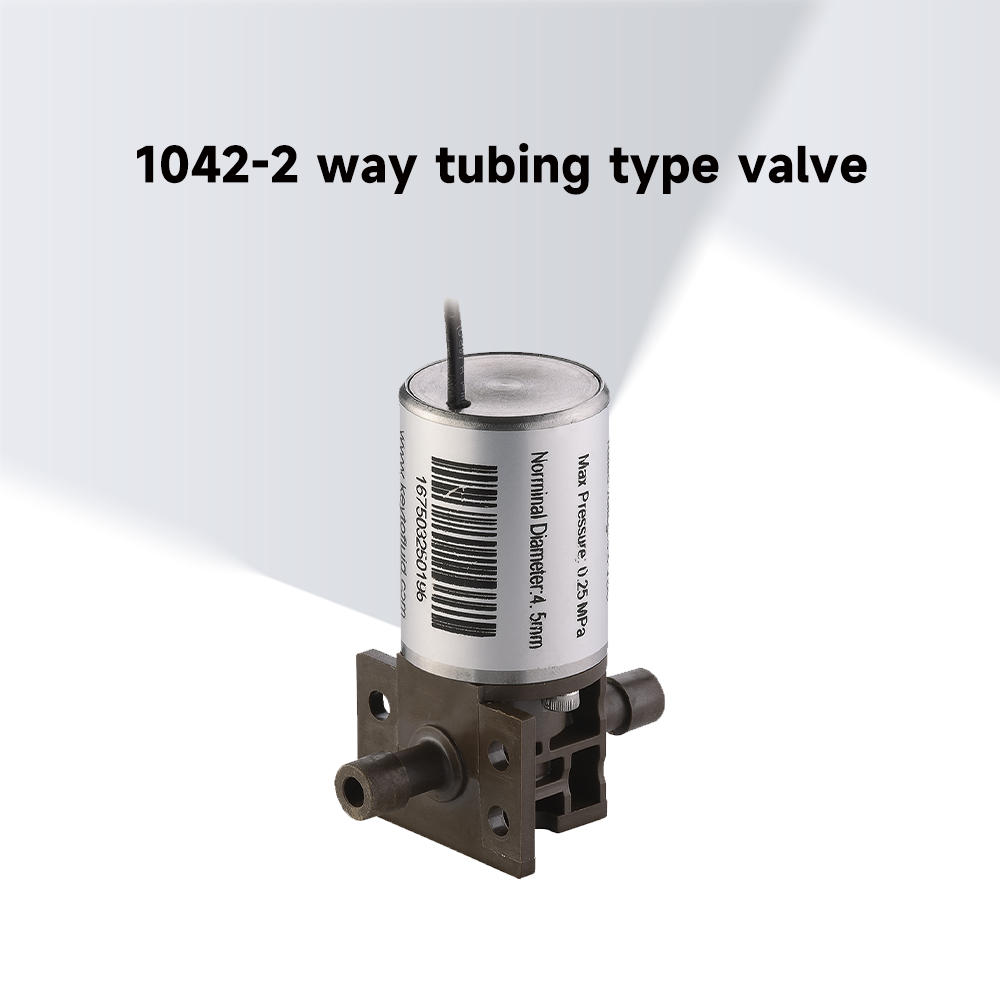

1042-2 way tubing type valve
1042-2 way tubing type valve
The 1042 series solenoid diaphragm valve by Keyto is a direct-acting valve with a 4.5-5mm orifice diameter, designed for controlling the on/off flow of fluids. It offers high performance, low cost, and maintenance-free operation. Available in multiple models, it accommodates various reagents and working conditions. Its reliable design ensures optimal fluid control across diverse applications.
Key Parameters:
Voltage
Wetted material
Reference Model:
1042-2
WhatsApp Contact
Online Message
Comparison/Performance
1042-2 way tubing type valve
Comparable Products
Comparison/Performance
Back
Overview
Parameters

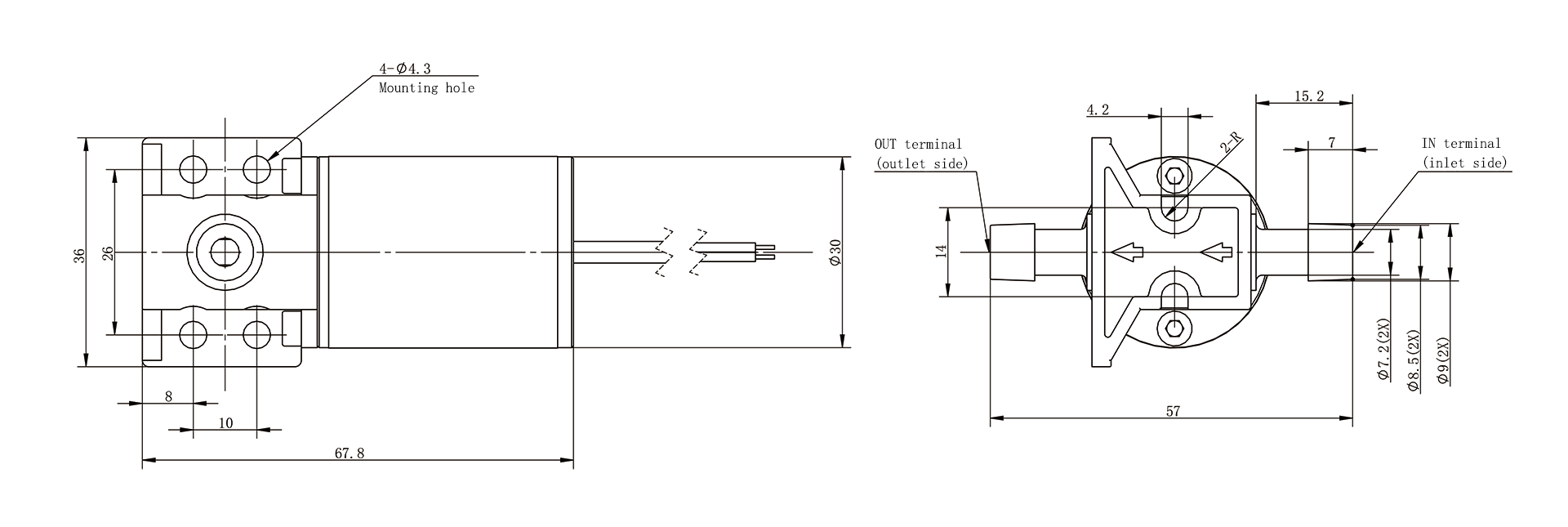

2D View
3D View
Type 1042-2 way tube connection type
Structure  Direct acitng diaphragm-2 way NC
No.Of Ports 2 (Specify entry and exit ends)
Size of tube Suitable for tube diameter ≥6.5mm silicon tube (Shore hardness about 60 degrees)
Body material PPS
Membrane material
EPDM/ETP(special fluorine rubber)
Voltage 12V/24V
Orifice 4.5mm
Flow rate 34g/s(25℃, 50KPa , pure water)
