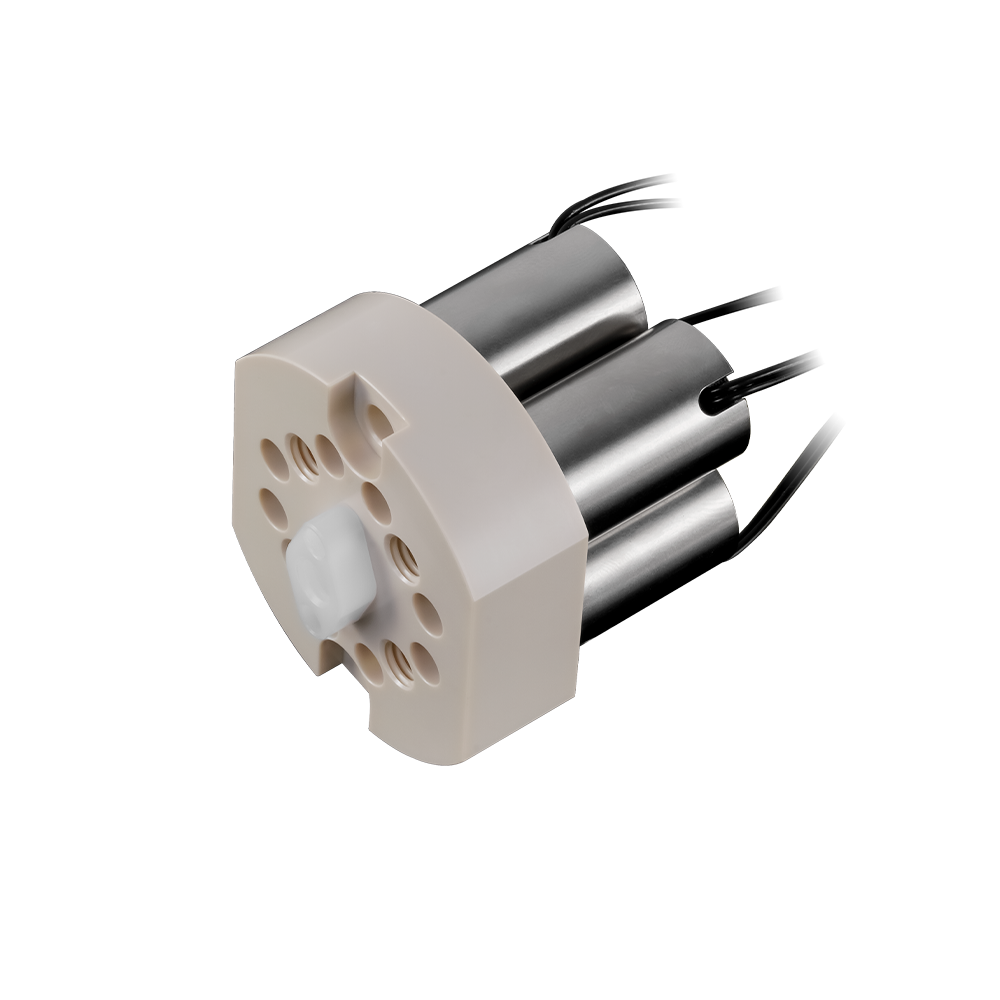

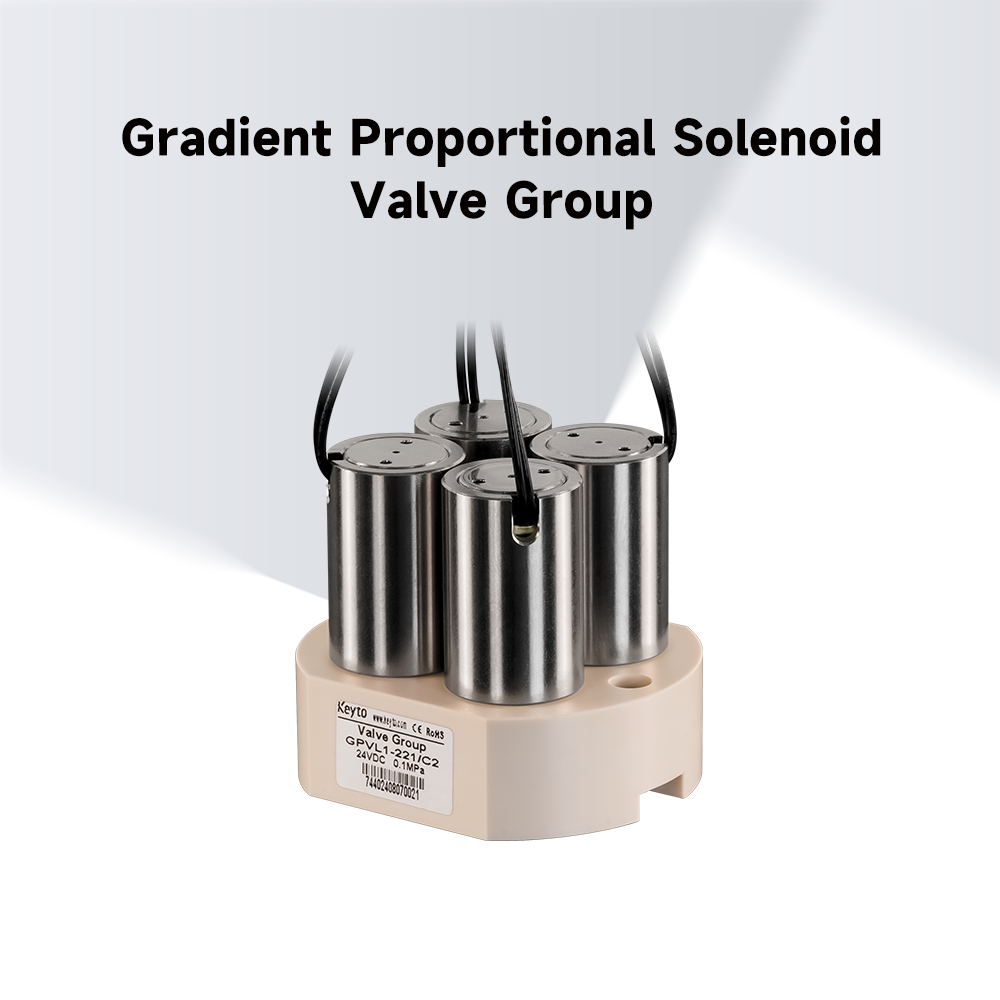

Gradient Proportional Solenoid Valve Group
Gradient Proportional Solenoid Valve Group
This solenoid valve manifold offers multiple customizable configurations with different port numbers, arrangements, and mounting options to meet diverse application needs. It features low dead volume, high chemical compatibility with wetted materials like PTFE, POM, EPDM, and FKM, and operates with a lifespan exceeding 2 million cycles. Designed for high performance, low cost, and maintenance-free use, it ensures long-term reliability. Comprehensive system packages and quality service enhance its value and application flexibility.
Key Parameters:
阀体材质
膜片材质
Reference Model:
GPVL1
WhatsApp Contact
Online Message
Comparison/Performance
Gradient Proportional Solenoid Valve Group
Comparable Products
Comparison/Performance
Back
Overview
Parameters

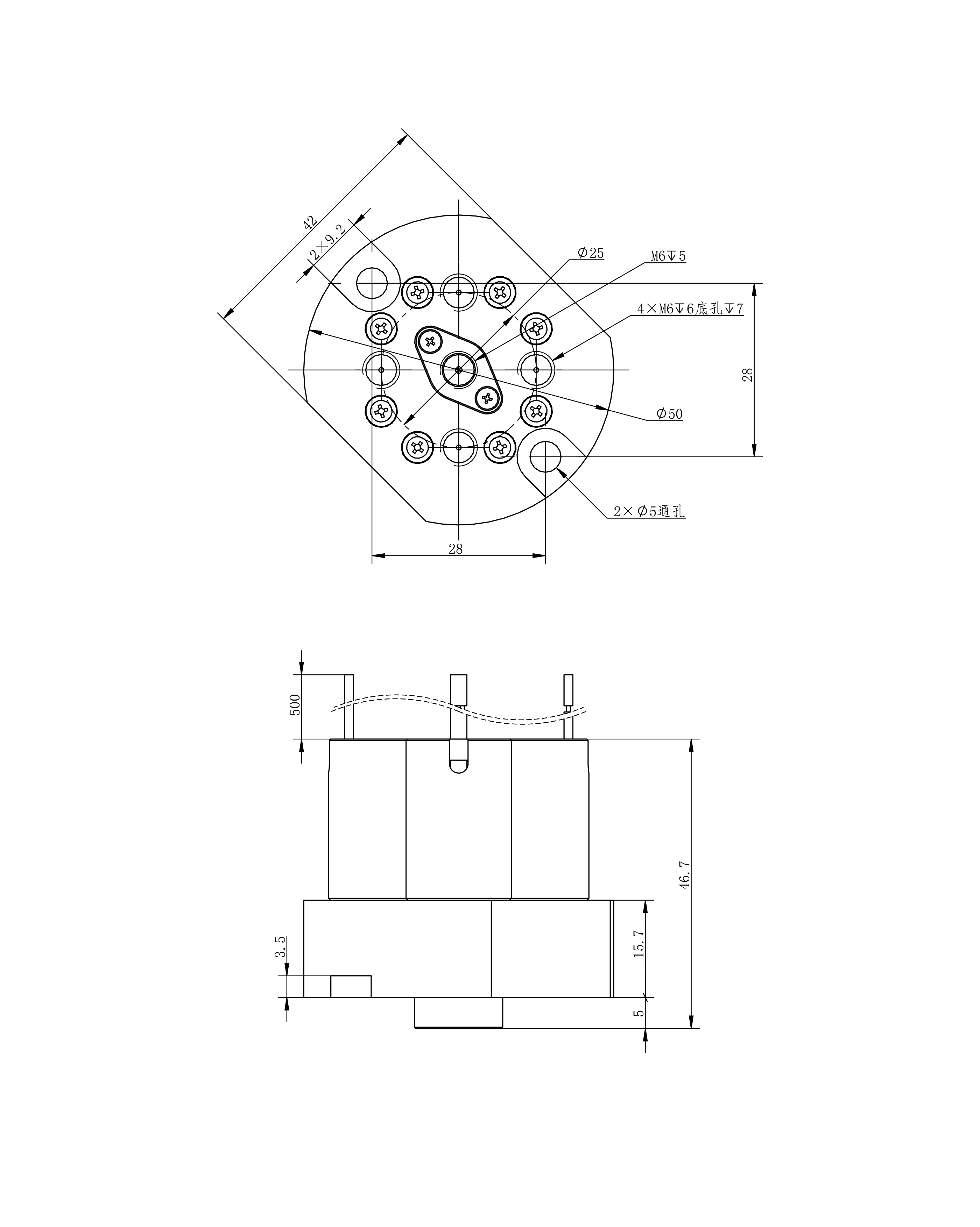

2D View
3D View

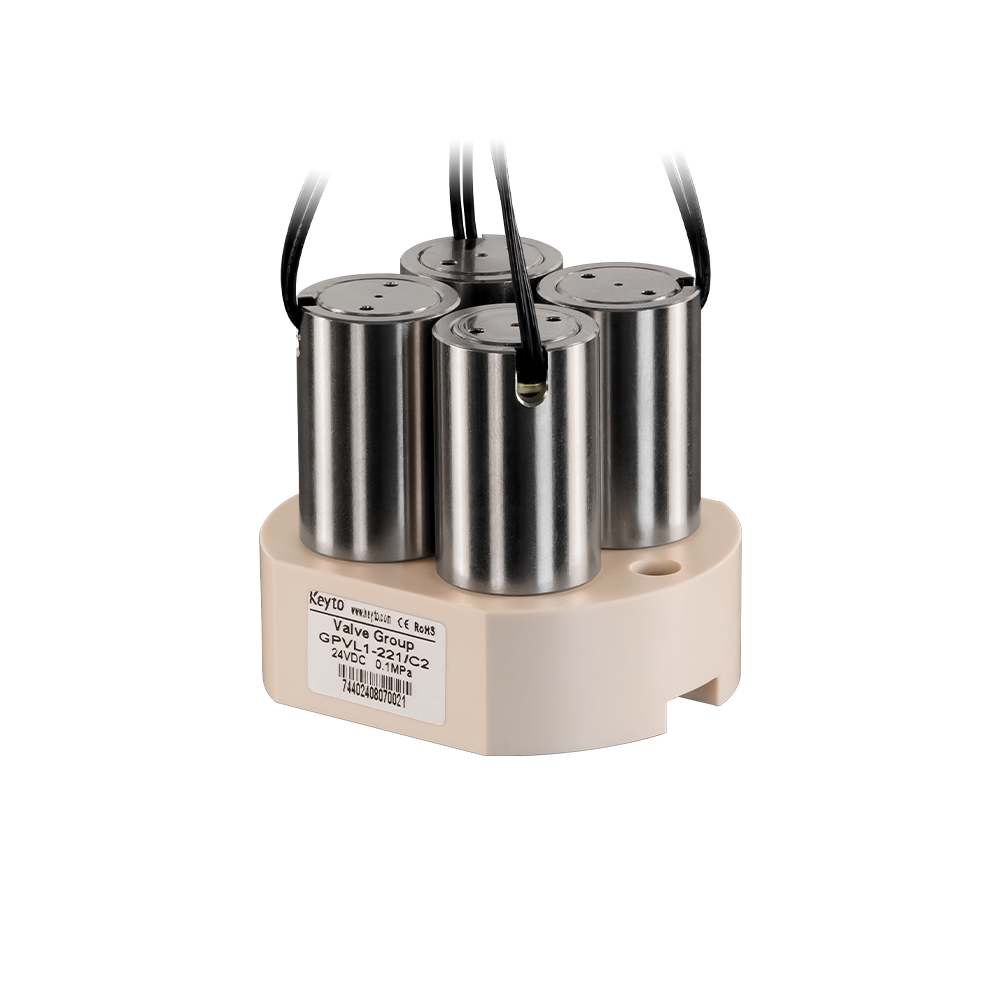

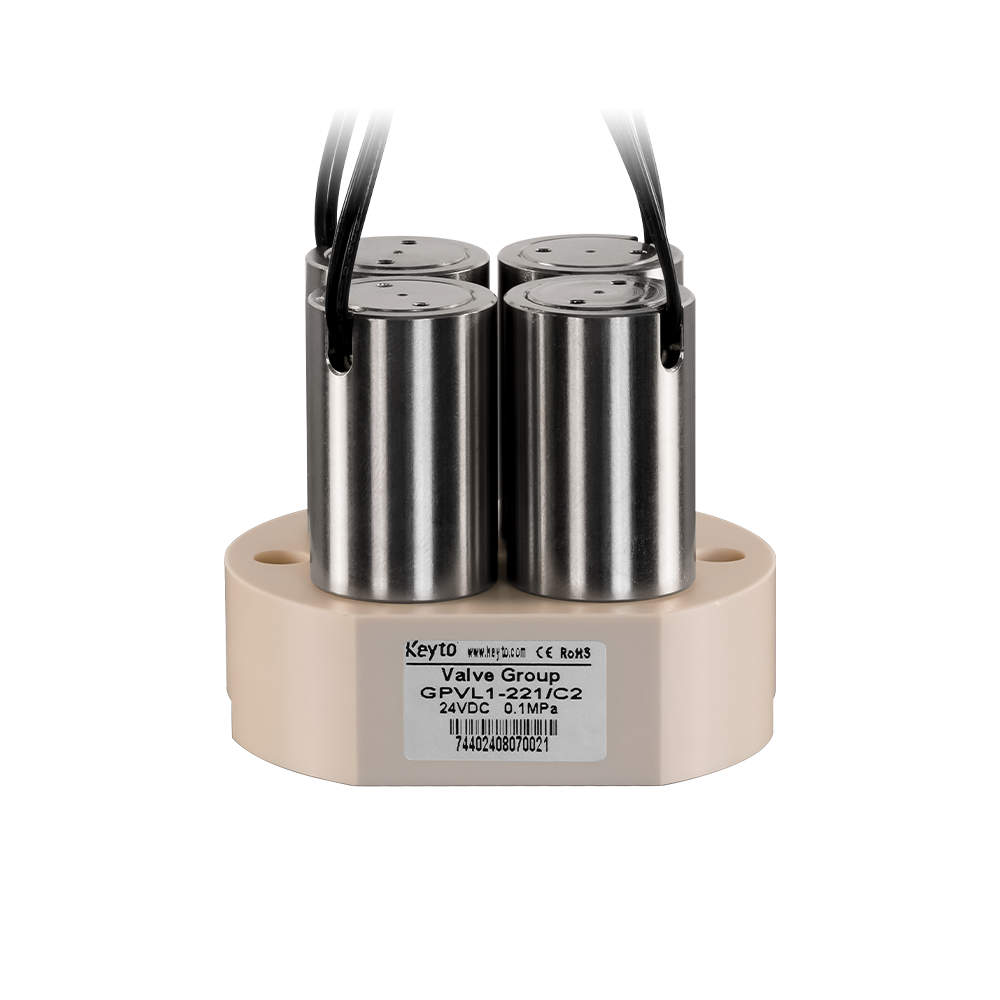

Product Model GPVL1-221/C2
Suitable Medium Strong Acid&Alkali, Organic Solvent
Pressure Resistance 0.1MPa(Positive)
-50kPa(Negative)
Material Valve Body: PEEK(Optional)
Diaphragm: FFKM
Life Span 10 Million Times
Enviroment Temperature 5℃~55℃
Medium Temperature 5℃~40℃
Response Time (OFF-ON/ON-OFF):<5ms
Input Voltage 24VDC; Normal Voltage: 12V
Power Single10W; Normal Power: 2.5W
Fluctuation of Voltage -10%~+10%
Coil Grade F
