Fluid Volume:

30ul-170ul

Back

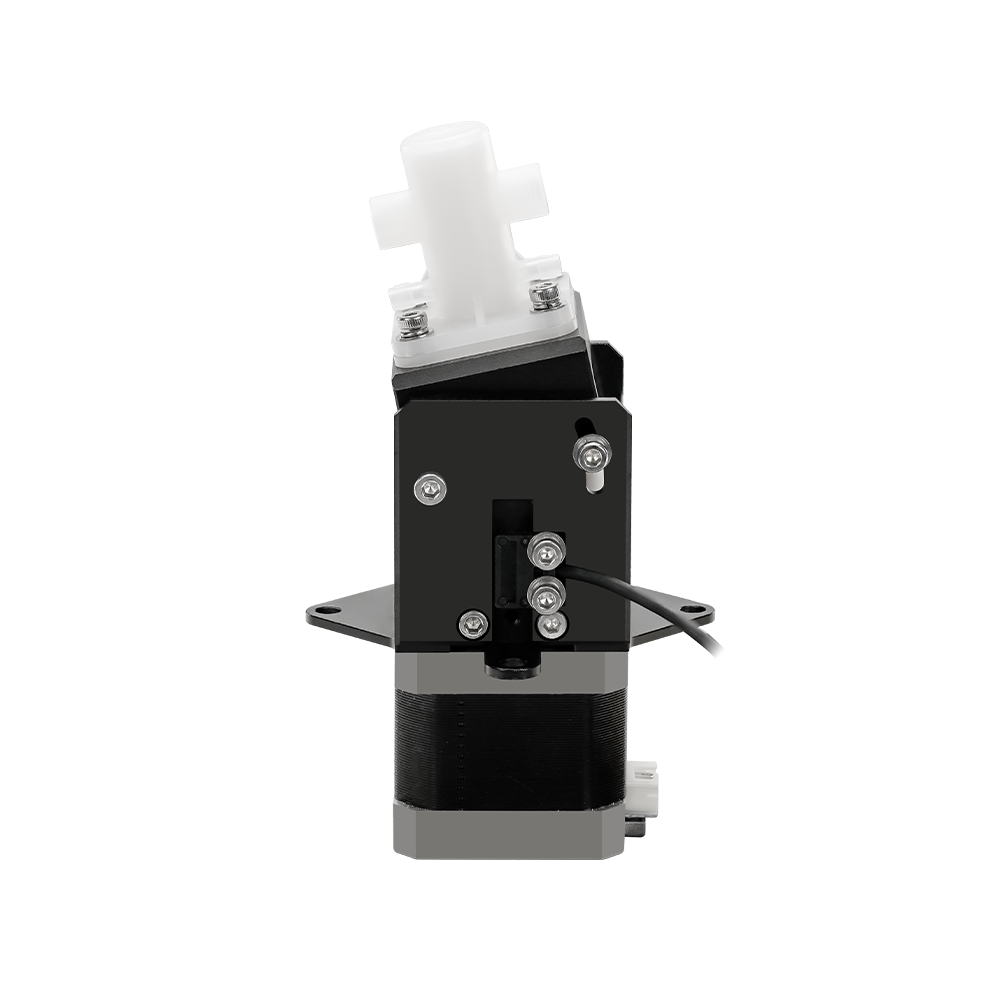

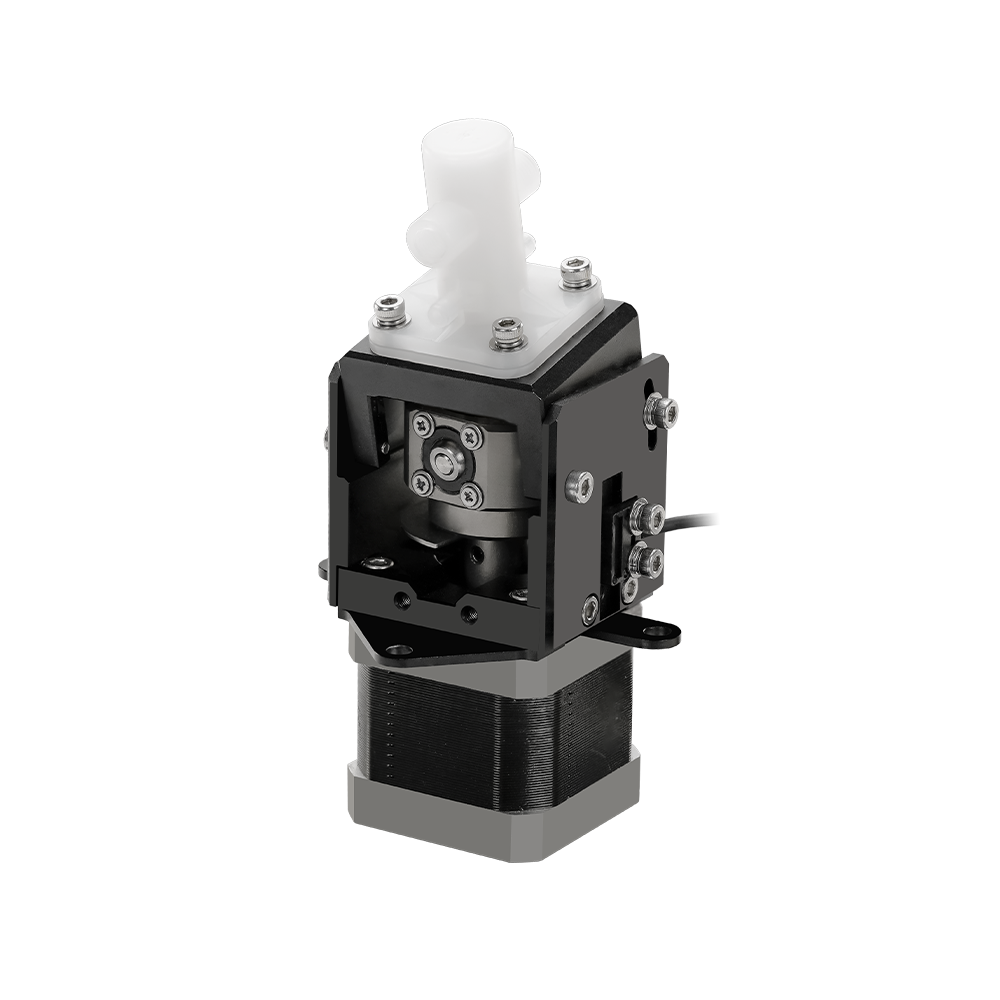

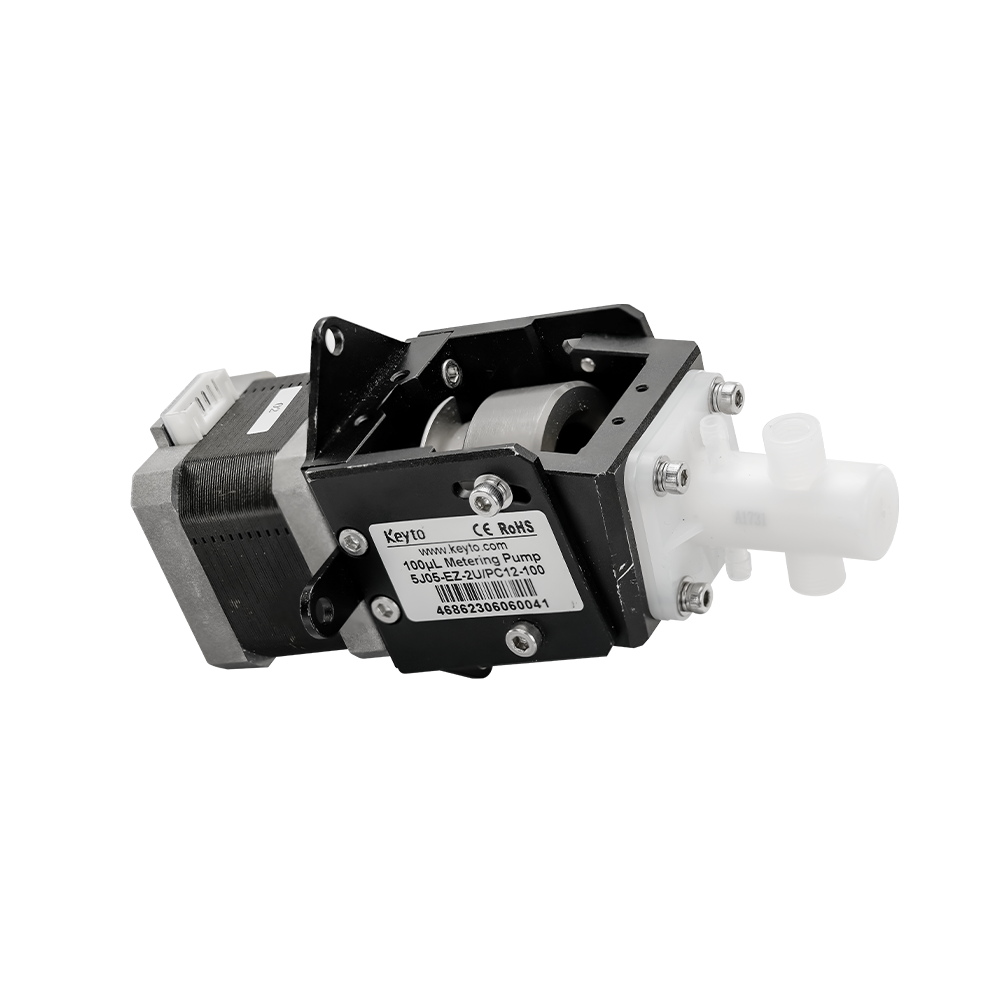

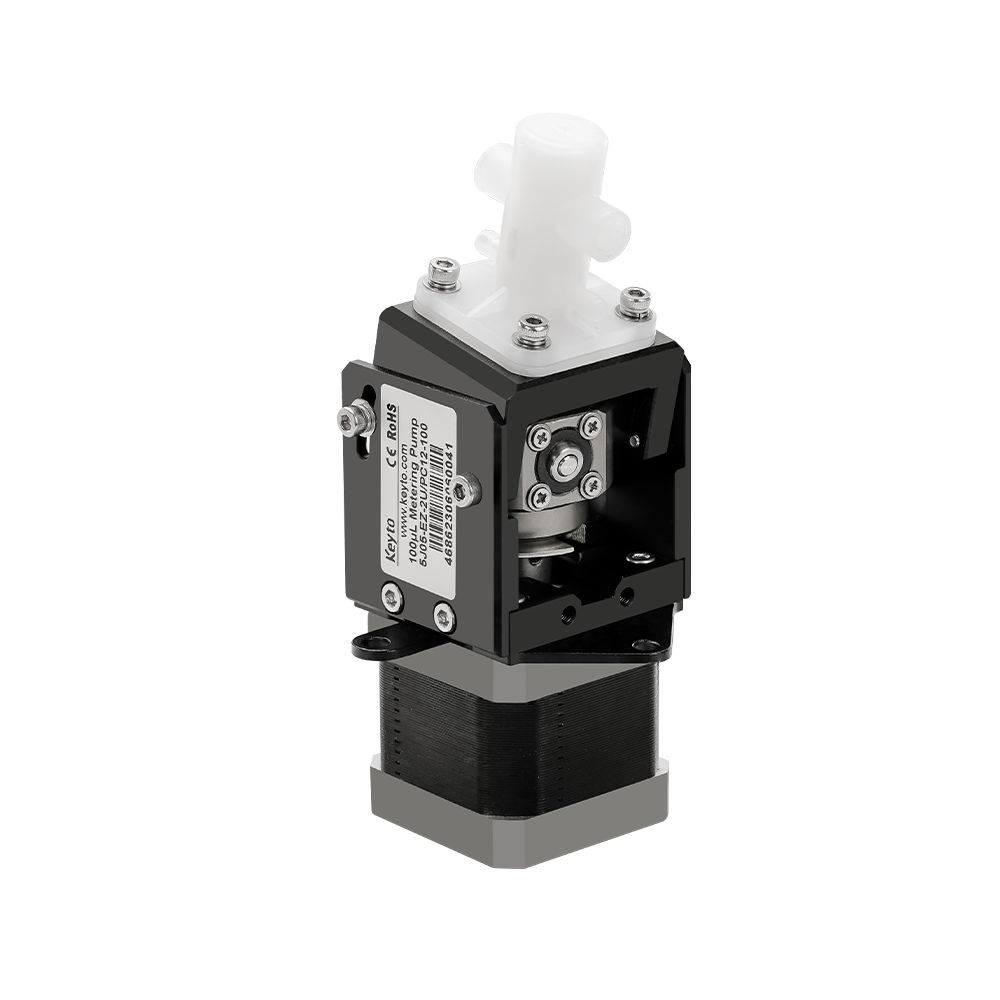

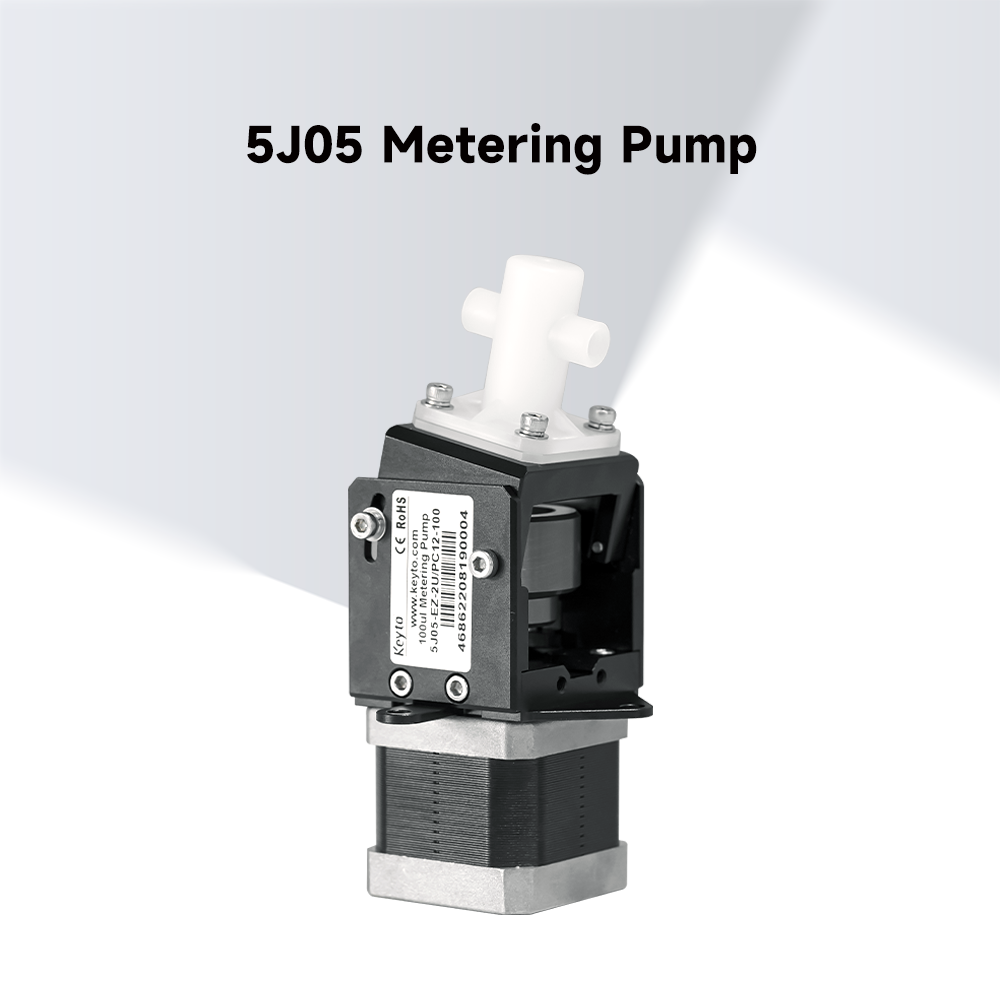

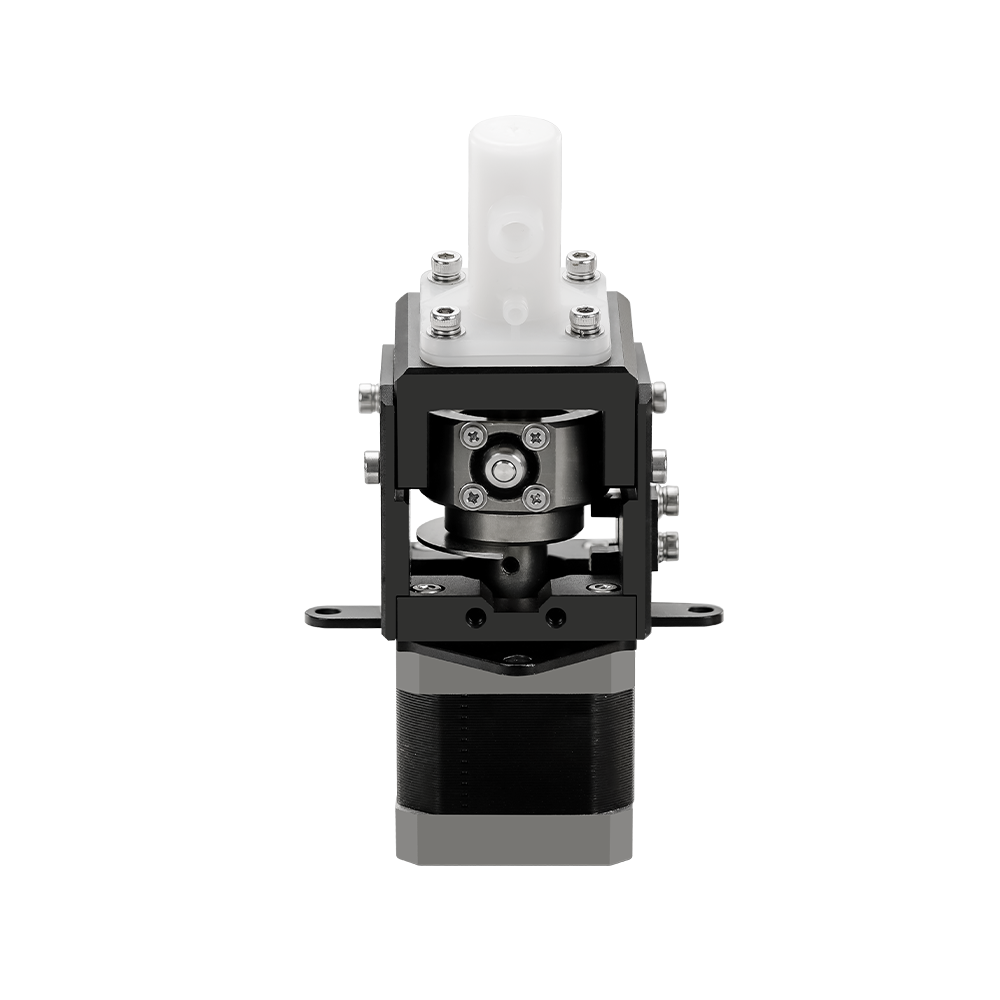

5J05 Metering Pump

The metering pump features a stepper motor drive and imported joint ball bearings, ensuring smooth and durable operation. With a stroke adjustment range of 0.5-20° and a suction lift of 4m, it provides precise liquid metering throughout its service life. Equipped with a photoelectric sensor for accurate start position detection, it ensures high stability and precision in liquid handling. The high-performance 1.8° two-phase stepper motor delivers reliable performance and long service life.

Key Parameters:

Wetted Material Options

Parameter

Volume

Reference Model:

5J05

WhatsApp Contact

Online Message

E-mail Comparison/Performance

5J05 Metering Pump

Comparable Products

5J07 Metering Pump

5J10 Metering Pump

Comparison/Performance

Back

Overview

Parameters

2D View

3D View

Parameter	Metering Pump
Dispense (μL)	0-170
Plunger diameter(mm)	5
Max. stroke(mm)	8.9
RPM	5-600
Motor angle 1.8°	NEMA42
Max. suction lift(m)	4
CV	0.5%
Life span(million cycles)	30
Port type	1/4-28 UNF
Max. tilt angle	20°
