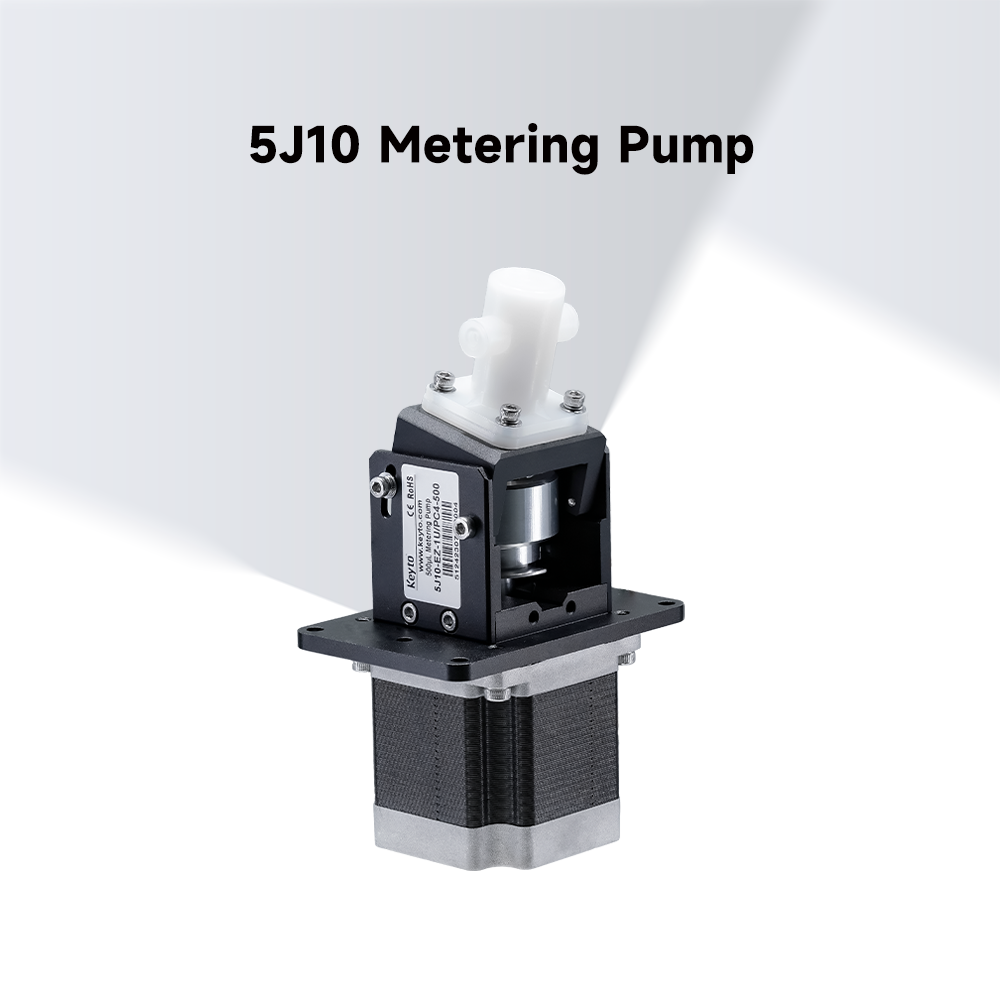

5J10 Metering Pump
5J10 Metering Pump
The metering pump features a stepper motor drive and imported joint ball bearings, ensuring smooth and durable operation. With a stroke adjustment range of 0.5-20° and a suction lift of 4m, it provides precise liquid metering throughout its service life. Equipped with a photoelectric sensor for accurate start position detection, it ensures high stability and precision in liquid handling. The high-performance 1.8° two-phase stepper motor delivers reliable performance and long service life.
Key Parameters:
Wetted Material Options
Parameter
Volume
Reference Model:
5J10
WhatsApp Contact
Online Message
Model Comparison
5J10 Metering Pump
Comparable Products
5J05 Metering Pump
5J07 Metering Pump
Model Comparison
Back
Overview
Parameters

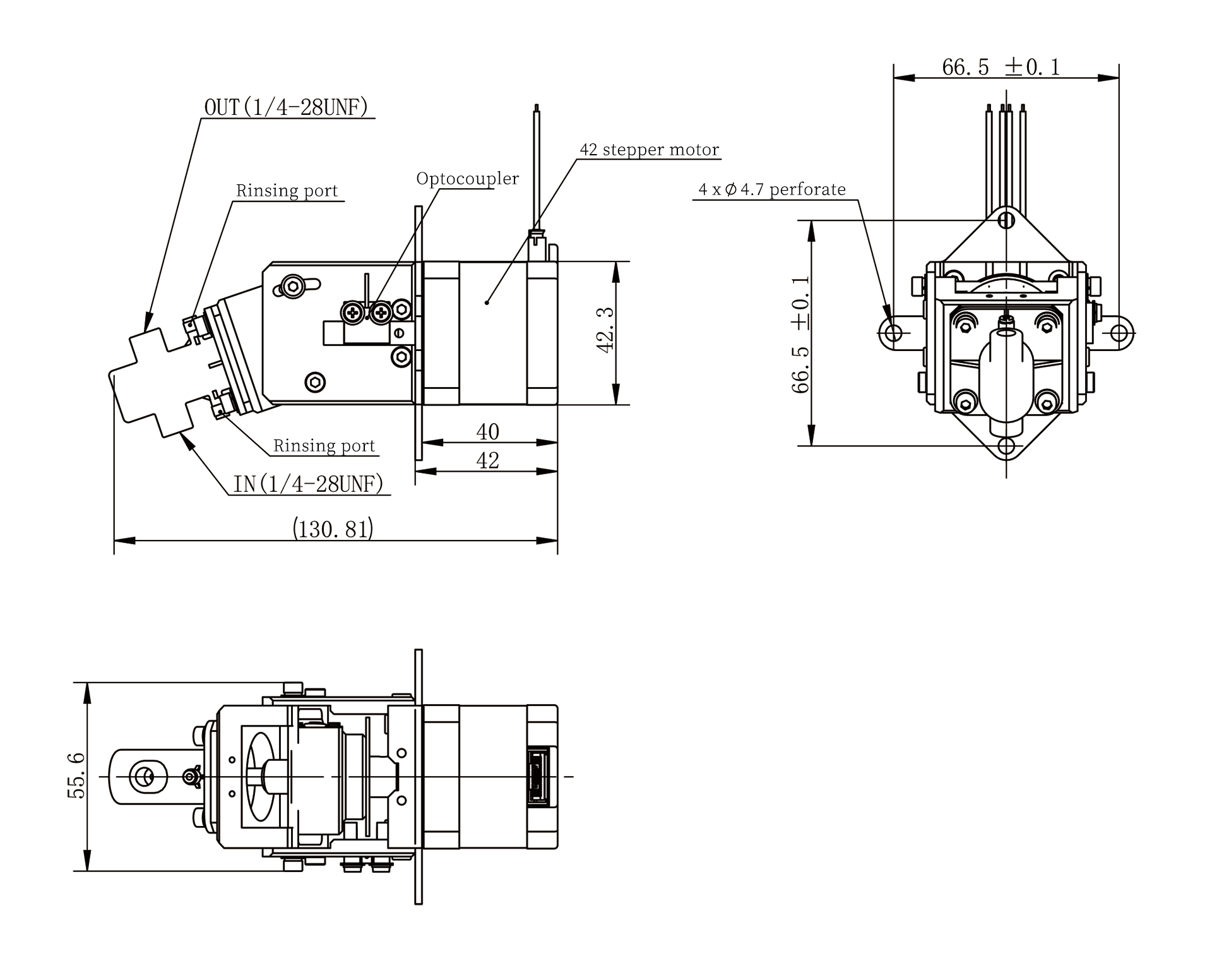

2D View
3D View
Parameter Metering Pump
Dispense (μL)
0-700
Plunger diameter (mm)
10
Max. stroke (mm)
8.9
RPM
5-300
Motor angle 1.8° NEMA42
Max. suction lift (m)
2-4
CV
0.5%
Life span (million cycles)
30
Port type
1/4-28 UNF
Max. tilt angle
20°
