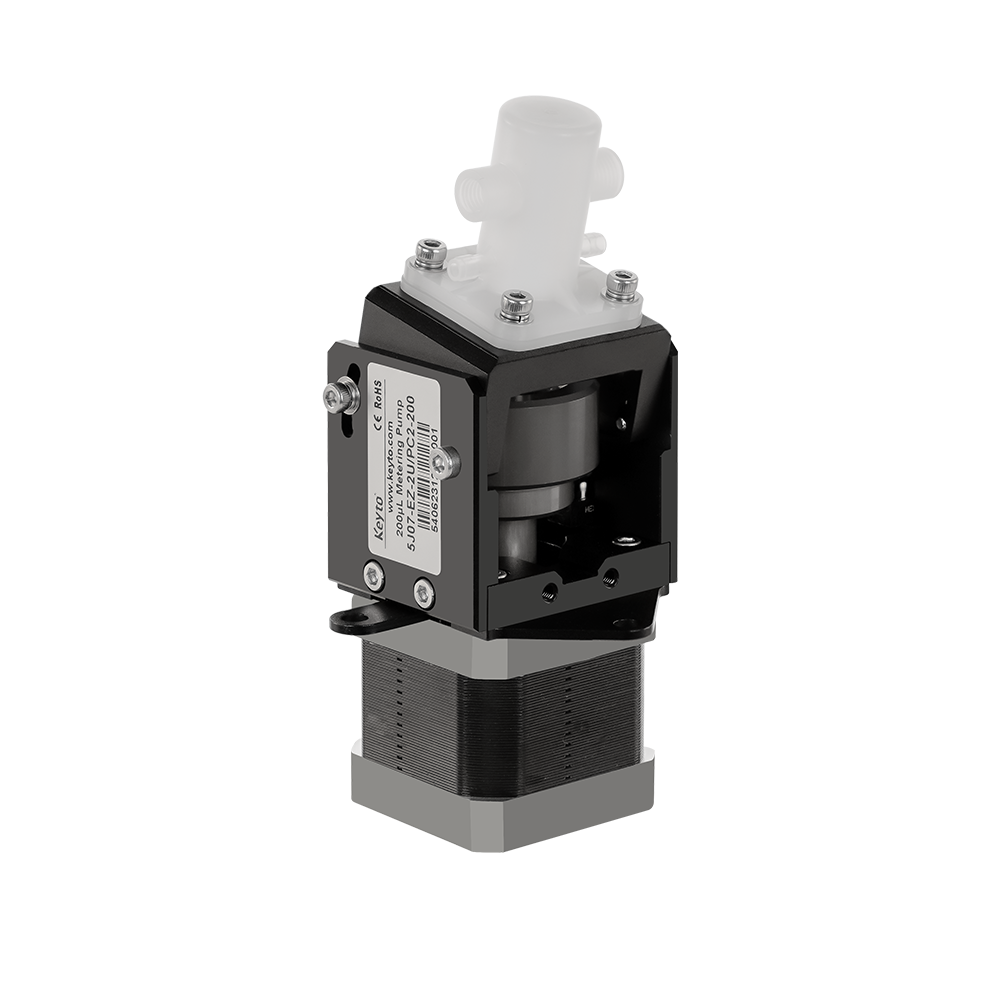

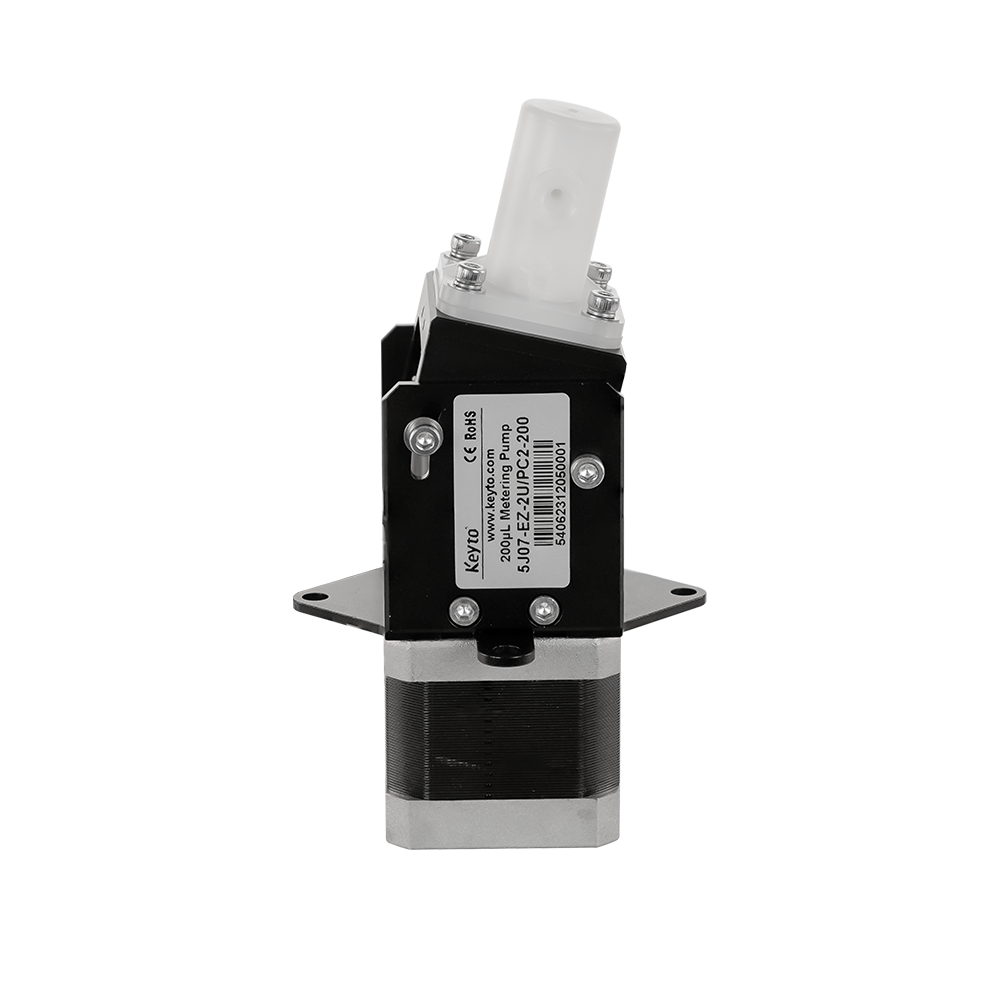

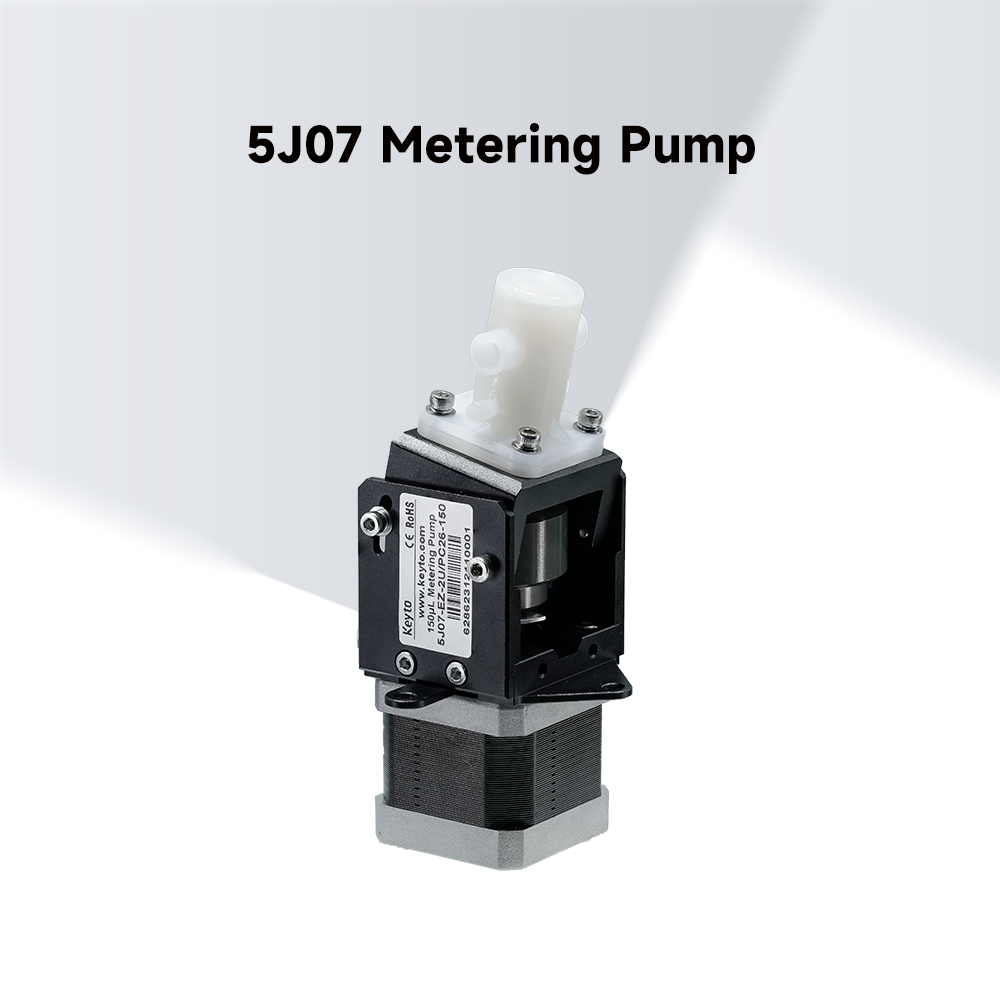

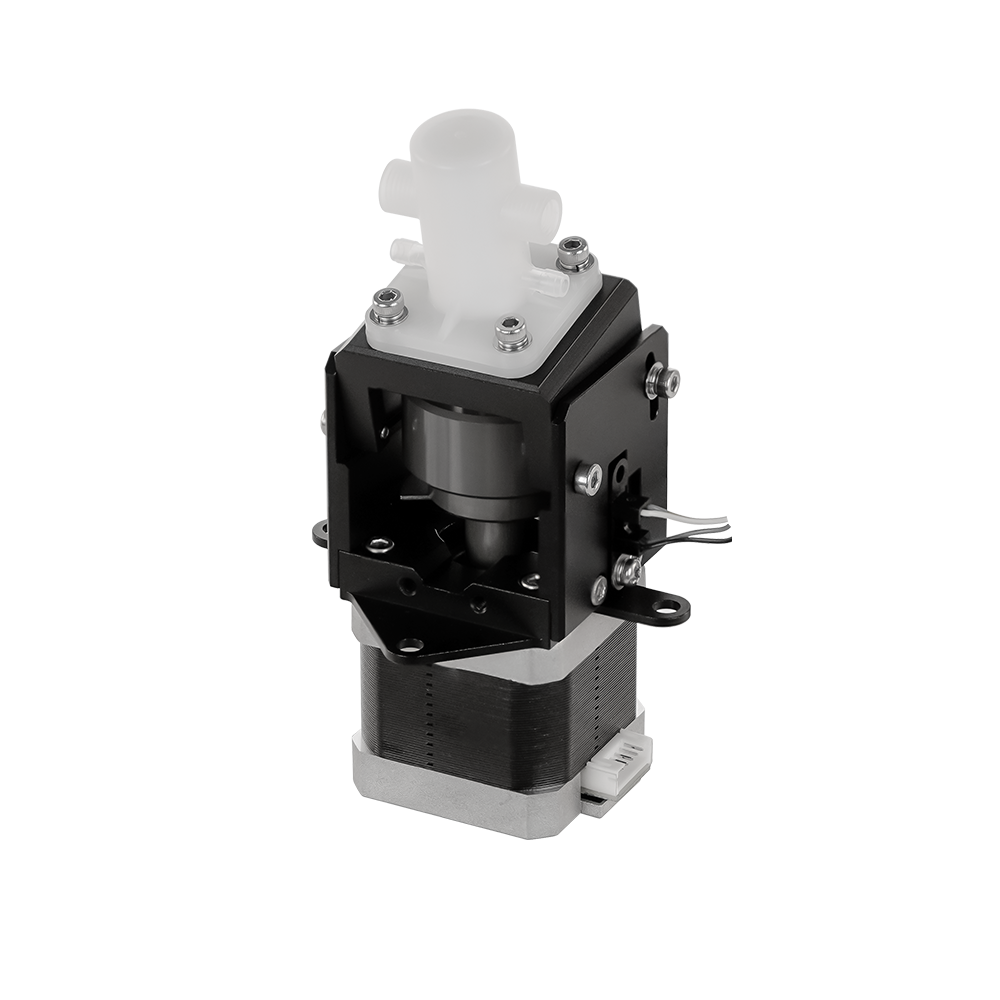

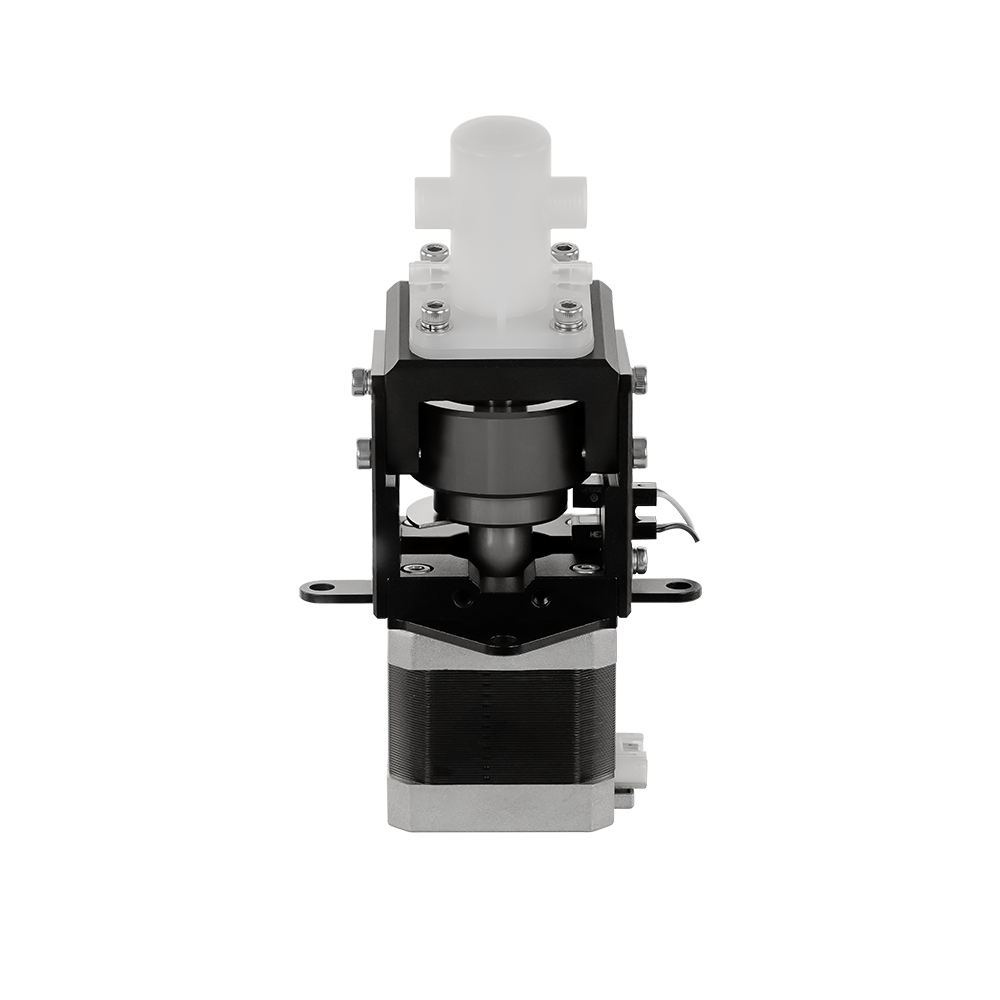

5J07 Metering Pump
5J07 Metering Pump
The metering pump features a stepper motor drive and imported joint ball bearings, ensuring smooth and durable operation. With a stroke adjustment range of 0.5-20° and a suction lift of 4m, it provides precise liquid metering throughout its service life. Equipped with a photoelectric sensor for accurate start position detection, it ensures high stability and precision in liquid handling. The high-performance 1.8° two-phase stepper motor delivers reliable performance and long service life.
Key Parameters:
Wetted Material Options
Parameter
Volume
Reference Model:
5J07
WhatsApp Contact
Online Message
Comparison/Performance
5J07 Metering Pump
Comparable Products
Comparison/Performance
Back
Overview
Parameters
2D View
3D View
Parameter Metering Pump
Dispense (μL)
0-300
Plunger diameter (mm)
7
Max. stroke (mm)
7.8
RPM
5-600
Motor angle 1.8°
NEMA42
Max. suction lift (m)
4
CV
0.5%
Life span (million cycles) 30
Port type
1/4-28 UNF
Max. tilt angle
20°
Demo video
Product video
Factory video
Keyto Machining Factory

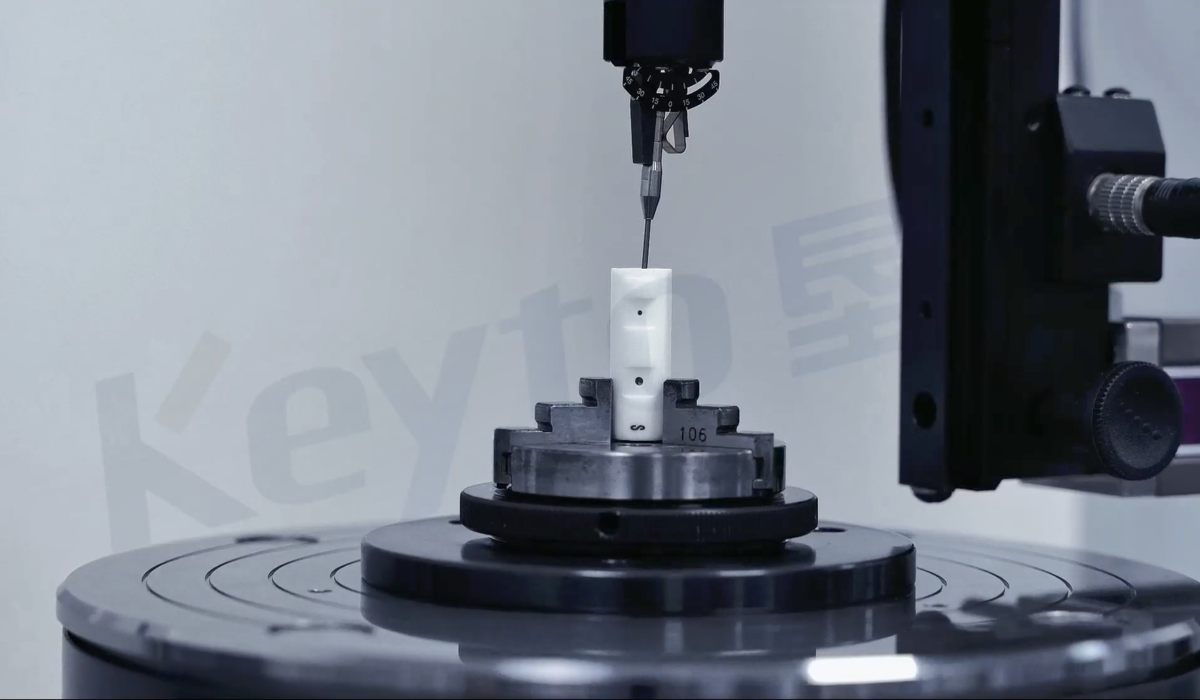

Keyto Quality Control (1)
