Products

Rotary Shear Valve

Manifolds & Chips

Fluidic Connections

Customizable Parts

Syringe Pump Metering Pump Precision Piston Pump Valve Intergrated Pump Syringe Component Syringe Glass Syringe Pump

Category:

Plastic syringe

Plastic syringe

Key Parameters:

Volume

Wetted material

Reference Model:

20

WhatsApp Contact

Online Message

E-mail Comparison/Performance

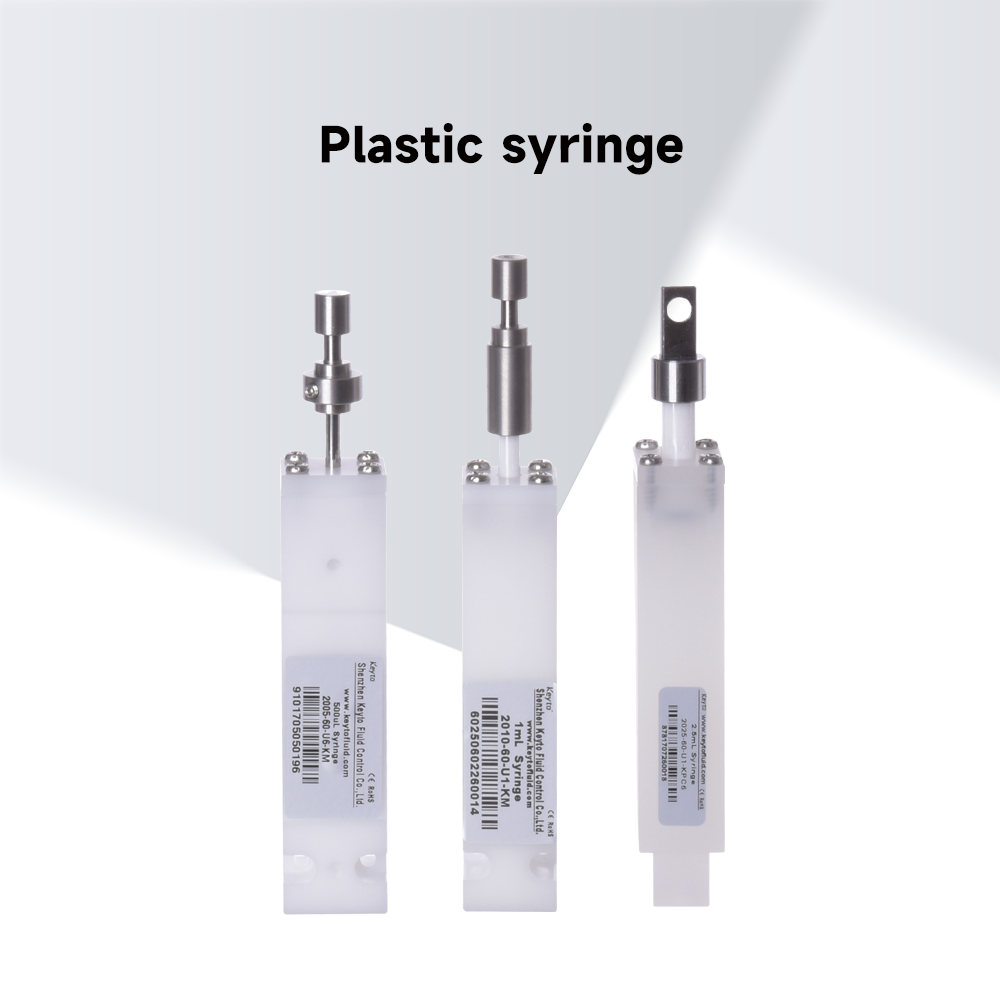

Plastic syringe

Comparable Products

Comparison/Performance

Back

Overview

Parameters

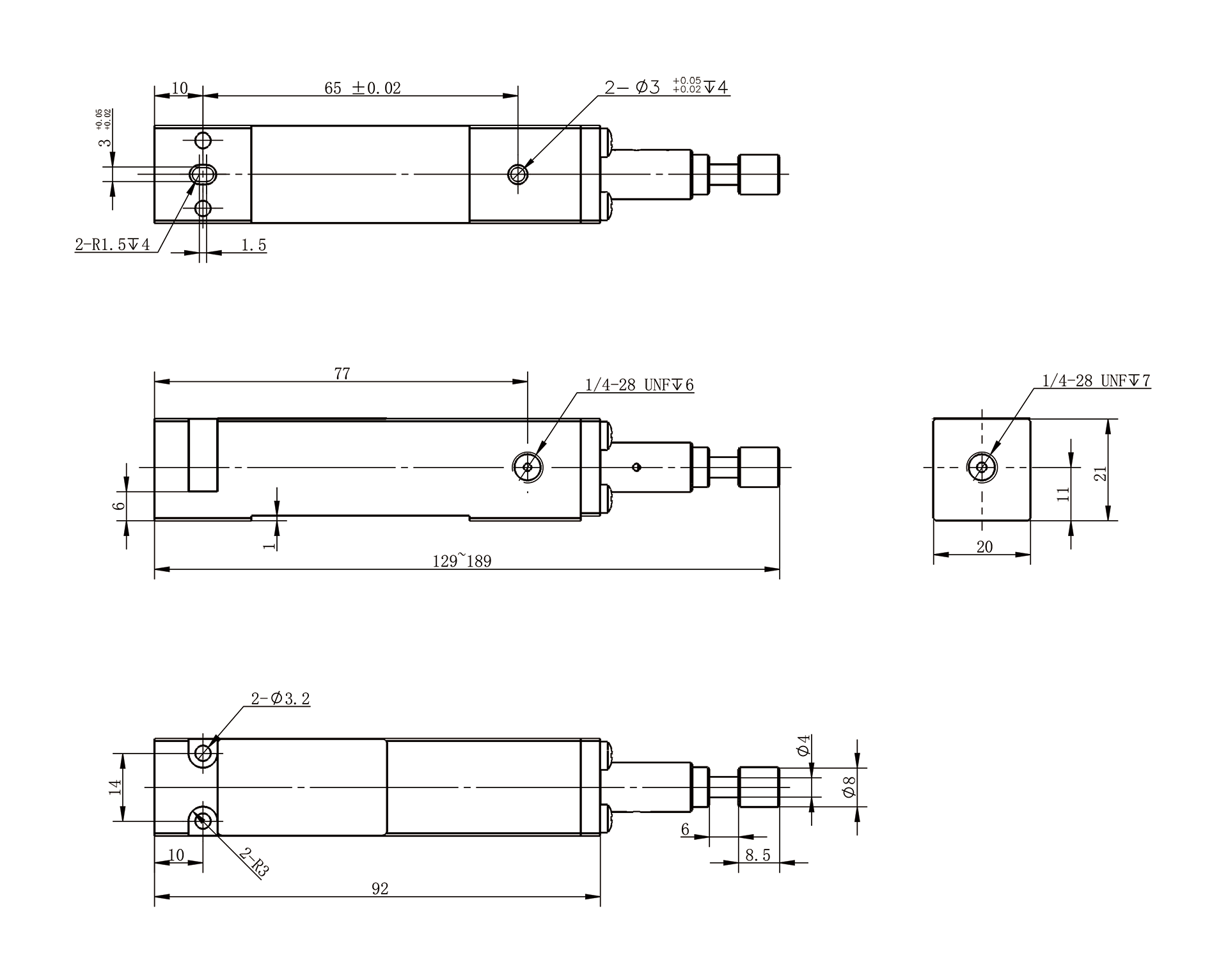

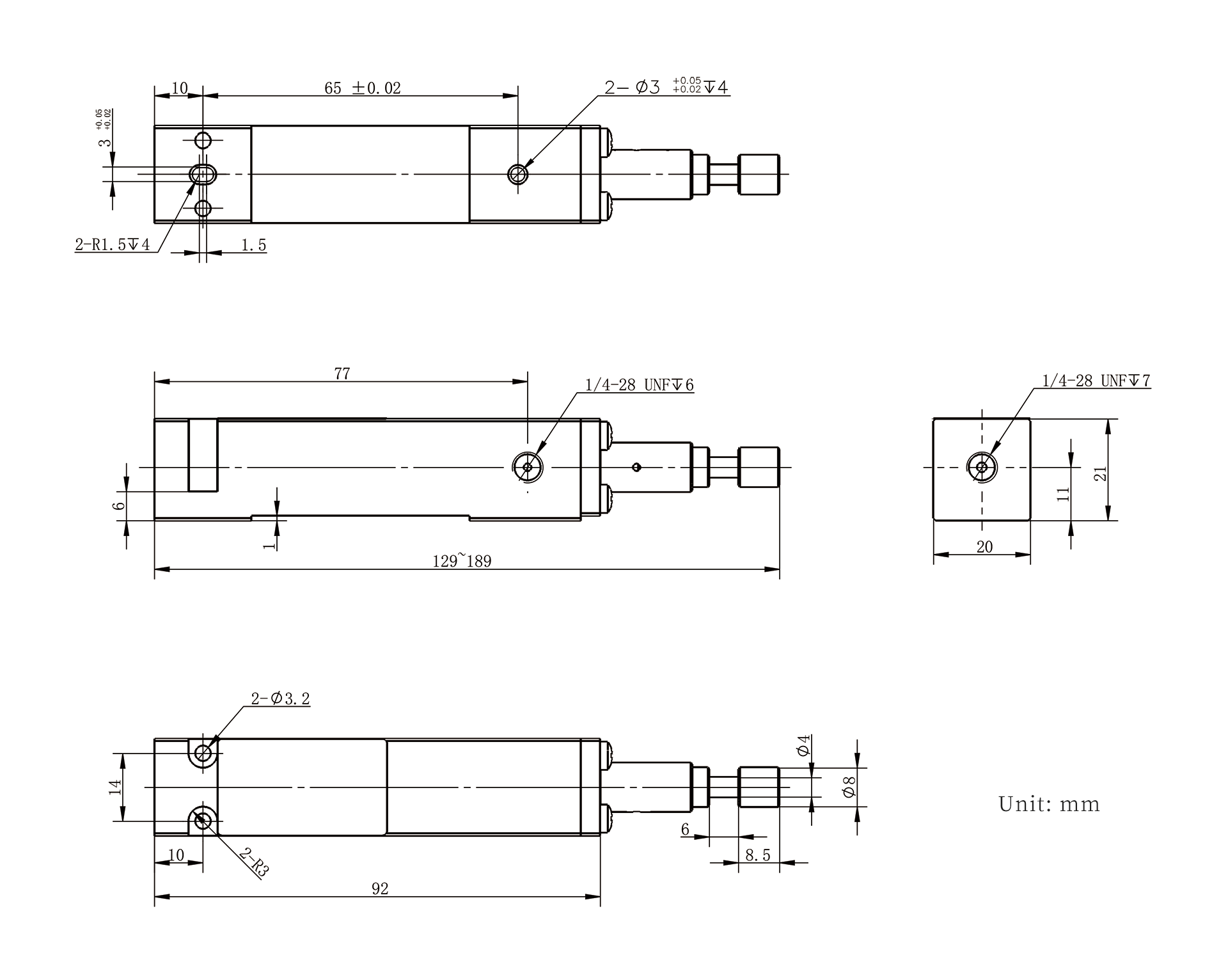

2D View

3D View

Type	Plastic syringe
Volume	50μL	100μL	250μL	500μL	1mL	2.5mL	5mL	10mL
Model	200C-60	2001-60	2002-60	2005-60	2010-60	2025-60	2050-60	201A-60
Stroke (mm)	60
Plunger diameter (mm)	1.02	1.45	2.3	3.25	4.6	7.3	10.3	14.6
Plunger Material	SUS316L				Engineering ceramics
Service life cycle	3 million times				2 million times
Dispense precision	2%
Dispense CV	1.50%
Pressure resistance	0.3MPa
Weight	55g	70g	70g	75g	90g	90g	115g	170g
Dimension	18.2×20×(120~180)				20×21×(129~189)

Demo video

Product video

Factory video

Keyto Machining Factory

Keyto Quality Control （1）

Recommended

Single Channel Syringe Module

Multi-channel Syringe module
