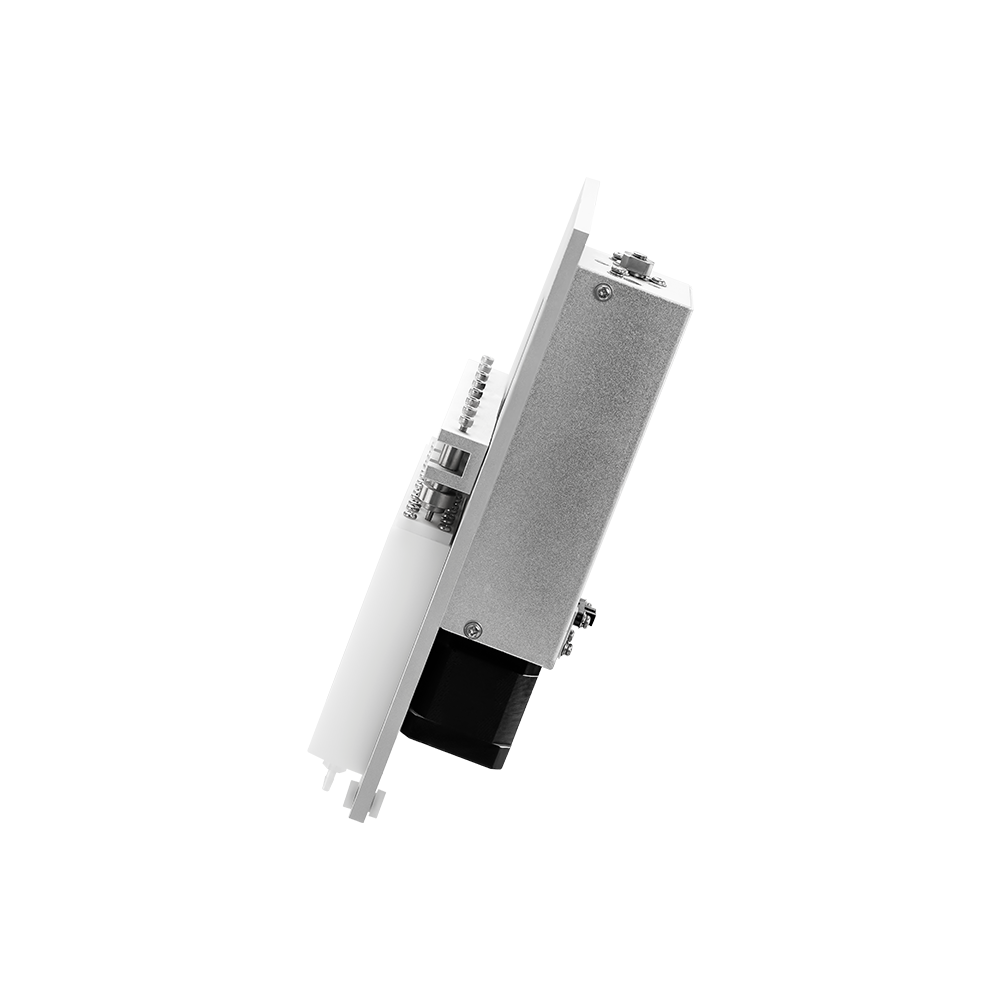

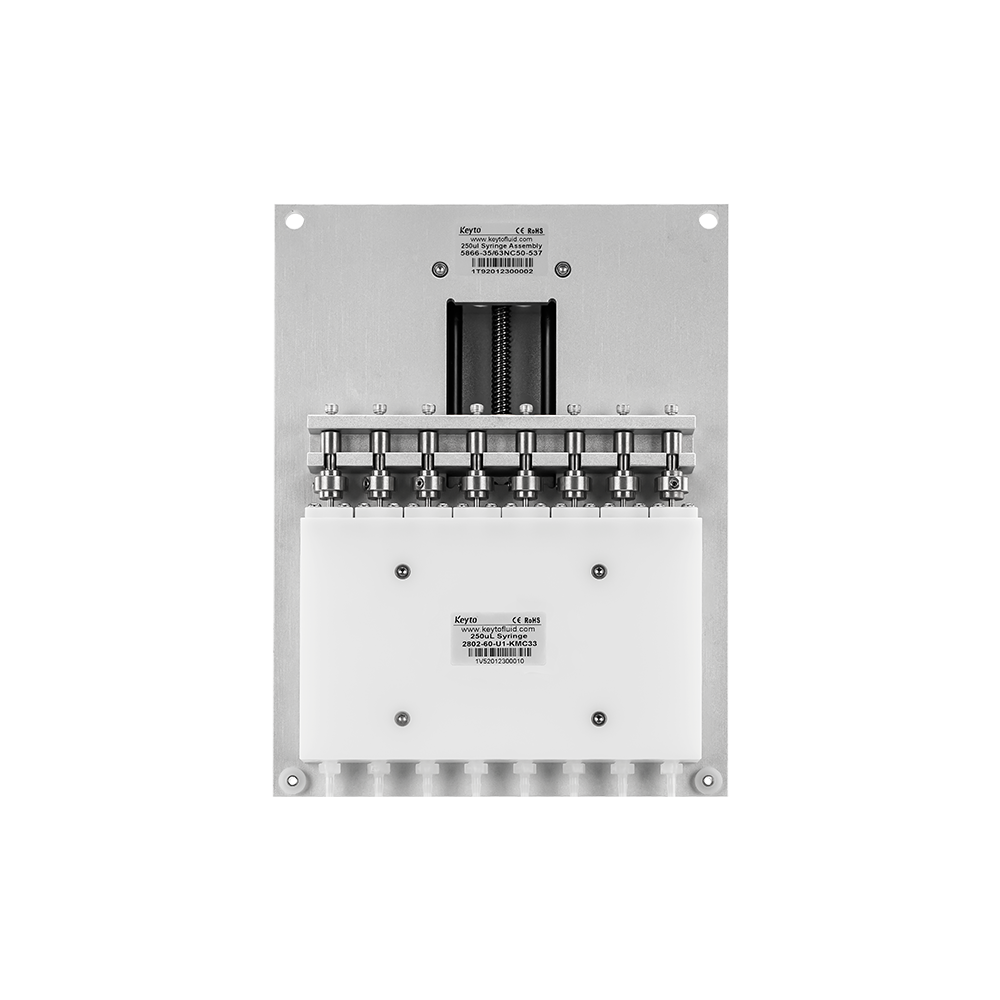

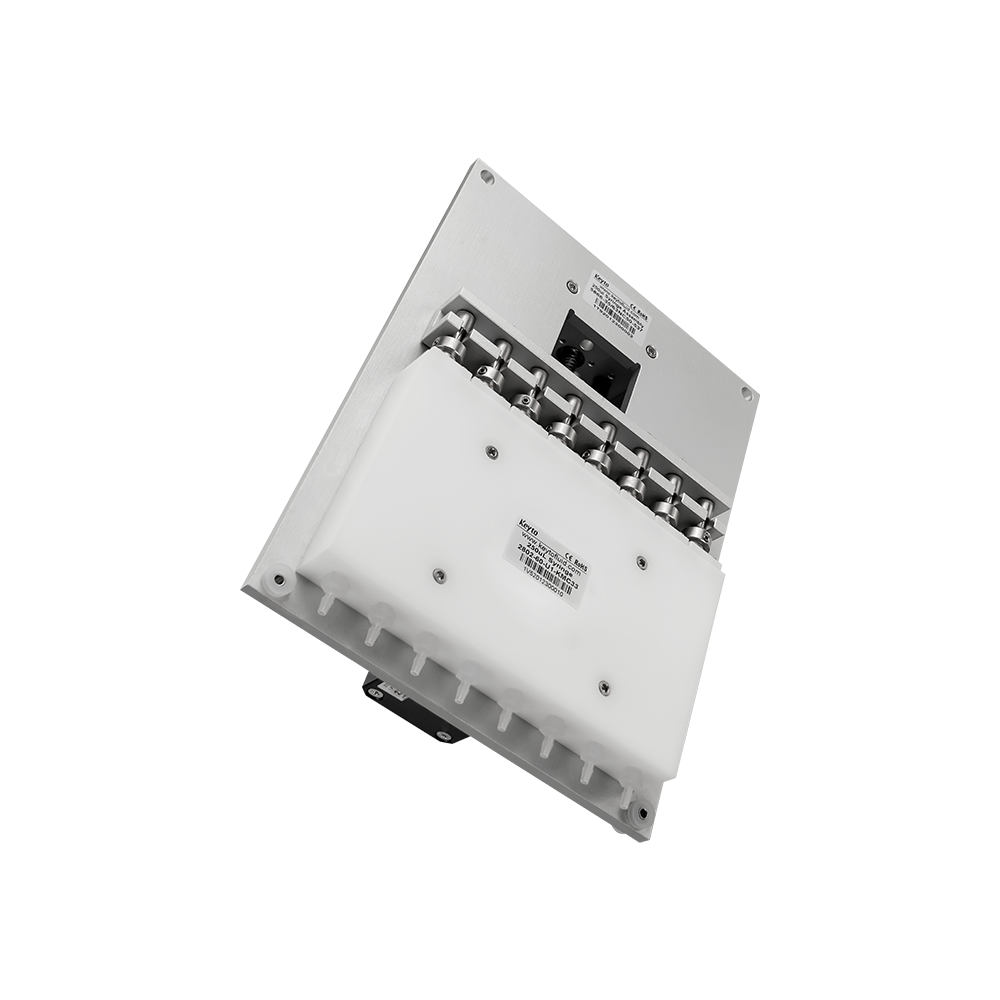

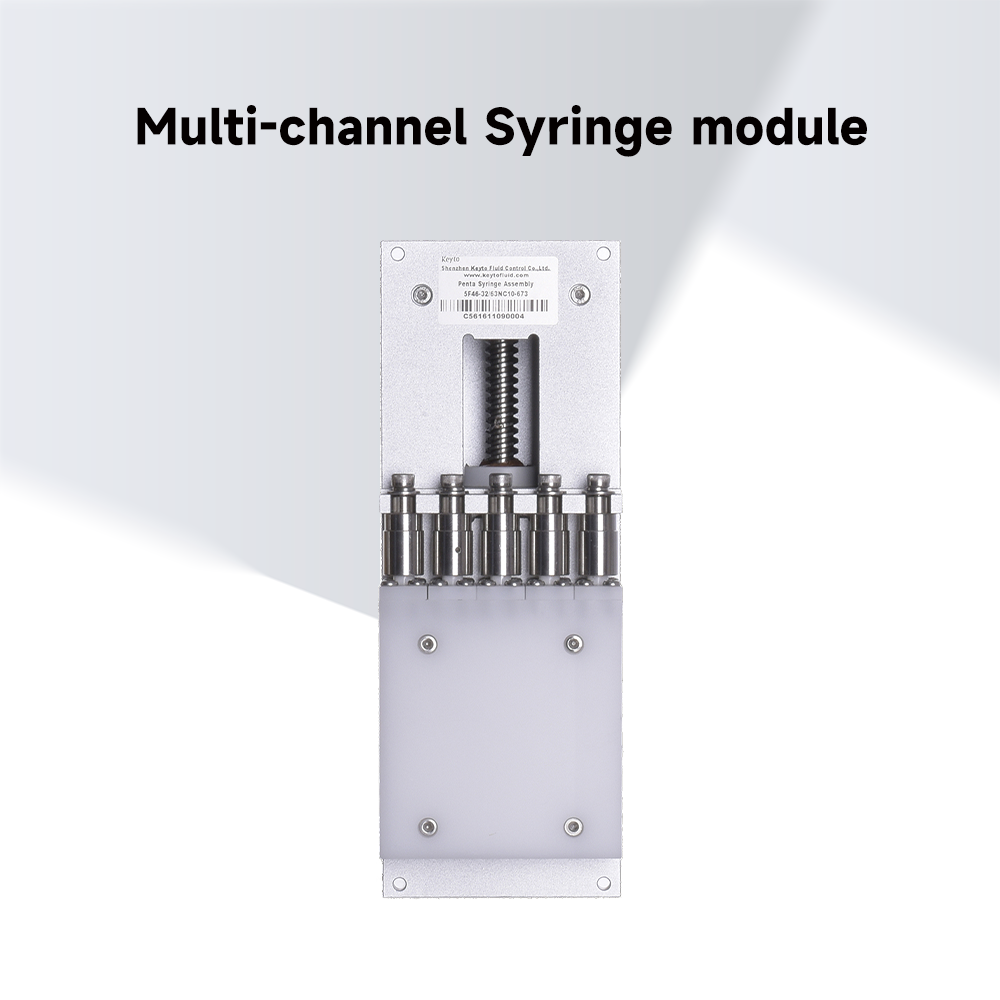

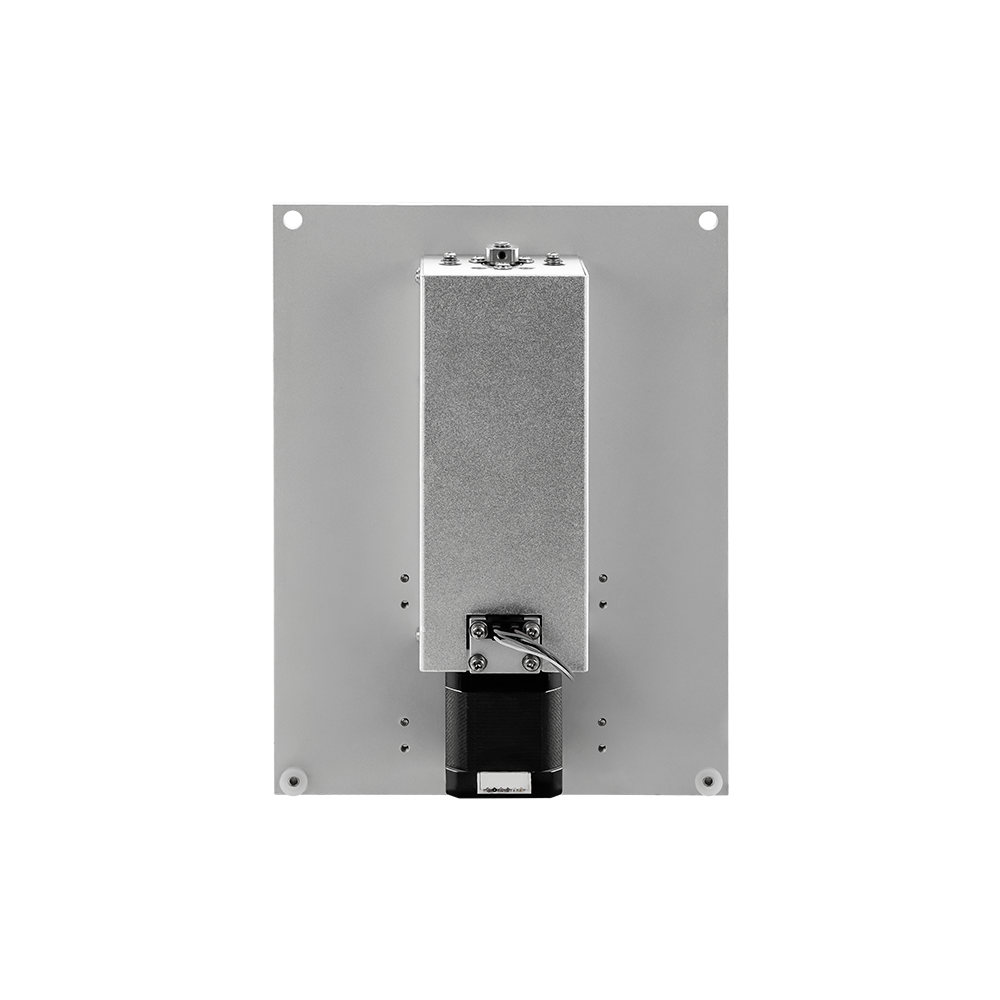

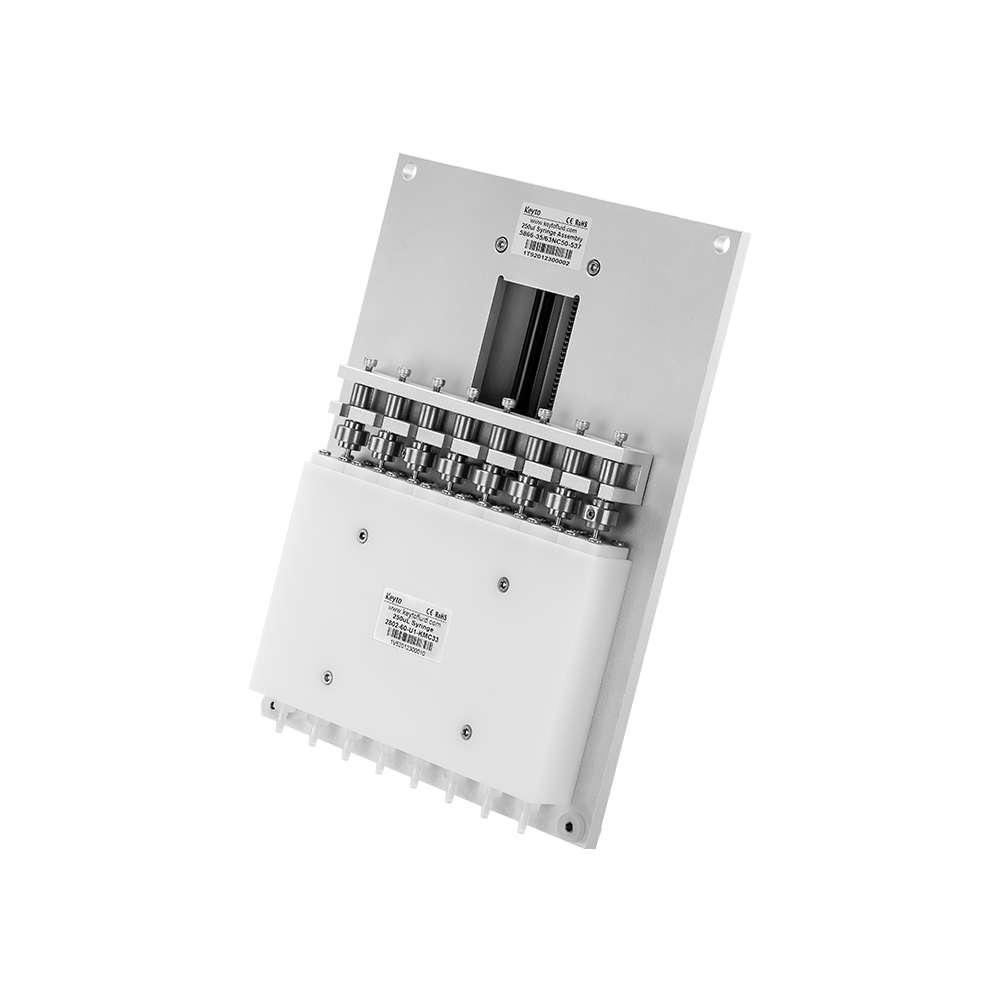

Multi-channel Syringe module
Multi-channel Syringe module
Key Parameters:
Wetted materials质
Syringe volume
Reference Model:
5F62
WhatsApp Contact
Online Message
Model Comparison
Multi-channel Syringe module
Comparable Products
3-channel Syringe module
Single Channel Syringe Module
Multi-channel Syringe Module Integrated Valves
Model Comparison
Back
Overview
Parameters

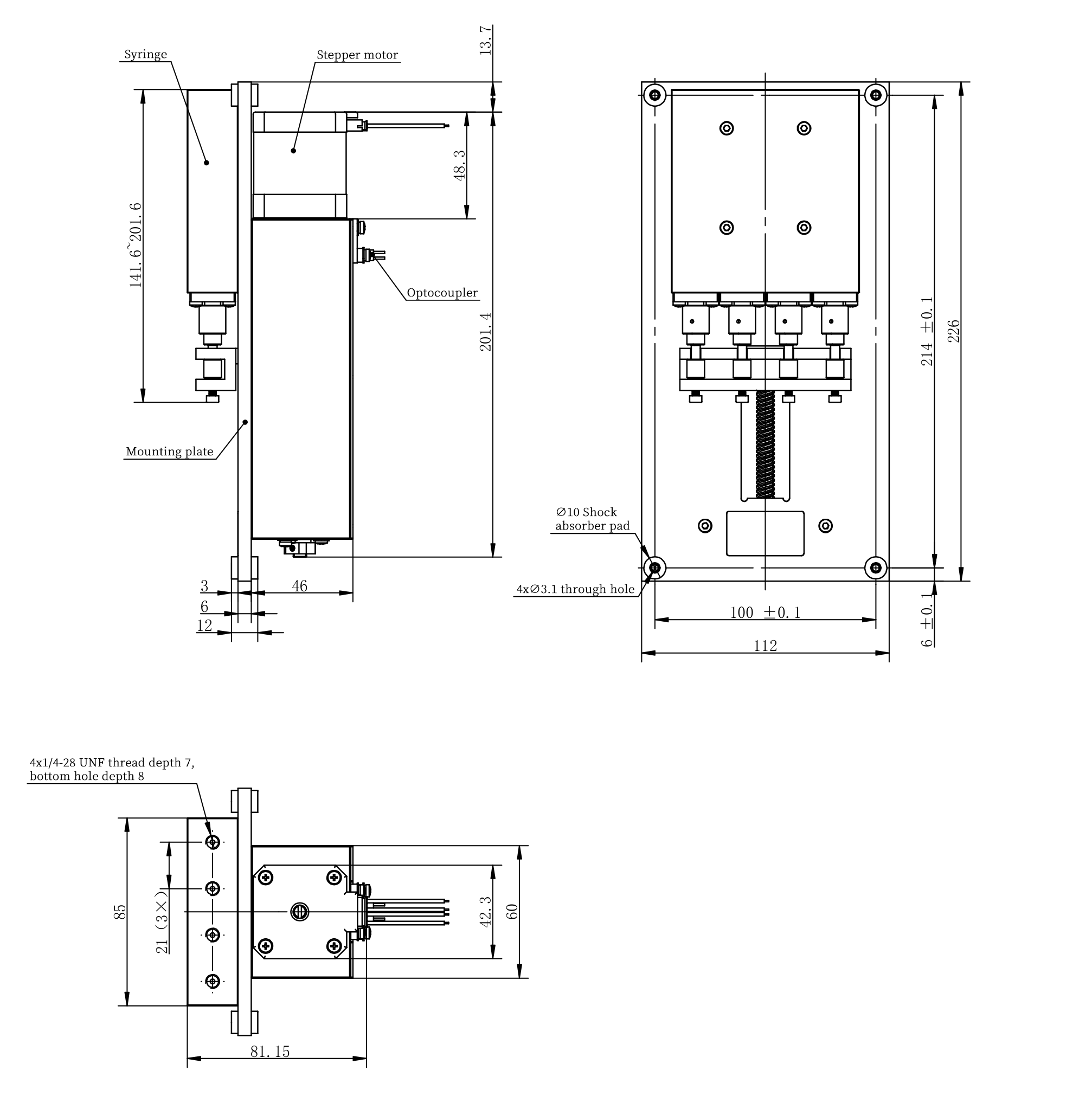

2D View
3D View
Parameter Multi-channel Syringe module
Volume (μL) 50μL, 100μL, 250μL, 500μL, 1mL, 2.5mL, 5mL, 10mL, 15mL, etc.
Plunger materials Zirconia, 316L metal
Loading syringe optional 2~8 unit
Stroke (mm) 30-60
Lead (mm) 6 2.5
Stroke per step (mm/step) 0.03 0.0125
Volume per step (μL/step) 0.0005*V 0.0002083*V
Motor angle (°) 1.8 °
Motor current (A) 2A, 2.3A optional
Max. RPM (r/s) 12
Presicion 0.02
Life span μL level: 3 million times;
mL level: 2 million times;
CV CV<1.2%(Measured at a displacement range of no less than 2%)；
CV<1%(Measured at a displacement range of no less than 10%)
Port type 1/4-28 UNF, M6 thread optional
