Single Channel Syringe Module
Single Channel Syringe Module
Key Parameters:
Wetted materials
Syringe volume
Reference Model:
7266
WhatsApp Contact
Online Message
Model Comparison
Single Channel Syringe Module
Comparable Products
3-channel Syringe module
Multi-channel Syringe module
Multi-channel Syringe Module Integrated Valves
Model Comparison
Back
Overview
Parameters

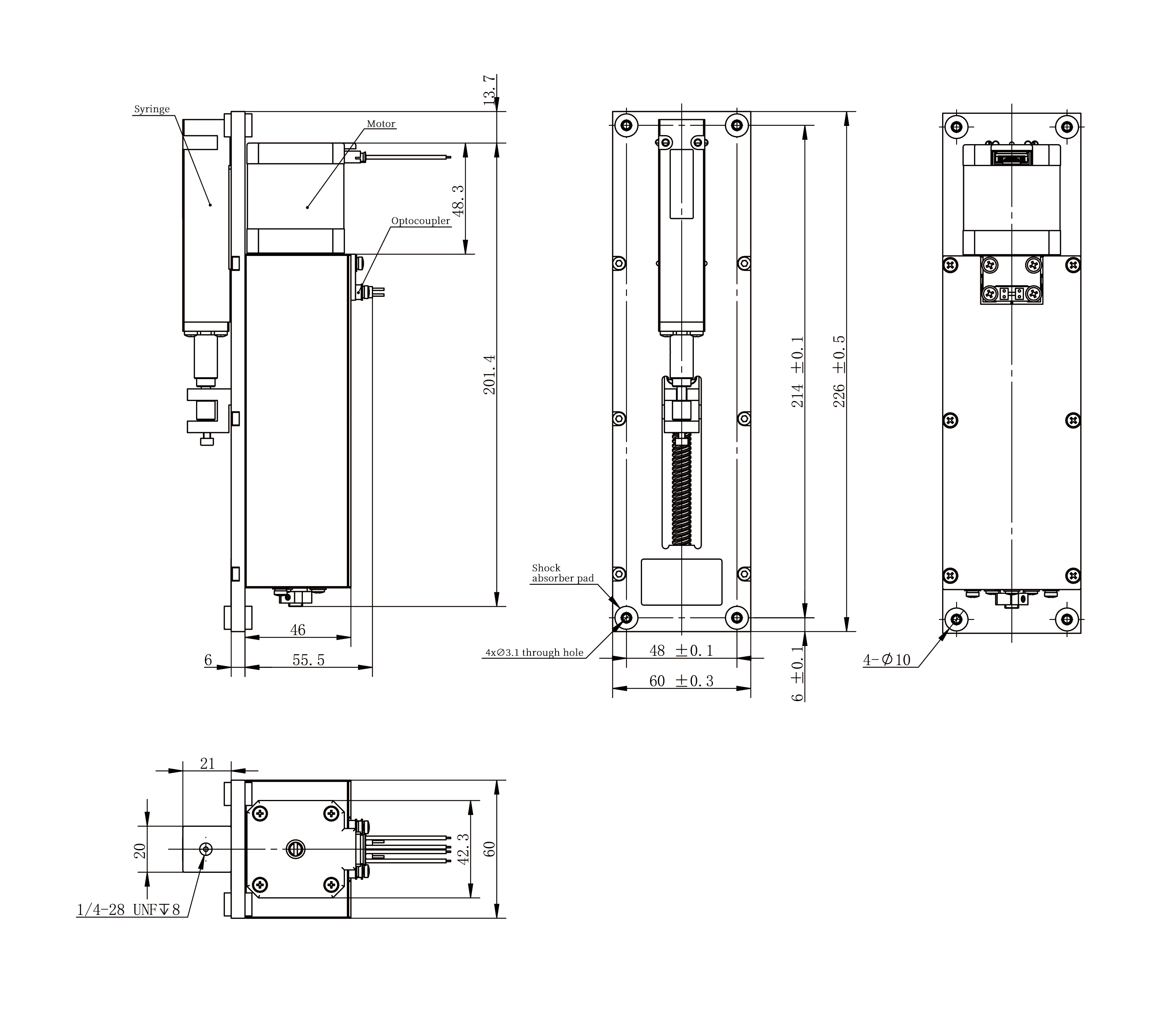

2D View
3D View
Parameter 726XSingle Channel Syringe module
Volume (μL) 50μL, 100μL, 250μL, 500μL, 1mL, 2.5mL, 5mL, 10mL, 15mL, etc.
Plunger materials Zirconia, 316L metal
Stroke (mm) 60
Lead (mm) 6 2.5
Stroke per step (mm/step) 0.03 0.0125
Volume per step (μL/step) 0.0005*V 0.0002083*V
Motor angle 1.8 °
Motor current (A) 1.2
Max. RPM (r/s) 12
Presicion 0.02
Life span μL level: 3 million times;
mL level: 2 million times;
CV  CV<1.2%(Measured at a displacement range of no less than 2%)；CV<1%(Measured at a displacement range of no less than 10%)
Port type 1/4-28 UNF, M6 thread optional
