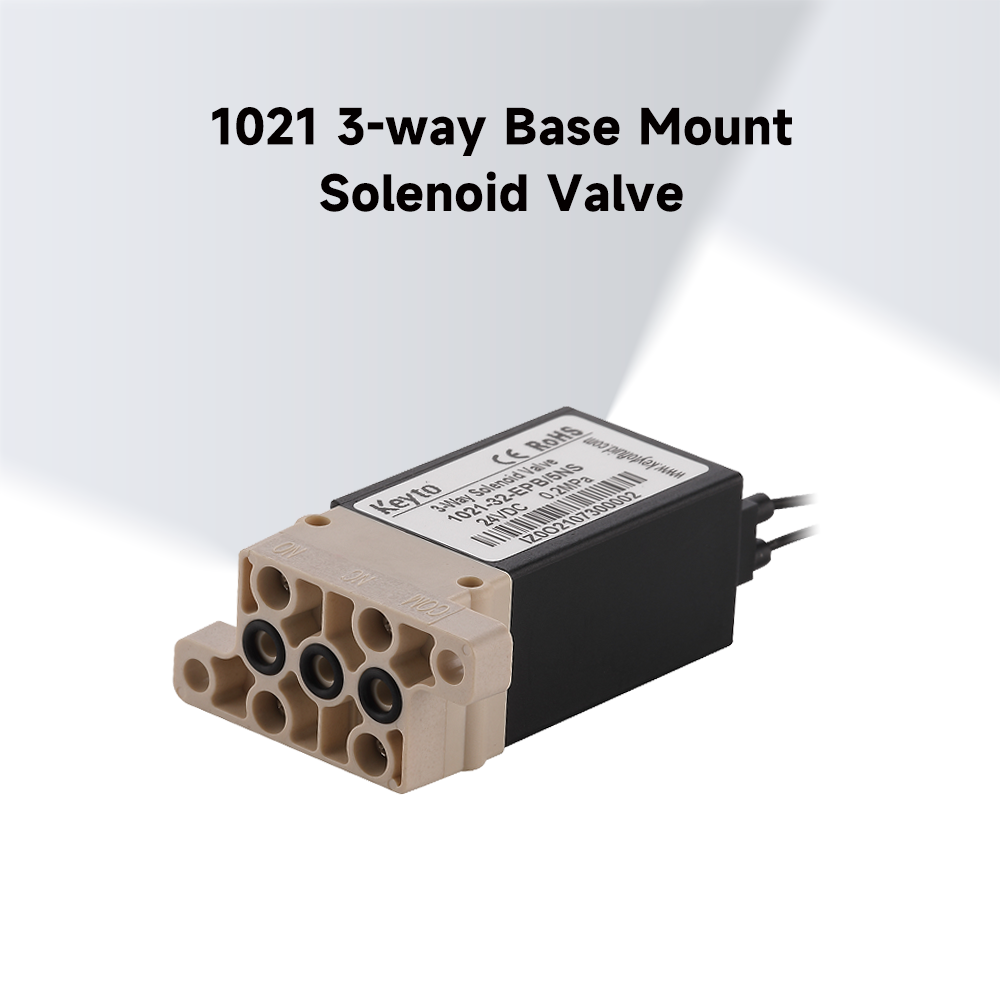

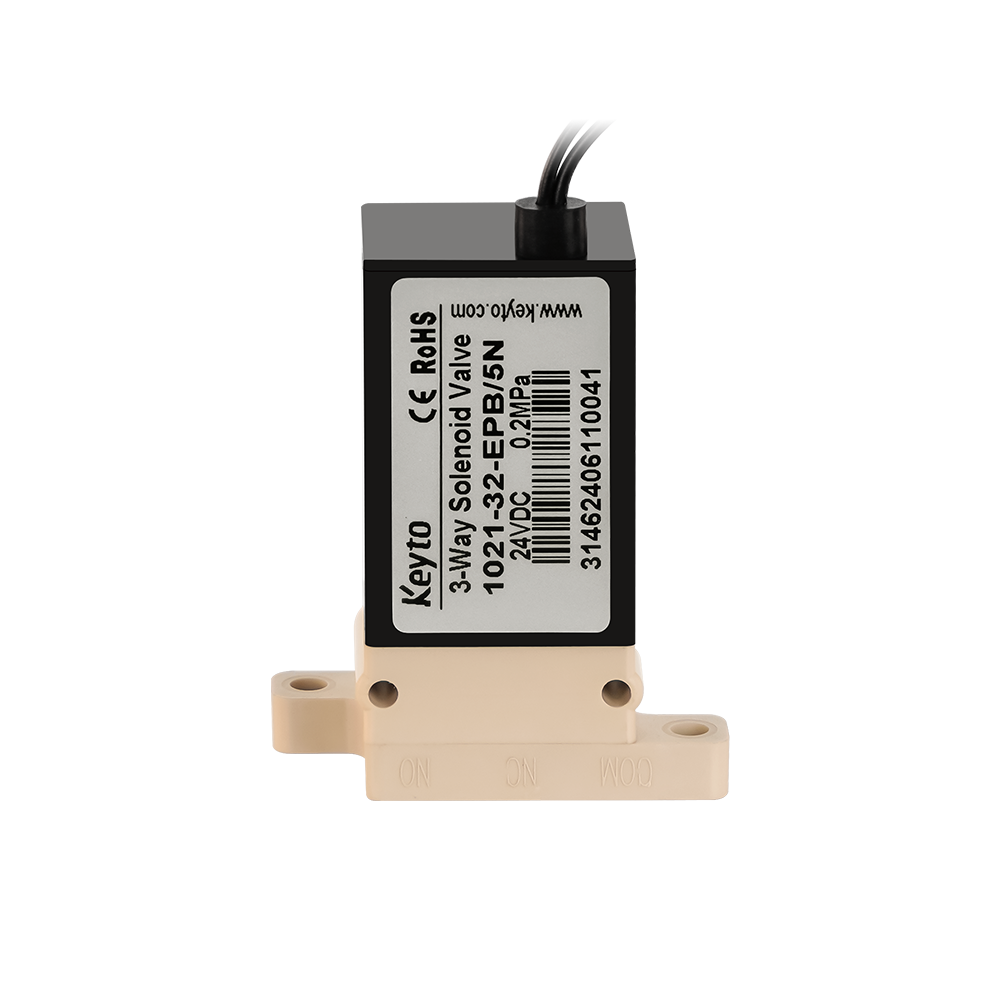

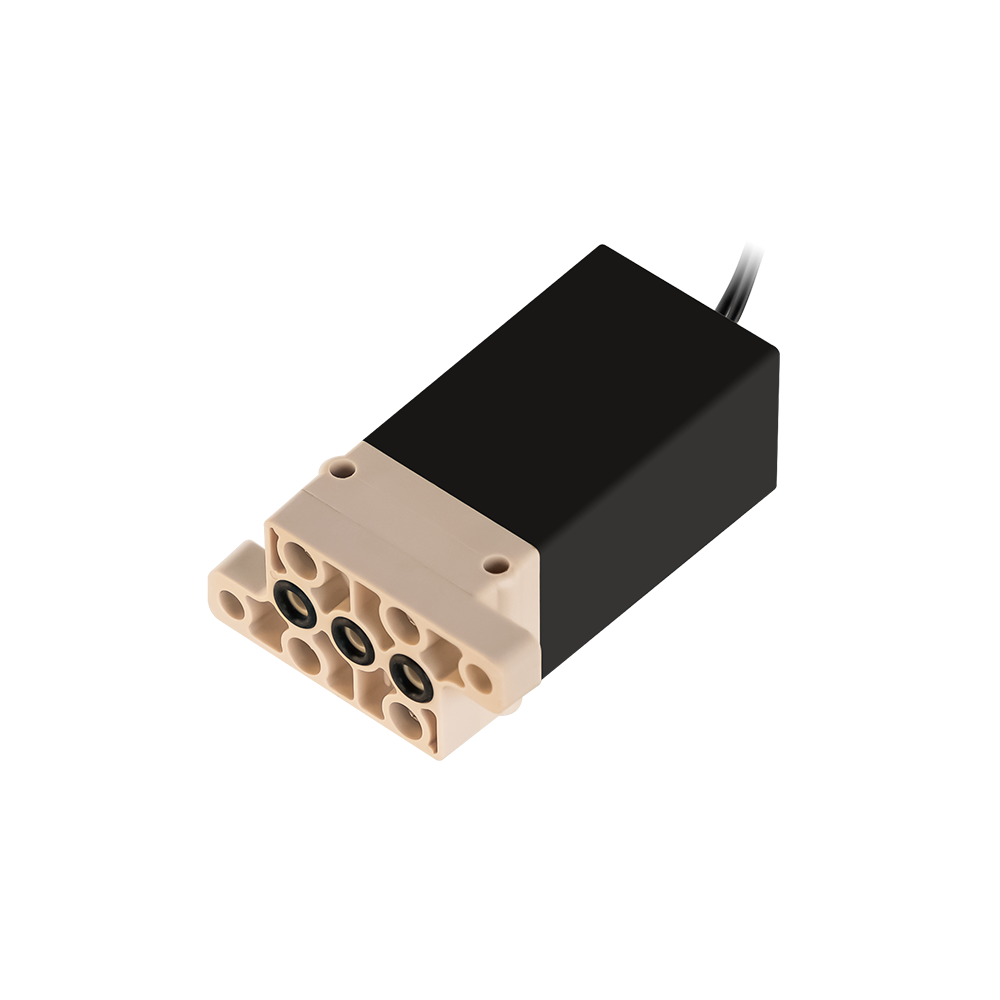

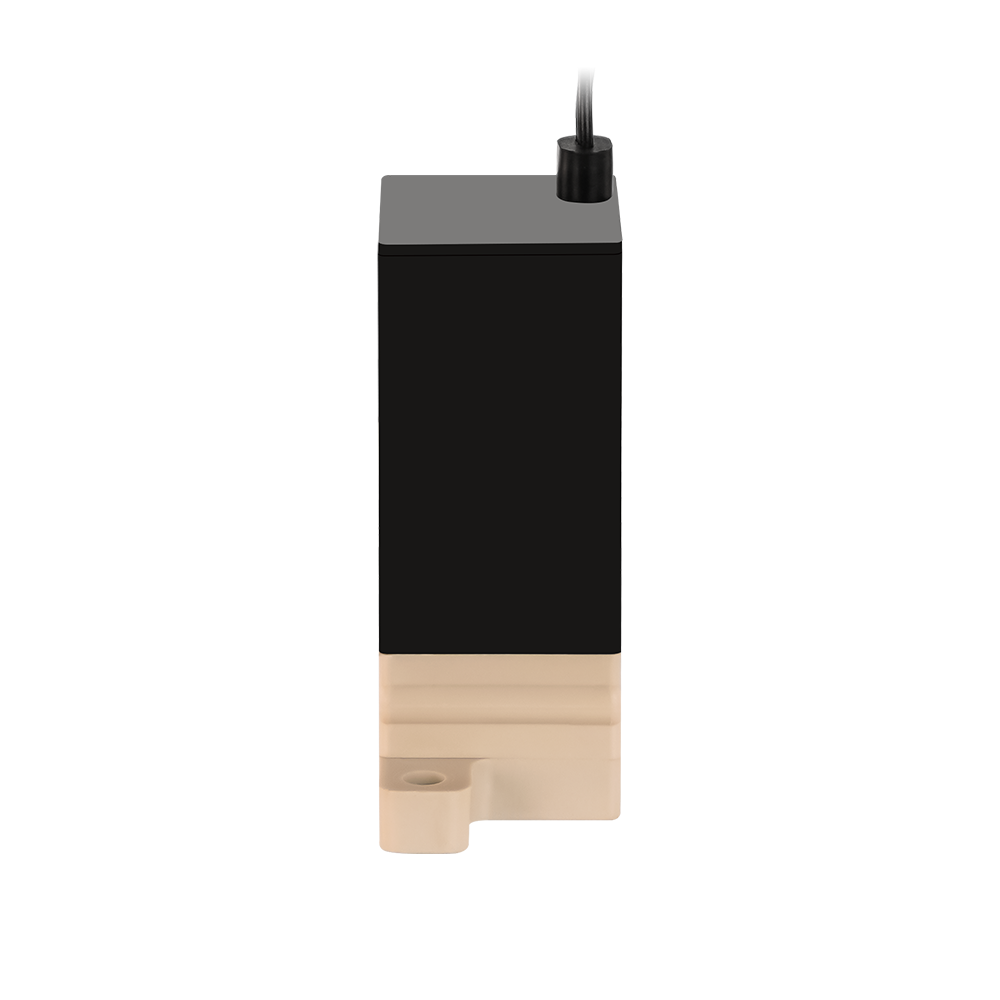

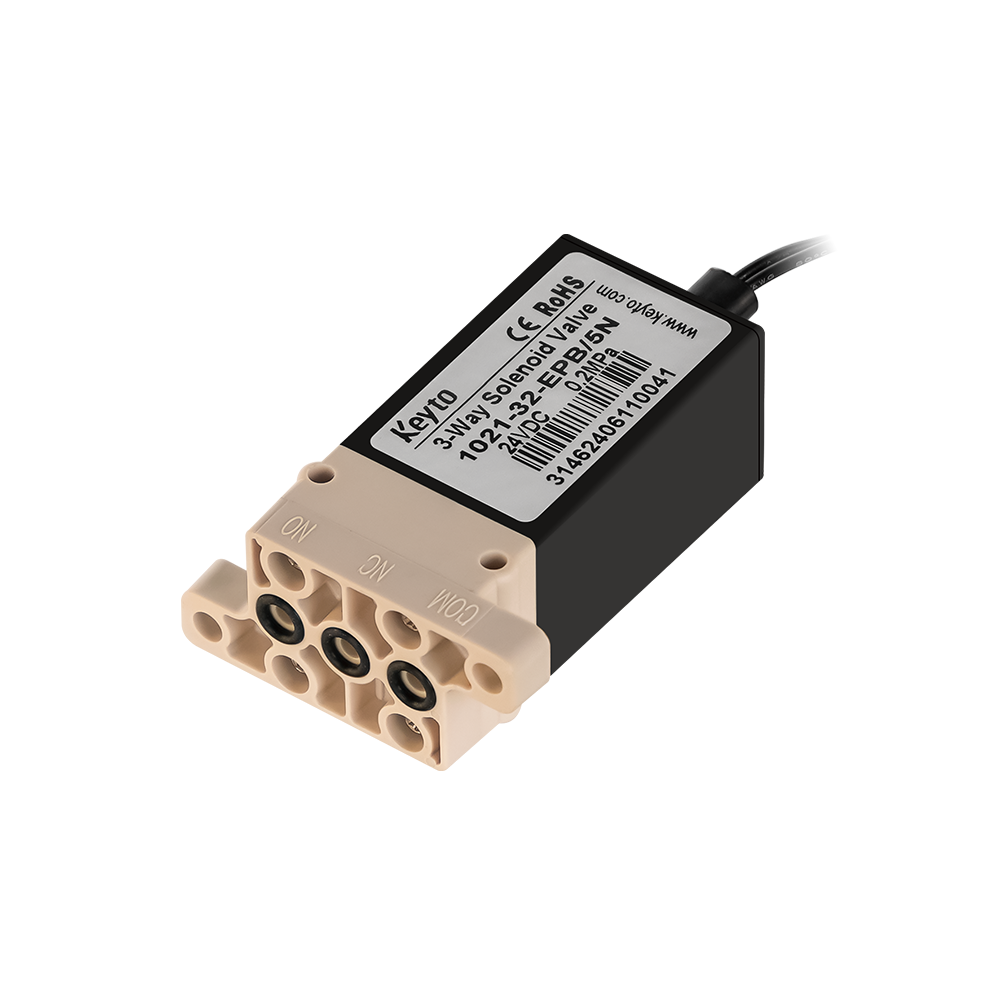

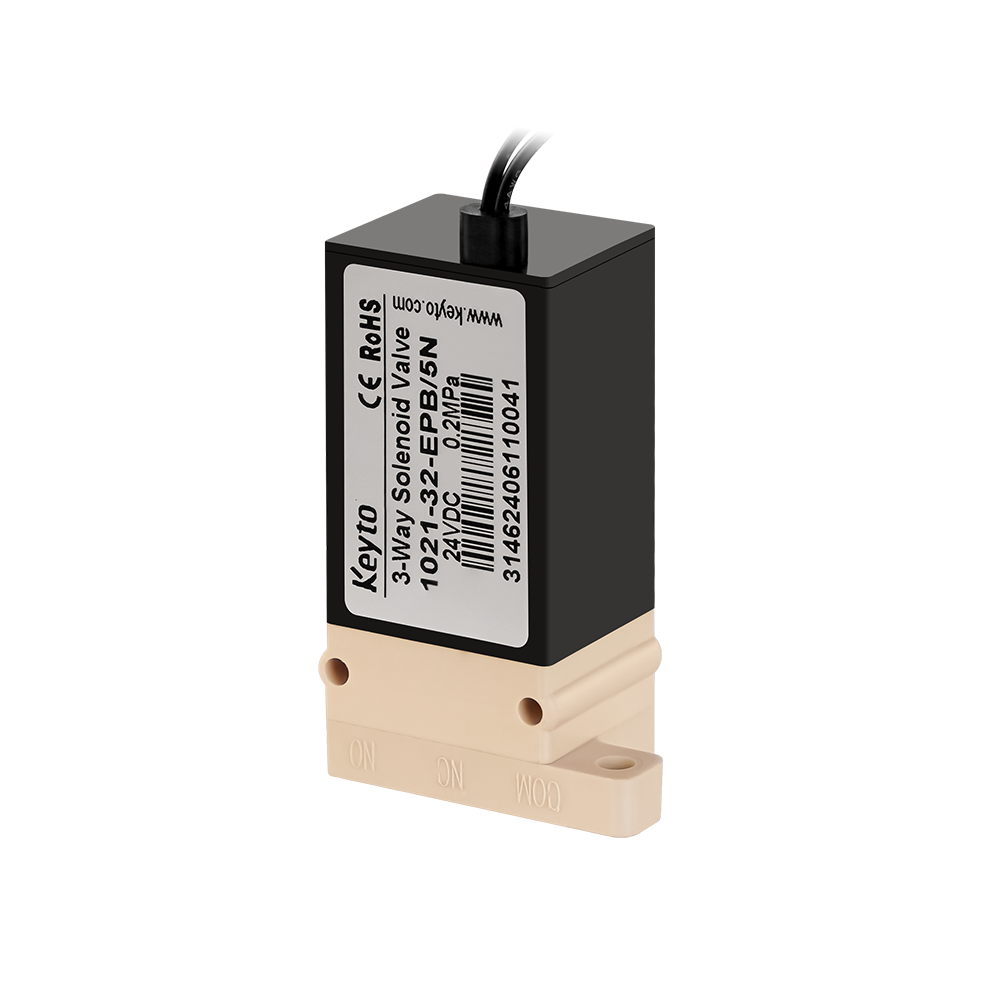

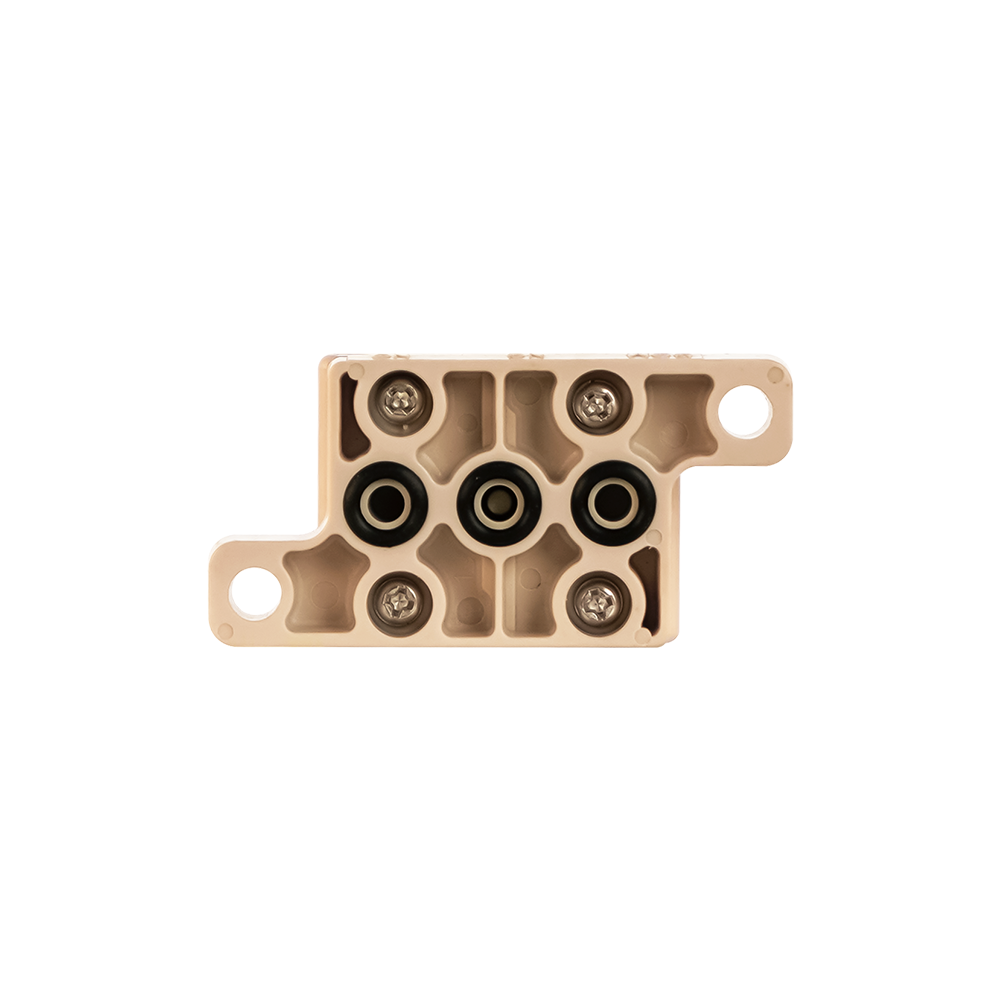

1021 3-way Base Mount Solenoid Valve
1021 3-way Base Mount Solenoid Valve
The 1021 series solenoid valve features a 2.0mm orifice diameter with a flow capacity of Cv≥0.065 and a flow rate of ≥11 mL/s, providing precise on/off and reversing control for liquid circuits. With its life span of up to 5 million cycles, it offers high performance and reliability. Available in anti-crystallization and fully waterproof versions, the valve meets diverse needs in fluid control. Keyto offers multiple configurations, including expansion, threaded, and substrate models, to accommodate various working conditions.
Key Parameters:
Voltage
Wetted Material
Reference Model:
1021 3-way
WhatsApp Contact
Online Message
Model Comparison
1021 3-way Base Mount Solenoid Valve
Comparable Products
1013-2 way tubing type valve
1013-3 way tubing type valve
1013-2 way tubing type valve (normally open)
1013-2 way base mounted type valve
1013-3 way base mounted type valve
1013-2 way base mounted valve (normally open)
1013-2 way threaded type valve
1013-3 way threaded type valve
1013-2 way threaded type valve (normally open)
1013-3 way Sector threaded type valve
1022-2 way tubing type valve
1022-3 way tubing type valve
1022-2 way threaded type valve
1022-3 way threaded type valve
1032-2 way tubing type valve
1032-3 way tubing type valve
1042-2 way threaded type valve
1042-2 way base mounted type valve
1042-2 way tubing type valve
1042-3 way tubing type valve
1021 2-way Base Mount Solenoid Valve
1021 2-way Base Mount Valve (Normal Open)
1021 2-way Threaded Type Solenoid Valve
1021 3-way Threaded Type Solenoid Valve
1021 2-way Tubing Type Solenoid Valve (vertical version）
1021 3-way Tubing Type Solenoid Valve (vertical version)
1021 2-way Tubing Type Solenoid Valve（vertical version）
1021 Tubing Type Solenoid Valve(horizontal version)
1021 3-way Tubing Type Solenoid Valve (horizontal version)
SD61 Direct-operated Diaphragm Valve
Model Comparison
Back
Overview
Parameters

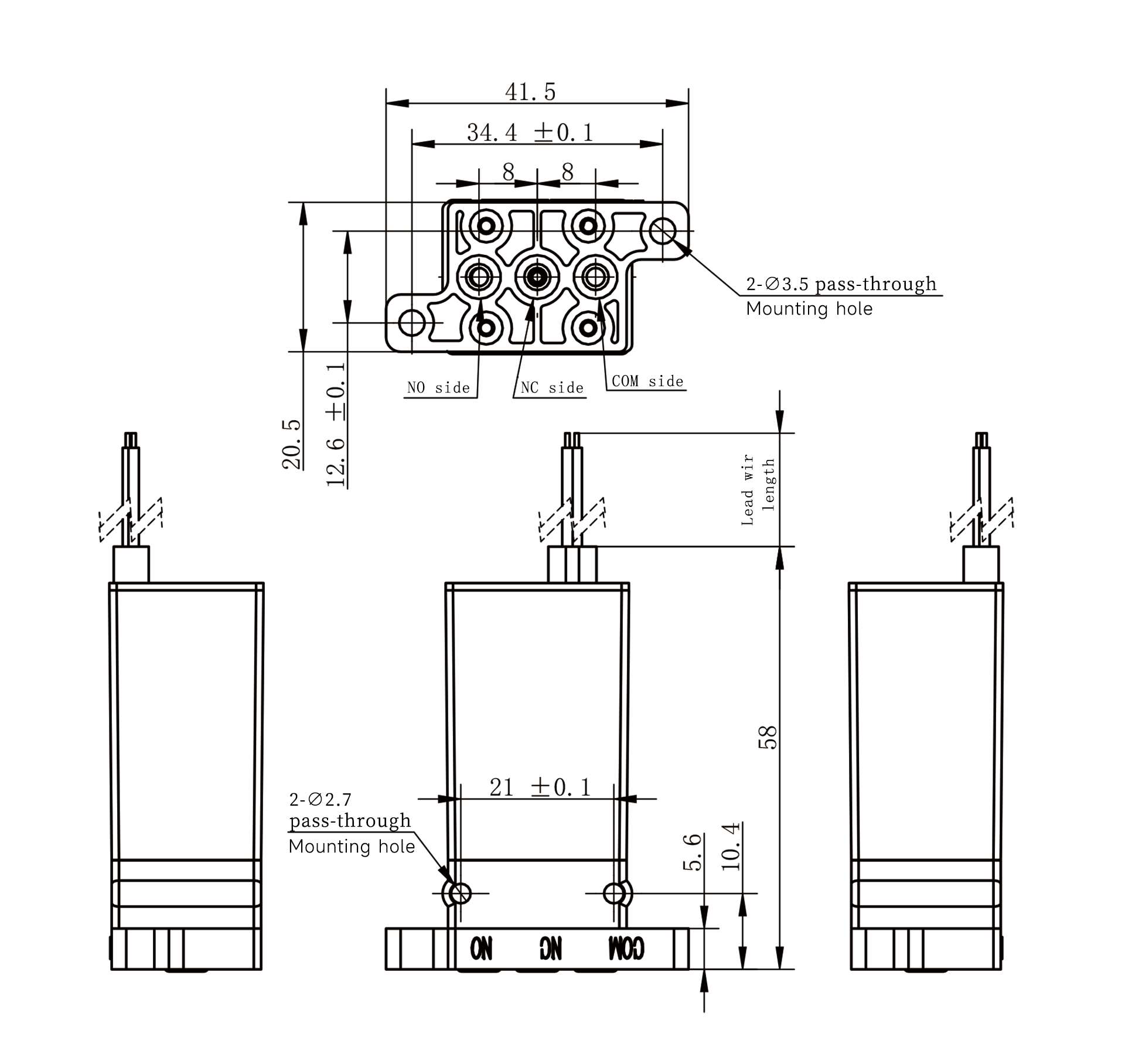

2D View
3D View
Valve Type 1021 3-way Base Mount Valve
Valve Structure Direct-operated Diaphragm Valve, 3-way
Port Number 3（Assigned inlet & outlet）
Valve Body Material PPS（Selected based on the needs of the medium, if it's th strong acid and alkali, please  communicate with Keyto for specific specifications）
Diaphragm Material EPDM/ETP/FFKM
Voltage 12V/24V
Orifice 2mm
Flow Rate 11g/s(25℃，50KPa，pure water）





Demo video
Product video
Factory video
1021 Solenoid Valve
Keyto Machining Factory
Keyto Quality Control （1）
