P Series Piston Pump

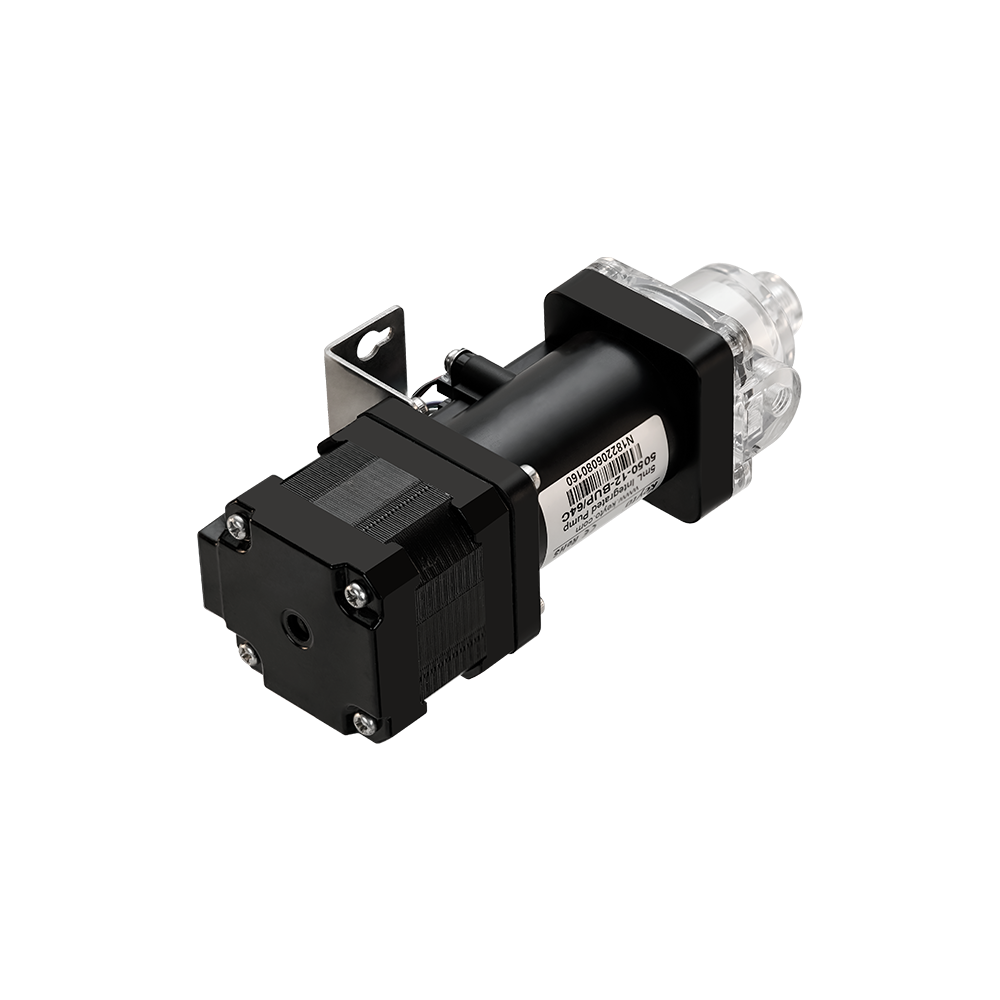

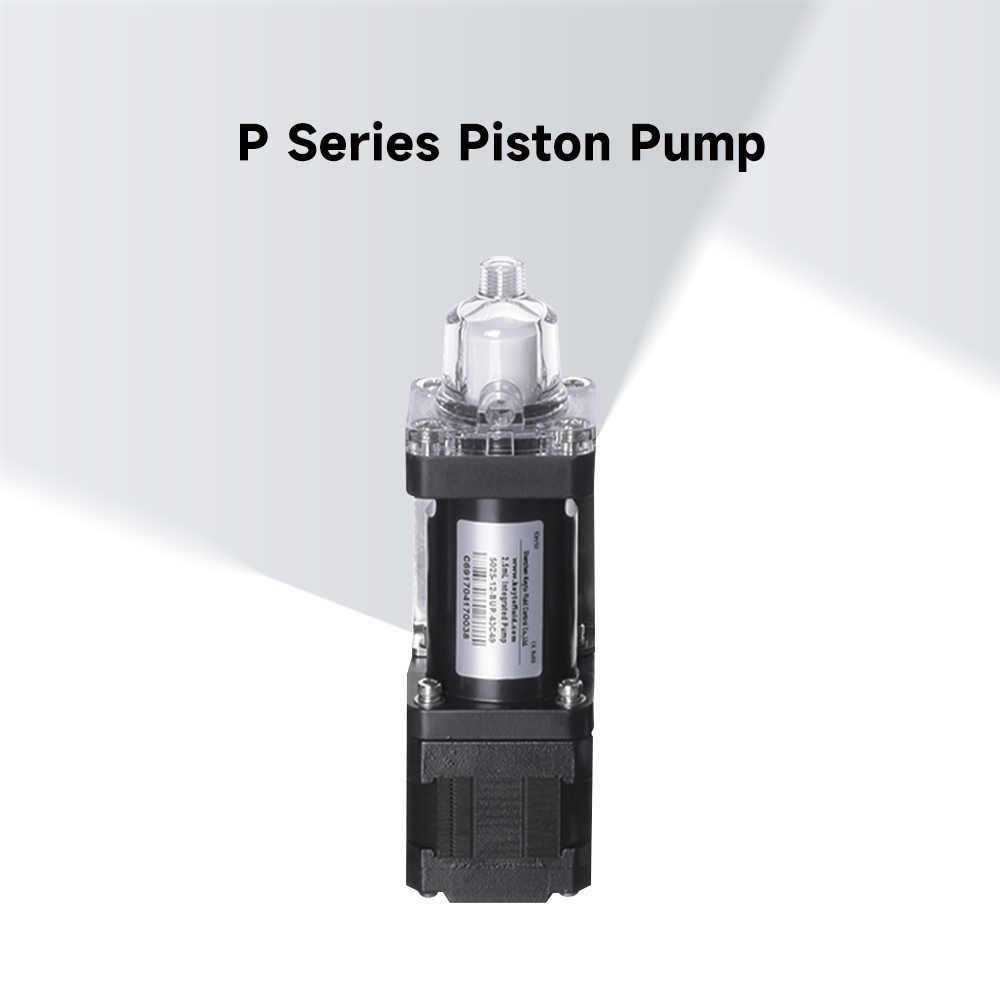

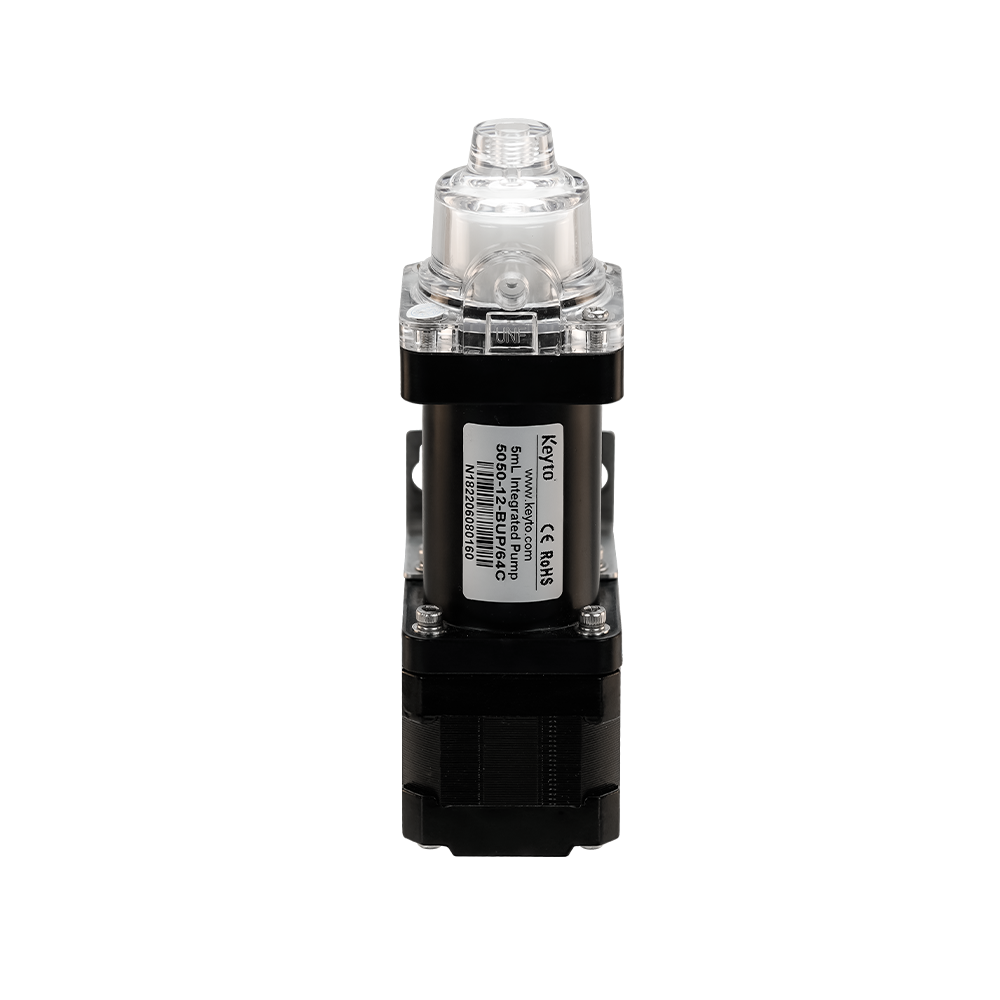

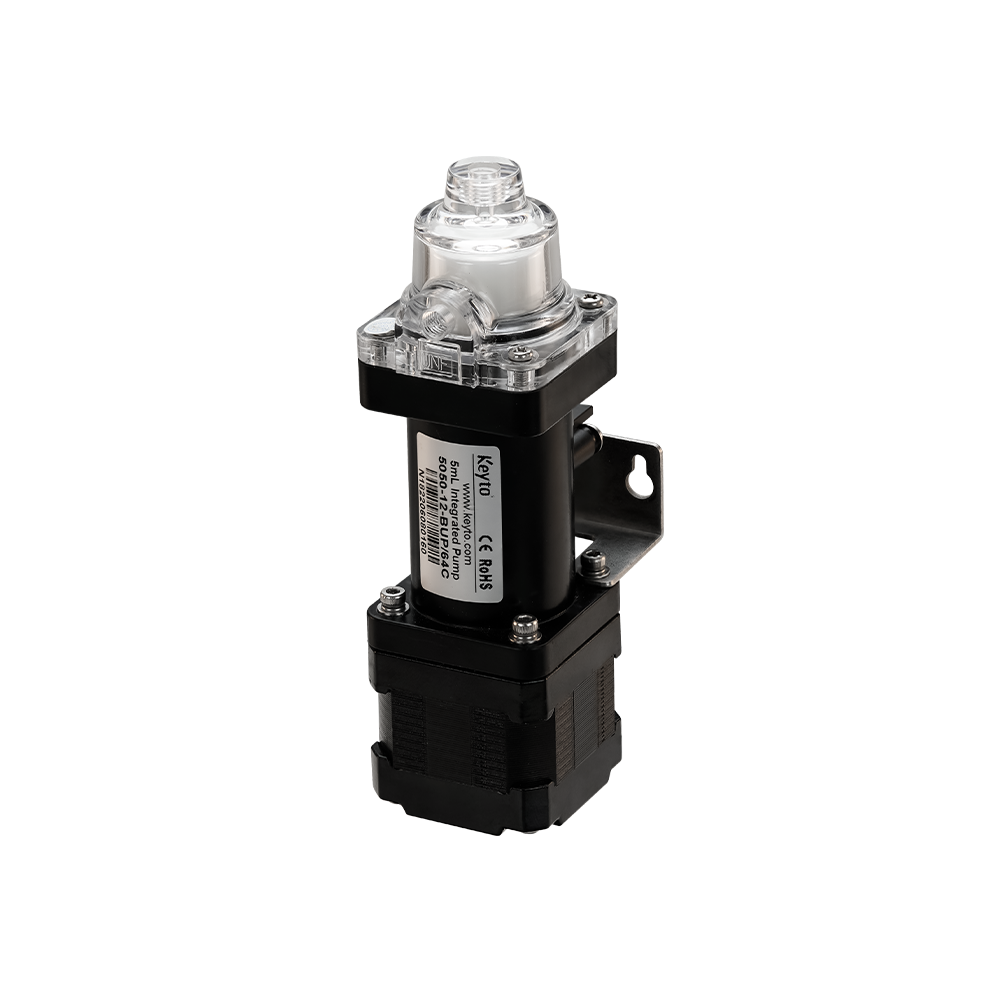

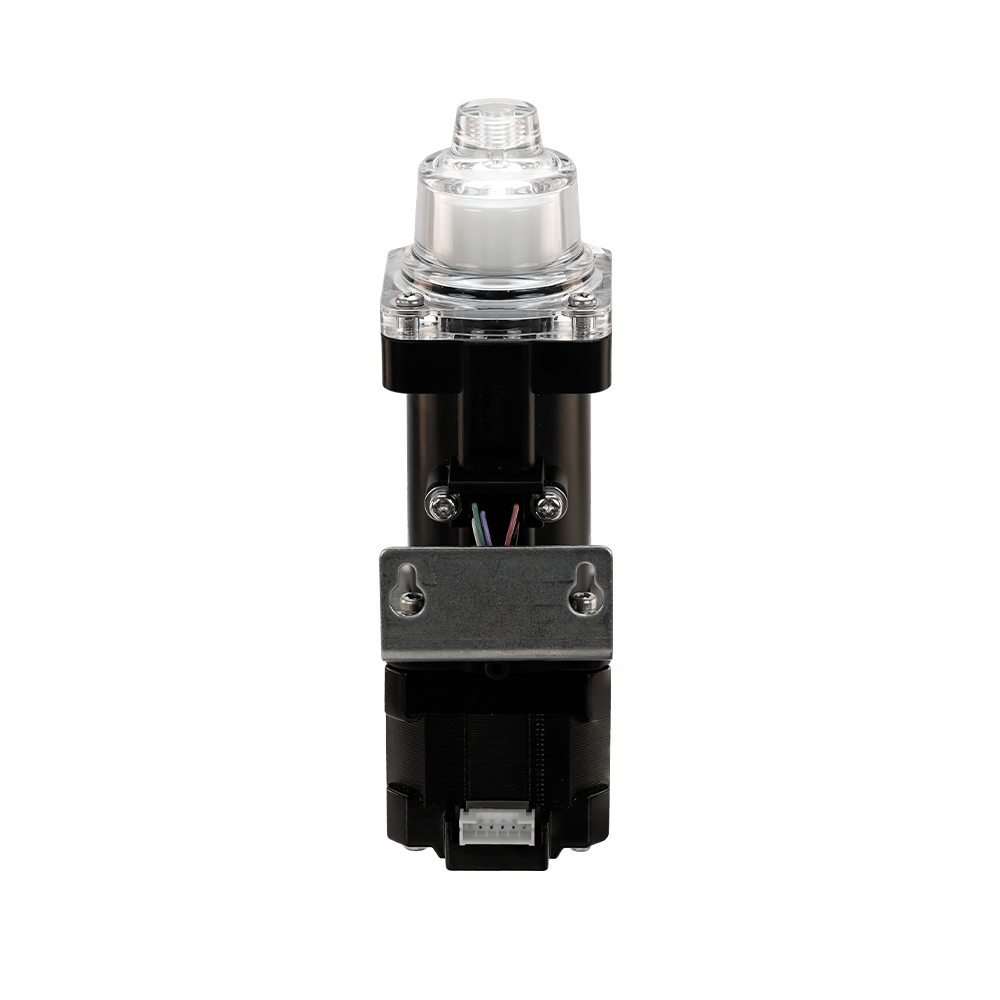

P Series Piston Pump
The 50 P series piston pump offers a nominal volume range of 50 μL to 5 mL with multiple model options. Featuring zirconia ceramic piston technology and advanced sealing design, it ensures over 5 million maintenance-free cycles with exceptional chemical resistance and repeatability (CV<1.2% at 2% volume, CV<0.5% at >10%). Optical sensors detect piston start position, enhancing precision. Its compatibility with various materials and sealing structures supports diverse applications and conditions.
Key Parameters:
Volume options
Current
Port type
Sensor
Wetted materials
Reference Model:
50
WhatsApp Contact
Online Message
Model Comparison
P Series Piston Pump
Comparable Products
1ml Micro Piston Pump
50XX-V Series Micro Piston Pump
10ml Piston pump
Machined Piston pump
S Series Machined Piston Pump
Model Comparison
Back
Overview
Parameters

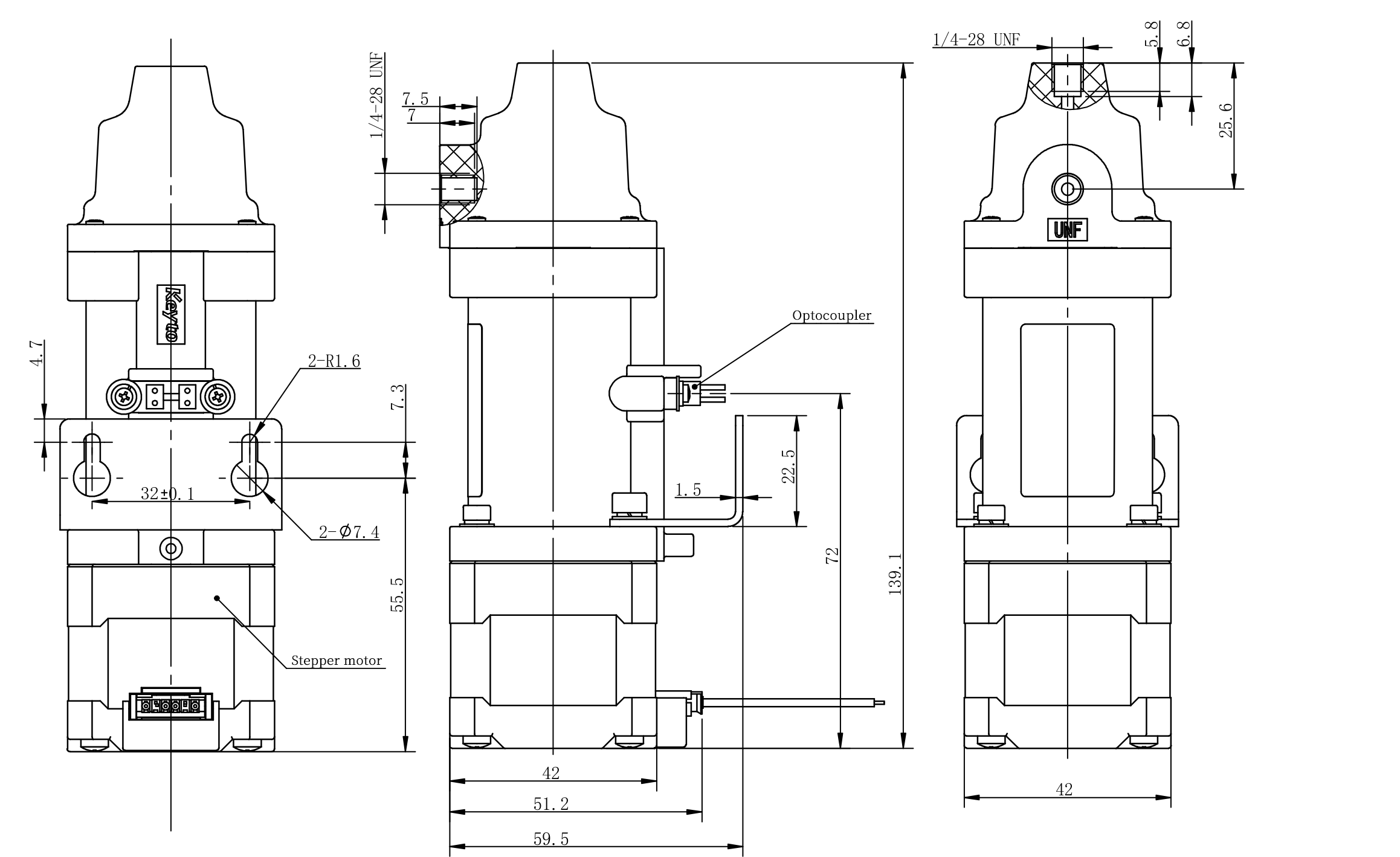

2D View
3D View
Parameter P Series Piston Pump
Max. volume(ul) 100 250 500 1000 2500 5000
Piston diameter(mm) 3.17 5.01 7.08 10.01 15.84 22.39
Volume per step(ul/step) 0.05 0.125 0.25 0.5 1.25 2.5
Stroke(mm) 12.7
Max. RPM(r/s) 12
Motor angle(°) 1.8
Lead(mm) 1.27
Stroke per step(mm/step) 0.00635
CV

CV <0.5%(full stroke)
CV <1.2%(2% stroke)
Life span 5 million cycles
Port type M6, 1/4-28 UNF
Dimension(mm) 139.1*53.5*42
