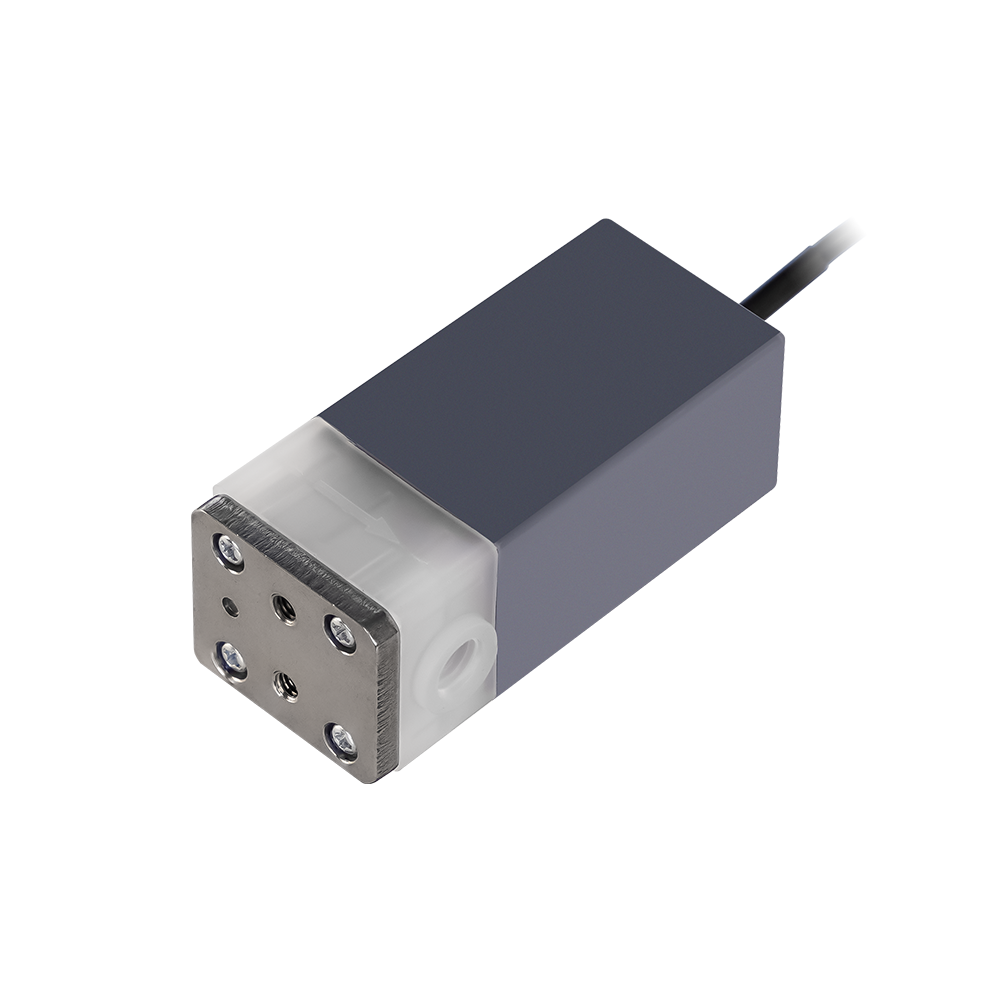

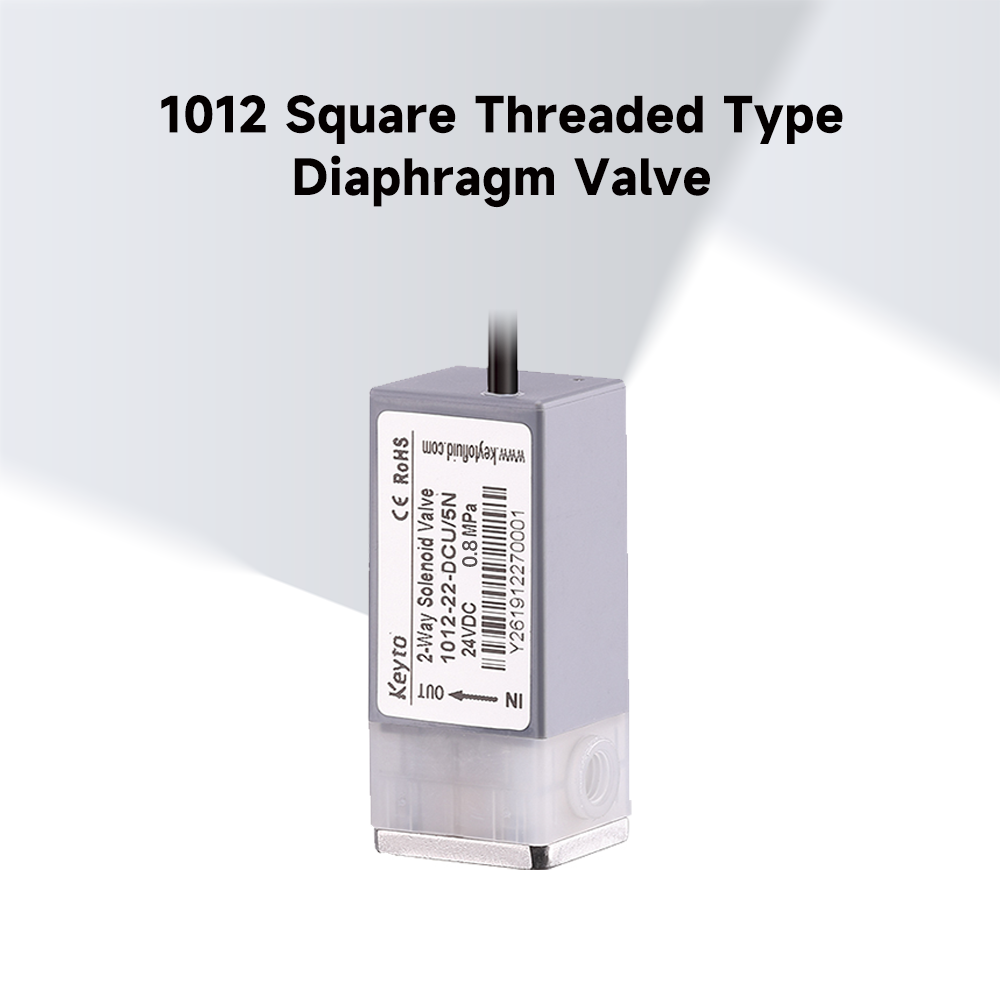

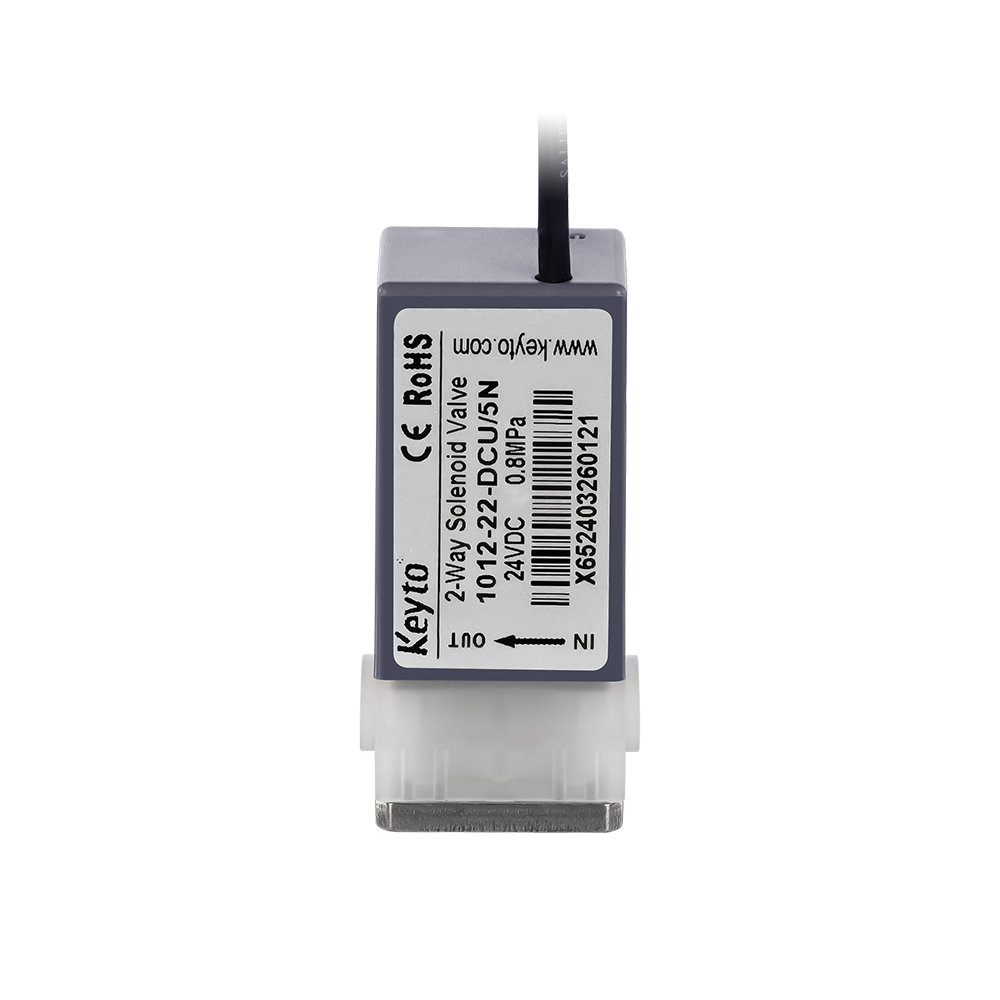

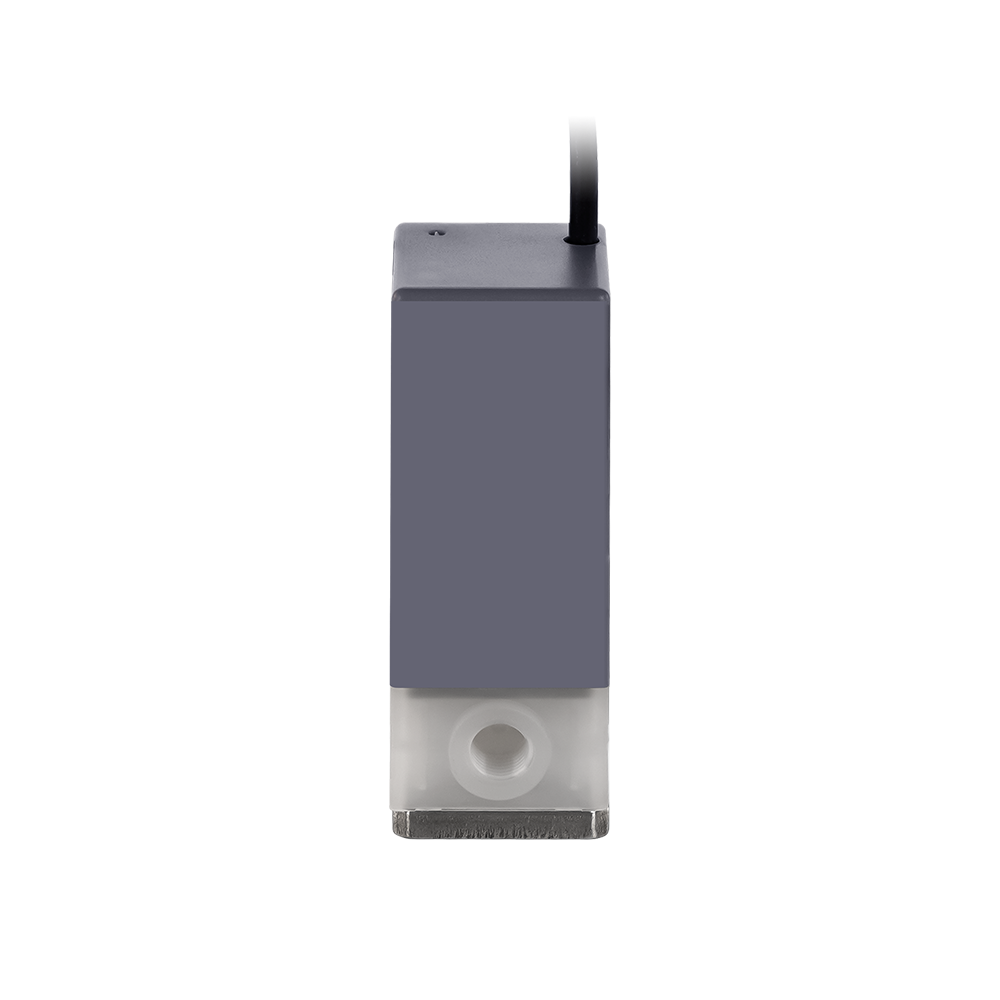

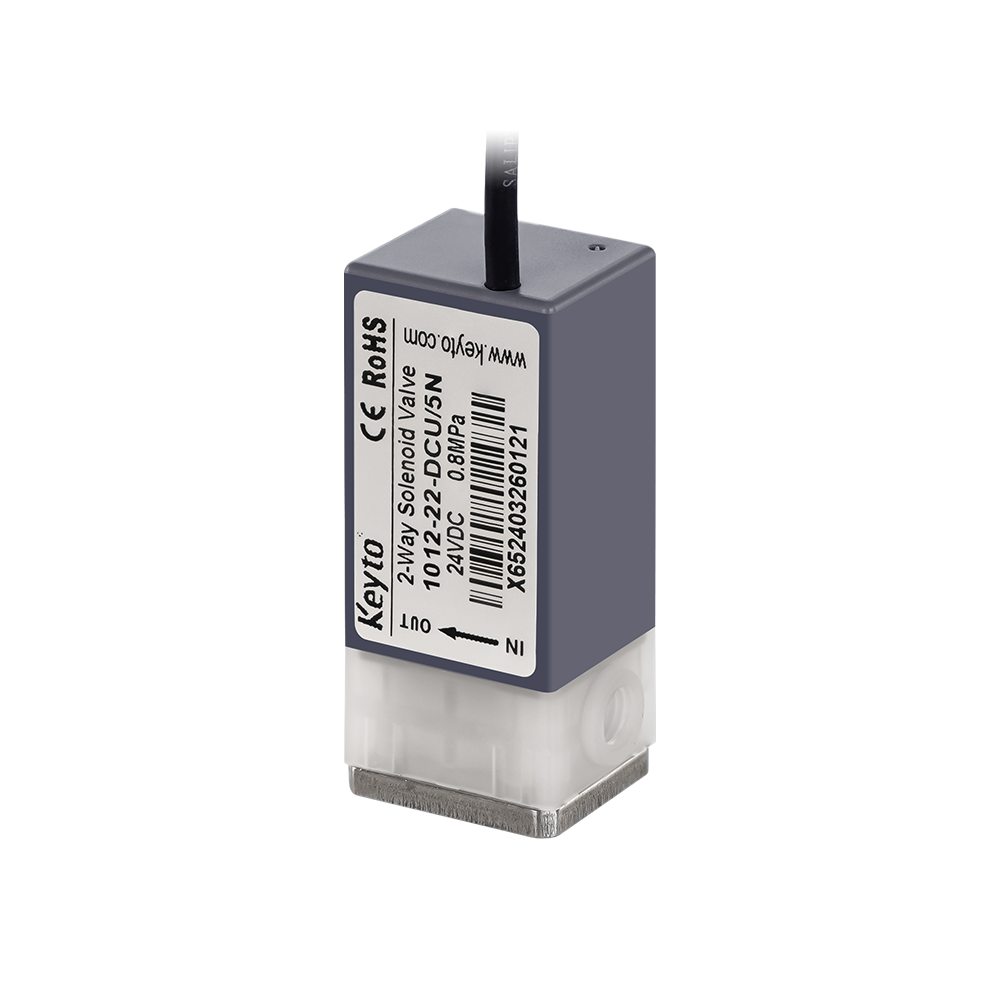

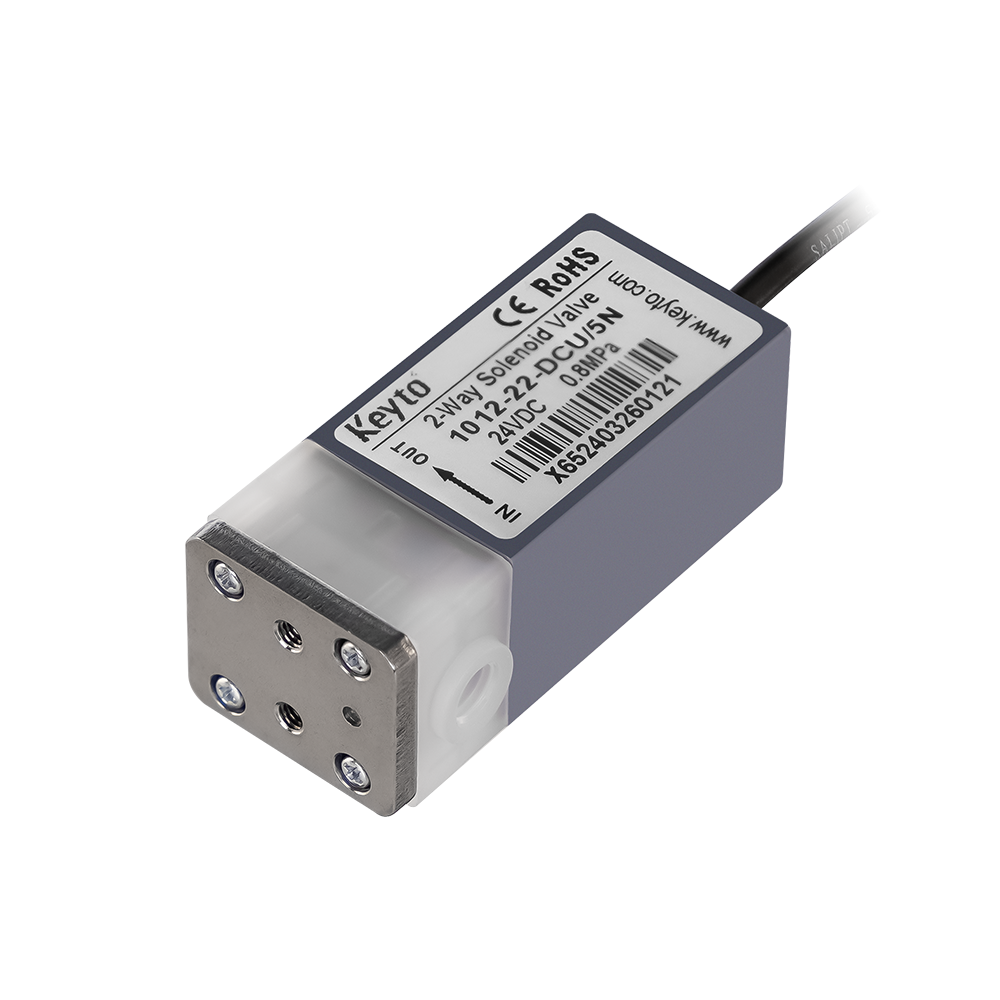

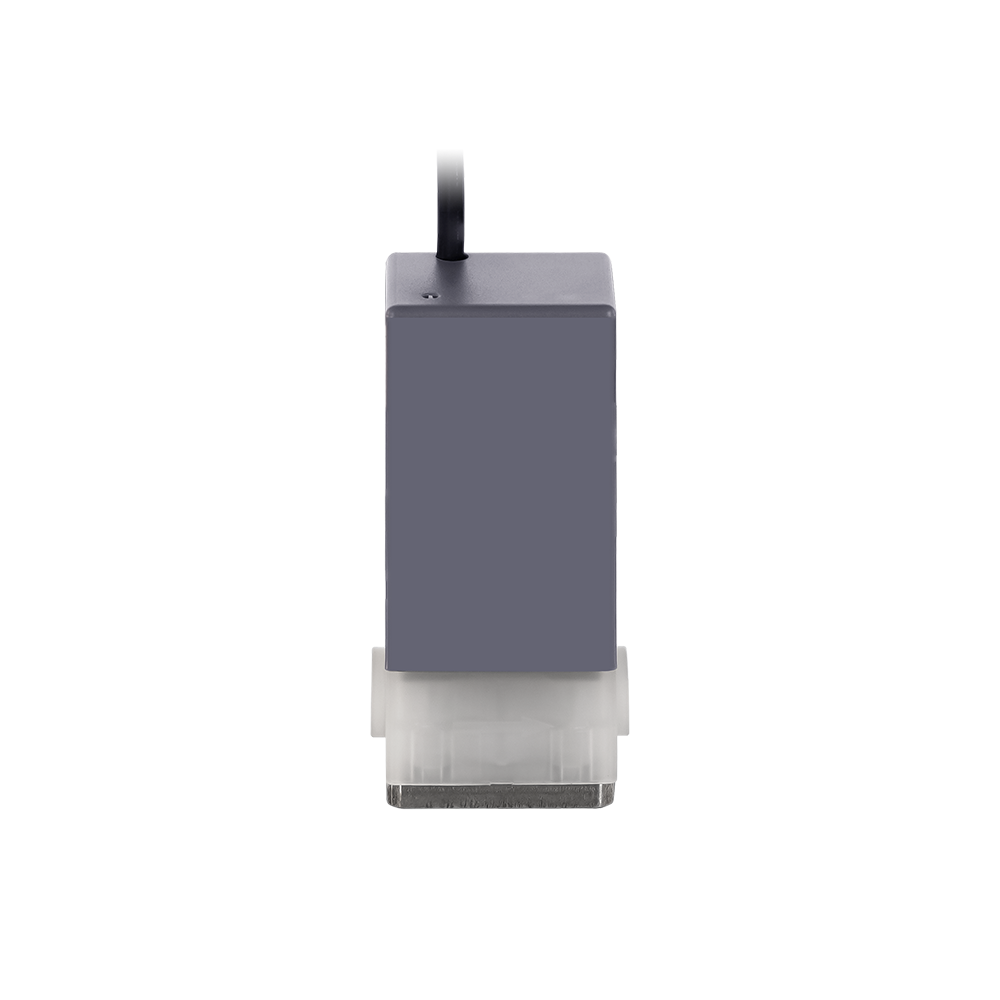

1012 Square Threaded Type Diaphragm Valve

The 1012 series solenoid valve by Keyto is a 1.5mm orifice diaphragm valve designed for on/off liquid control, with resistance to strong acid, alkali, high temperature, and high pressure. Available in 8Kg and 15Kg options, it accommodates various reagents and conditions. With a service life of over 2 million cycles, it delivers high precision and reliability. This low-cost, maintenance-free valve is ideal for demanding fluid control applications.

Key Parameters:

Voltage

Wetted Material

Connection Type

Reference Model:

1012-22

WhatsApp Contact

Online Message

E-mail Comparison/Performance

Overview

Parameters

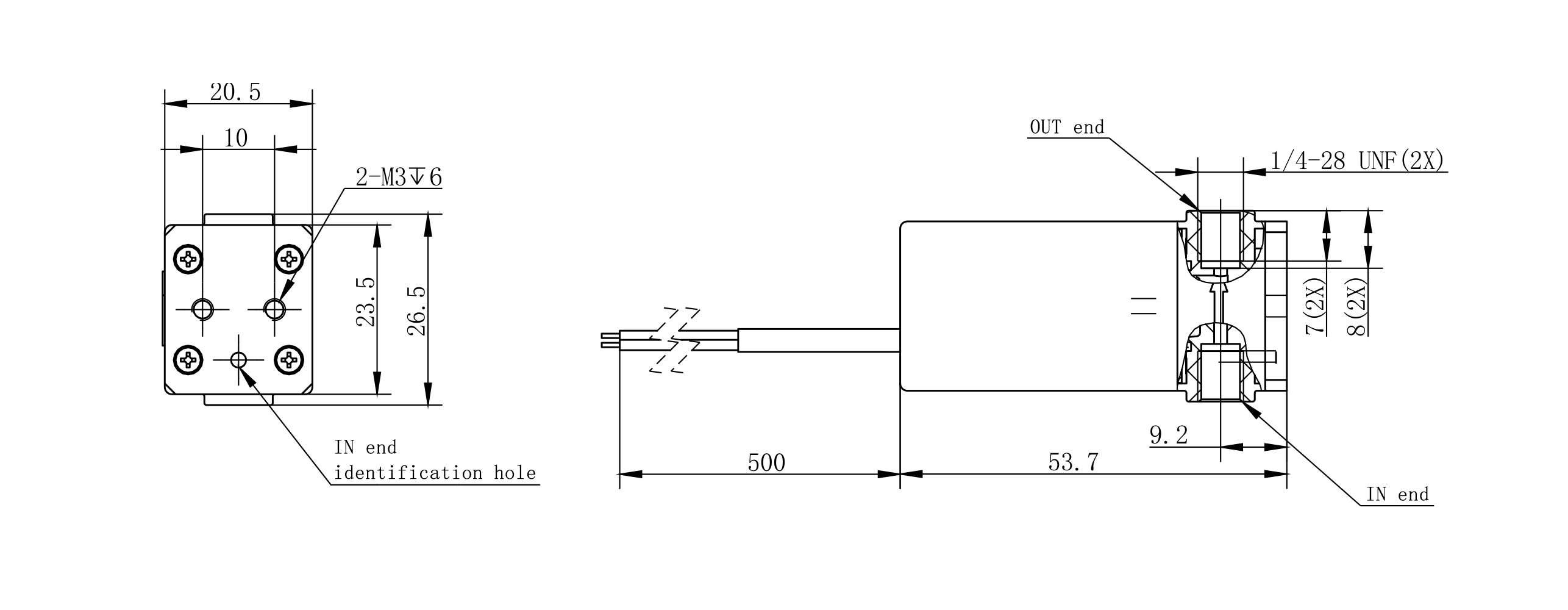

2D View

3D View

Valve Type	10122-way Square Threaded Type Valve
Structure	Direct-operated Solenoid Valve, 2-way N.C.
Port Number	2（Assigned Inlet & Outlet）
Body Material	PTFE、PVDF
Diaphragm Material	FFKM
Voltage	24V
Orifice	1.3mm
Pressure	0-800kPa
Flow Rate	5.1g/s（25℃，50KPa，Purified water）
