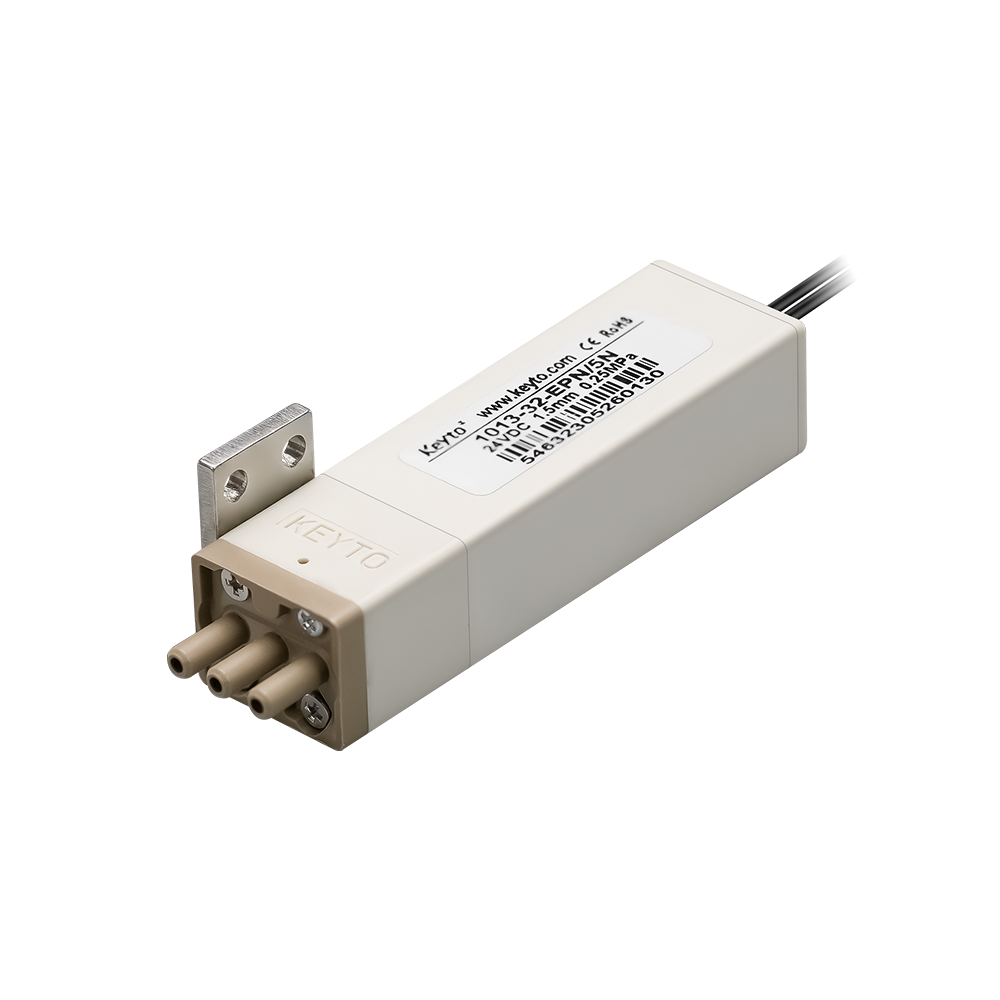

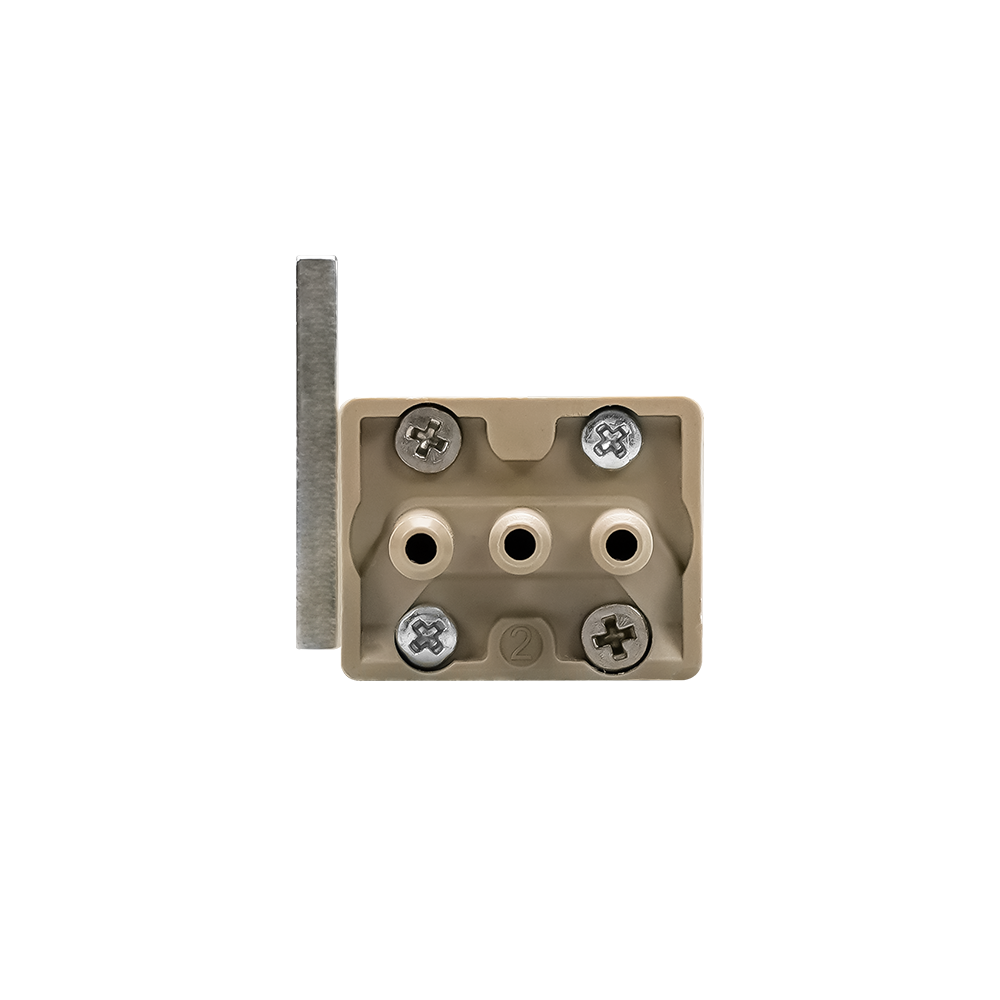

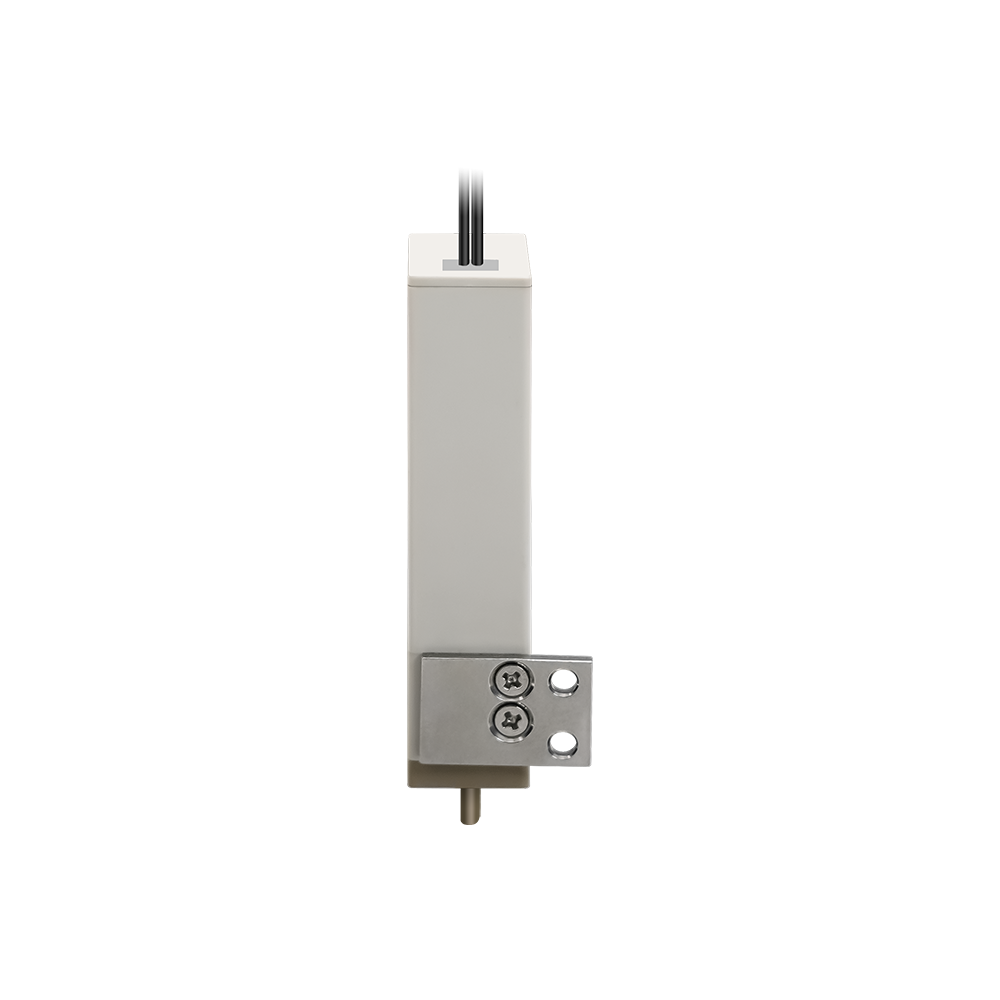

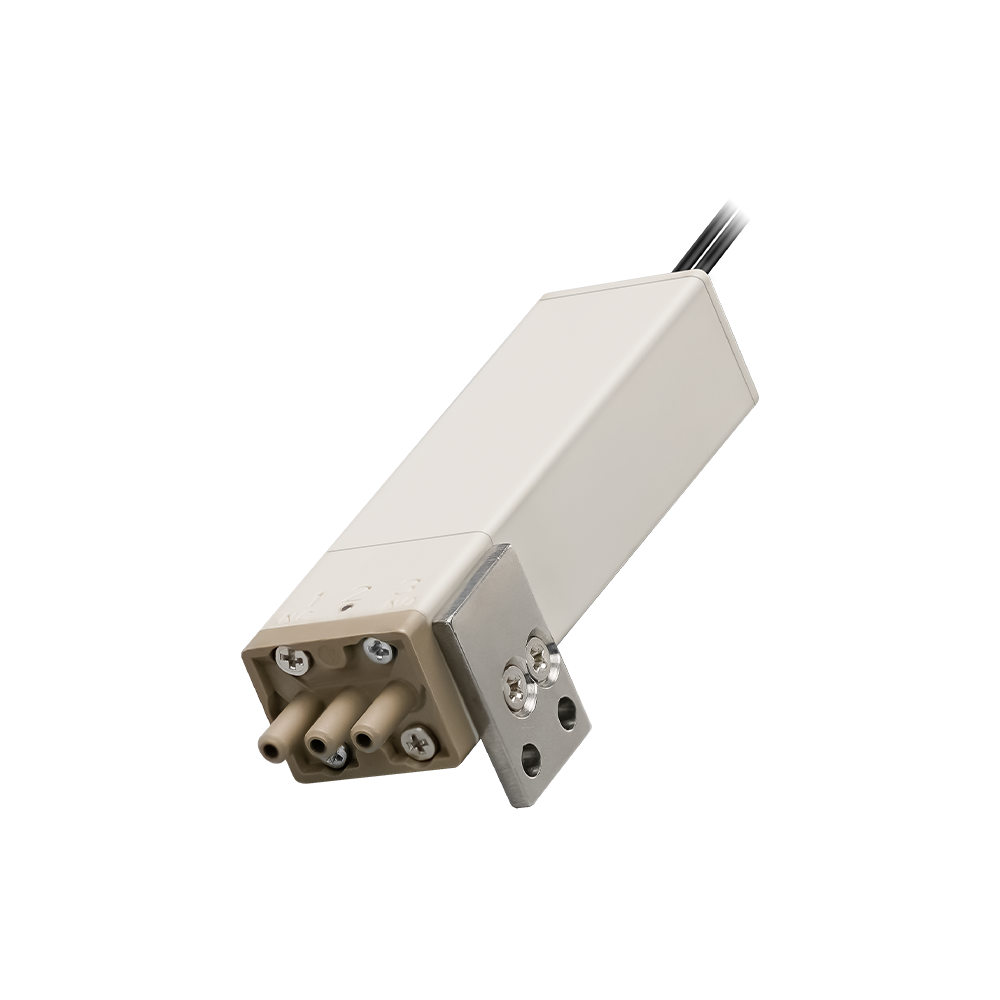

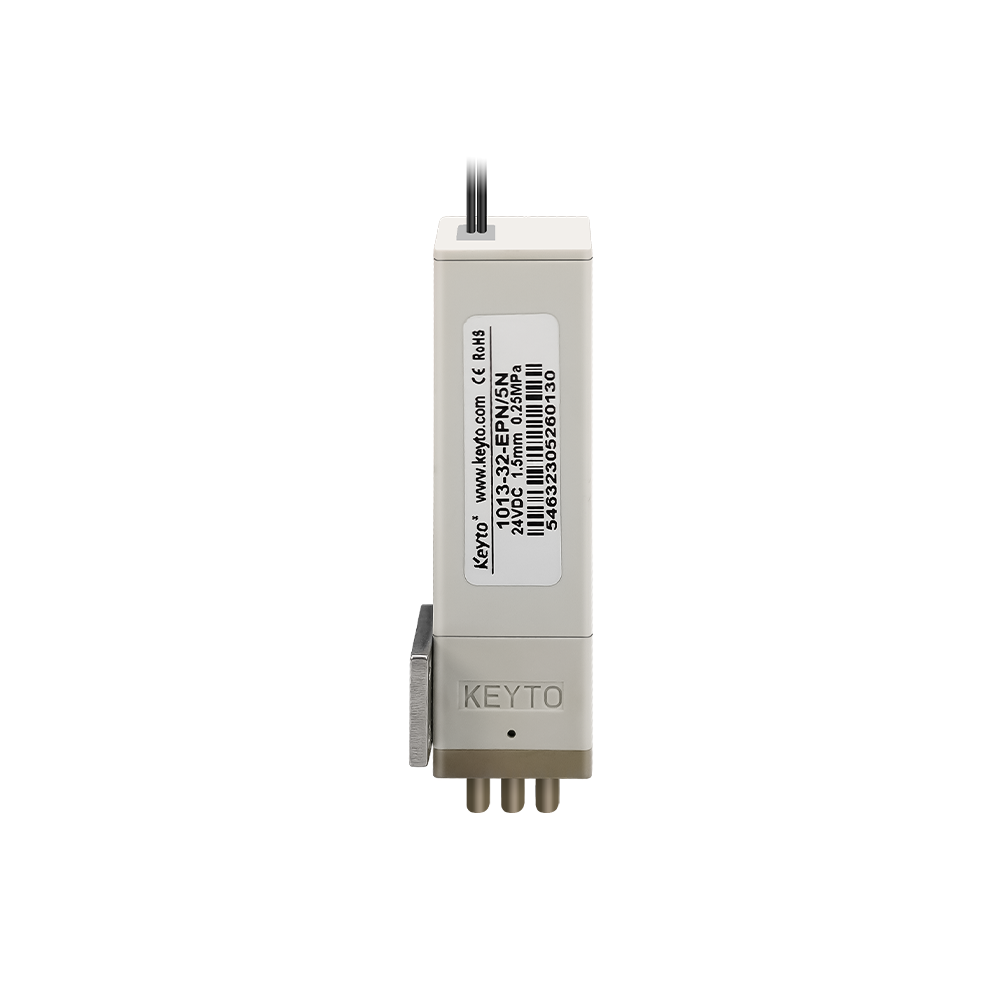

1013-3 way tubing type solenoid valve

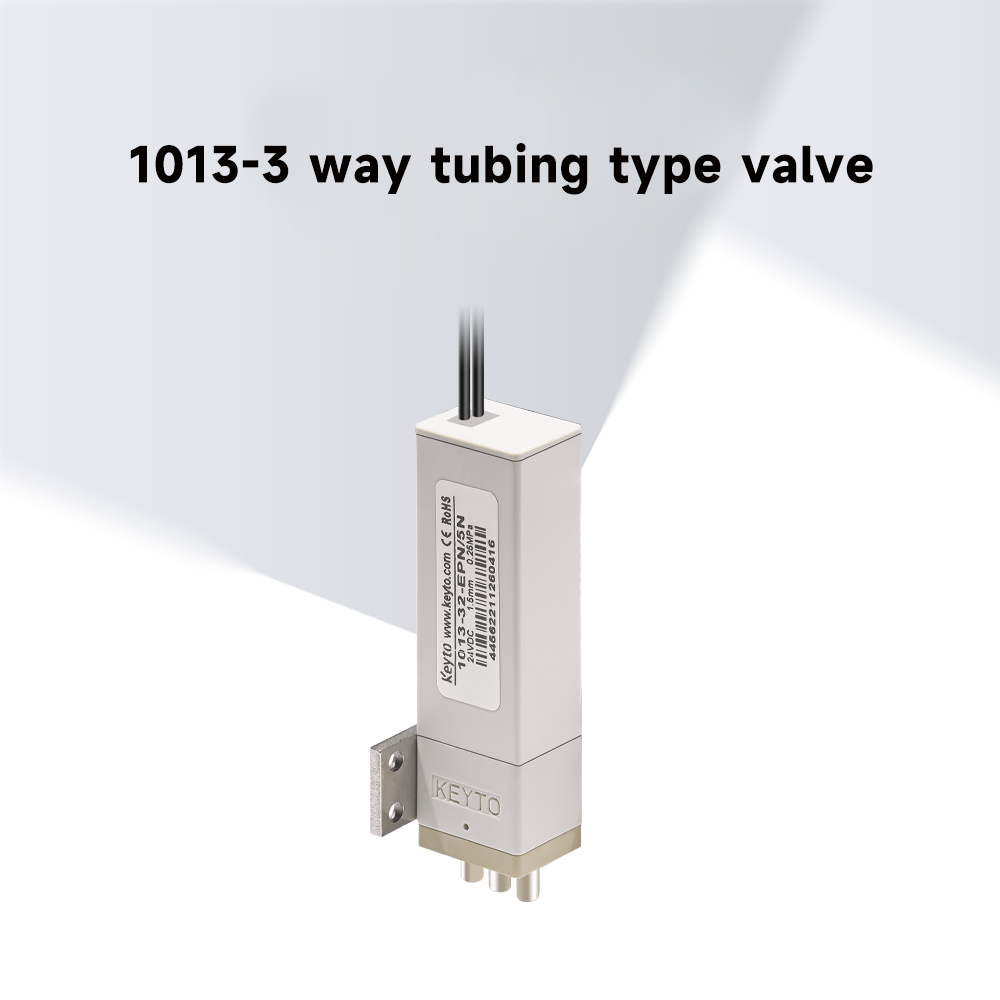

1013-3 way tubing type valve

The 1013 series solenoid valve is a high-performance fluid control component featuring a unique rocker design, resulting in near-zero volume change during operation and minimal liquid loss. Its compact internal structure with low internal and dead volume enables precise liquid control, suitable for sampling, cleaning, and pressure stabilization. The valve boasts a long operational life of up to 5 million cycles under normal working conditions. It is widely used in medical devices, laboratory instruments, and environmental analyzers.

Key Parameters:

Voltage

Wetted material

Reference Model:

1013-3

SPEC

Online Browsing Download

Overview

Parameters

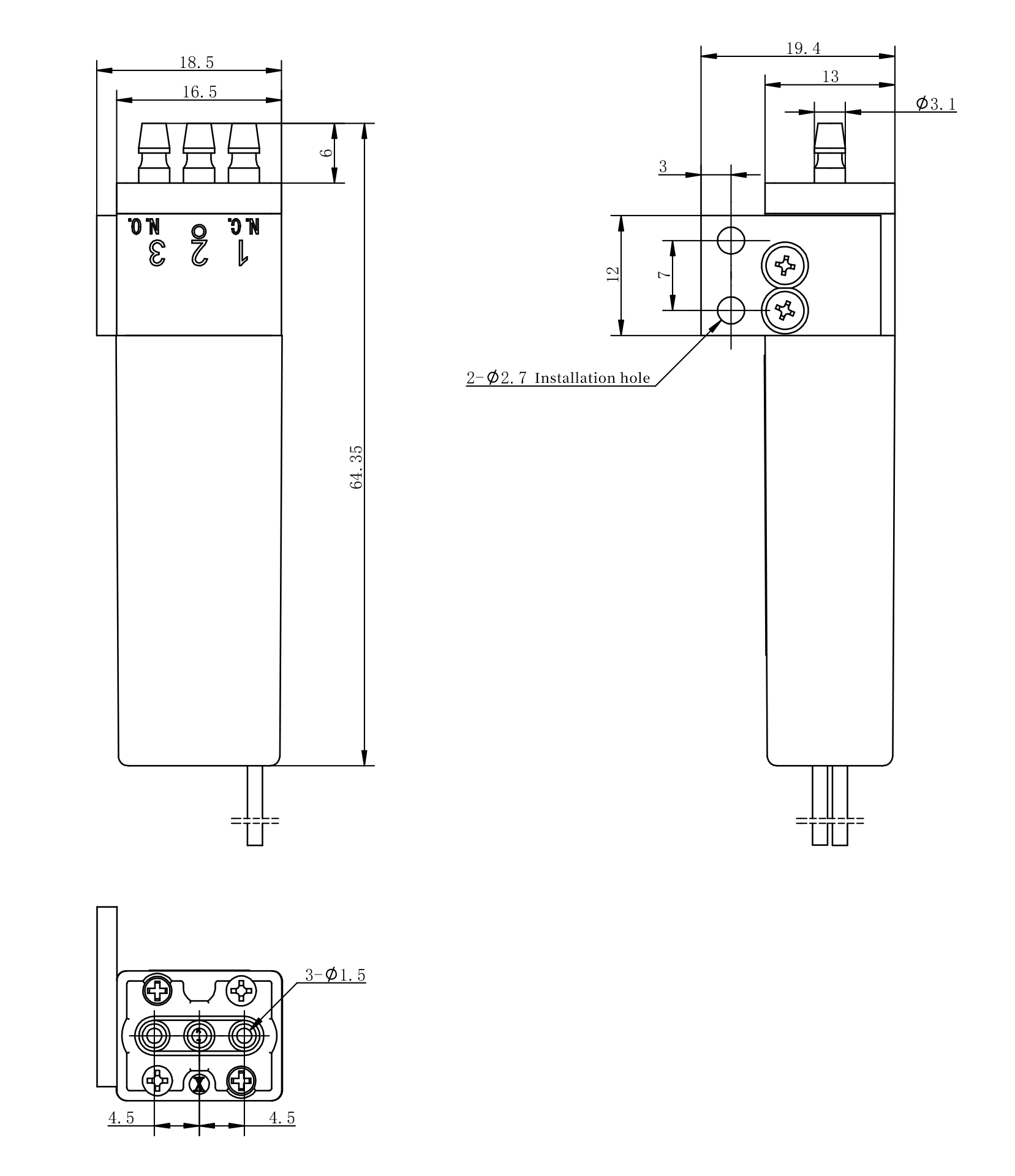

2D View

3D View

Stucture	Rocker type		Diect-diaphragm valve
Orifice	1.5mm
Power	24V: 2.8W；12V: 3.4W；	1.8W	24V/12V: 2.8W
Flow Rate CV	0.03		0.017
Suitable Medium	Water, air, weak acid, weakbase(The applicablemediumisrelatedtothewettedpartmaterialtolerance)
Operation Pressure Range	-75kPa~250kPa
Pressure Resistance	0.3MPa
Leakage	0 (hydraulicpressure）
Response Time	＜50ms	＜20ms	＜30ms
Internal Volume	20μL		40μL
Rated Voltage	DC：24V/12V
Fluctuation of Voltage	-10%+10%
Energy Saving Circuit	12V/24V: 0.8W	/	/
Insulation grade	F
Insulation rade	IP40	IP54	IP40
