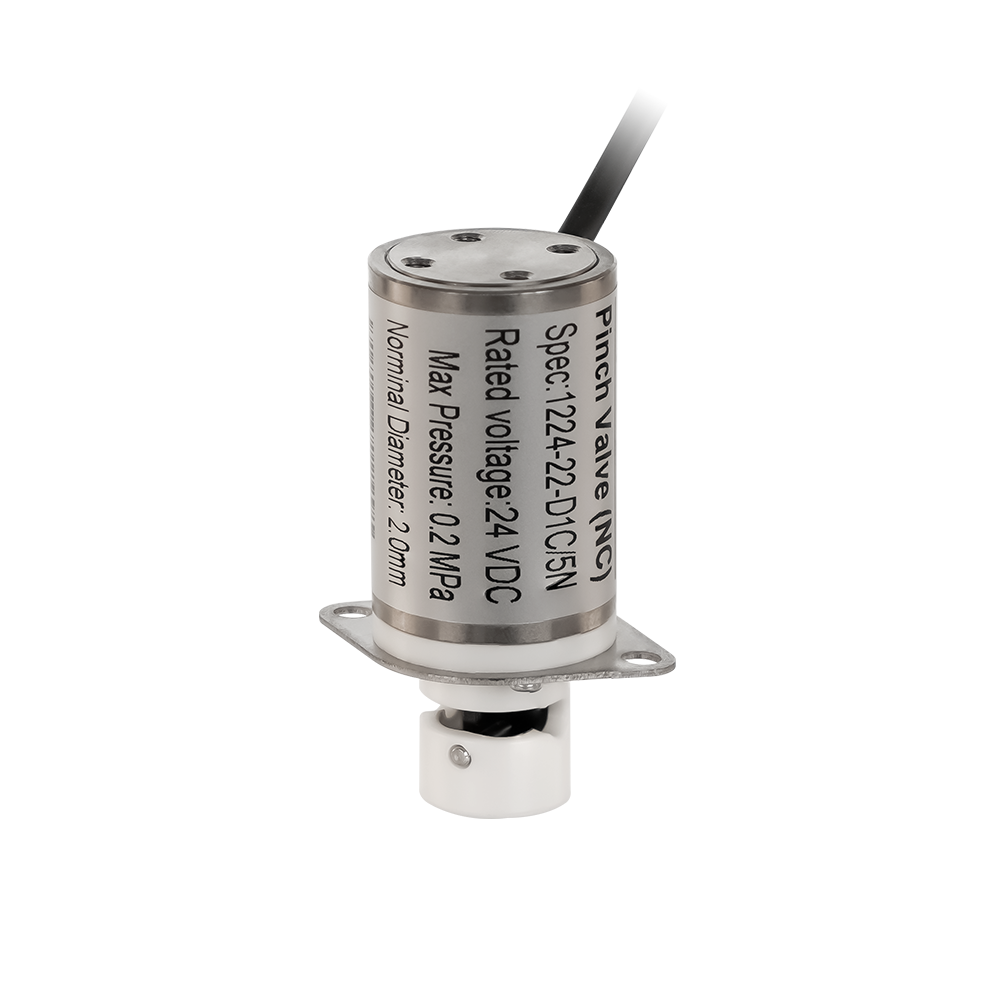

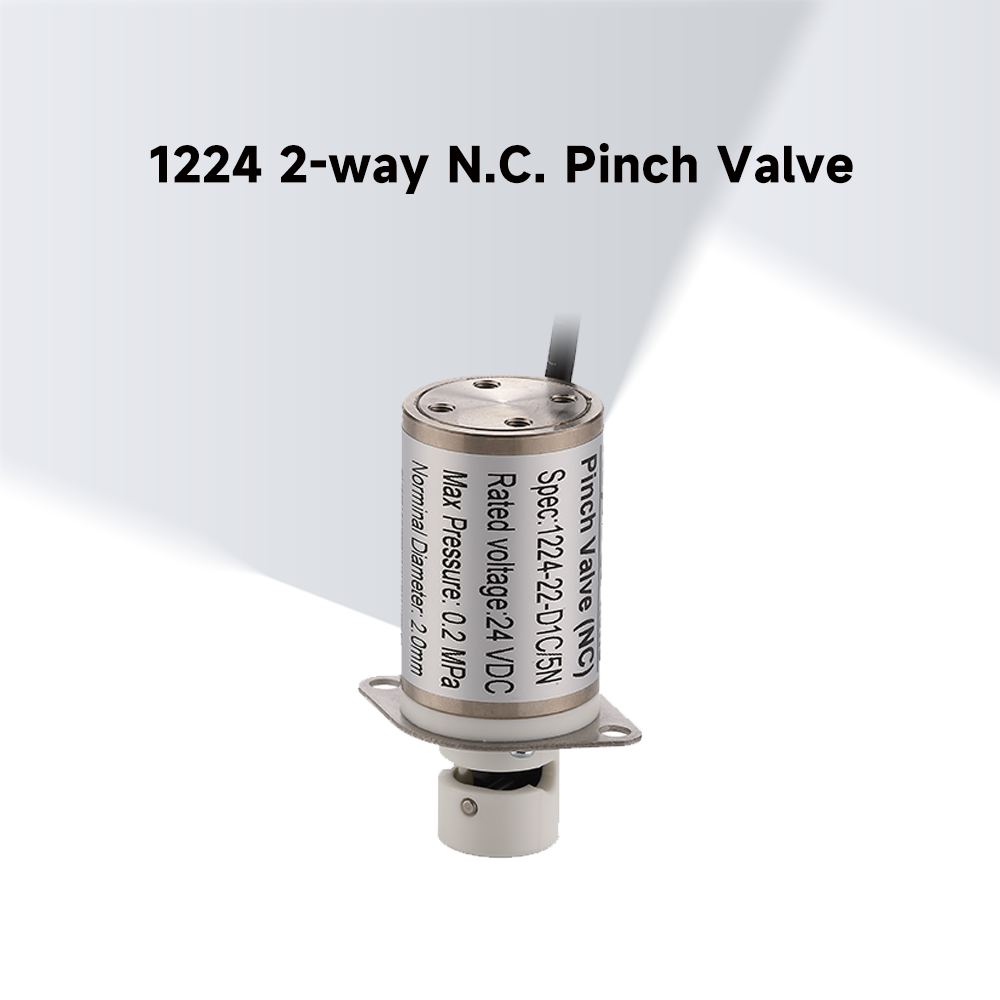

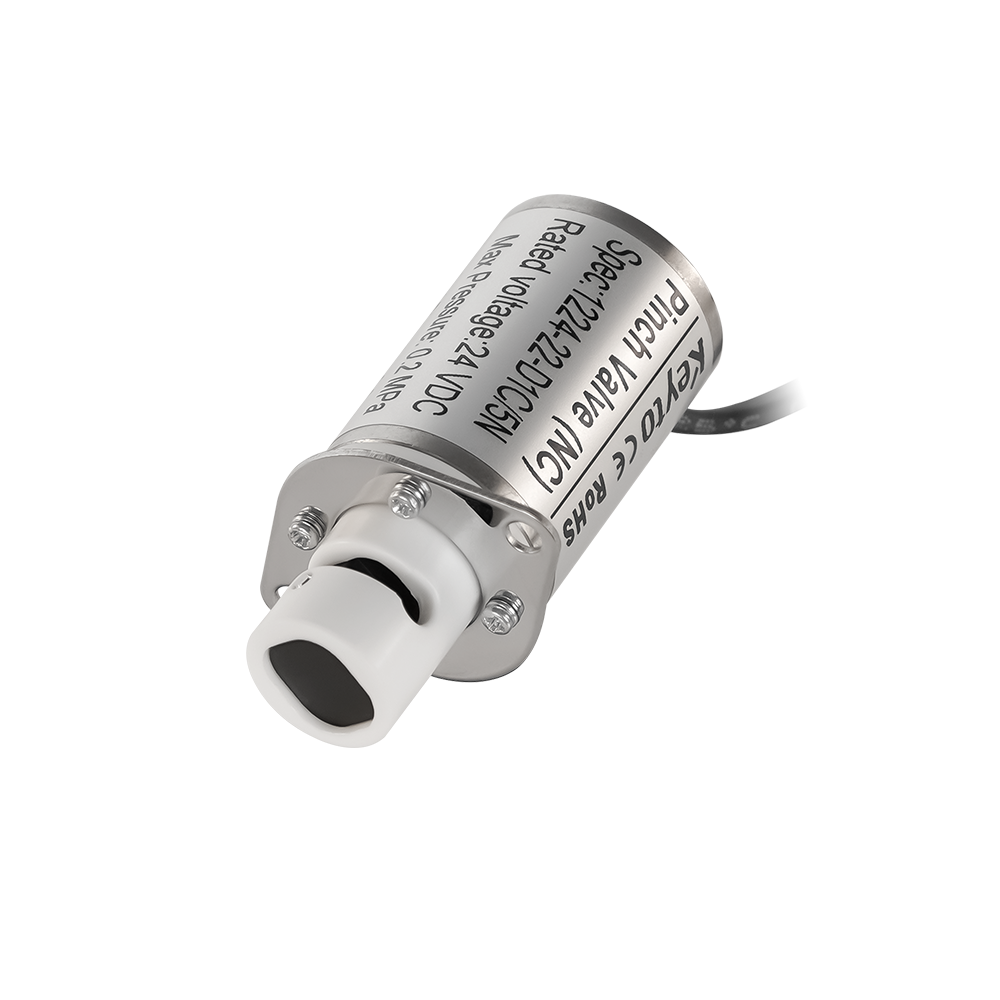

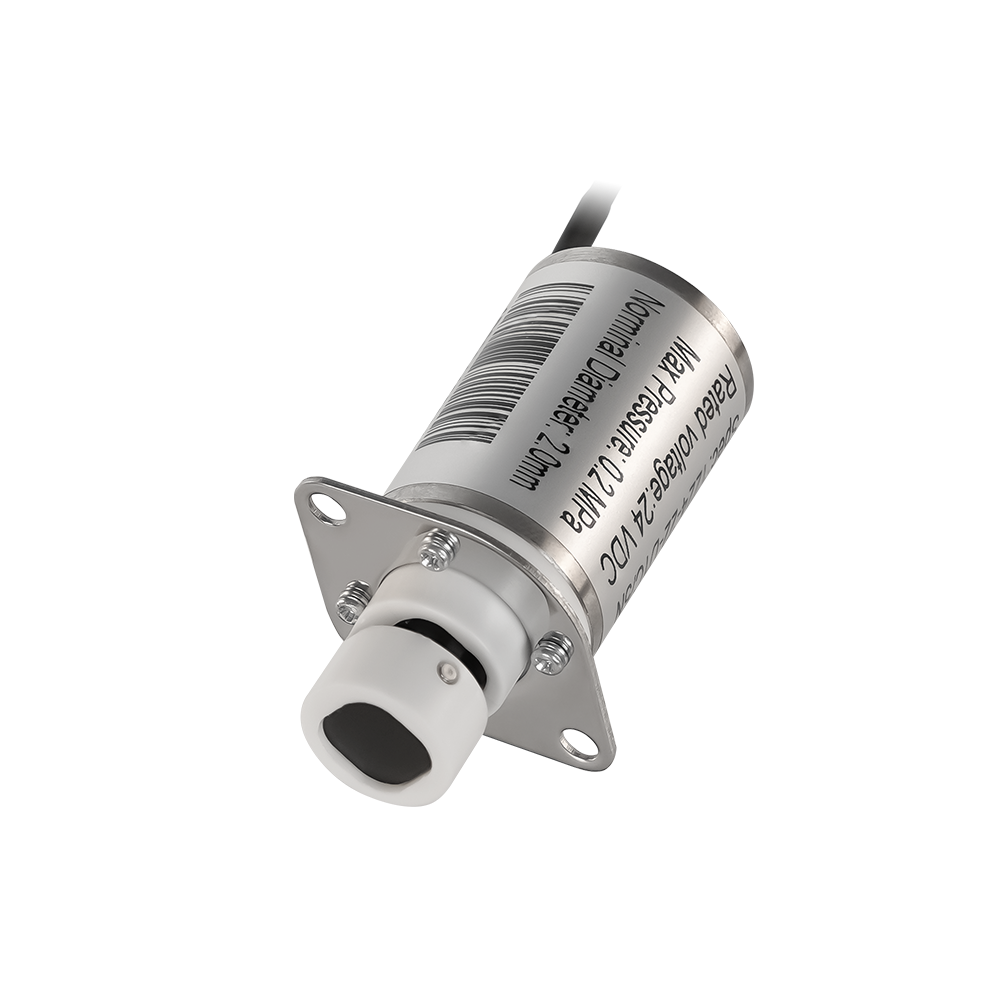

1224 2-way N.C. Pinch Valve
1224 2-way N.C. Pinch Valve
The 1224 series solenoid valve is a single-channel pinch valve offering high performance, low cost, and maintenance-free operation. With a service life of over 2 million cycles, it ensures reliable switching for various tube types. Its simple tubing design is easy to clean, ideal for handling samples with impurities and particulates, and helps prevent cross-contamination. Multiple model options are available to meet different application needs.
Key Parameters:
Voltage
Fixing method
Reference Model:
1224-2
WhatsApp Contact
Online Message
Model Comparison
1224 2-way N.C. Pinch Valve
Comparable Products
1213 3-Way Pinch Valve
1224 2-way N.O. Pinch Valve
1269 2-way Pinch Valve
1212 3-way Pinch Valve
1269 3-way Pinch Valve
Model Comparison
Back
Overview
Parameters

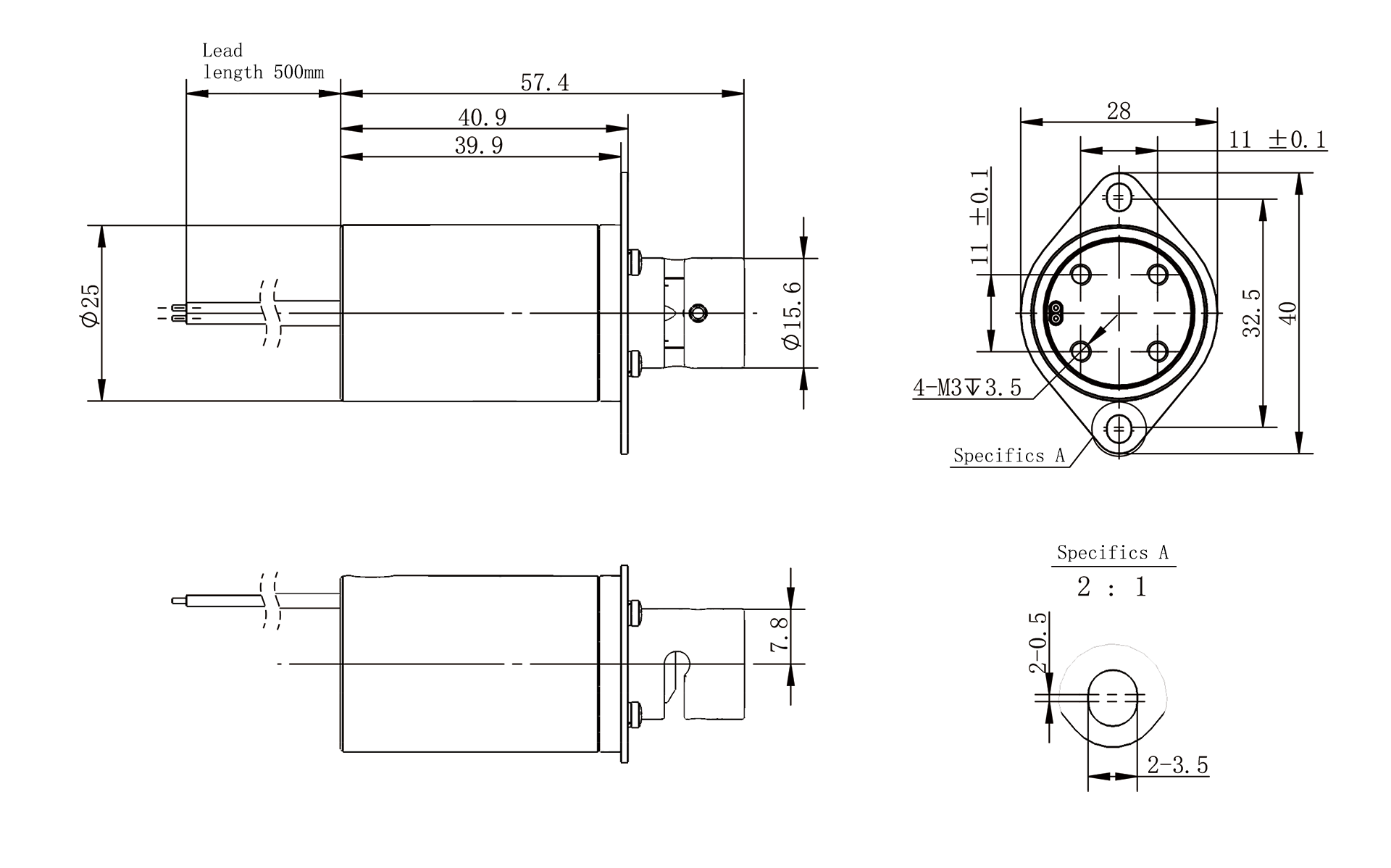

2D View
3D View

Valve Type

Normally Open Pinch Valve (1224-1 Series) / Normally Closed Pinch Valve (1224-2 Series)

Orifice Diameter

2 mm

Tubing Size

2 mm × 4 mm (For other sizes, please confirm with our sales team)

Recommended Tubing Hardness

Shore Hardness: 60

Pressure Resistance

-70 kPa ~ 250 kPa (1224-1 Series) / 70 kPa ~ 150 kPa (1224-2 Series)

Power Consumption

12V: 5.1 W / 24V: 5.4 W

Dimensions

Ф25 mm × 58 mm

Remarks

For reference only. This information is simplified. For detailed specs, please contact our sales.
