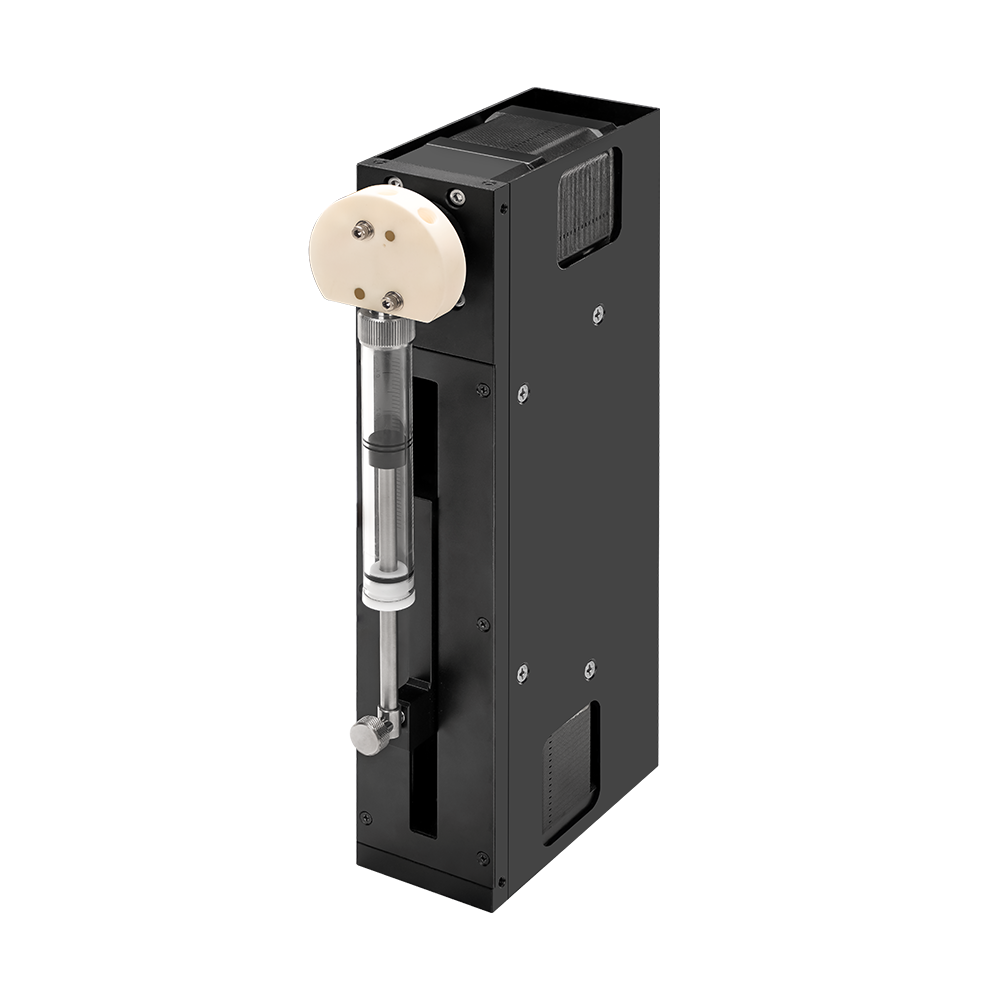

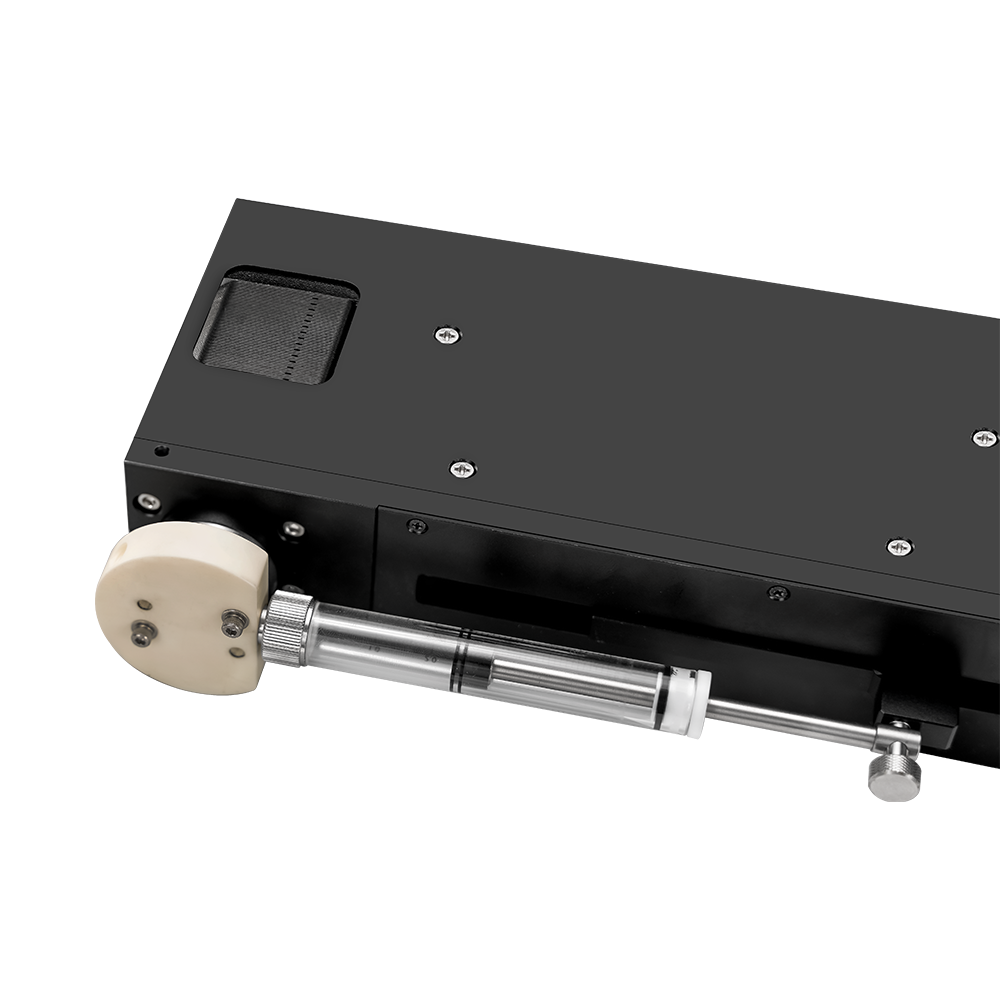

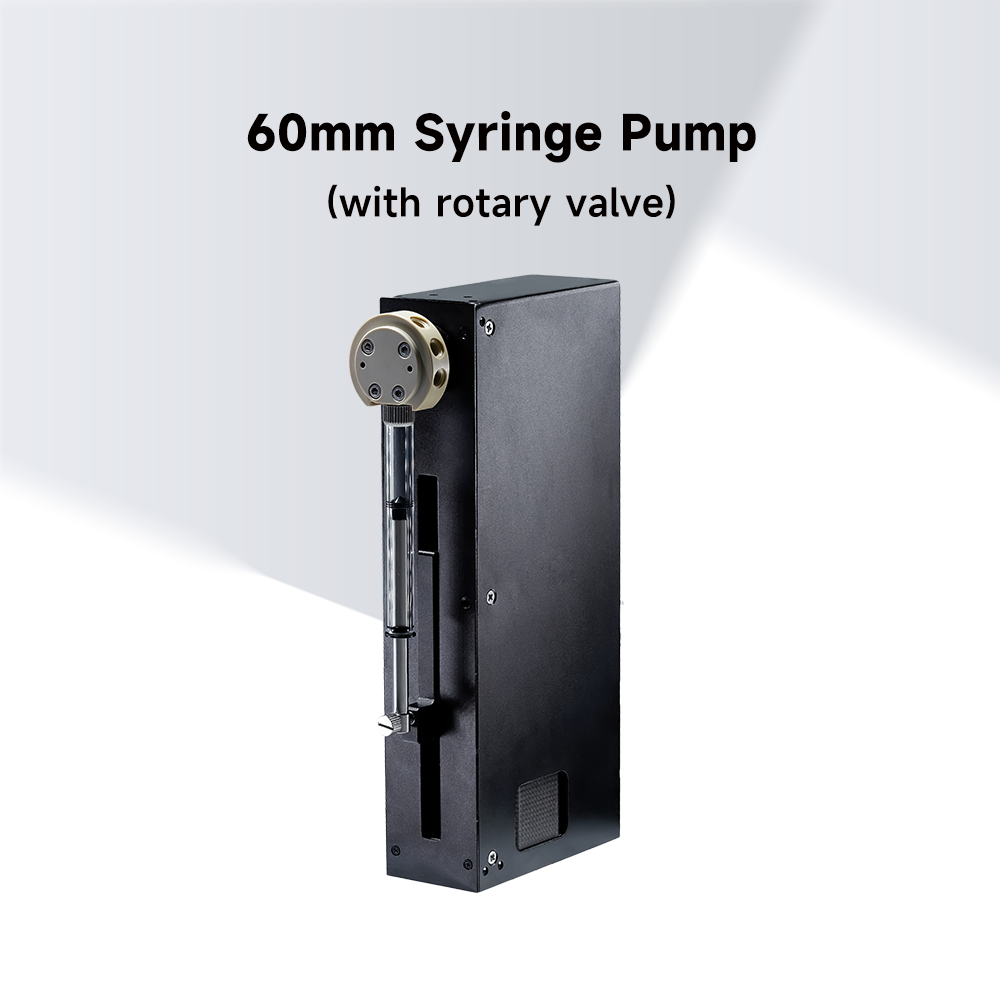

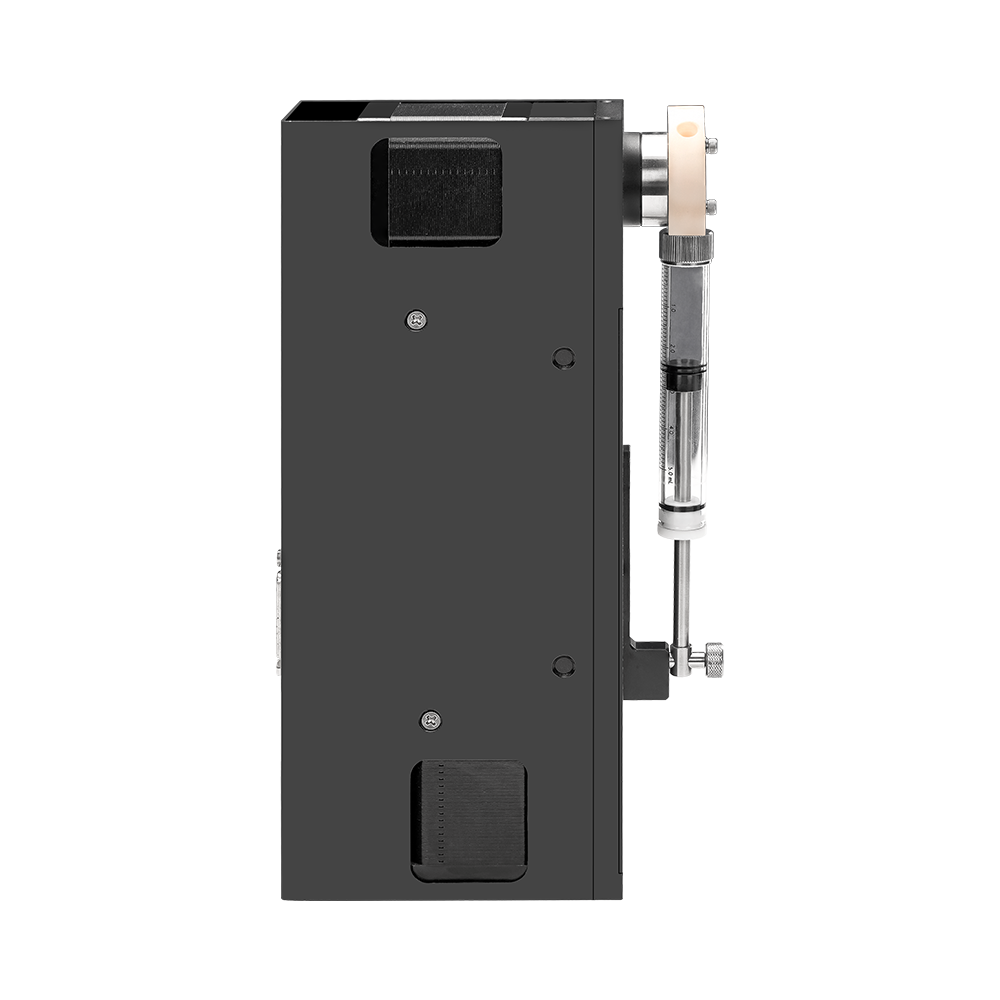

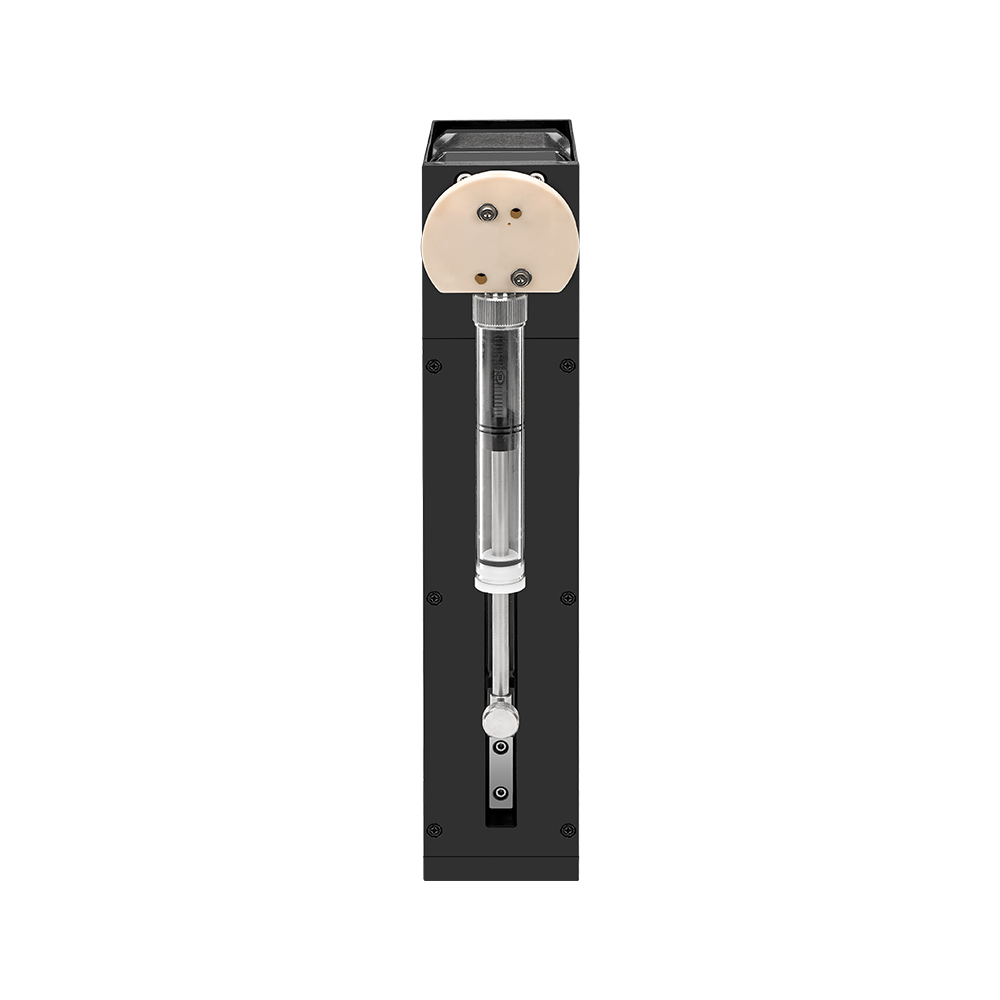

60mm Stroke Syringe Pump (with rotary valve)
60mm Stroke Syringe Pump (with rotary valve)

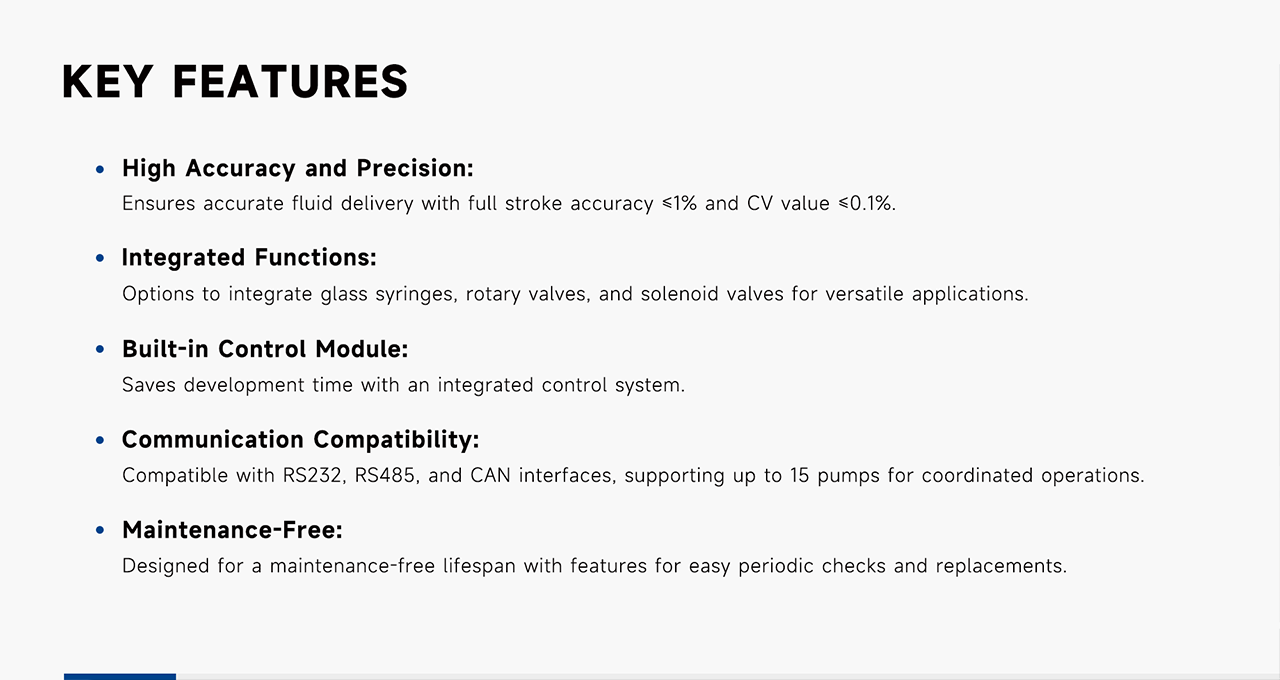

This integrated module combines a glass syringe and rotary shear valve, enabling high integration and compact design with flexible channel switching for various applications. It supports a wide speed range (1.2s~9600s per stroke) and offers syringe volume compatibility from 100μL to 10mL. The module features built-in control for streamlined operation and supports RS232, RS485, and CAN interfaces with OEM or DT protocols, allowing multi-pump coordination. With easy maintenance operation and embedded movement counters for easy service tracking, it ensures high reliability and efficiency.
Key Parameters:
Rotary Valve Type
Wetted Material
Thread Type
Communication Protocol
Reference Model:
5A66
WhatsApp Contact
Online Message
Comparison/Performance
60mm Stroke Syringe Pump (with rotary valve)
Comparable Products
Comparison/Performance
Back
Overview
Parameters
2D View
3D View
Product 60mm Syringe Pump(with rotary valve)
Accuracy 100% range, Inaccuracy ≤ 1% (room temperature, 1ml and above syringes, DI water)
CV

100% range CV≤0.1% (room temperature, 1ml and above syringes, DI water)

Full-stroke Steps 6000
Full-stroke mm 60
Step Resolution
Standard mode 6000 step/60mm,
microsteps 48000 step/60mm
Syringe Sizes 100μL、250μL、500μL、1.0mL、2.5mL、5.0mL、10.0mL、25.0mL

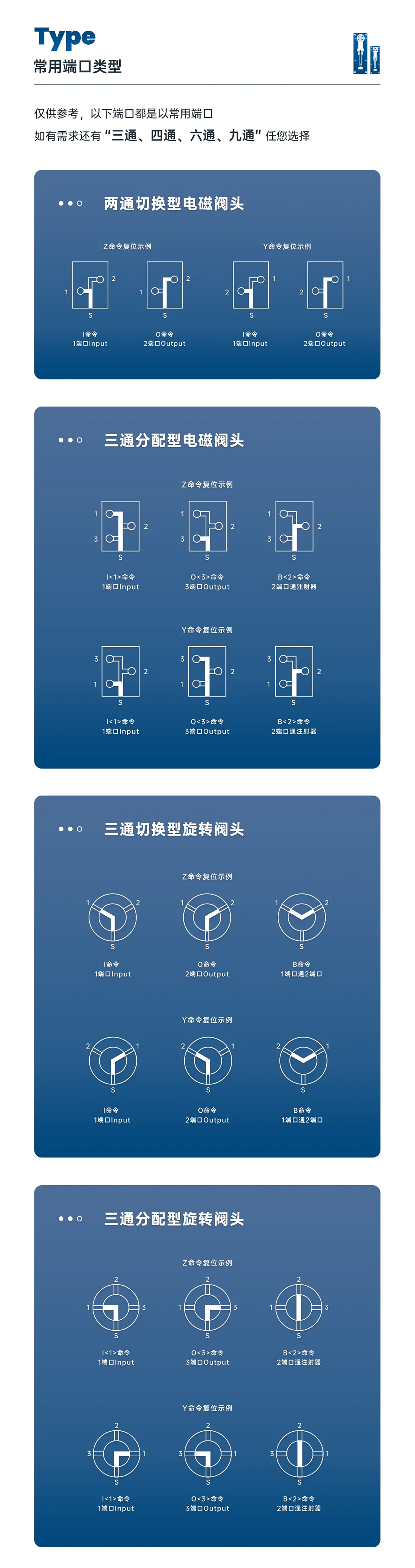

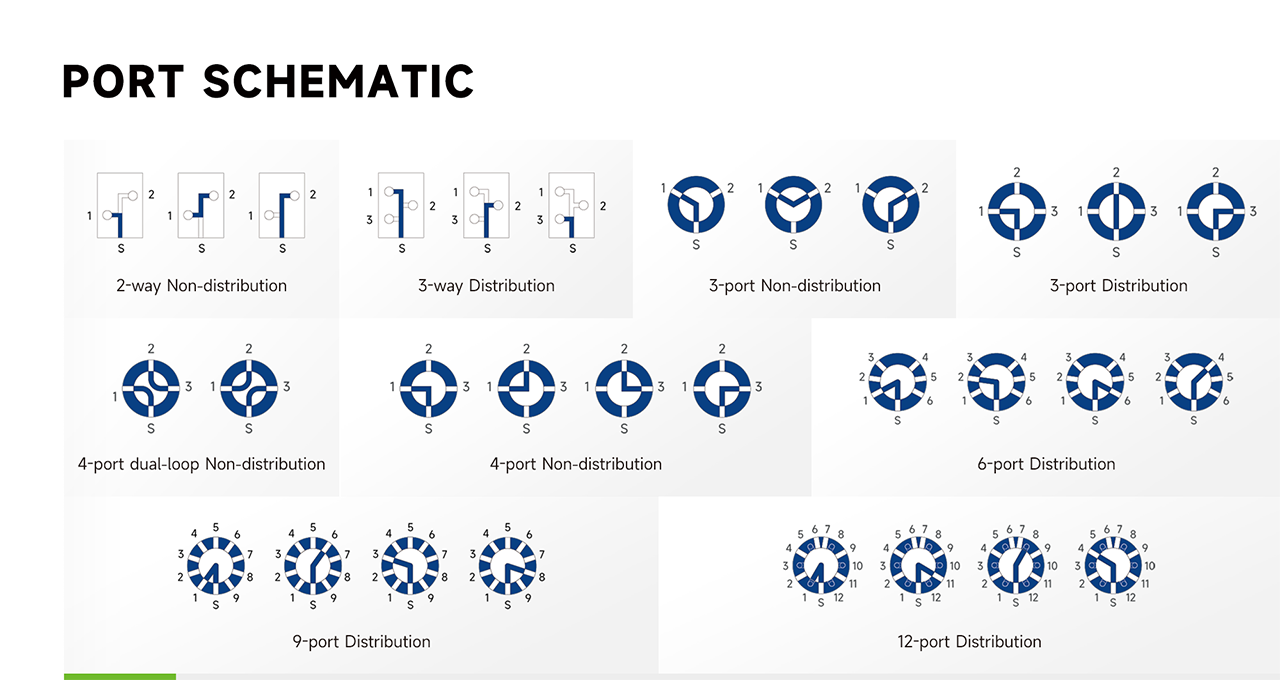

Rotary Valve Type up to 12-port rotary valve
Fluid Contact Syringe and Valve Material
Borosilicate Glass and UHMWPE or PTFE (seal)
Stator/Rotar:PEEK+PTFE、PEEK+UHMW-PE、Ceramic
Thread Type 1/4-28 UNF、M6

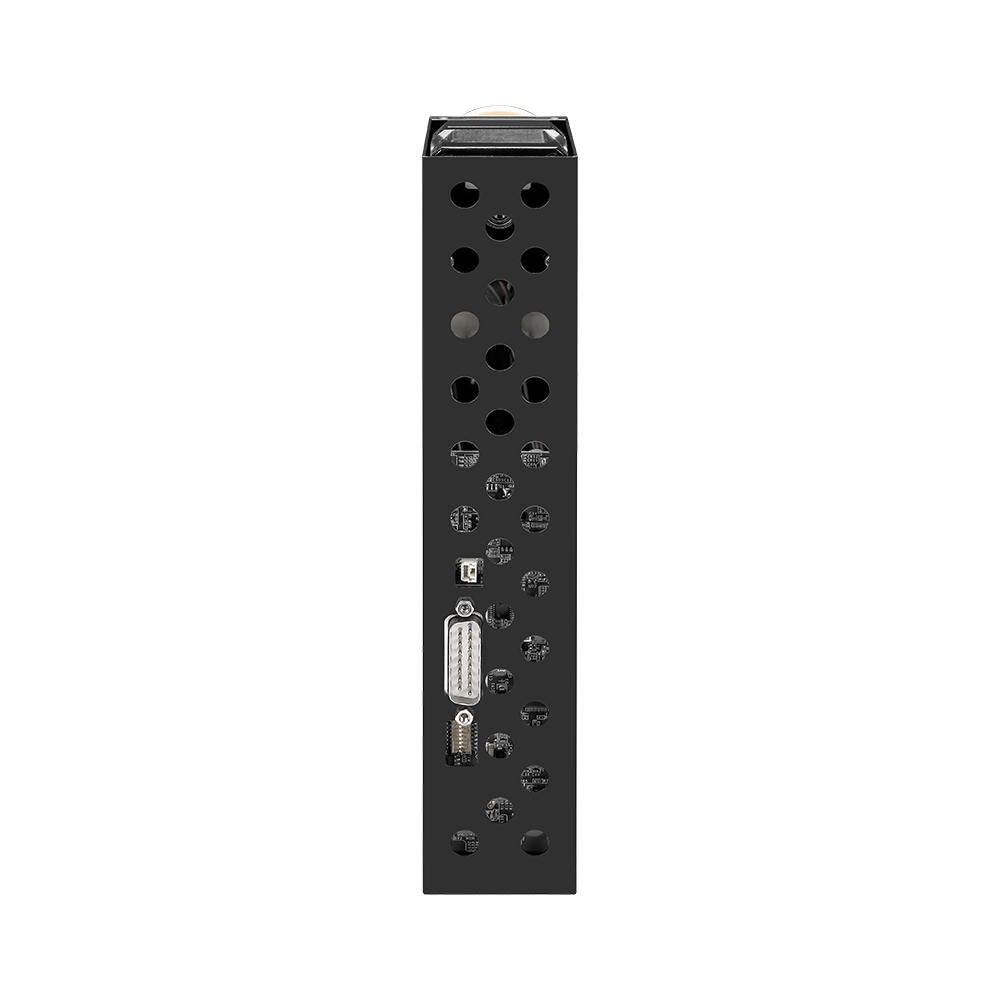

Interface Type
RS232/RS485/CAN
Communication Rates
RS232/RS485 9600 or 38400 baud
CAN - 100K, 125K, 250K, 500K, 1M bps
Voltage DC 24V

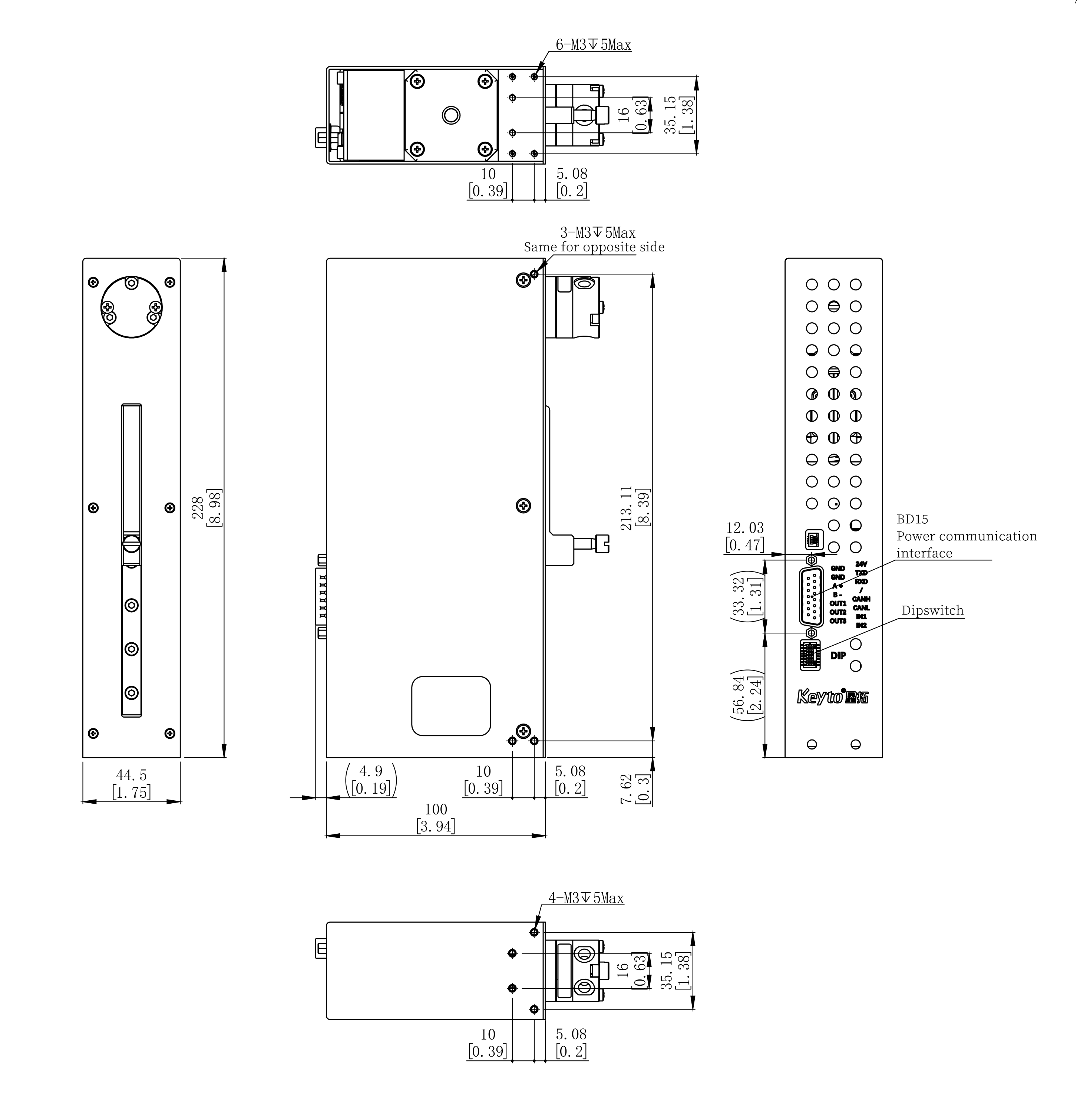

Footprint(mm) 228(H)*44.5(W)*100(D)
