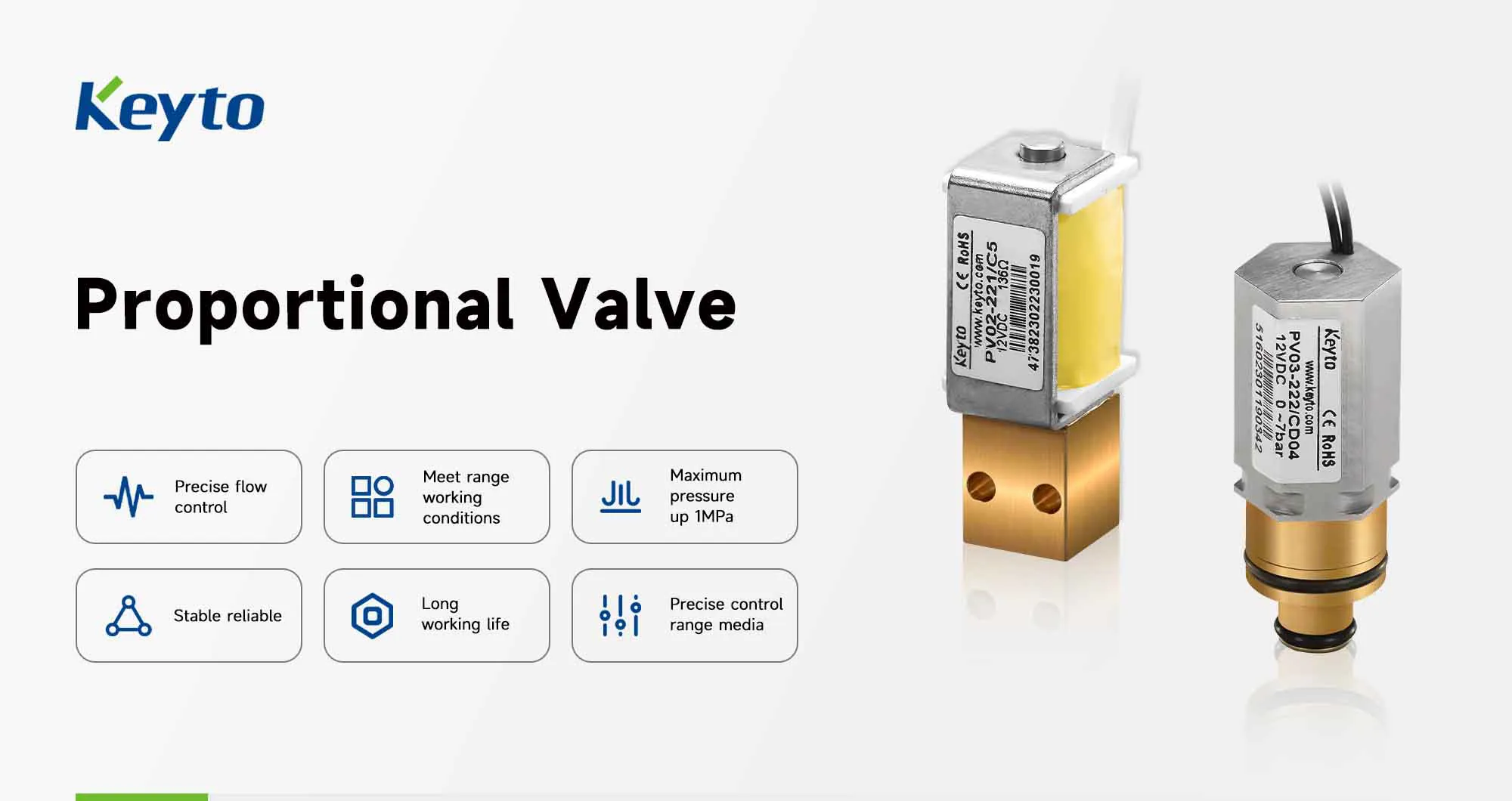

PV01 Miniature Medical Proportional Valve for Precise Gas Flow Control

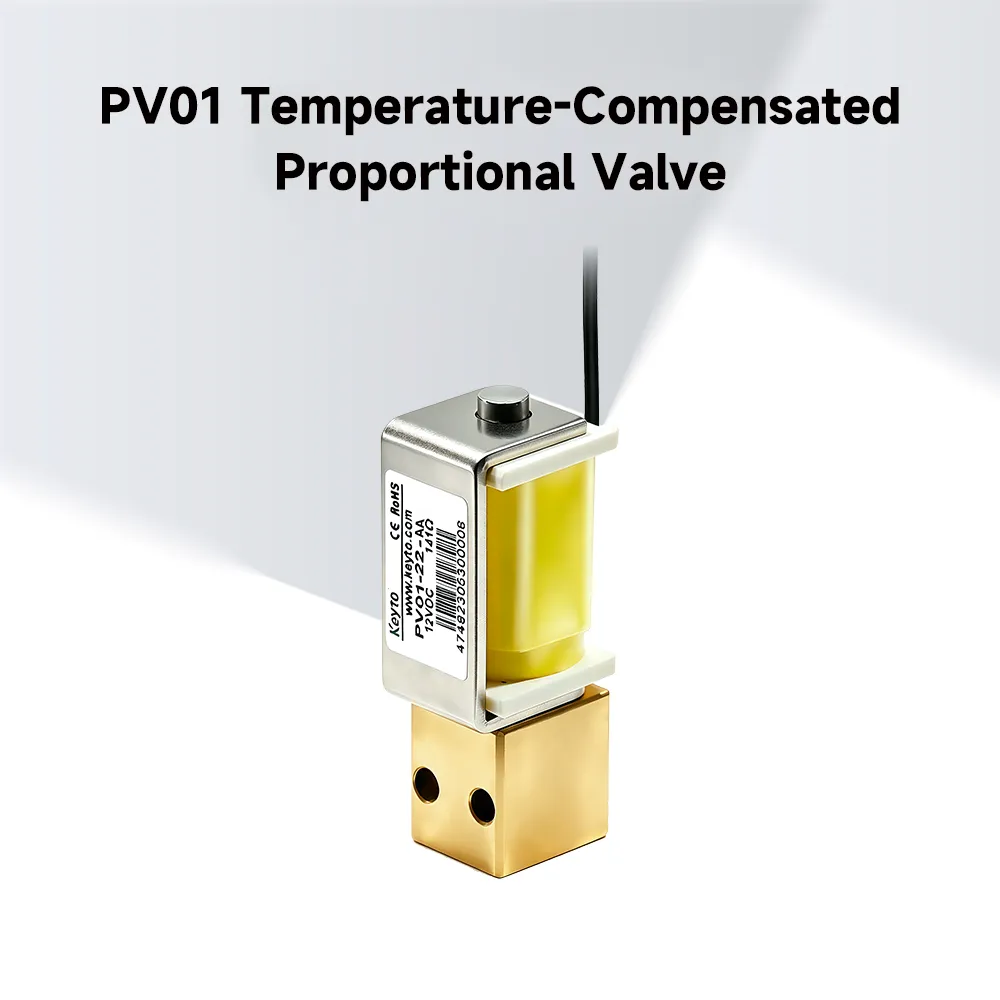

keyto-micro-proportional-valve-for-gas-chromatographs
PV01 Miniature Medical Proportional Valve for Precise Gas Flow Control
Keyto PV01 proportional valve features a temperature-compensation function that eliminates flow deviations caused by fluctuations in ambient temperature, resulting in more stable flow control across a wide temperature range. It is suitable for high-precision applications with stringent environmental requirements, such as gas chromatographs, anesthesia equipment, and outdoor precision analyzers, and offers a longer service life than conventional models.
Key Parameters:
Voltage
Connection Types
Specifications
Reference Model:
PV01
WhatsApp Contact
Online Message
Comparison/Performance
PV01 Miniature Medical Proportional Valve for Precise Gas Flow Control
Comparable Products
Comparison/Performance
Back
Specifications

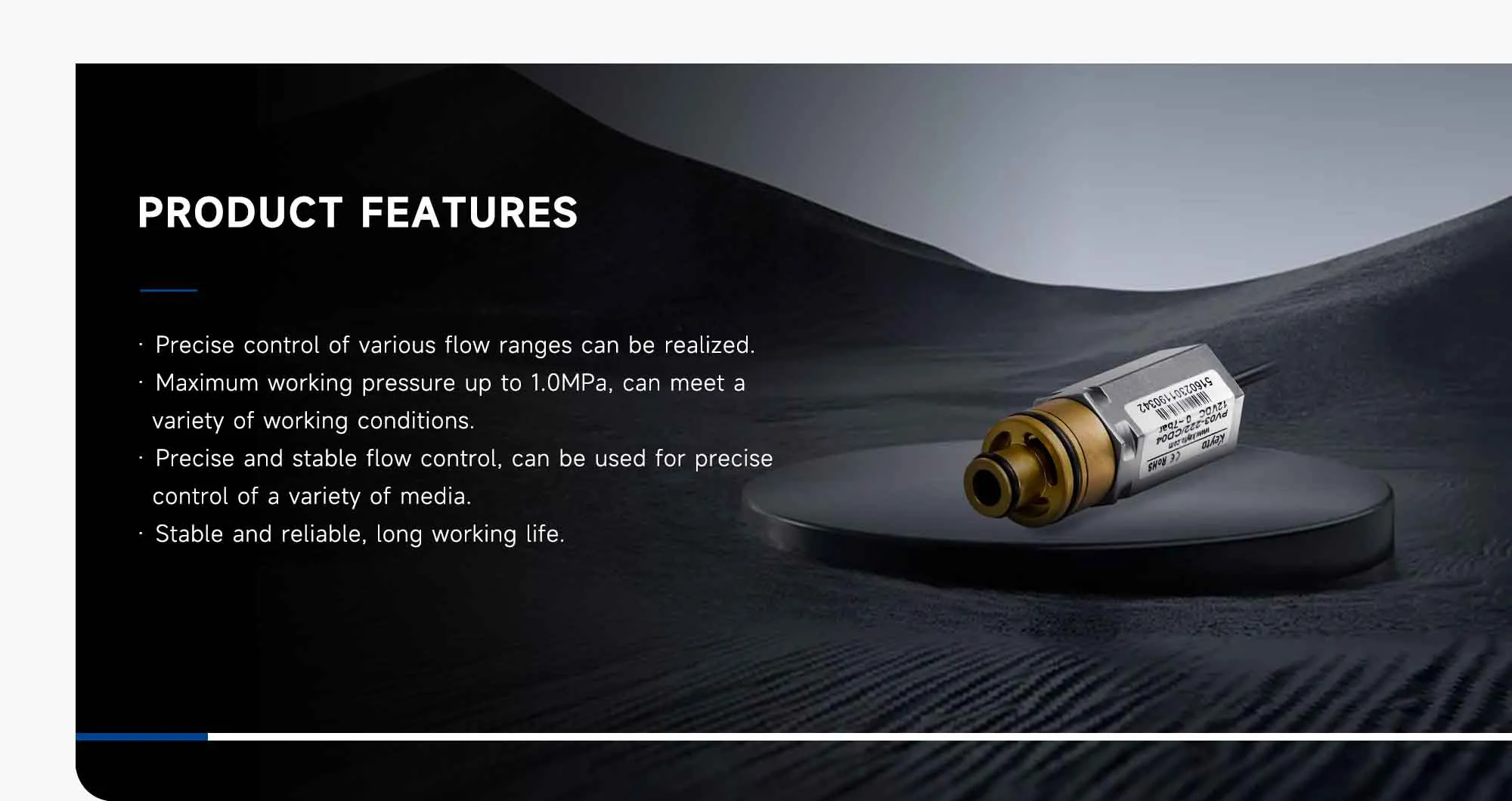

Features
Type
PV01 High-Pressure, Low-Flow Proportional Valve
Valve Configuration
Direct-Acting, 2-Way, Normally Closed
Orifice Diameter
0.08mm
0.3mm
1.27mm
Wetted Materials
FKM, Brass, Soft Magnetic Alloy
Dimensions
17.3*15.5*44.3
Number of Ports
2
Optional Voltage
DC5V、DC6V，DC12V or DC24V
Power Consumption
1W
2.5W
Maximum Air Flow at Maximum Working Pressure Differential
500mL/min
5L/min
52L/min
Maximum Working Pressure
1MPa
1MPa
0.7MPa
