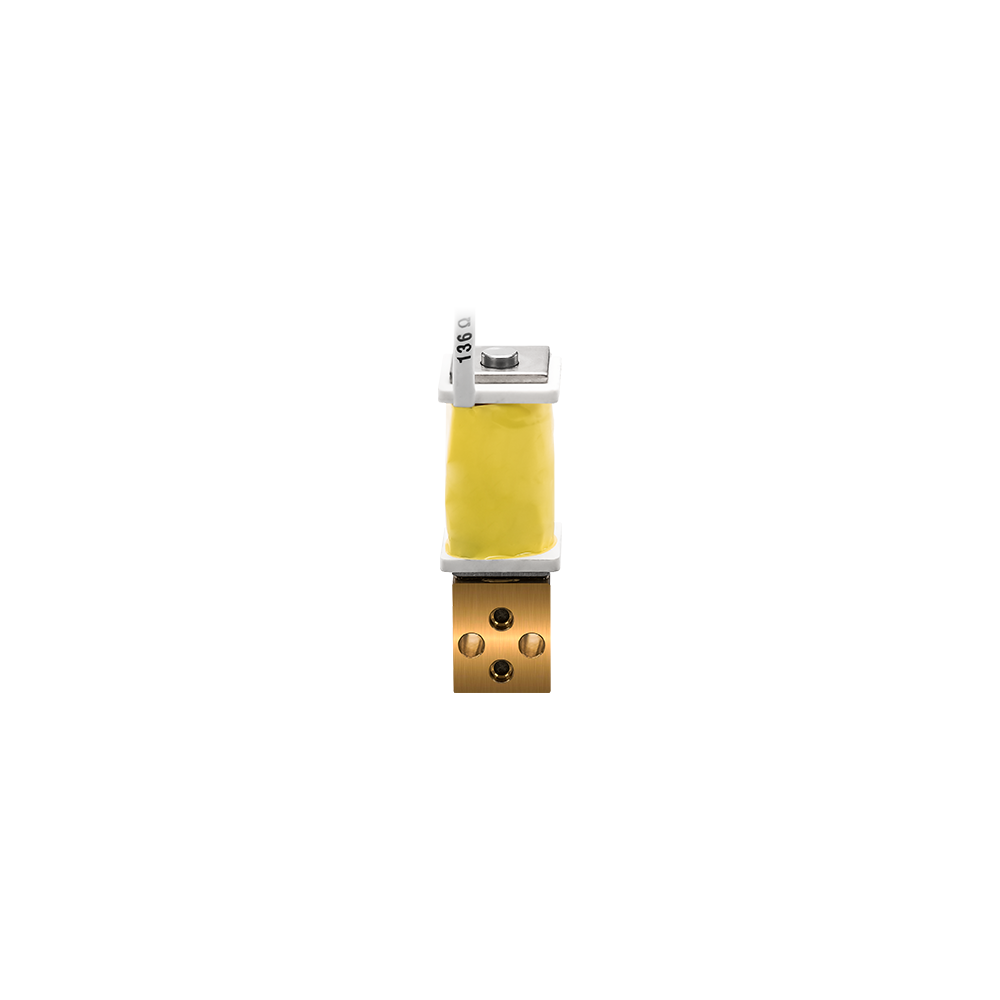

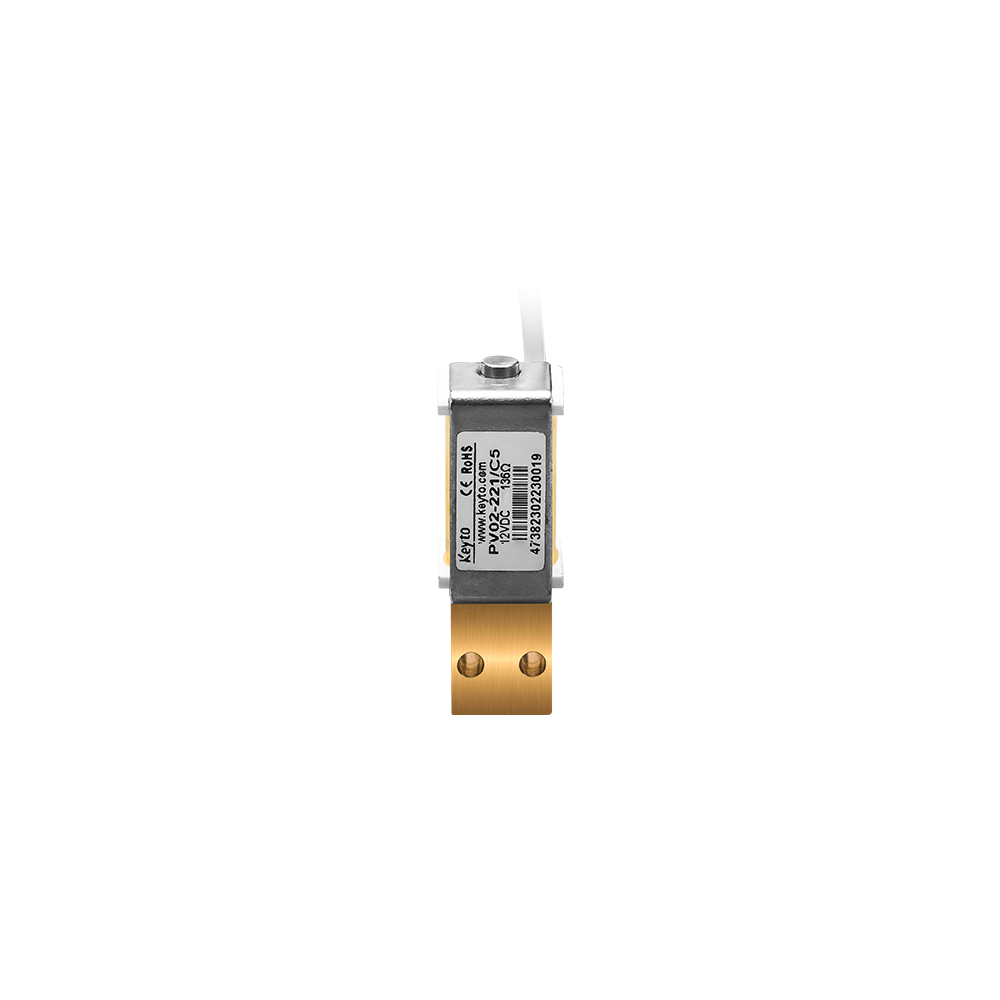

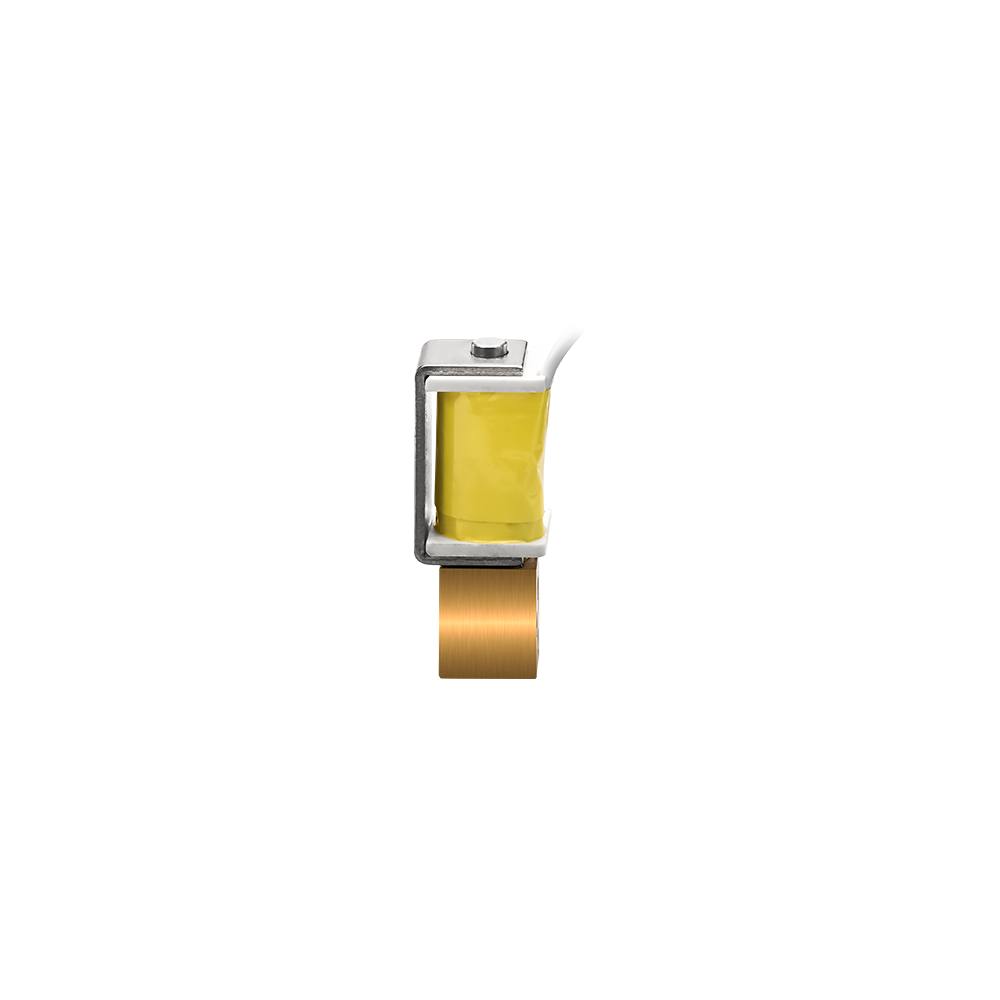

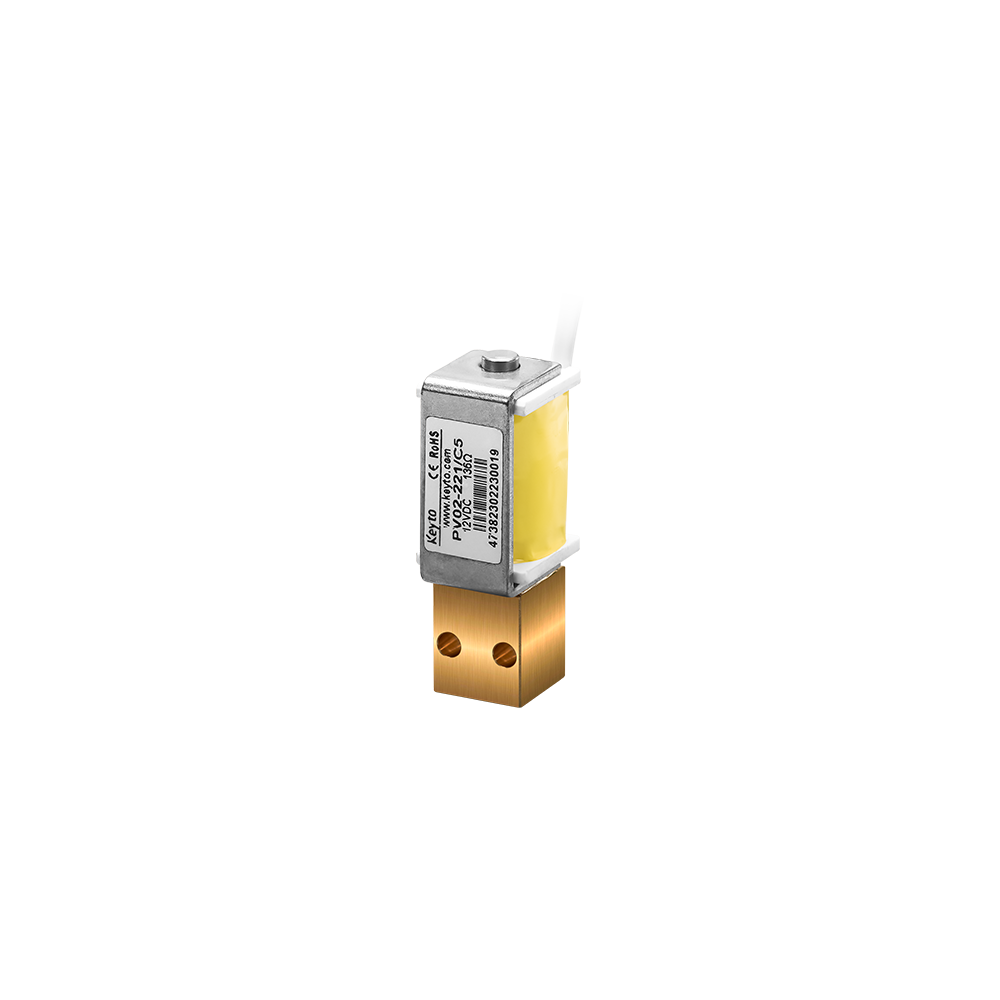

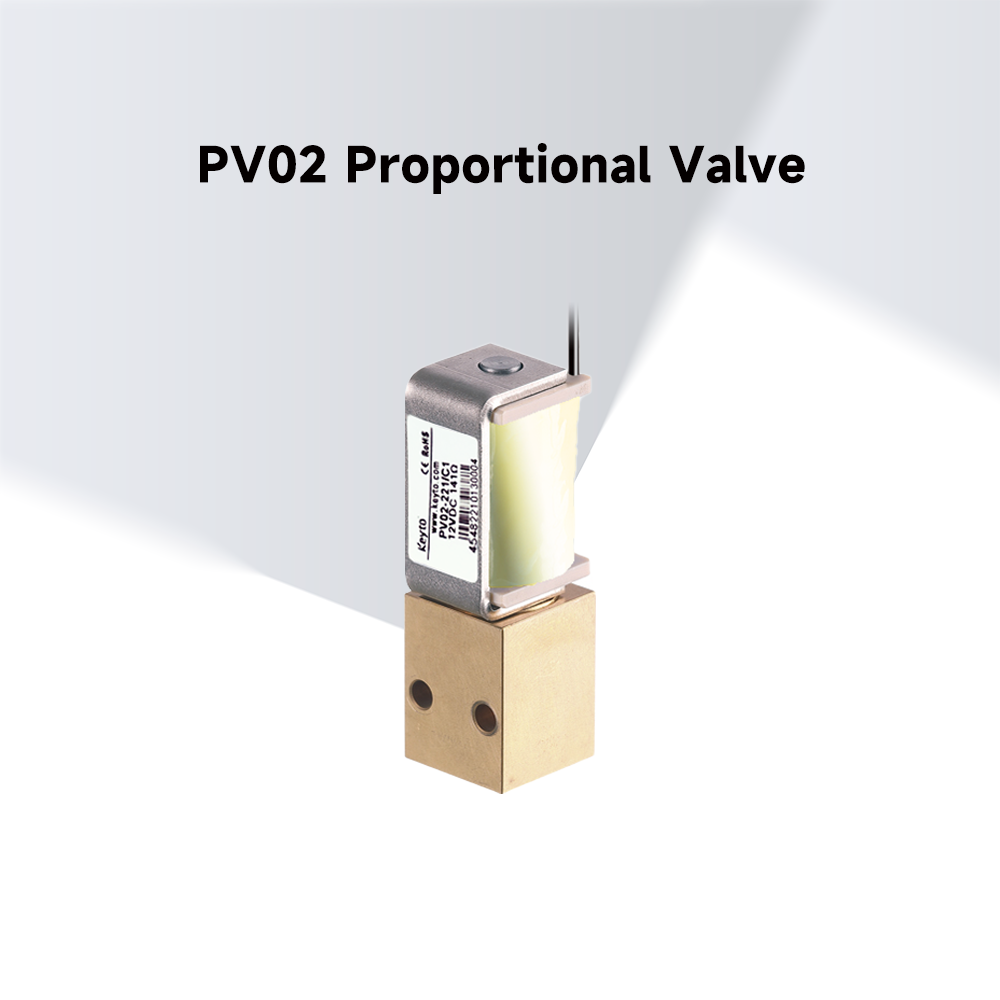

PV02 Proportional Valve
PV02 Proportional Valve
The PV02 series proportional valve by Keyto offers precise gas flow control with a flow path diameter range of 0.15mm to 1.6mm. It adjusts gas flow rate proportional to input current, which can be controlled via DC or PWM signals. This small-diameter series is ideal for high-precision applications requiring stable and adjustable flow. It ensures accurate and reliable performance in various environments.
Key Parameters:
Voltage
Connection Types
Specifications
Reference Model:
PV02
WhatsApp Contact
Online Message
Model Comparison
PV02 Proportional Valve
Comparable Products
PV03 Proportional Valve
Model Comparison
Back
Overview
Parameters

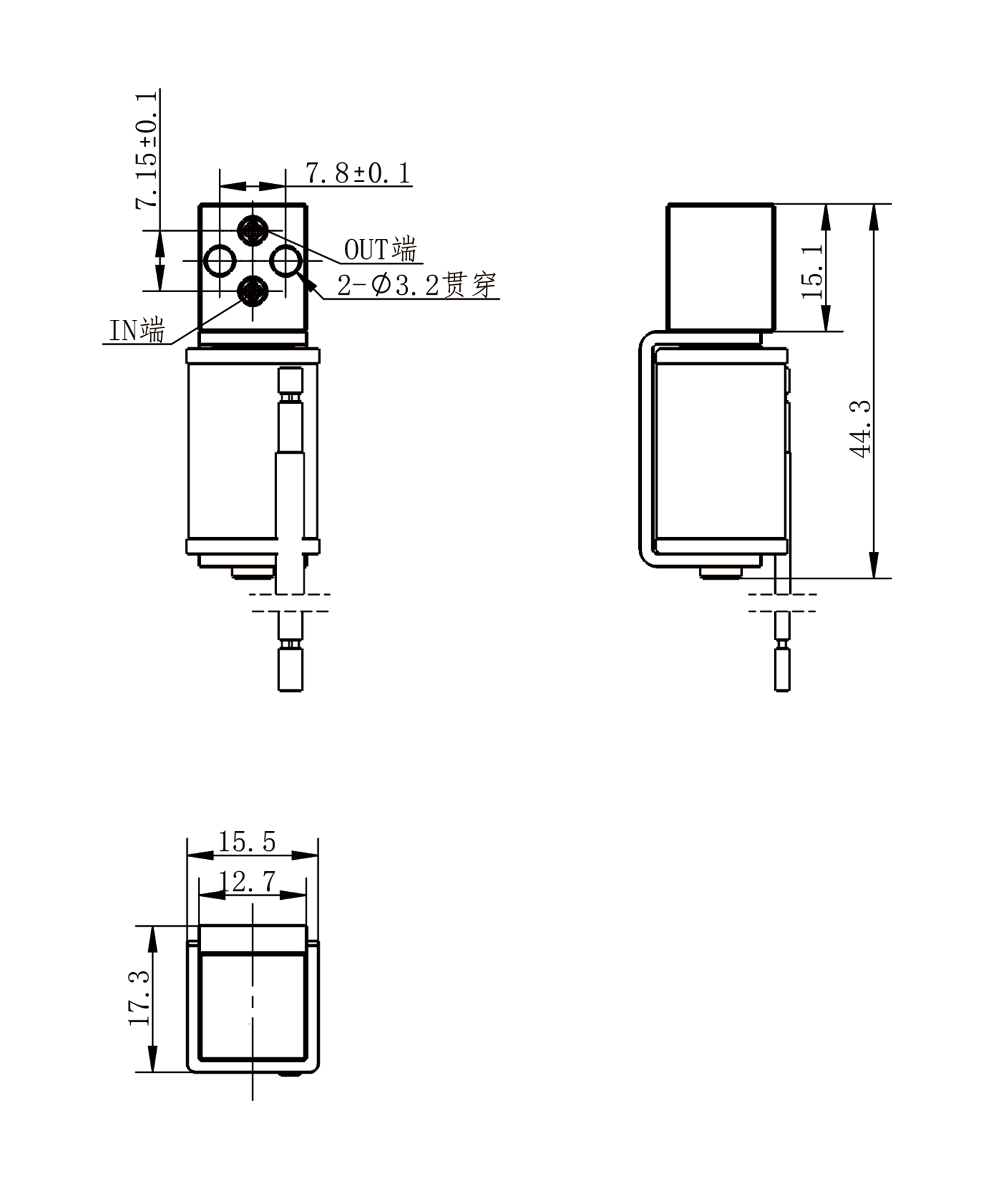

2D View
3D View

Valve Type

PV02 Proportional Solenoid Valve

Valve Structure

Direct-Acting, Two-Way, Normally Closed

Wetted Metal Materials

Brass, Soft Magnetic Alloy

Wetted Non-Metal Materials

FKM (optional)

Dimensions

17.3 × 15.5 × 44.3 mm

Number of Ports

2

Voltage Options

5V, 6V, 12V, 24V (optional)

Power

1W, 2.5W

Orifice Diameter Options

0.08 mm, 0.2 mm, 0.15 mm, 0.3 mm, 0.5 mm, 0.76 mm, 1.27 mm, 1.6 mm

Maximum Flow Rate

1600 mL/min, 2 L/min, 8 L/min, 10 L/min, 25 L/min, 35 L/min, 52 L/min (optional)

Pressure Resistance

0–1 MPa
