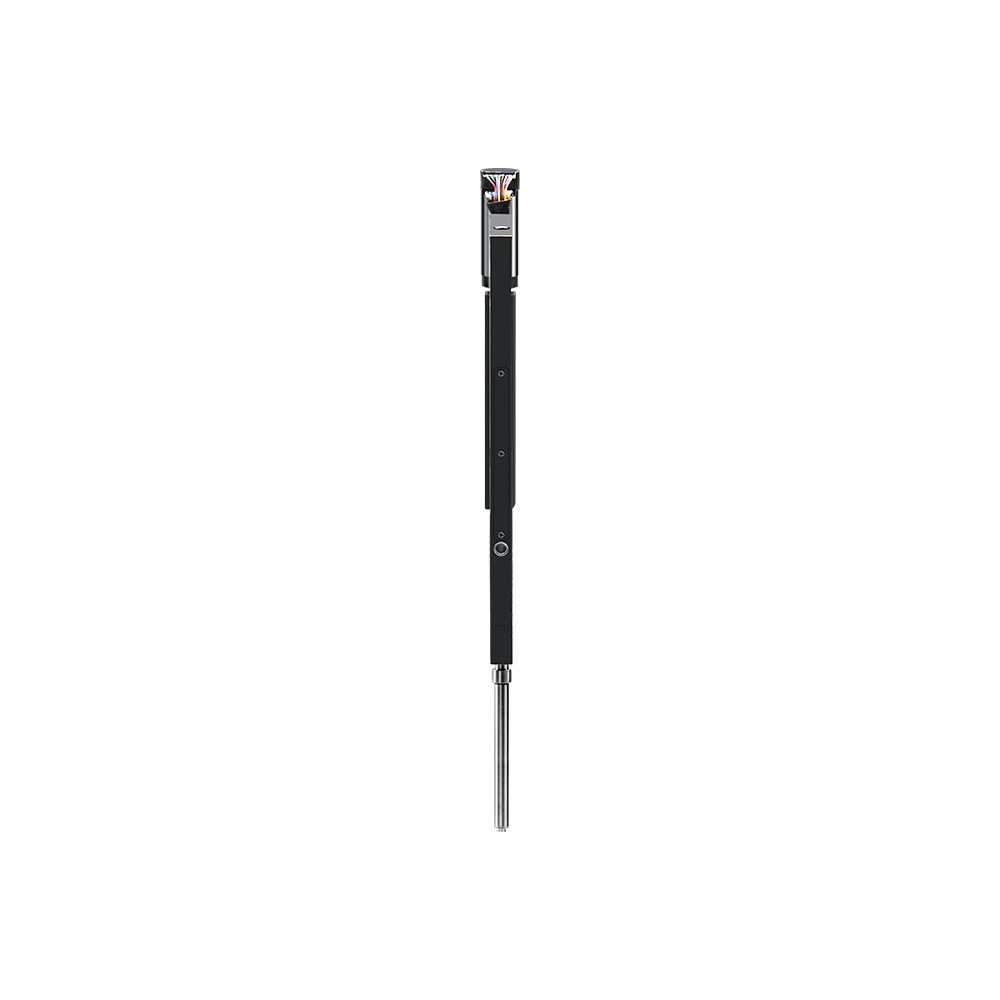

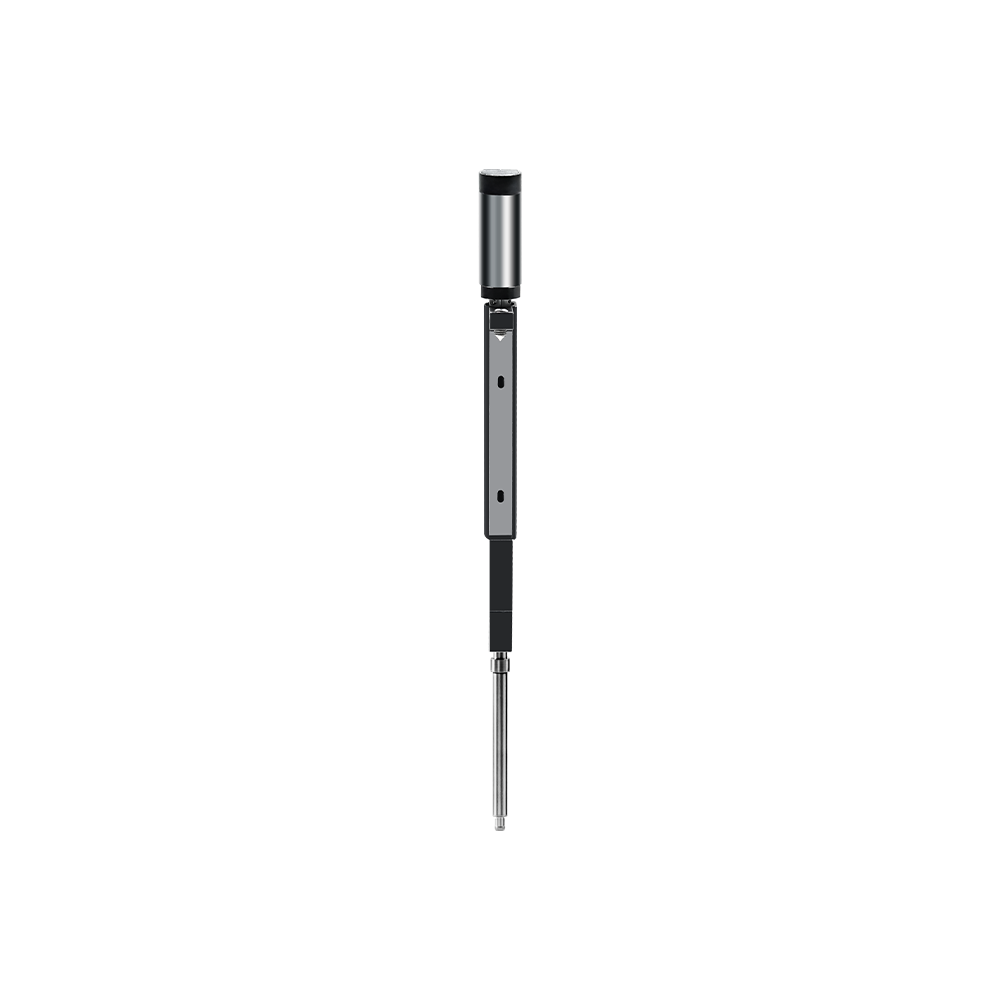

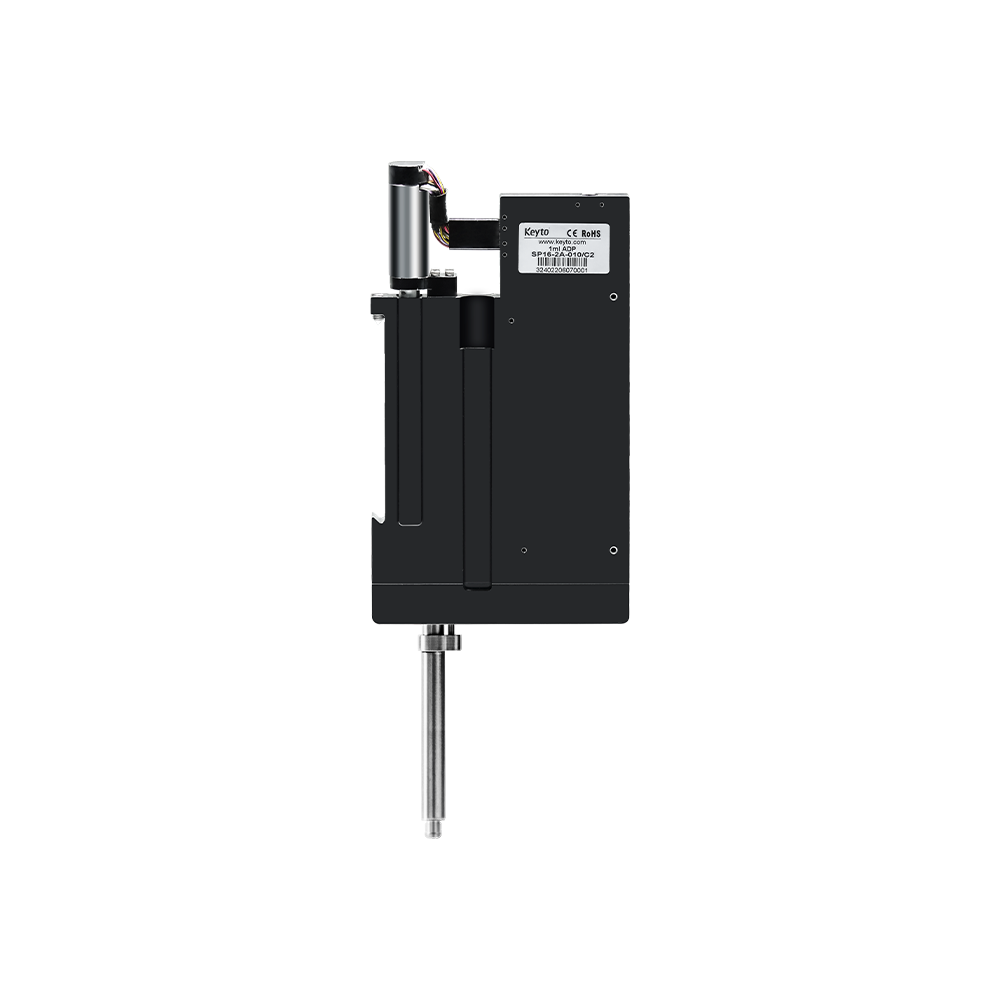

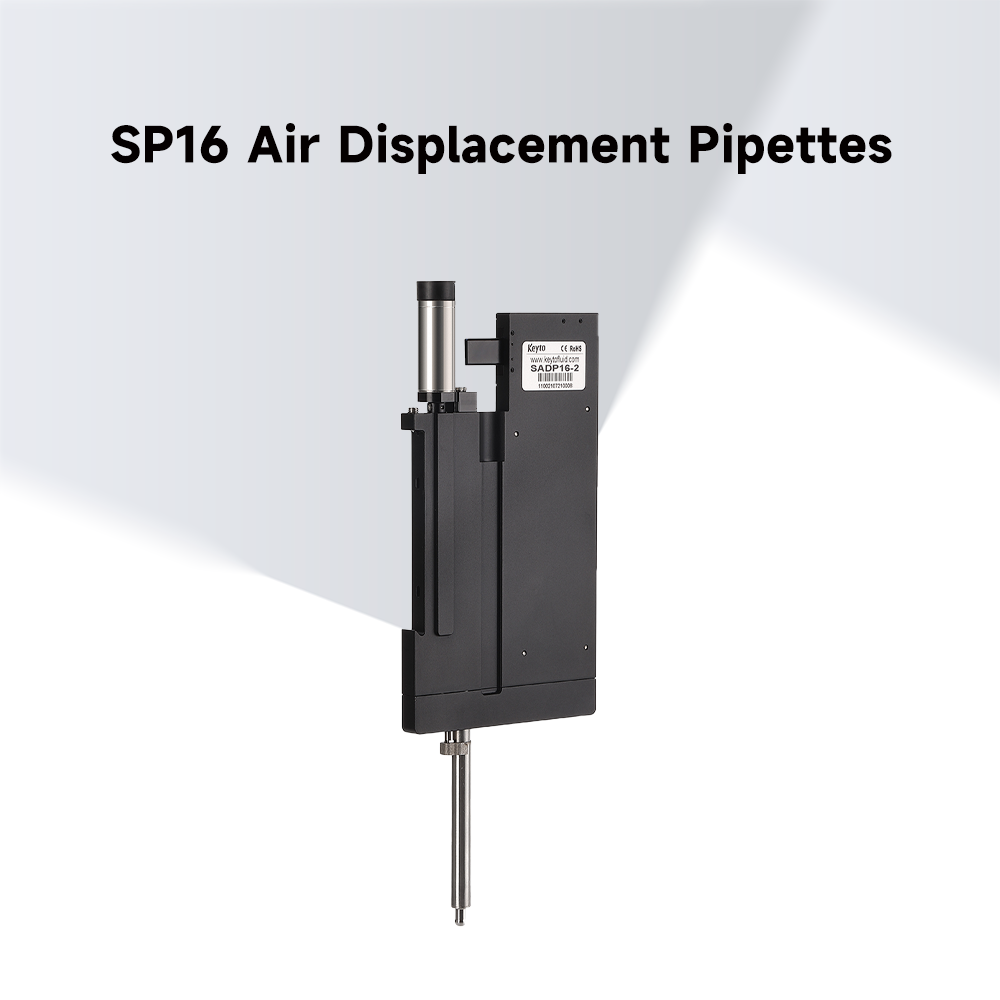

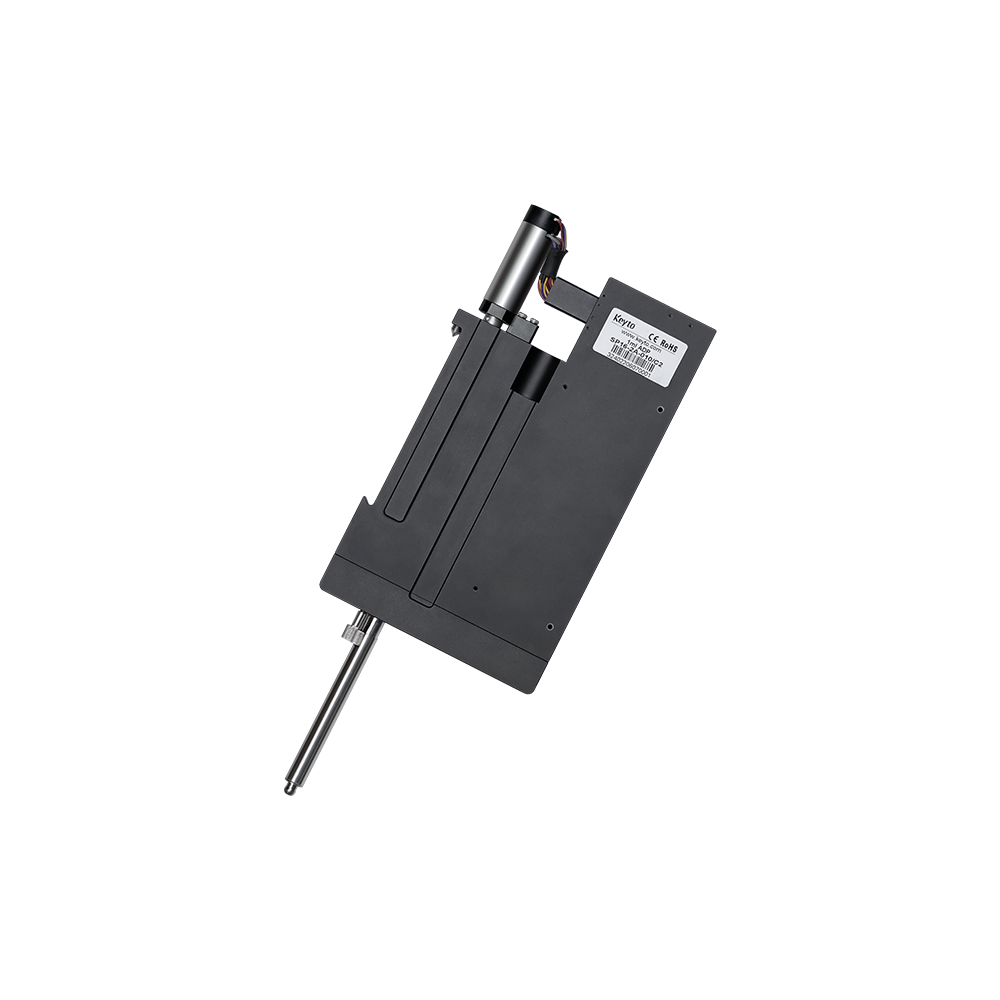

SP16 Air Displacement Pipettes
SP16 Air Displacement Pipettes

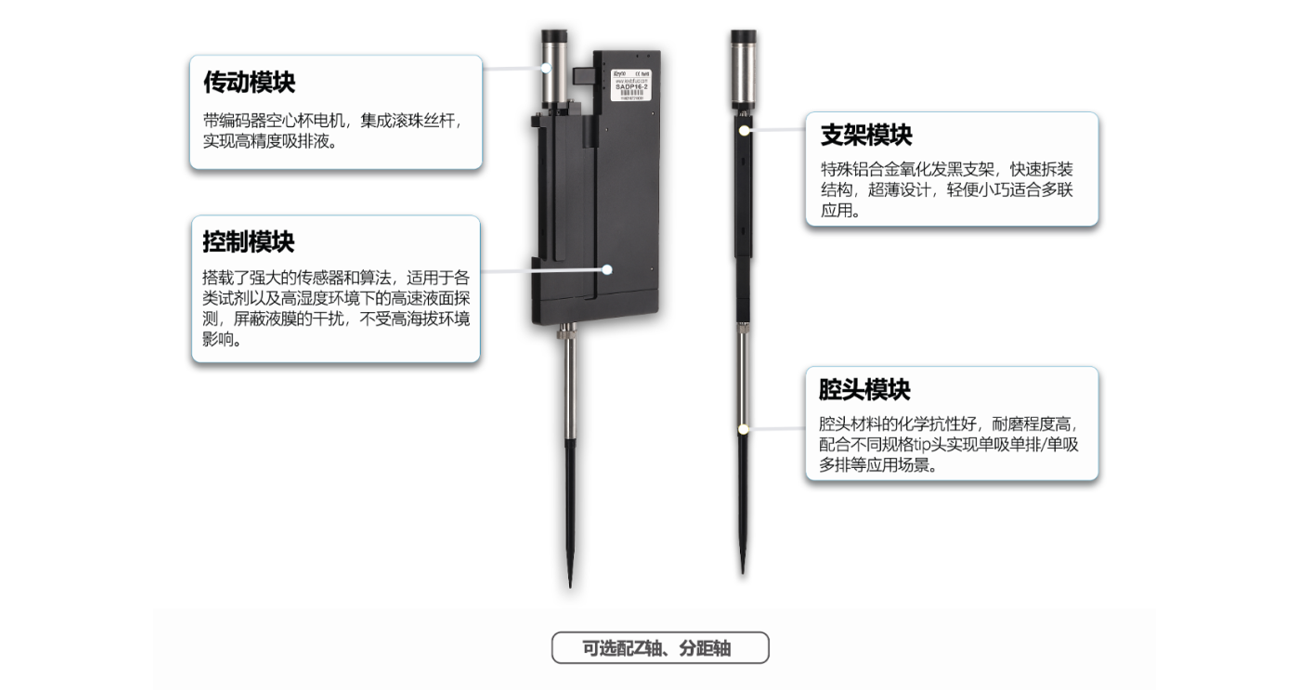

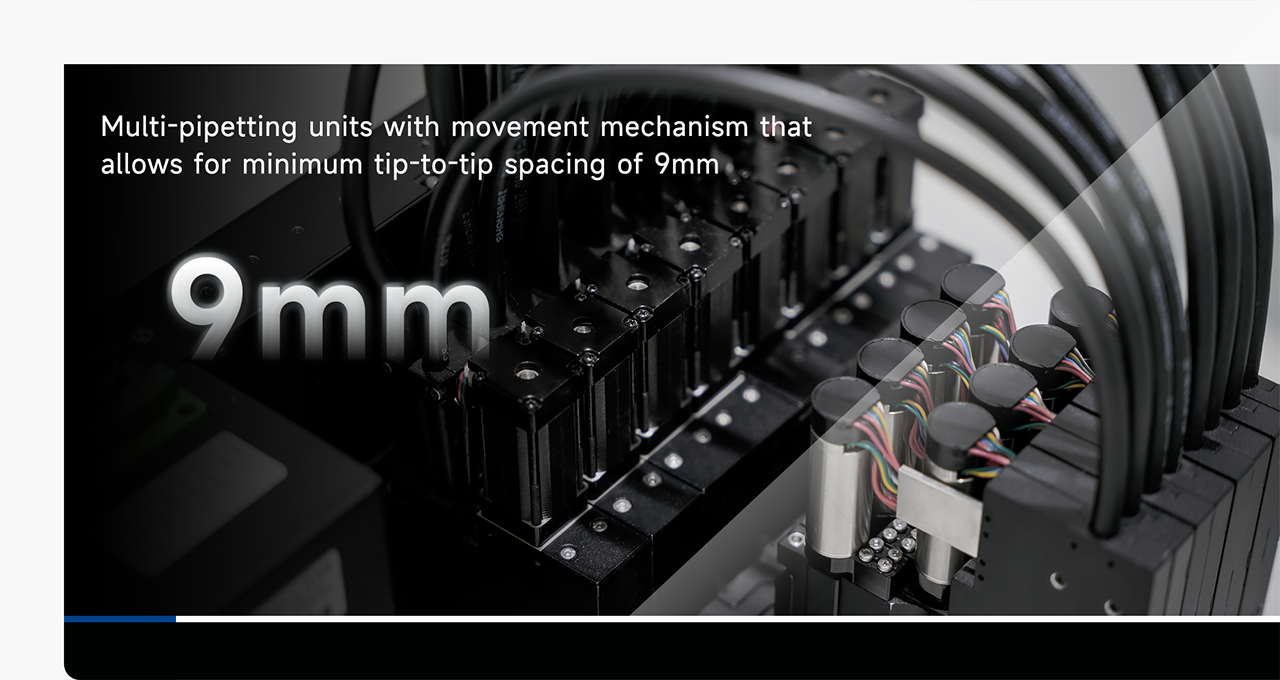

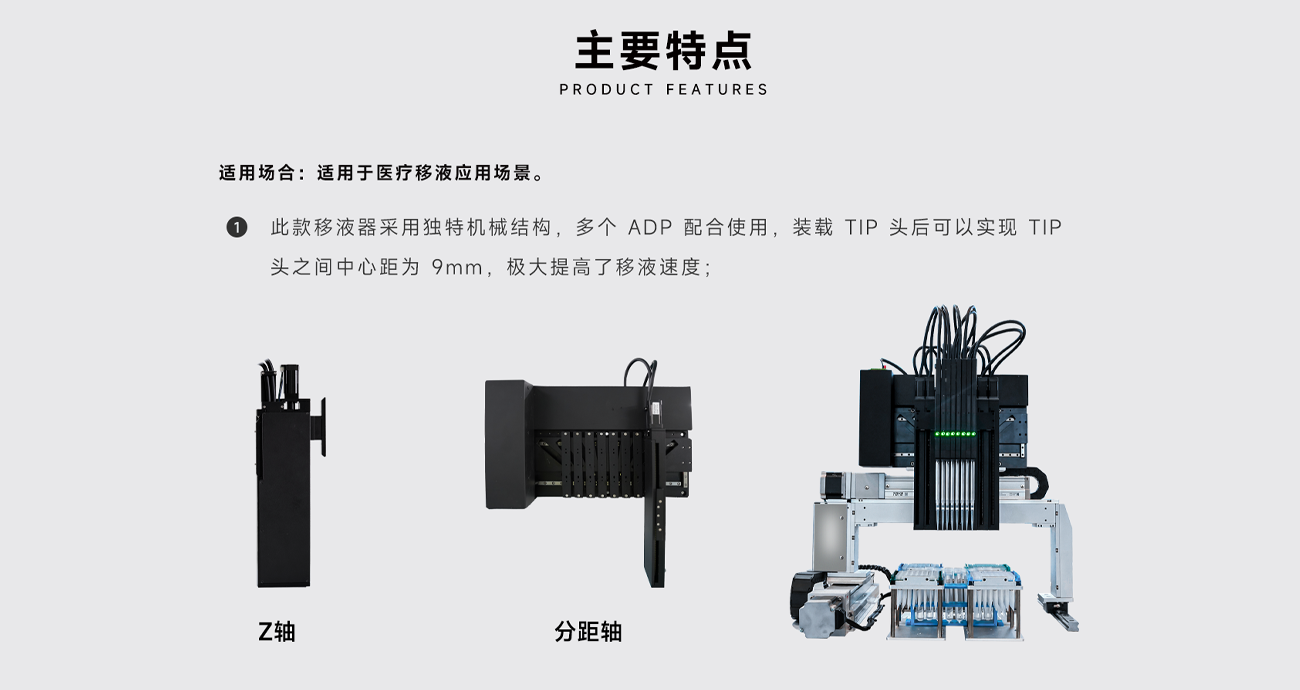

The SADP16 (Superb Air Displacement Pipette16) supports multi-joint spacing, enabling the center distance of tip heads to reach 9 mm for higher sample volumes. It offers advanced functions including liquid level tracking, clot detection, and empty suction error reporting, ensuring precision and efficiency. With a lifespan of over 1 million cycles, it supports disposable tips to reduce cross-contamination. This versatile pipetting module is ideal for use in medical devices, laboratory instruments, and environmental analyzers.
Key Parameters:
default configuration
Reference Model:
SP16
WhatsApp Contact
Online Message
Model Comparison
SP16 Air Displacement Pipettes
Comparable Products
SP18 Air Displacement Pipettes
SP20 Air Displacement Pipettes
SP28 Air Displacement Pipettes
Model Comparison
Back
Overview
Parameters

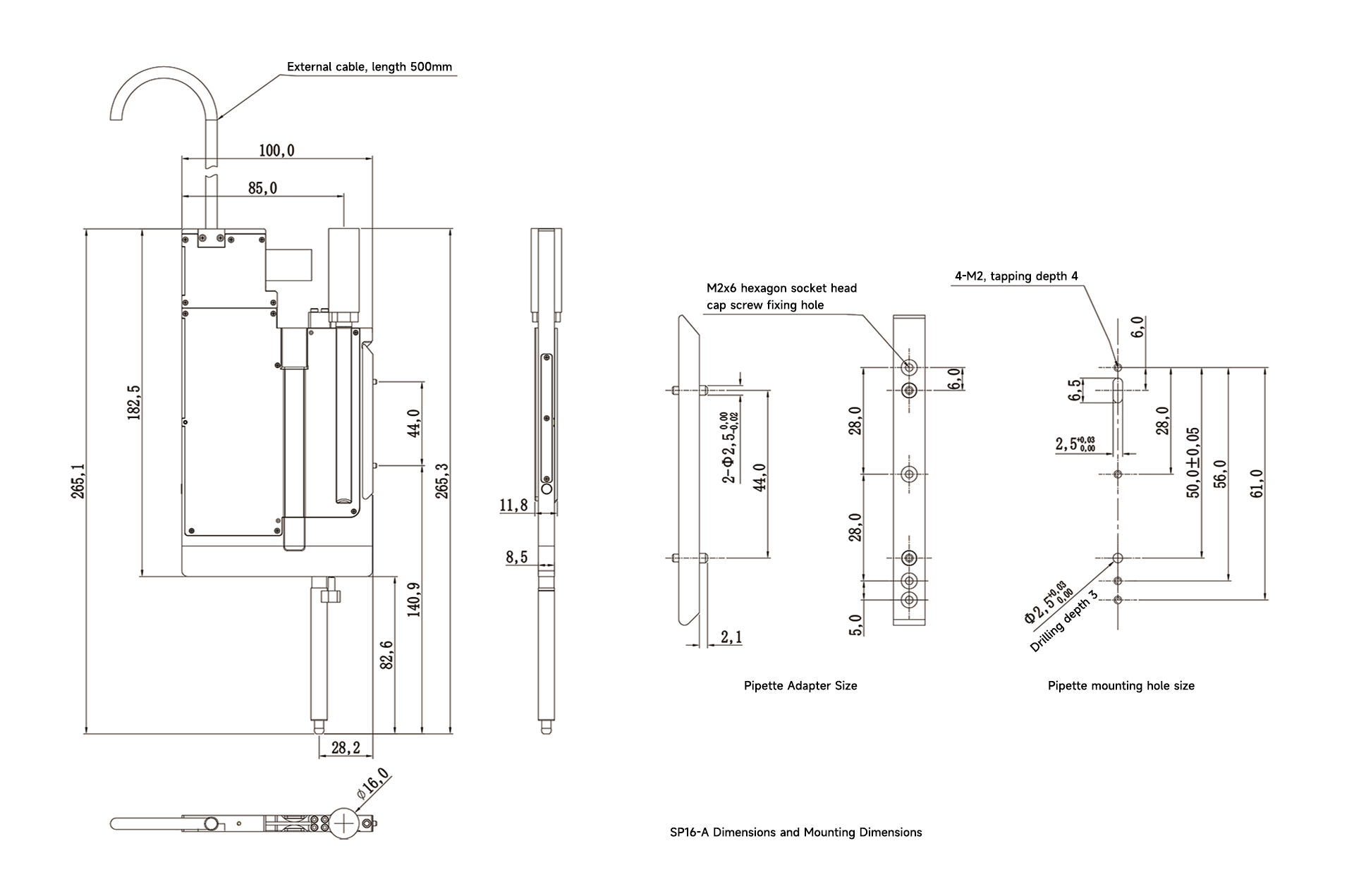

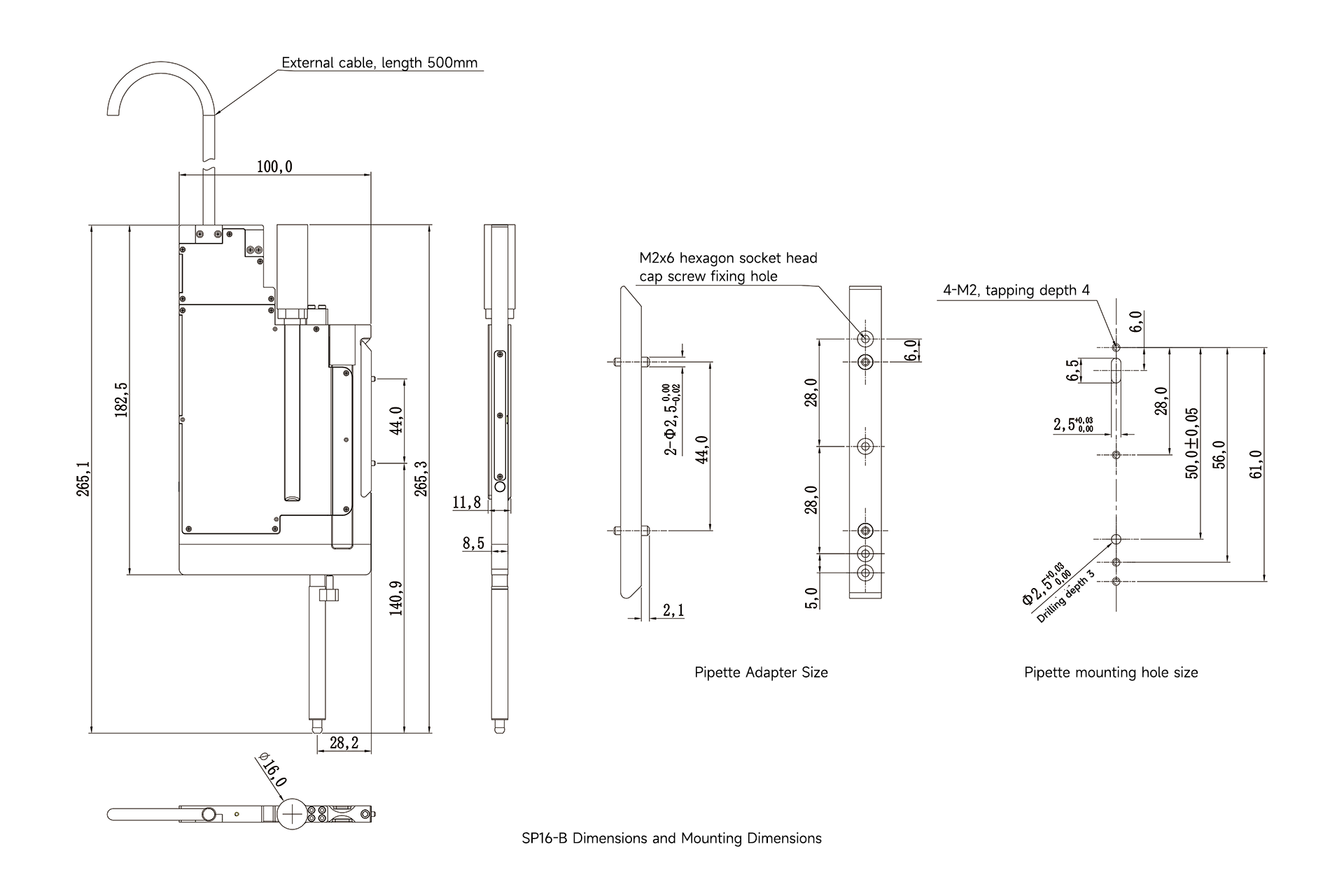

2D View
3D View
SP16移液泵


ADP Type SP16 ADP
Displacement Range
 1-1000μL
Displacement Resolution ≤4.5nl
Fastest Aspirete and Dispense Speed 2000μL /s
Liquid level detection PLLD
Weight ≤400g
TIP size optional 10μL, 50μL, 200μL, 1000μL
Communication Interfaces
RS232, RS485, CAN
Driver Closed Loop Coreless brushless motor+ball screw
Operating Temperature
 ＋5-40°C
Power Input
 24V DC±10%
Lifecycle
One million cycles



Demo video
Product video
Factory video
SP16 Air Displacement Pipettes
SP16 Air Displacement Pipettes
Keyto Machining Factory
Keyto Quality Control （1）
Recommended
SP18 Air Displacement Pipettes
SP20 Air Displacement Pipettes
SP28 Air Displacement Pipettes
8-channel ADP
96-channel ADP
1000μL SterileTips with Filter
200μL SterileTips with Filter
50μL SterileTips with Filter

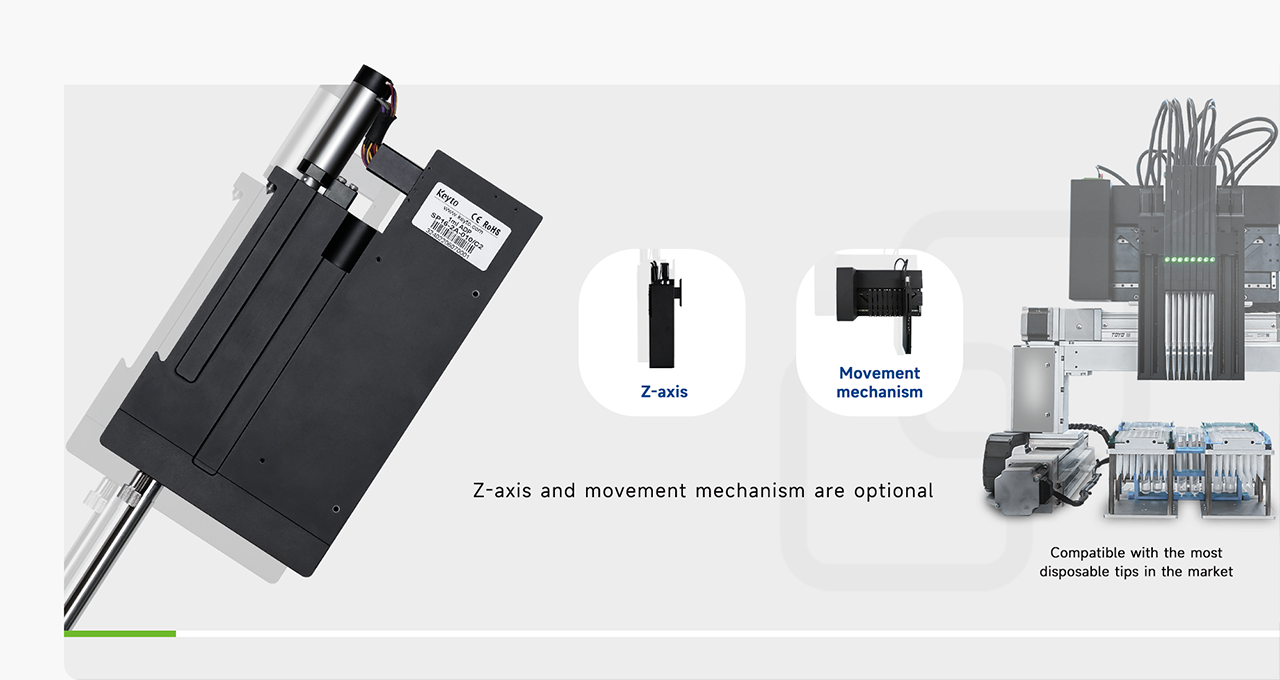

ADP-Z axis
