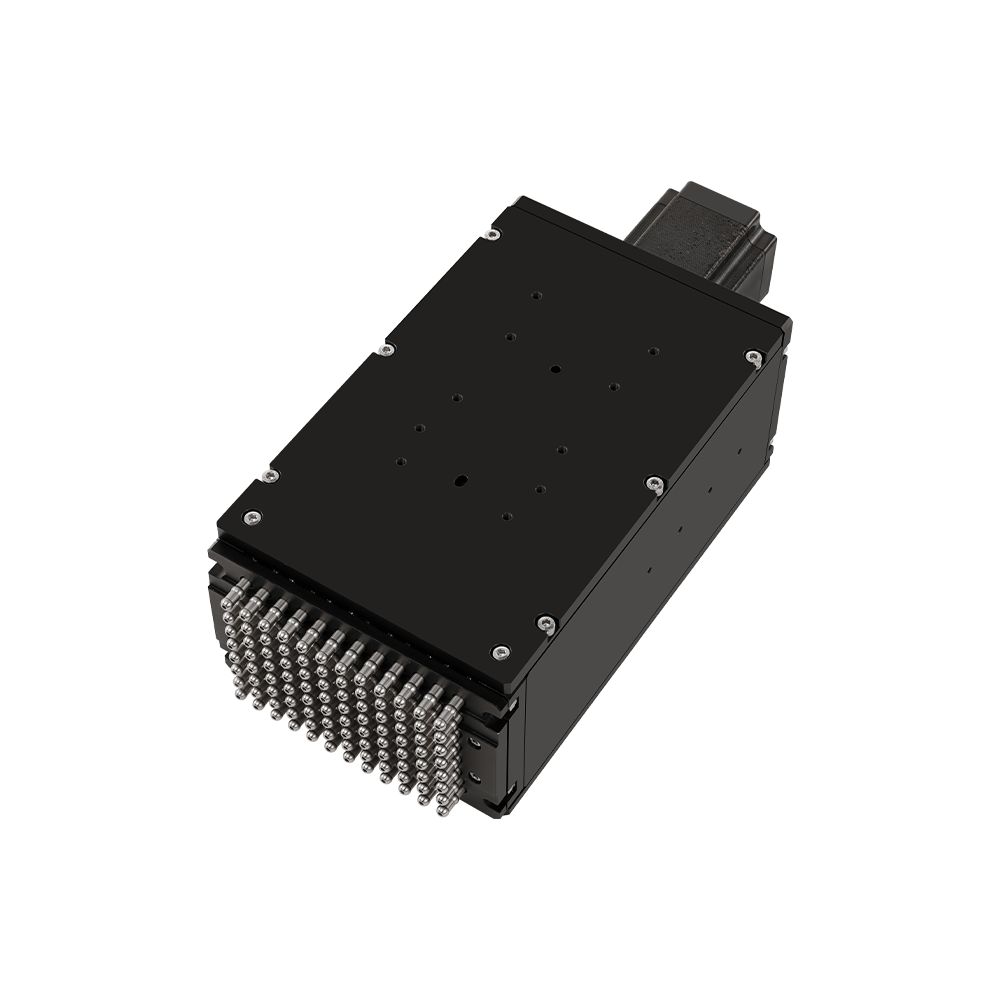

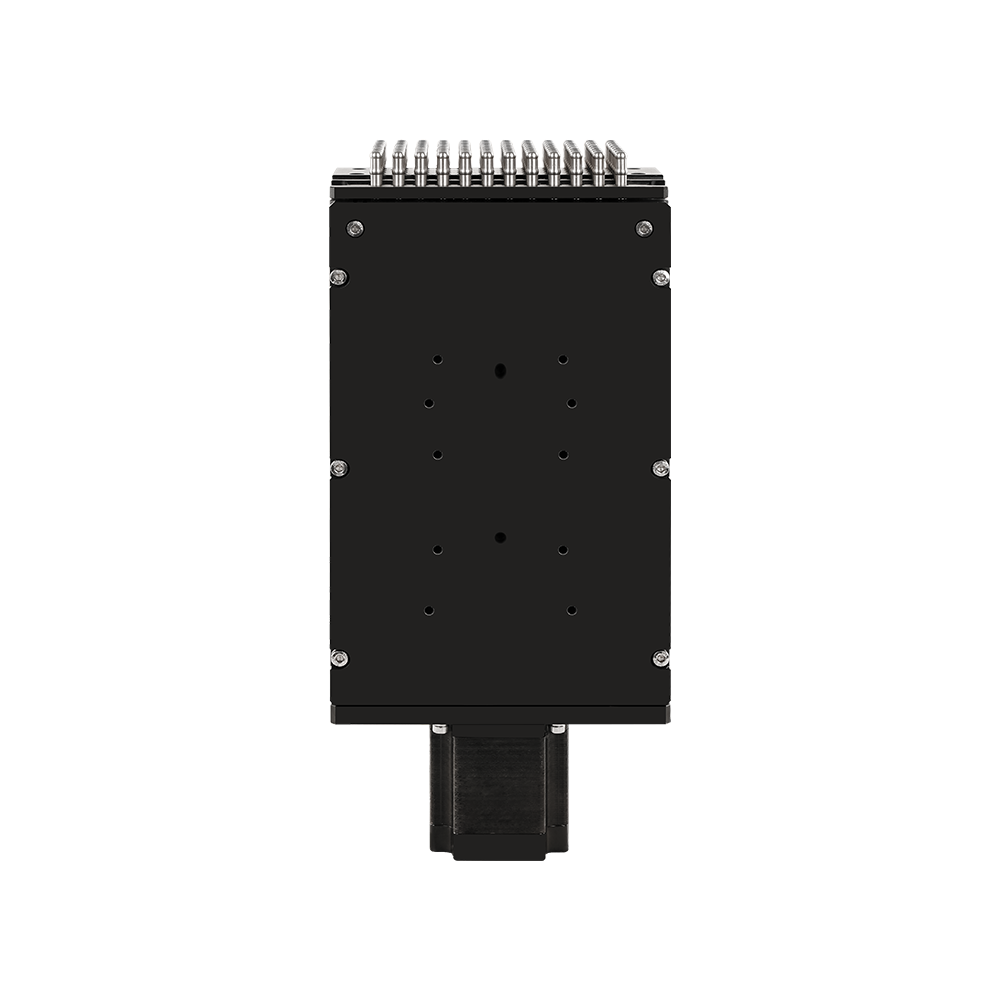

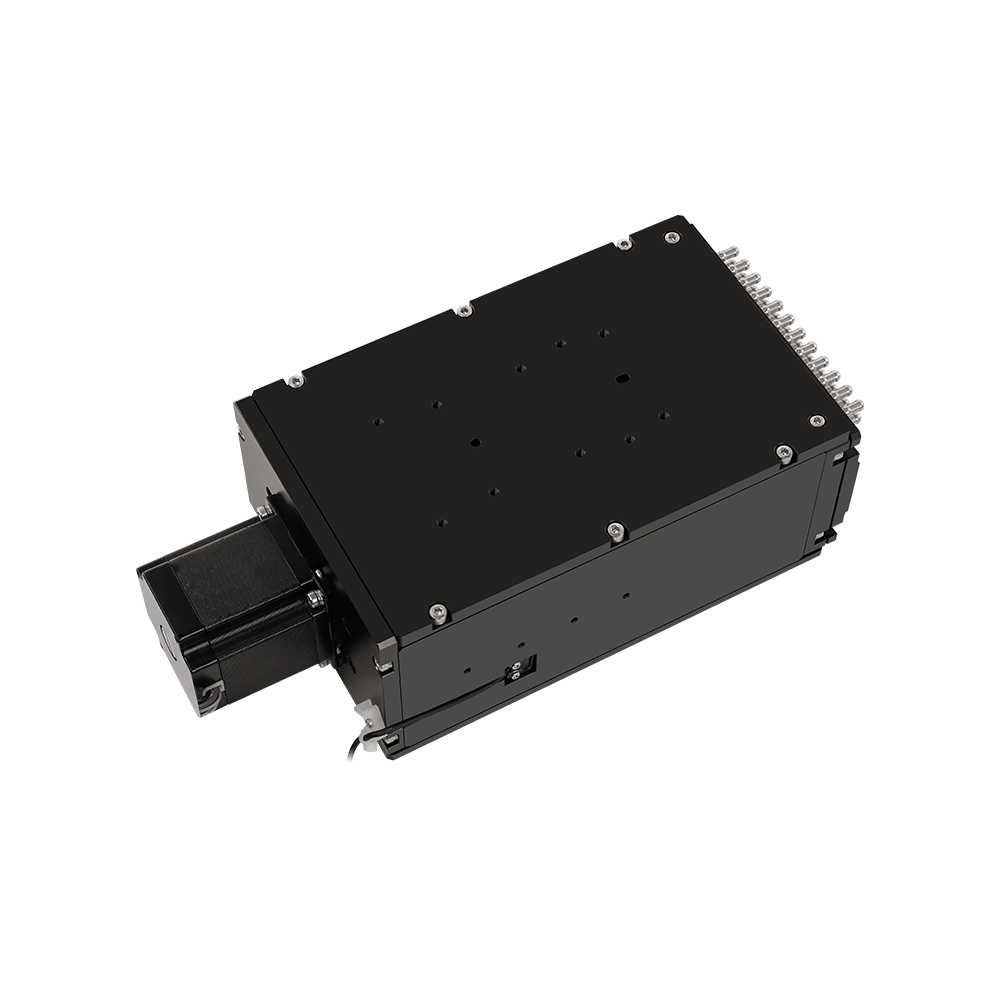

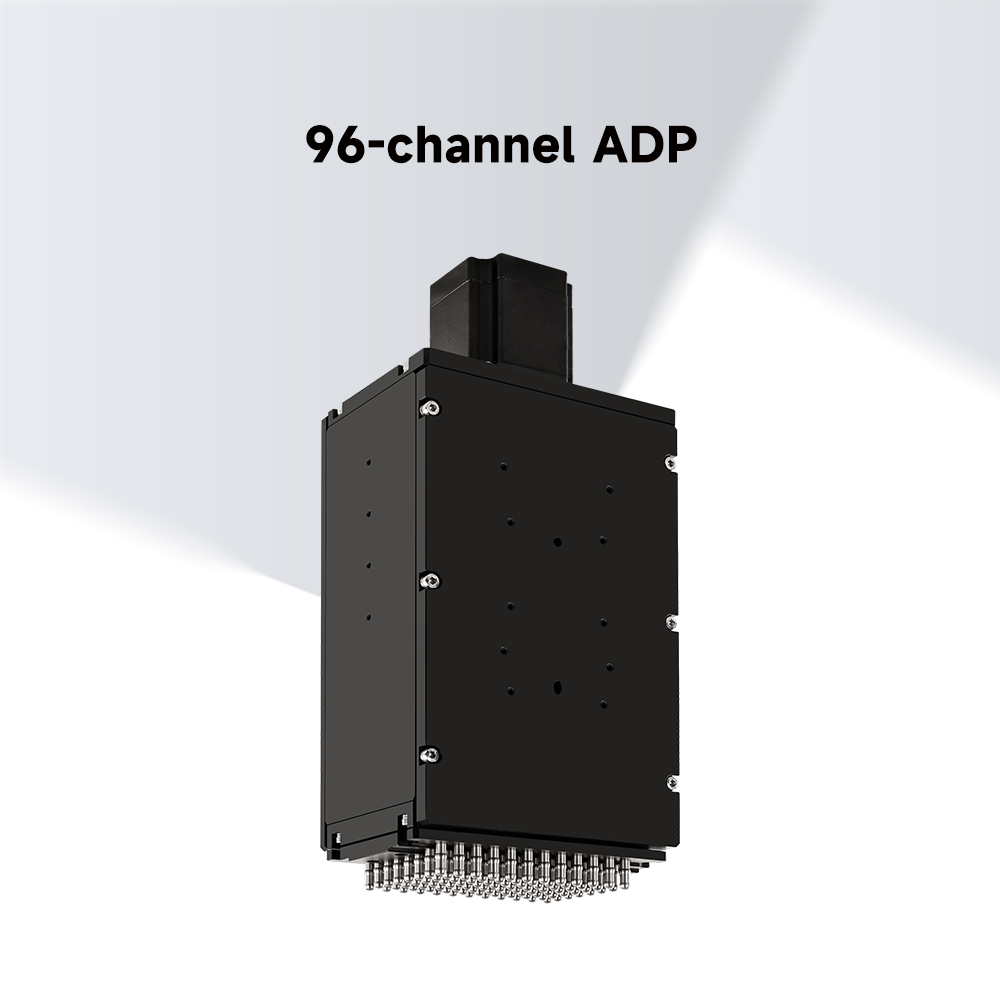

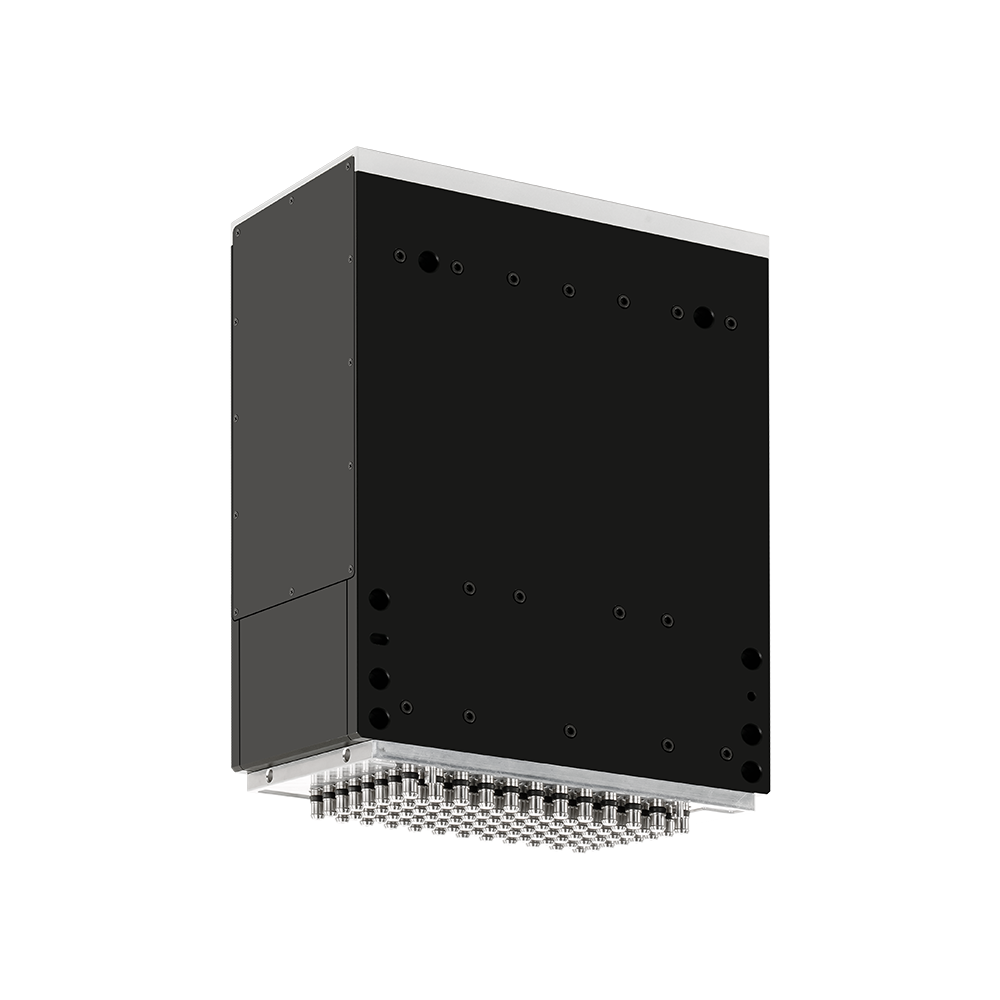

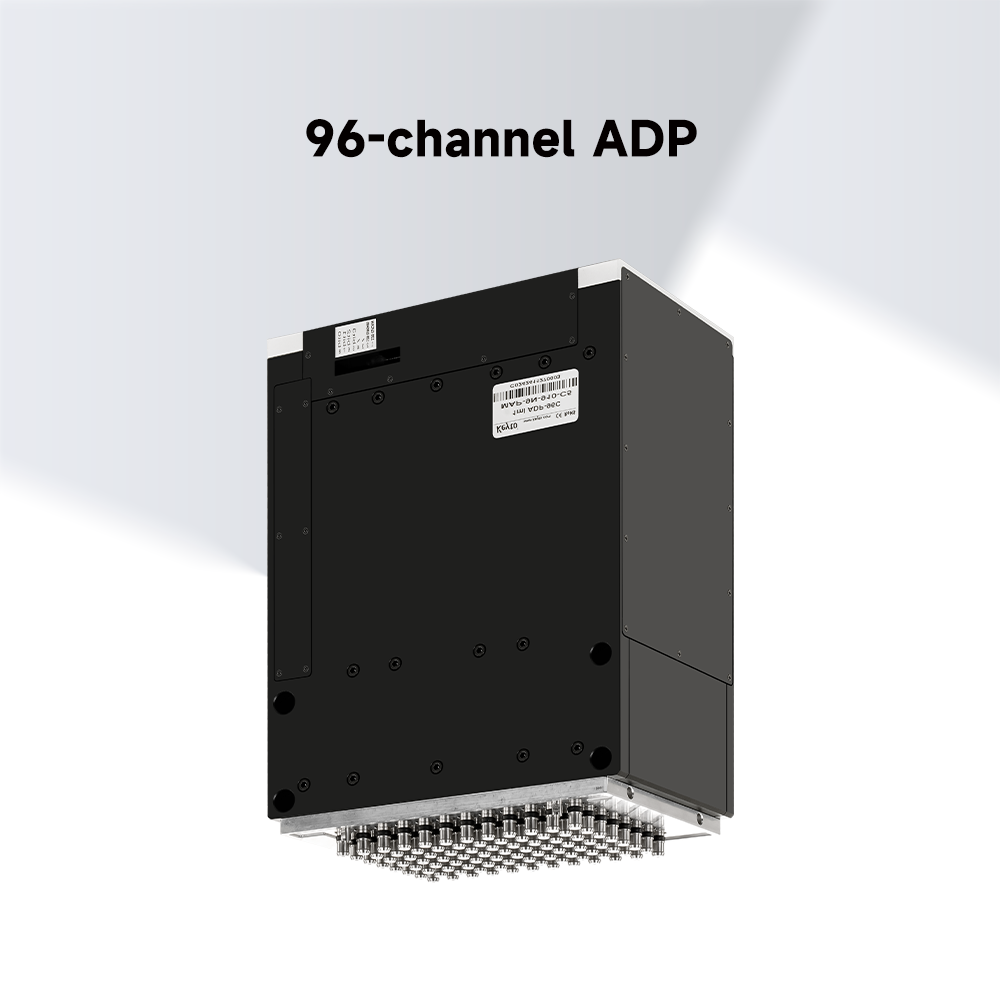

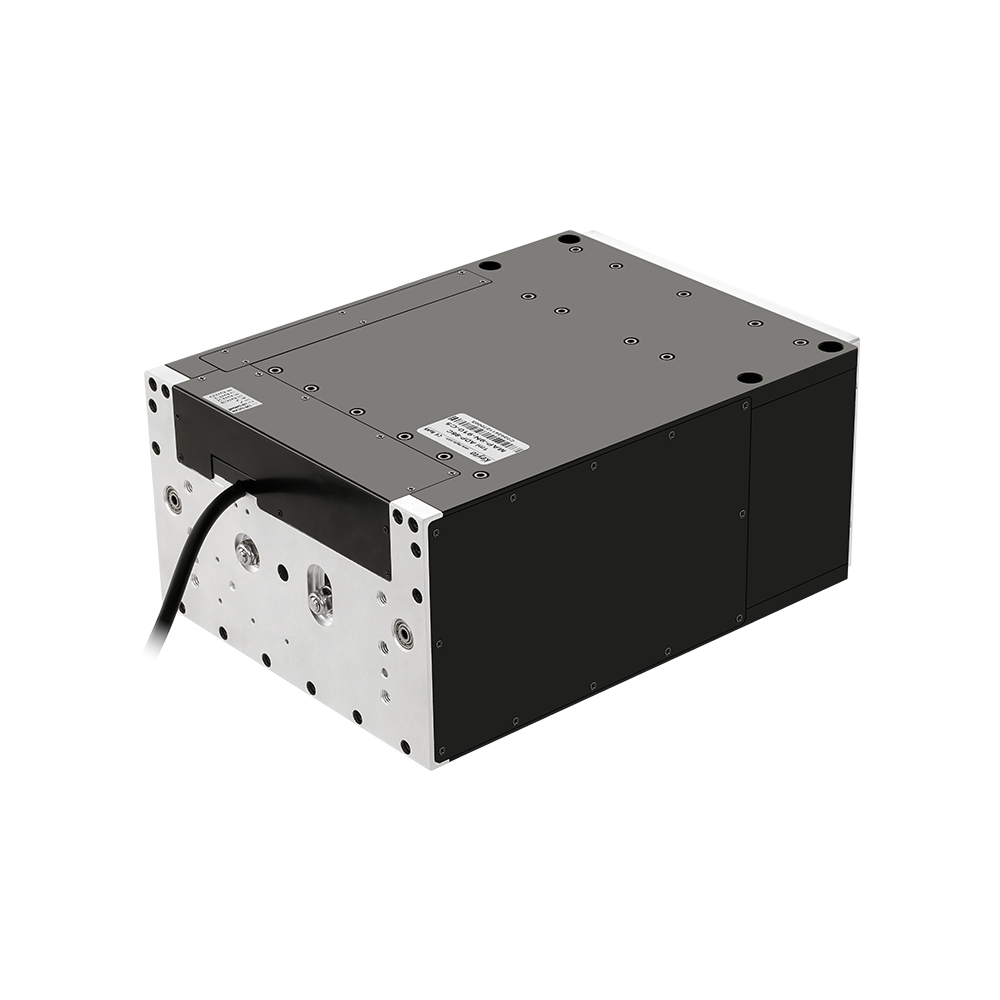

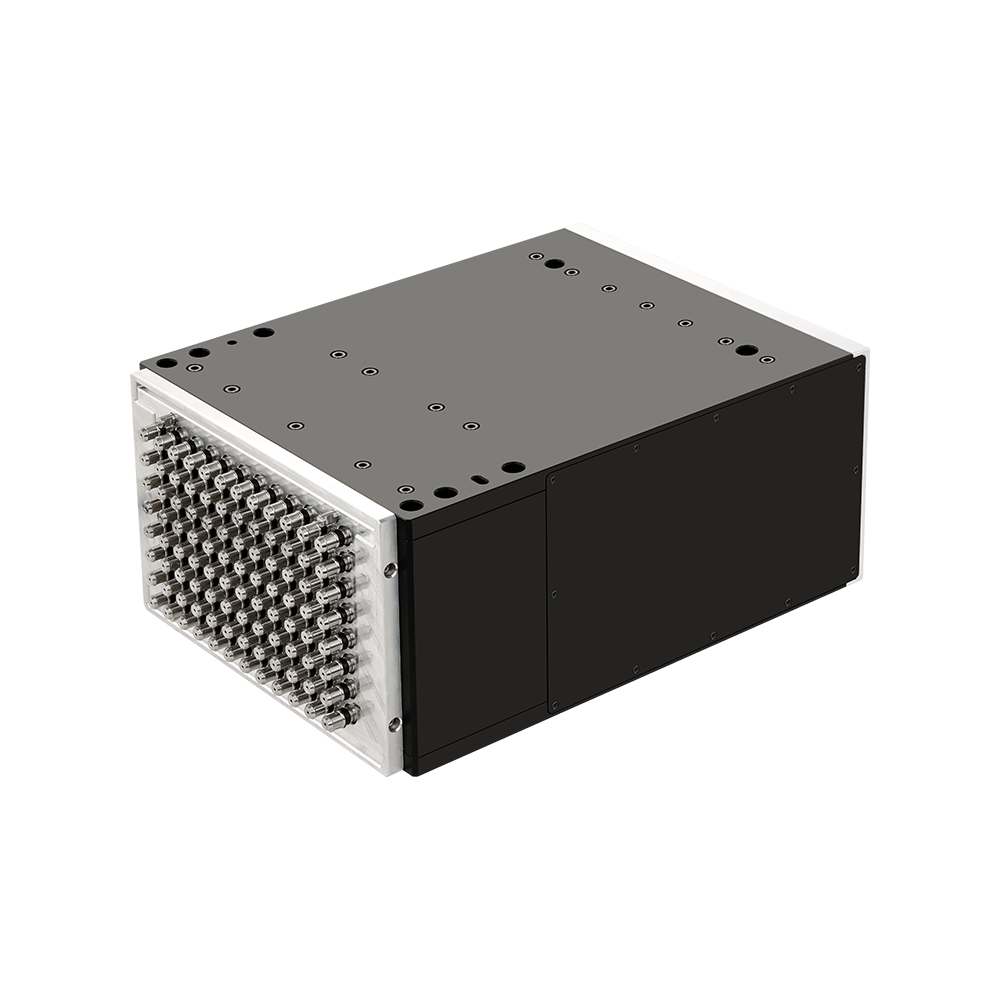

96-channel ADP

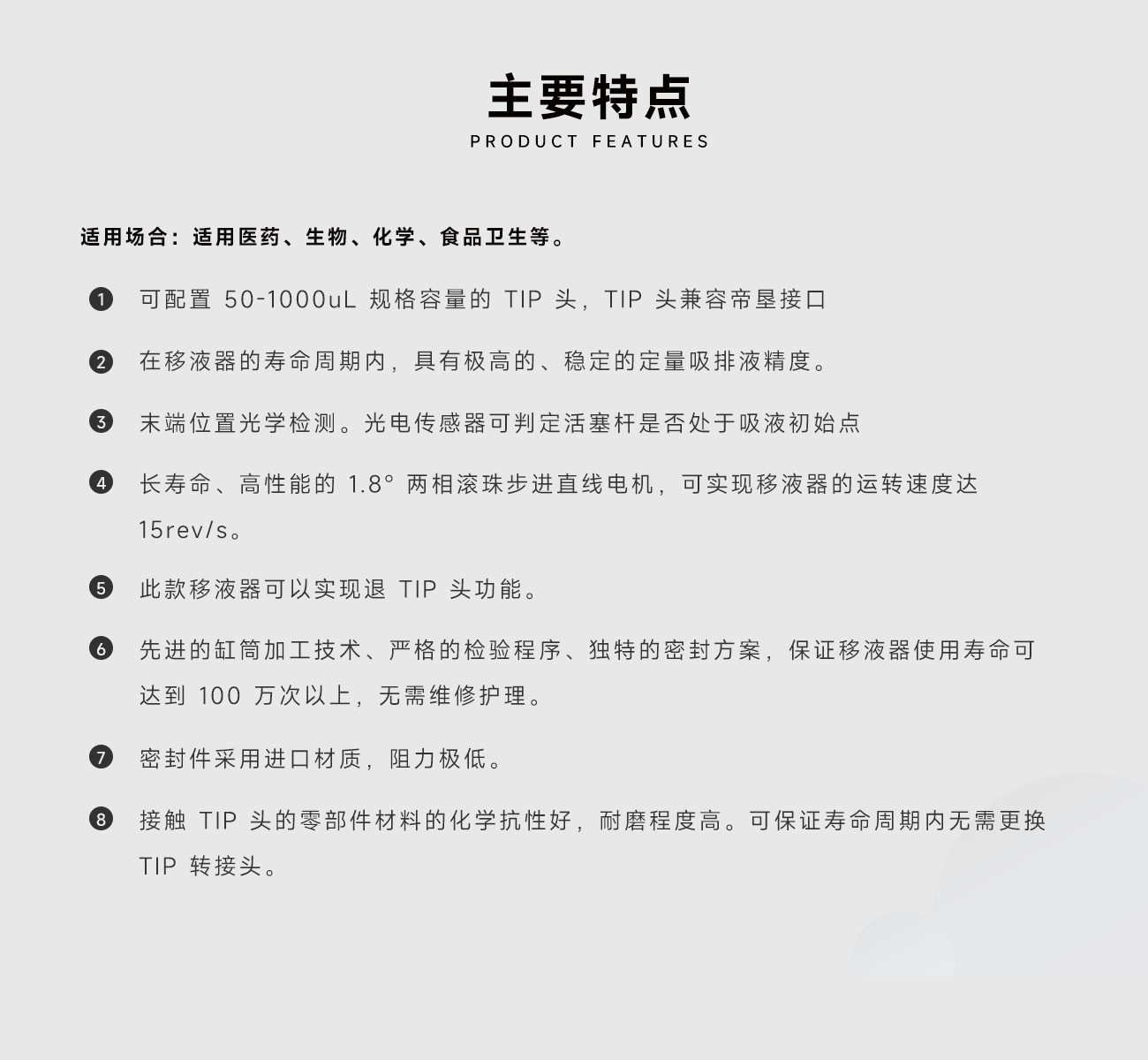

The 51AP series 96 channel pipette supports 50-1000 μL tips with compatibility for Tecan interfaces, ensuring precise and stable liquid handling throughout its lifespan. Equipped with a high-performance 1.8° two-phase ball screw stepper linear motor, it delivers speeds up to 15 rev/s with automated tip ejection and optical detection for piston position. Advanced cylinder processing and imported sealing materials guarantee a lifespan exceeding 1 million cycles with minimal resistance and no maintenance. The pipette's chemically resistant, wear-resistant components ensure long-lasting performance without needing replacement of the tip connector.
Key Parameters:
Configuration
Reference Model:
51AP-9
SPEC
WhatsApp Contact
Online Message
Model Comparison
96-channel ADP
Comparable Products

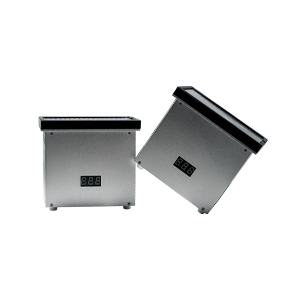

8-channel ADP
Model Comparison
Back
Overview
Parameters

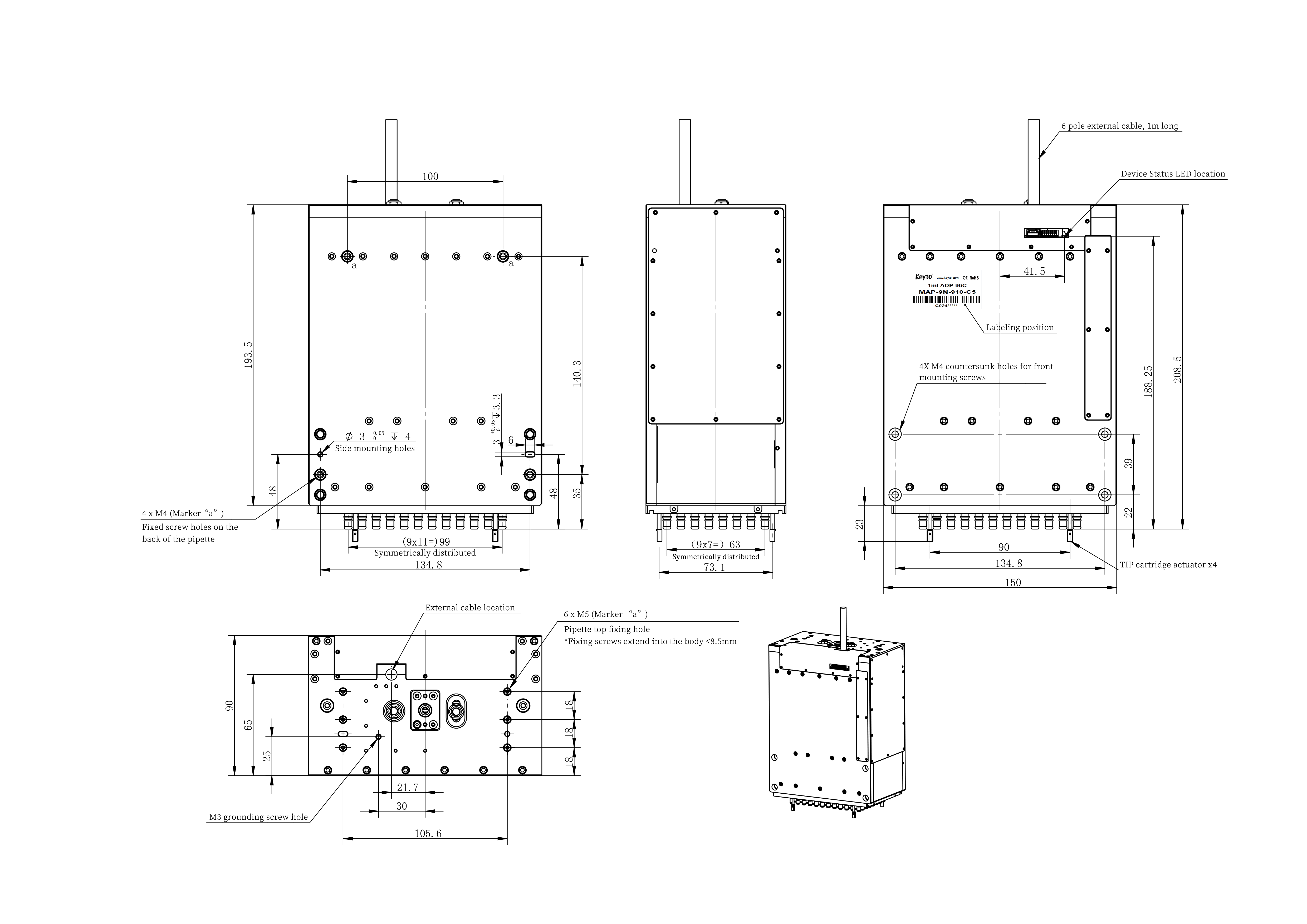

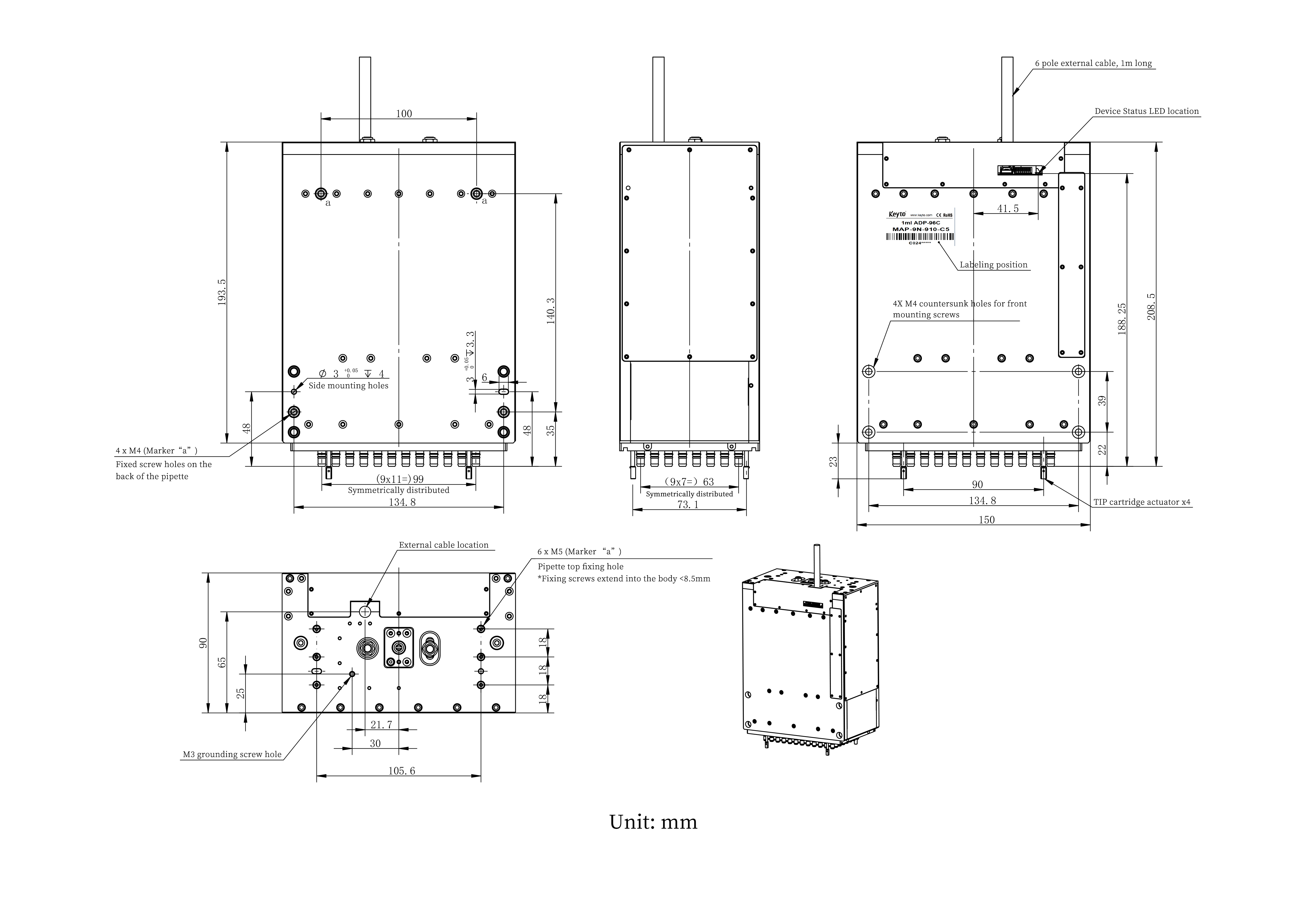

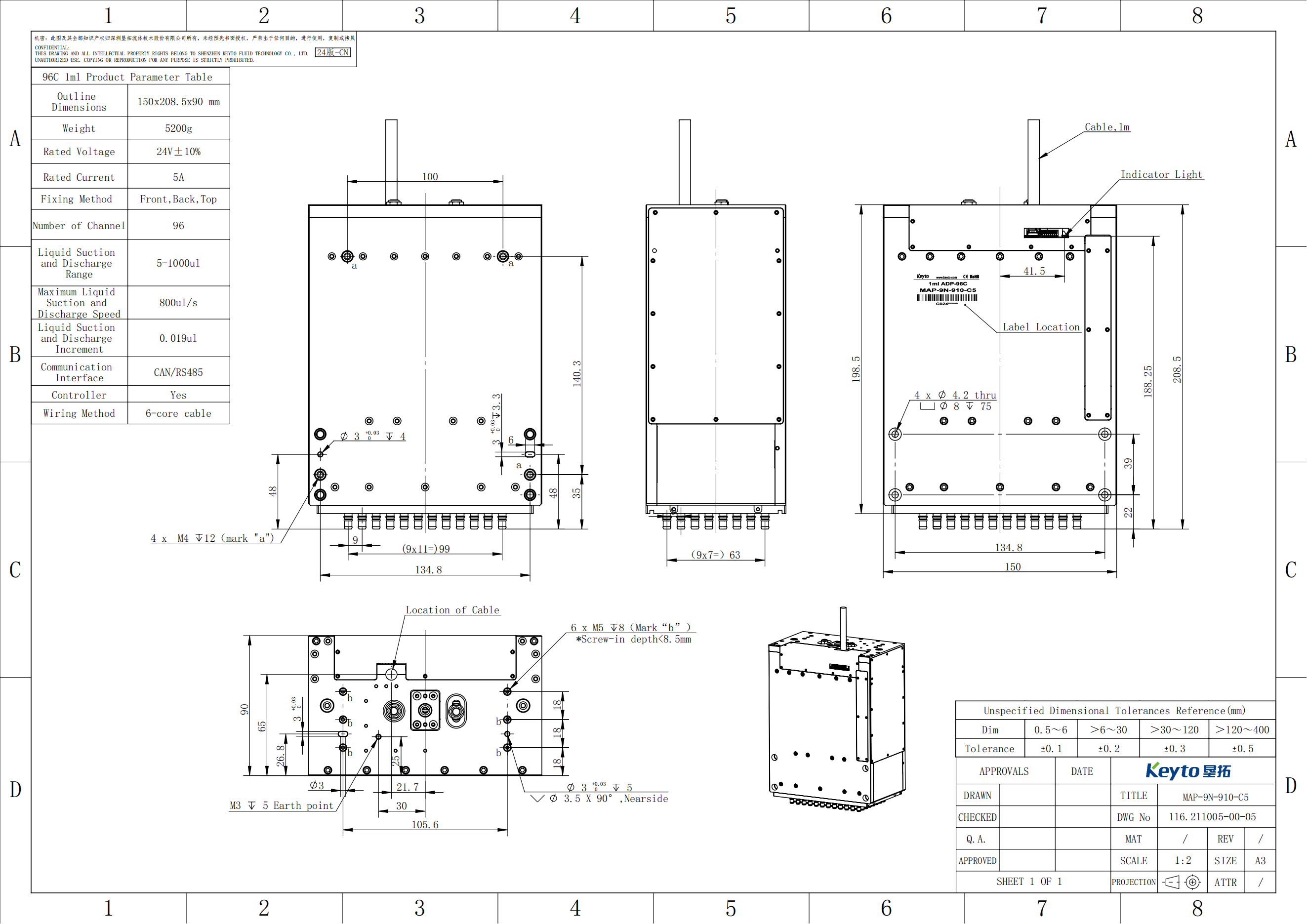

2D View
3D View

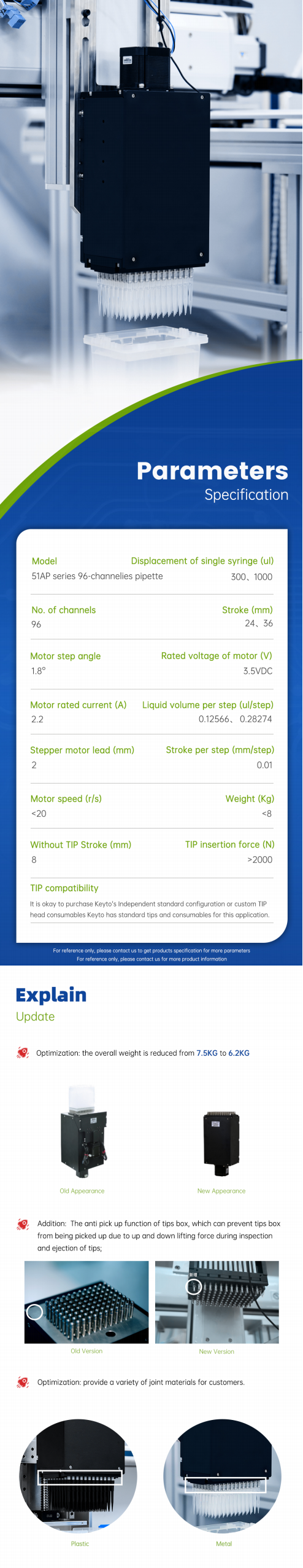

Type
51AP series 96 channel ADP
Dispensed volume-Each channel(ul)
300
1000

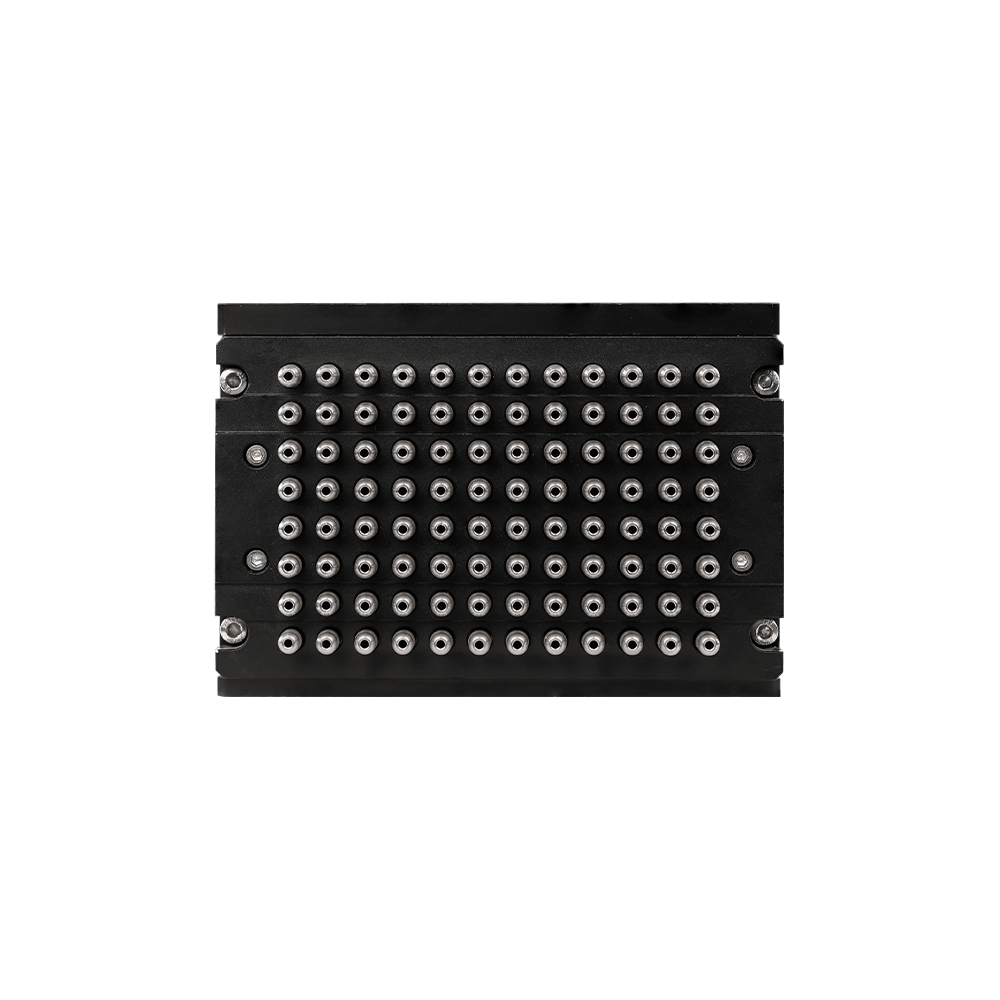

Channel Arrangement
12*8
Aspirate and dispense stroke (mm)
24
36
Motor step angle (°)
1.8°
Motor rated voltage (V)
3.5V DC
Motor rated current (A)
2.2
Motor speed (r/s)
<15
Stepper motor lead (mm)
2
Stroke per step (mm/step)
0.01
Volume per step (ul/step)
0.12566
0.28274
Weight (Kg)
<8
Remove tips stroke(mm)
9
Recommended force -pick up TIPs (N)
1000~1500
