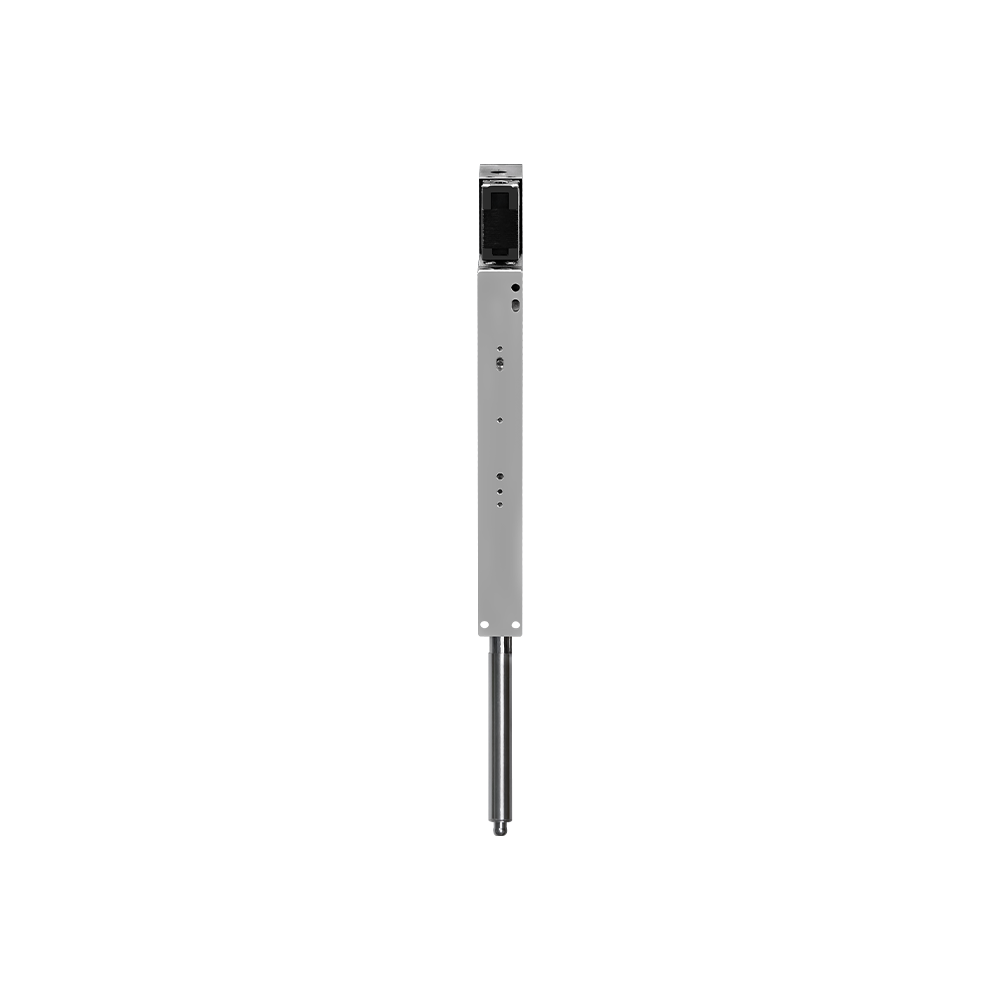

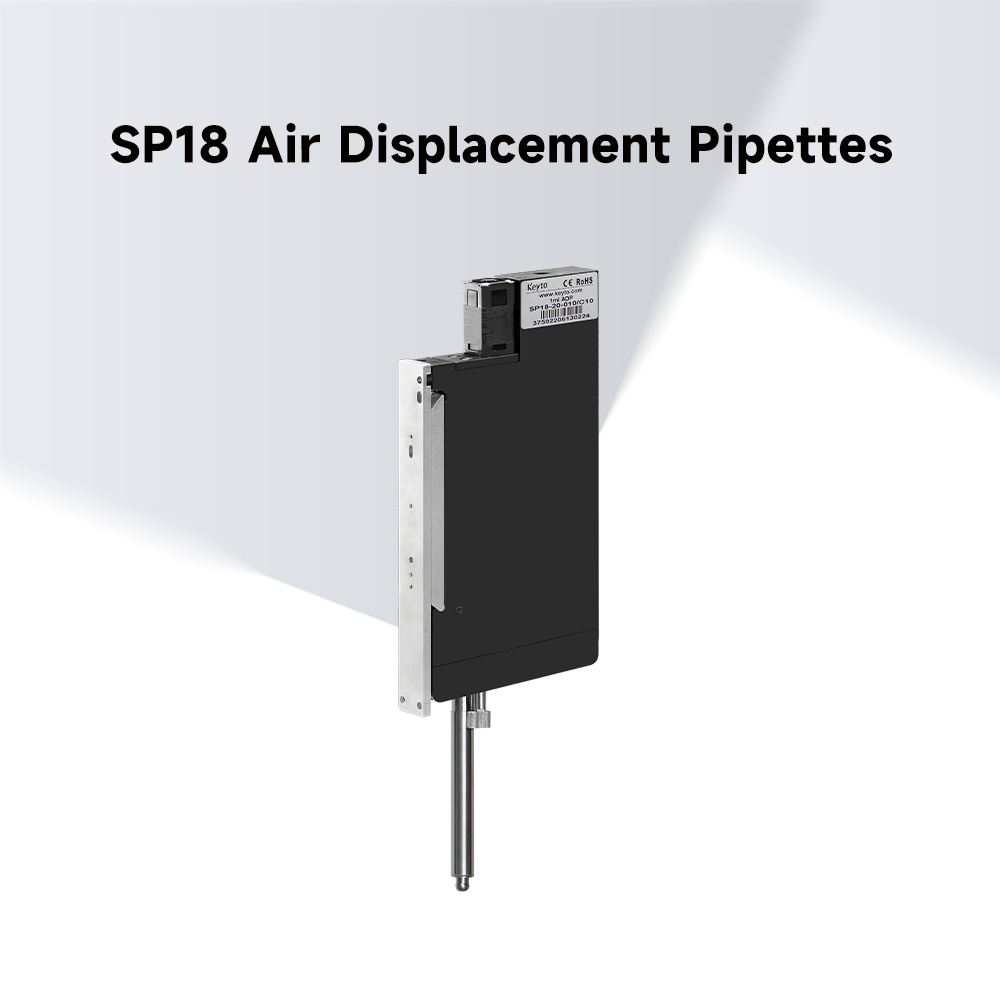

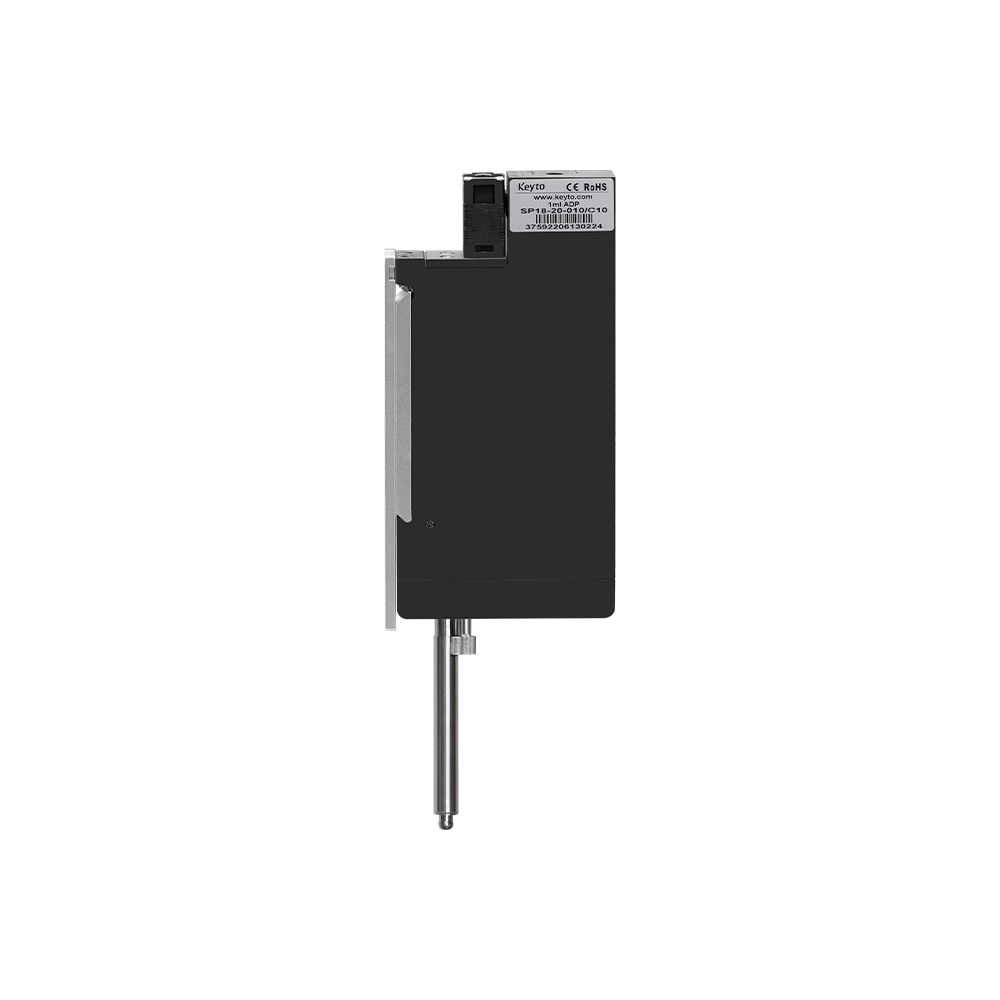

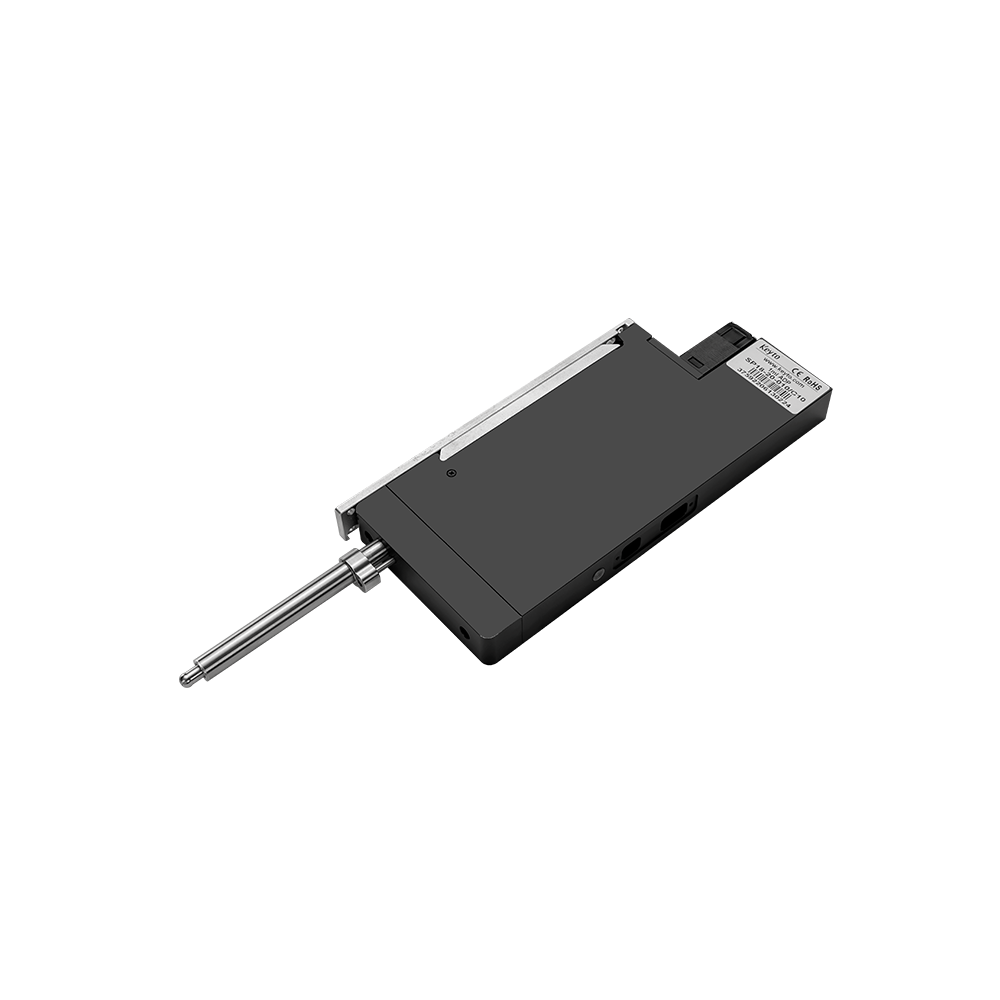

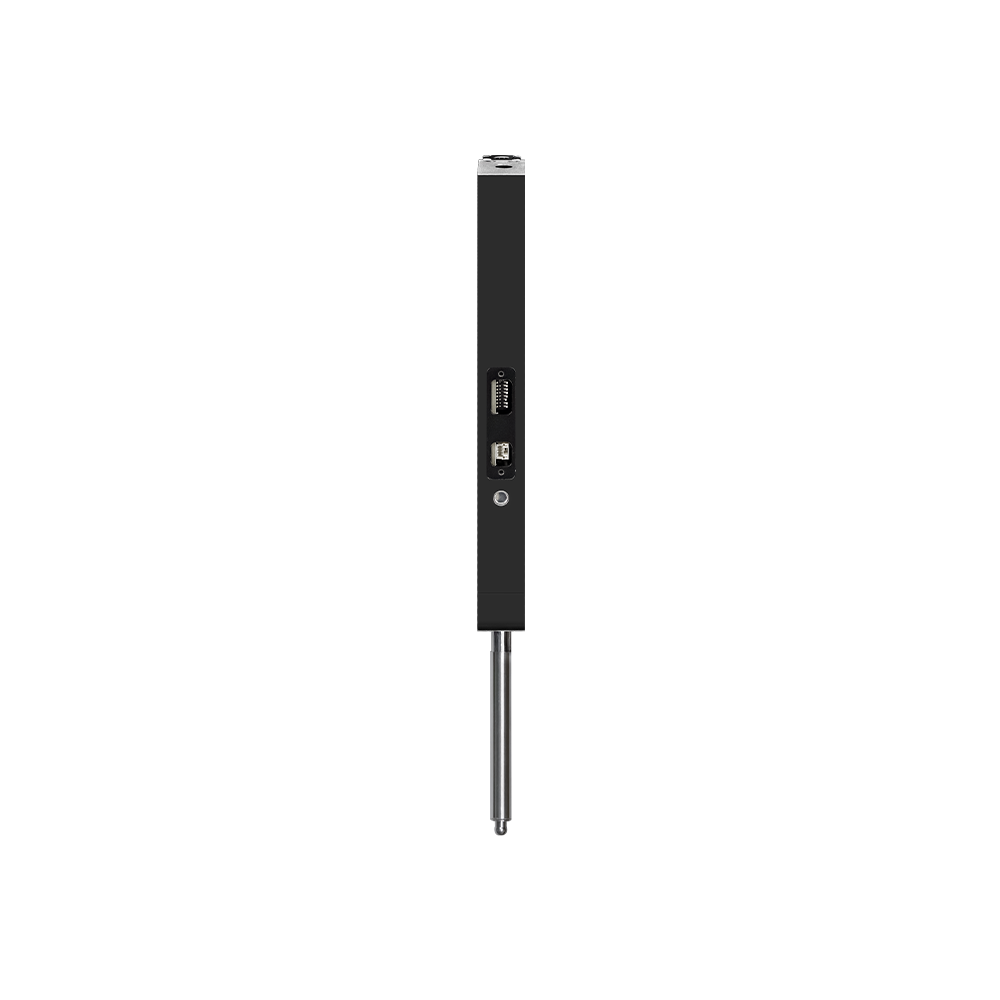

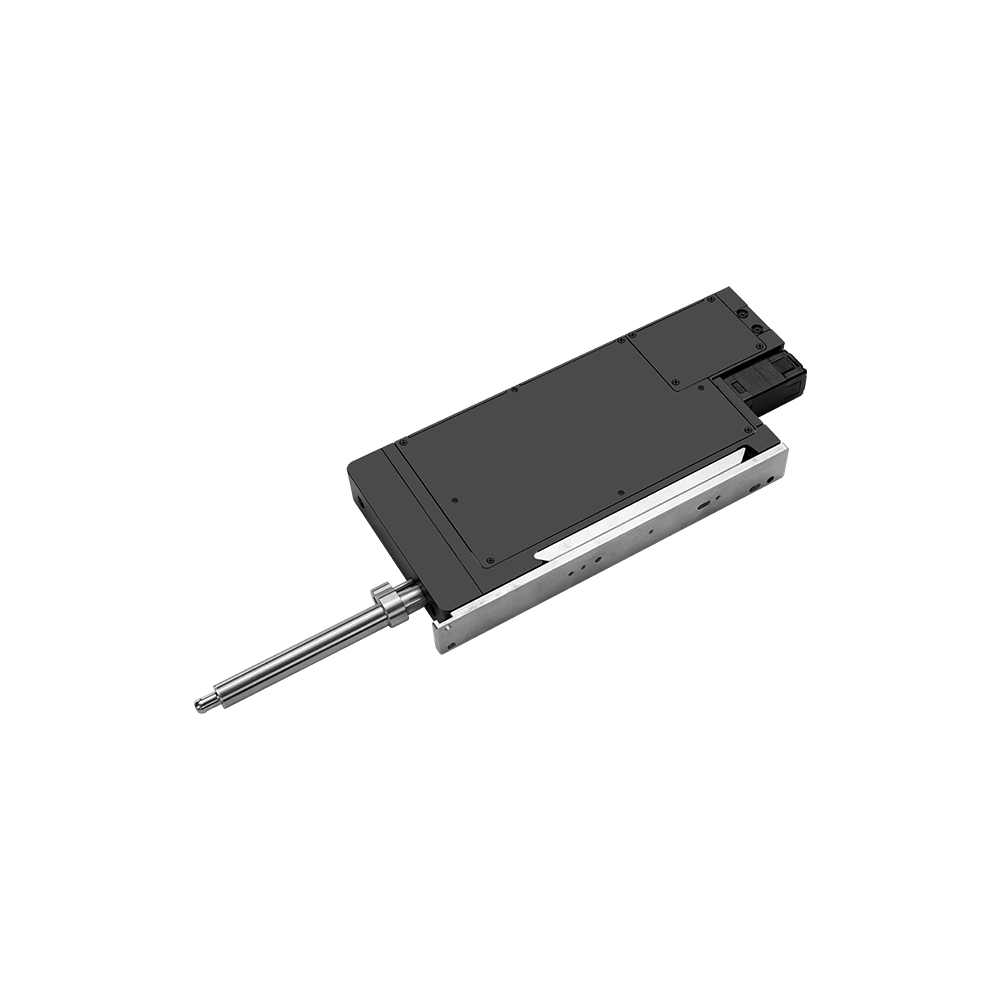

SP18 Air Displacement Pipettes
SP18 Air Displacement Pipettes

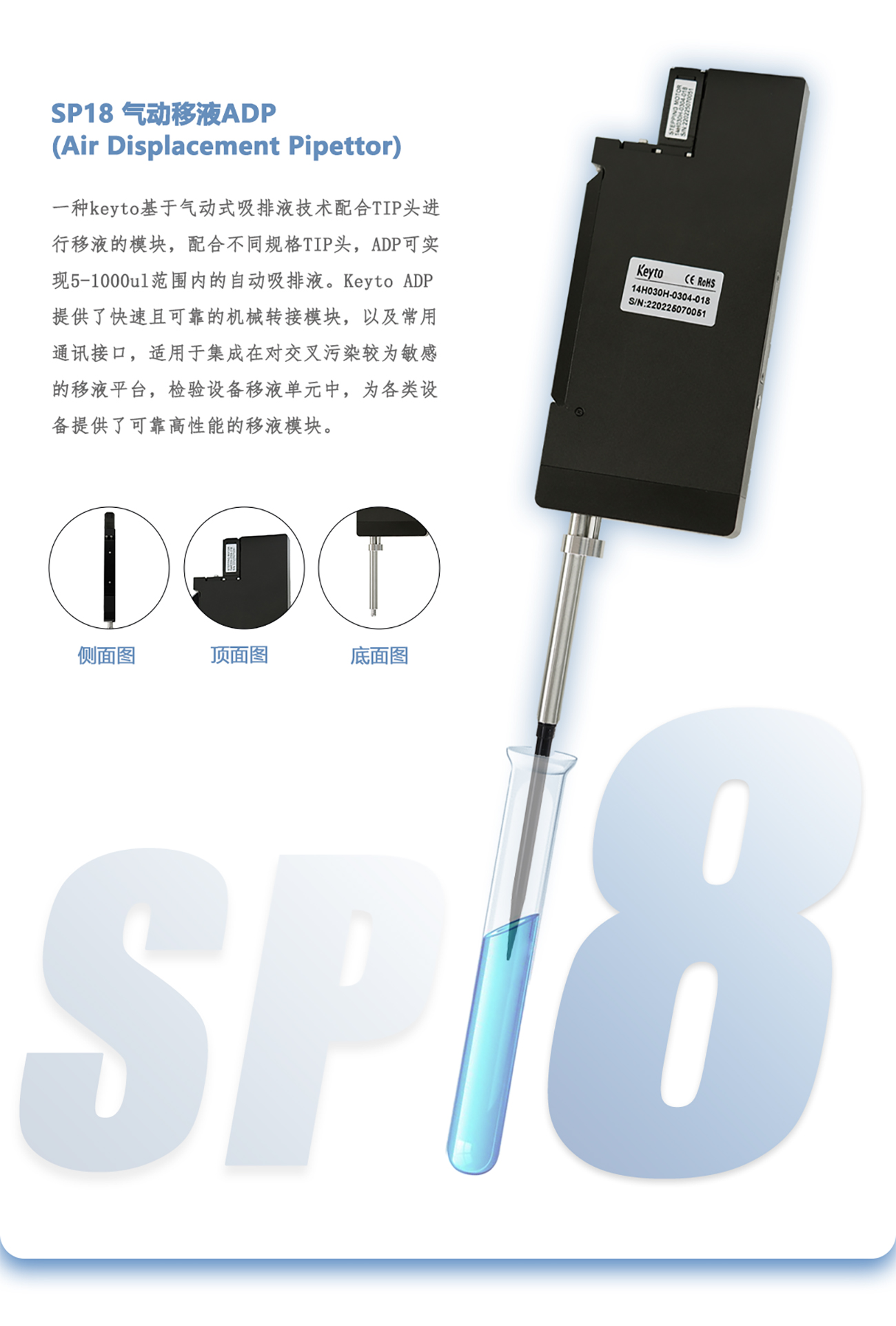

The SADP18 (Superb Air Displacement Pipette 18) is a high-performance pipetting module designed for 5μL to 1000μL pipetting with disposable tips, minimizing cross-contamination risks. It supports fast, reliable pneumatic aspiration and dispensing, ensuring compatibility with various tip sizes. Equipped with a robust mechanical adaptor and versatile communication interfaces, it integrates seamlessly into sensitive pipetting platforms and inspection equipment. SADP delivers precise, efficient performance for a wide range of applications.
Key Parameters:
Default configuration
Reference Model:
SP18
SPEC
WhatsApp Contact
Online Message
Model Comparison
SP18 Air Displacement Pipettes
Comparable Products
SP16 Air Displacement Pipettes
SP20 Air Displacement Pipettes
SP28 Air Displacement Pipettes
Model Comparison
Back
Overview
Parameters

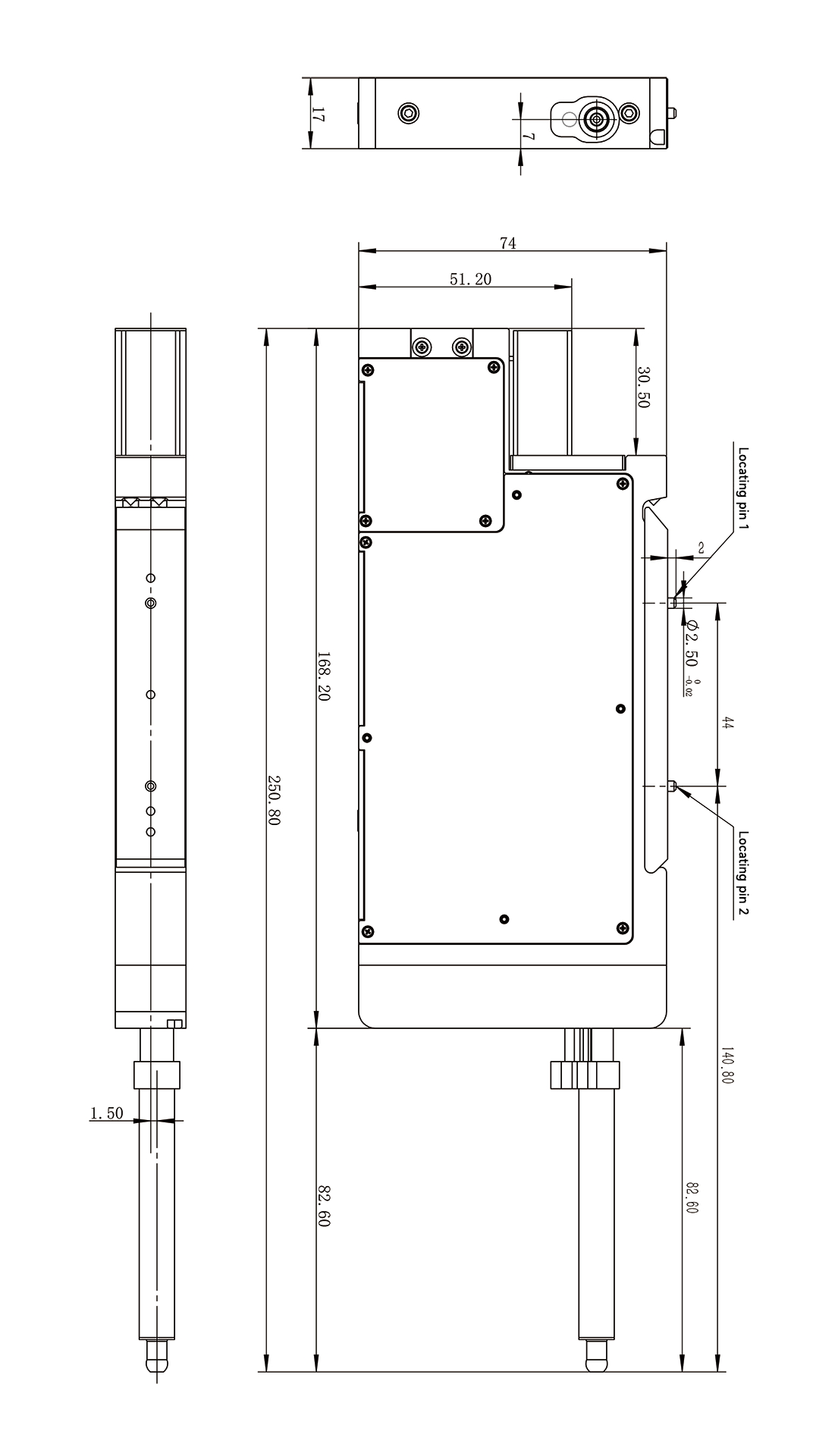

2D View
3D View
ADP Type SP18
Displacement Range 5-1000μL
Liquid level detection PLLD
Weight ≤400g
Size 250.8mm*77.8mm*17mm
Communication Interfaces
RS232、RS485、Can
Driver Stepper Motor+ball screw
Operating Temperature
+5℃~+40℃
Life cycle
One million cycles
Power Inpu
24V DC±10%
More details, please contact us.
