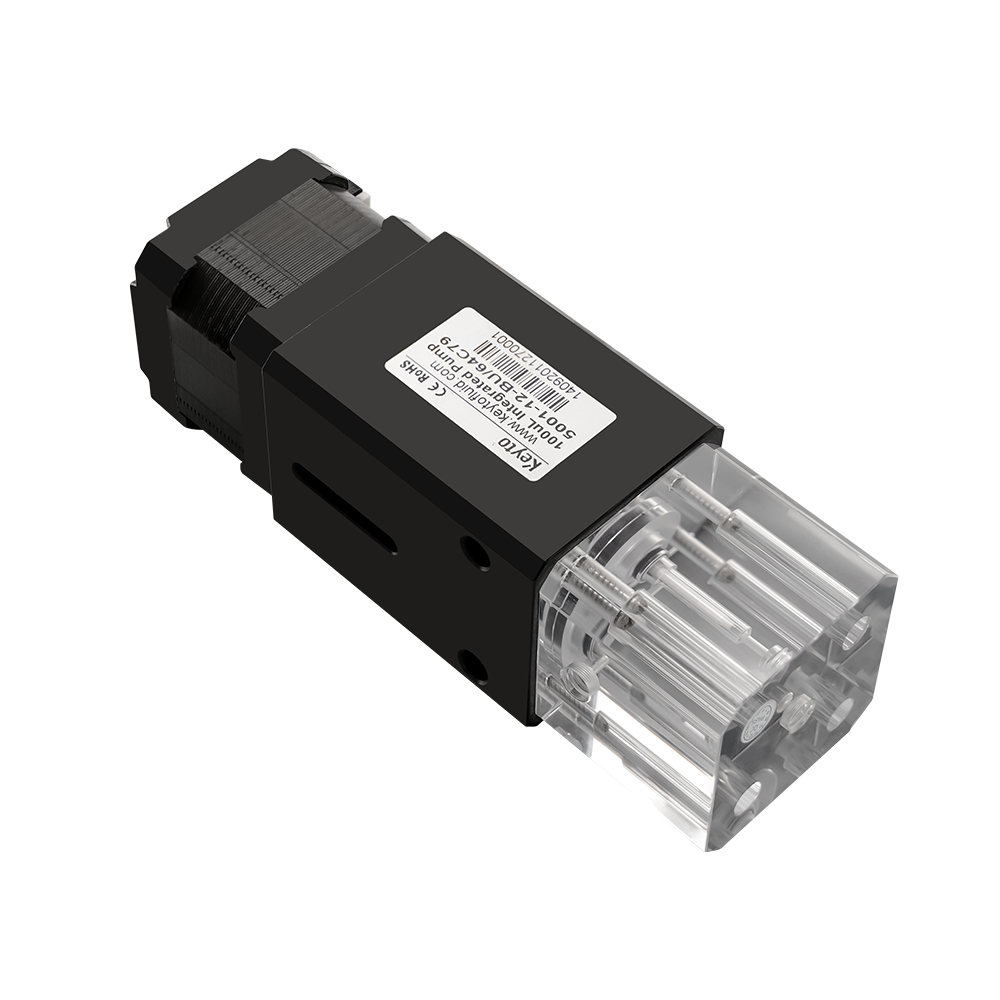

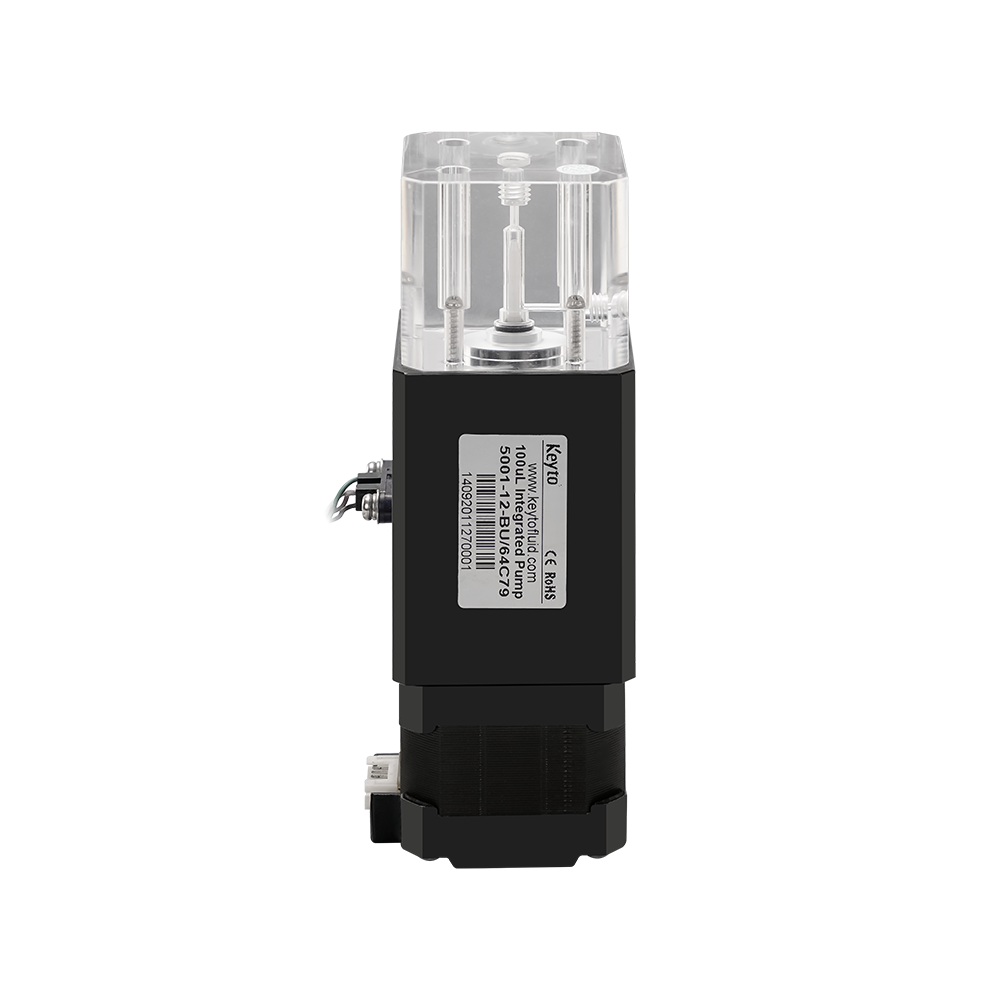

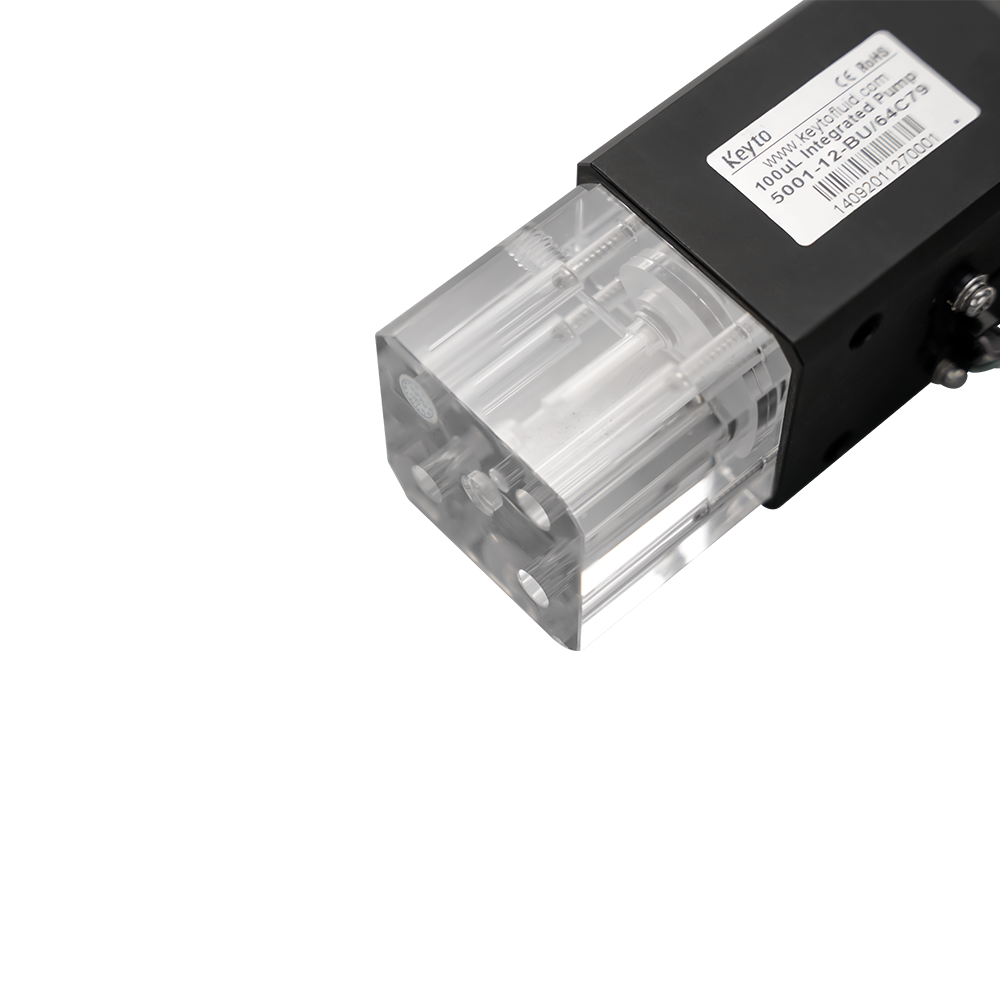

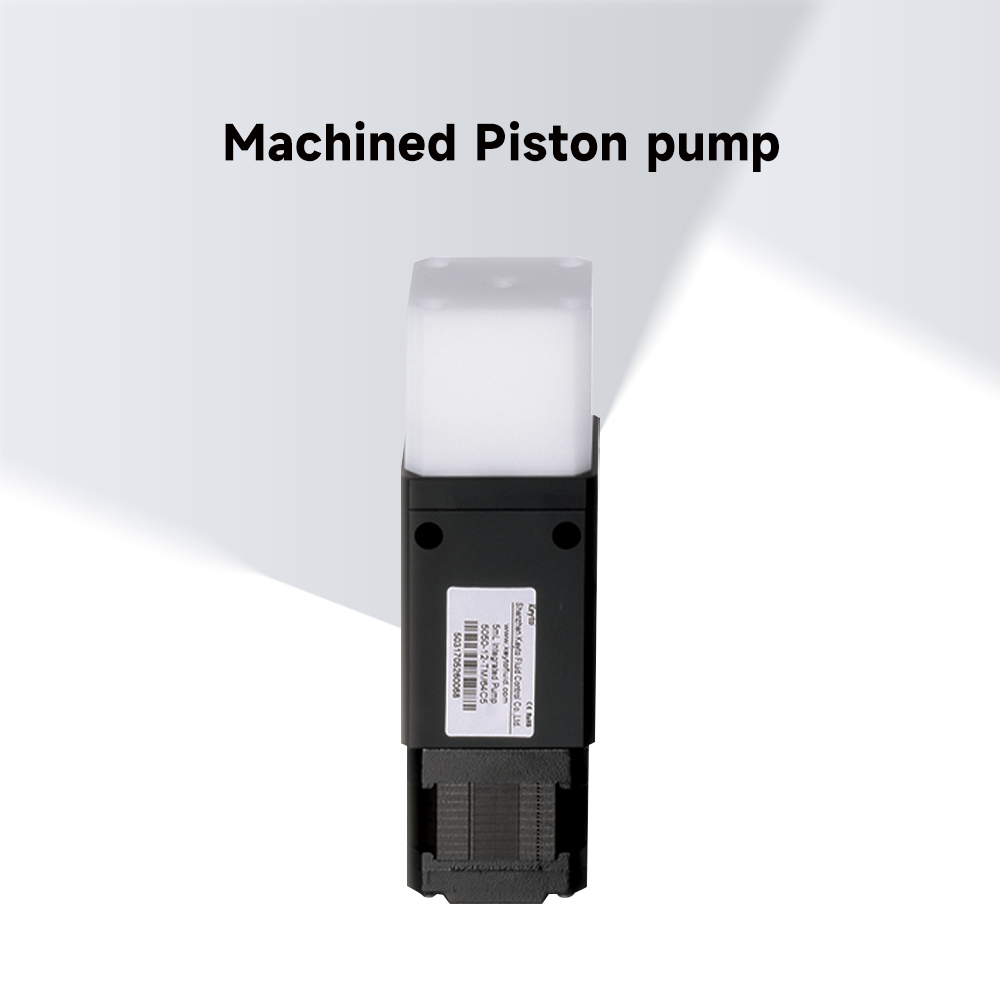

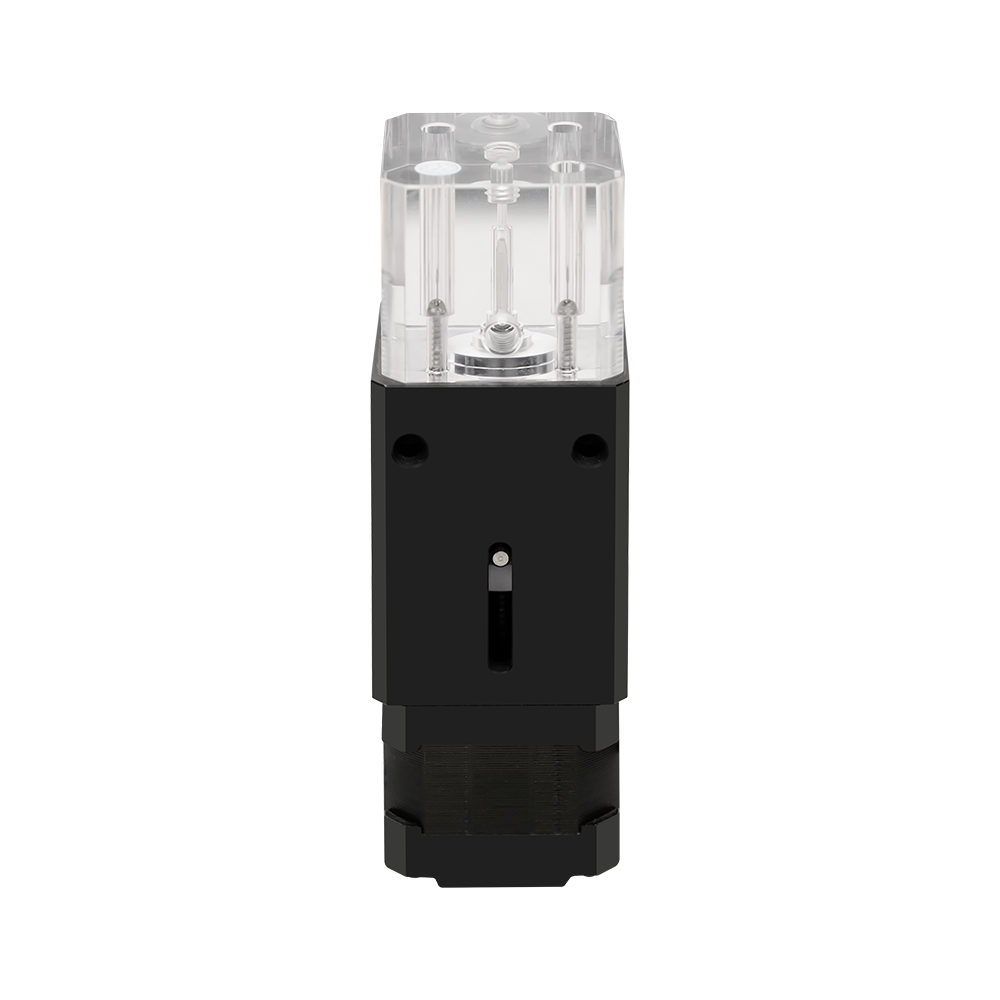

Machined Piston pump
Machined Piston pump
The 50xx series piston pump, developed by Keyto, offers high precision and repeatability in sampling and reagent addition, with a repeatability accuracy of less than 0.5% for displacements over 10%. Its transparent chamber design enables visual detection of internal bubbles, while its lifespan exceeds 5 million cycles. Covering a displacement range of 100 μL to 20 mL, it is a high-performance, maintenance-free pump widely used in chemiluminescence, biochemistry, POCT, and environmental analysis.
Key Parameters:
Volume options
Current
Port type
Sensor
Wetted materials
Reference Model:
50
WhatsApp Contact
Online Message
Model Comparison
Machined Piston pump
Comparable Products
1ml Micro Piston Pump
50XX-V Series Micro Piston Pump
10ml Piston pump
S Series Machined Piston Pump
P Series Piston Pump
Model Comparison
Back
Overview
Parameters

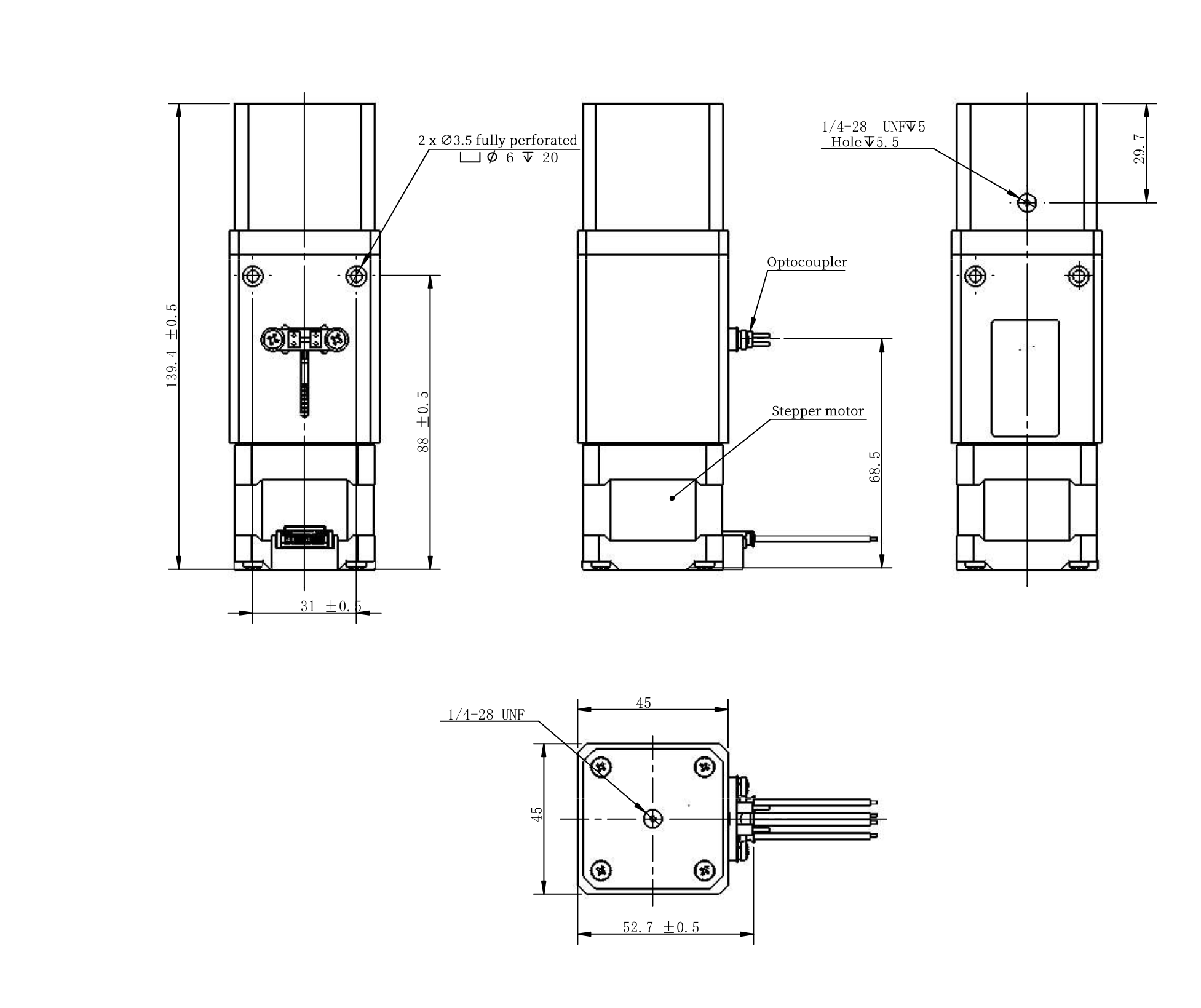

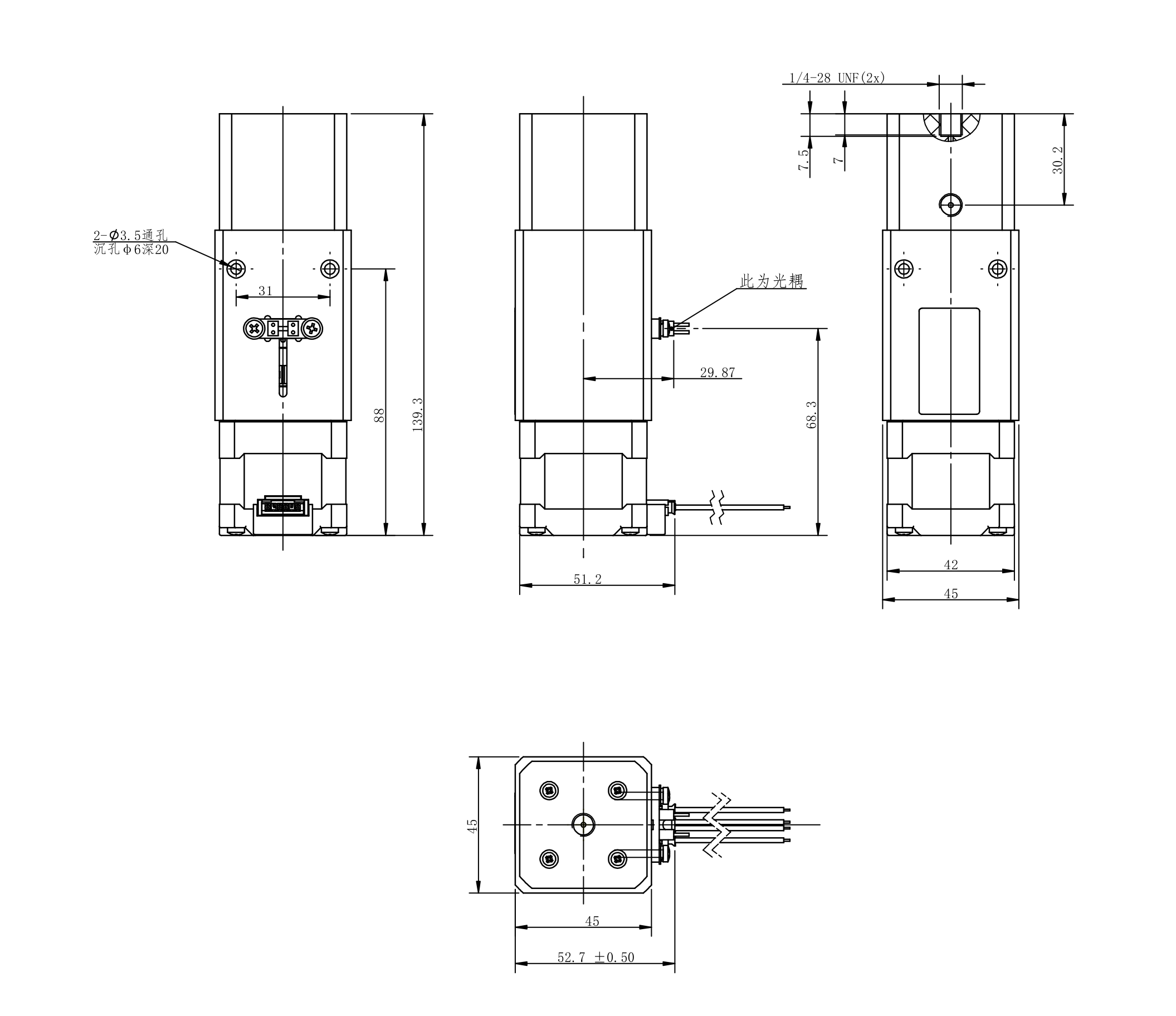

2D View
3D View
Parameter Machined Piston Pump
Max. volume (μL) 50 100 250 500 1000 2500 5000
Piston diamete r(mm) 2.24 3.17 5.01 7.08 10.01 15.84 22.39
Volume per step (μL/step) 0.025 0.05 0.125 0.25 0.5 1.25 2.5
Stroke (mm) 12.7
Max. RPM (r/s) 12
Motor angle (°) 1.8
Lead (mm) 1.27
Stroke per step (mm/step) 0.00635
CV

CV <0.5%(full stroke)
CV <1.2%(2% stroke)
Life span 5 million cycles
Port type M6, 1/4-28 UNF
Dimension (mm) 136*42*49.7
