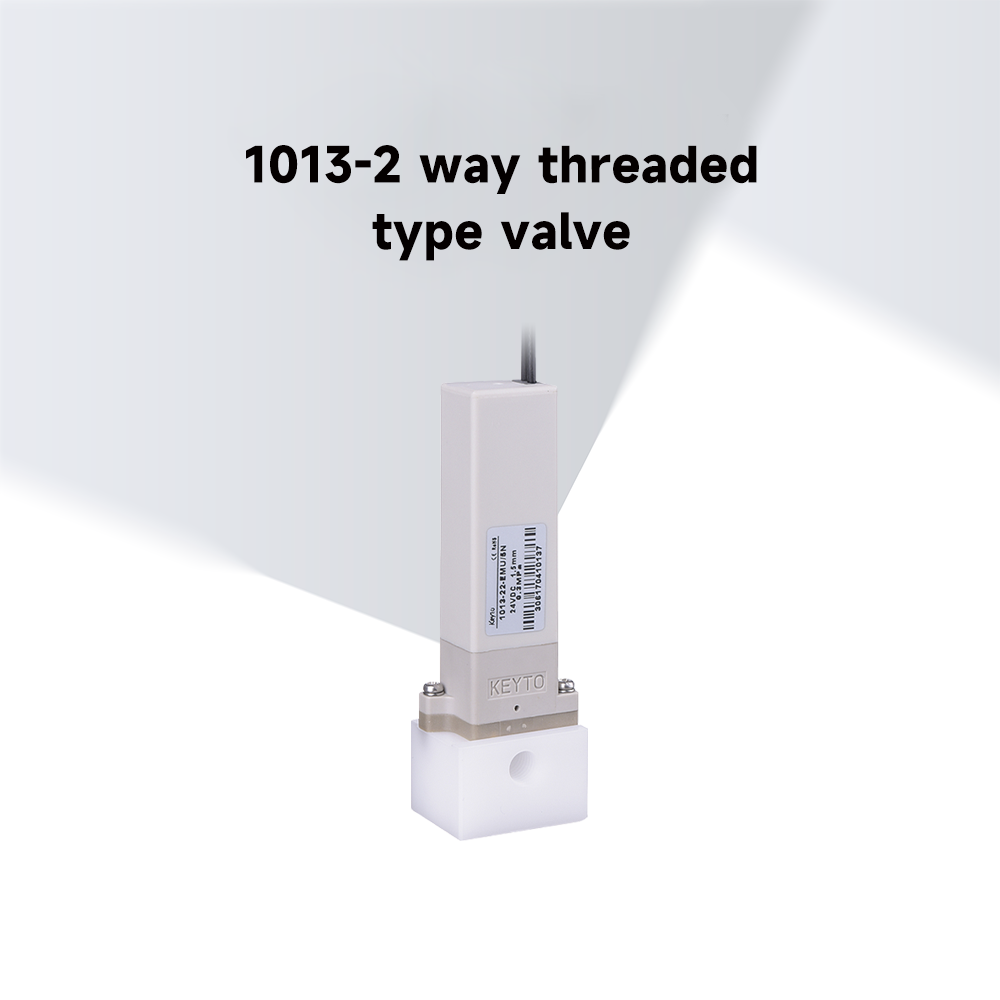

1013-2 way threaded type valve
1013-2 way threaded type valve
The 1013 series solenoid valve is a high-performance fluid control component featuring a unique rocker design, resulting in near-zero volume change during operation and minimal liquid loss. Its compact internal structure with low internal and dead volume enables precise liquid control, suitable for sampling, cleaning, and pressure stabilization. The valve boasts a long operational life of up to 5 million cycles under normal working conditions. It is widely used in medical devices, laboratory instruments, and environmental analyzers.
Key Parameters:
Voltage
Wetted material
Reference Model:
1013-2
SPEC
WhatsApp Contact
Online Message
Comparison/Performance
1013-2 way threaded type valve

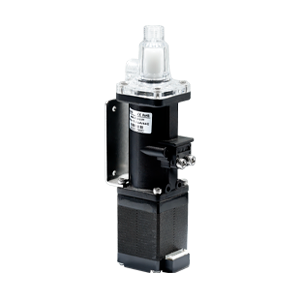

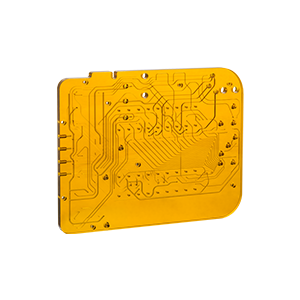

Comparable Products
Comparison/Performance
Back
Overview
Parameters

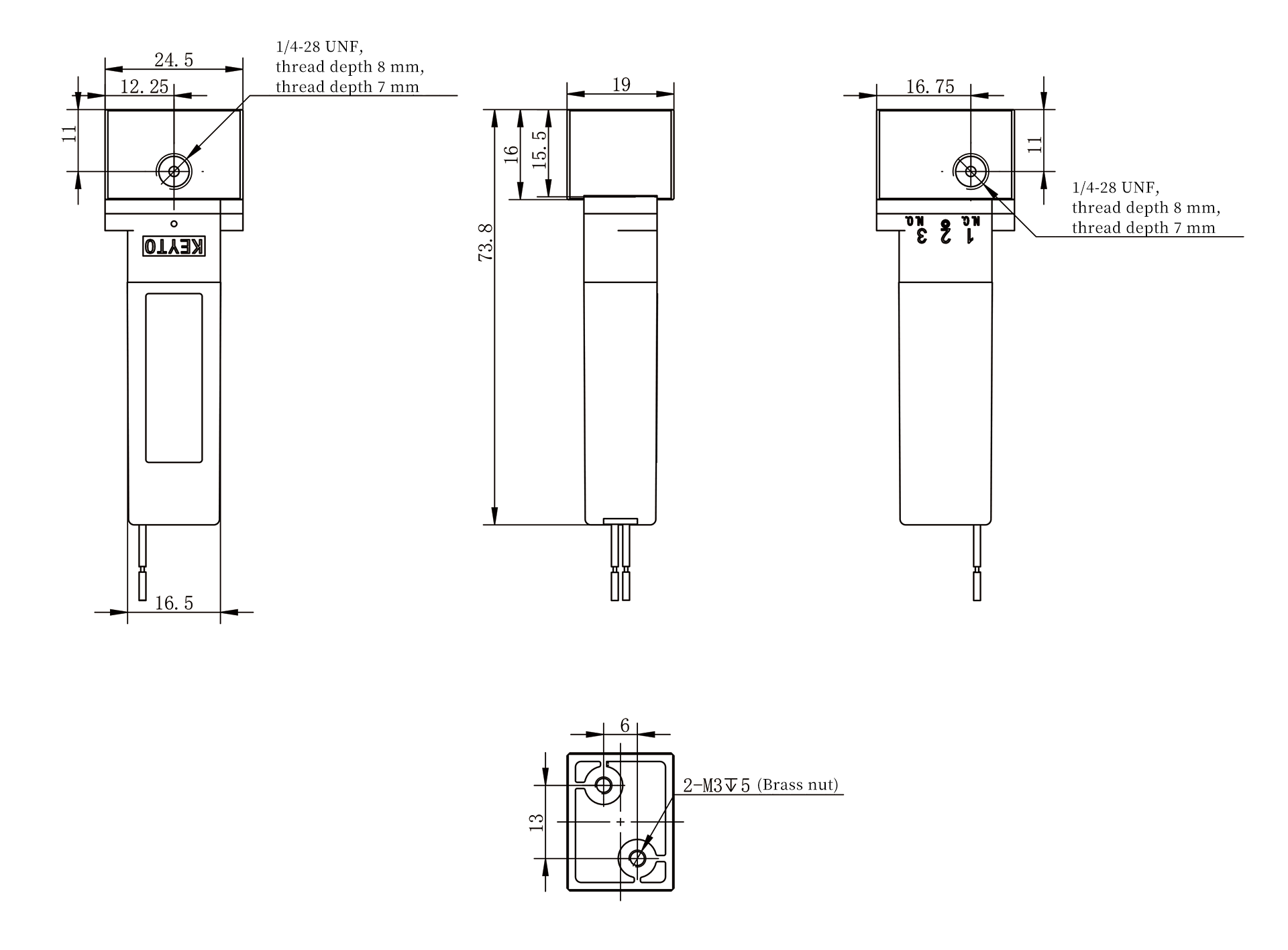

2D View
3D View
Stucture
Rocker type
Direct-diaphragm valve
Orifice 1.5mm
Power 24V: 2.8W;12V: 3.4W; 1.8W 24V/12V: 2.8W
Flow Rate CV
0.03 0.017
Suitable Medium
Water, air, weak acid, weakbase(The applicablemediumisrelatedtothewettedpartmaterialtolerance)
Operation Pressure Range
-75kPa~250kPa
Pressure Resistance
0.3MPa
Leakage
0 (hydraulicpressure)
Response Time
<50ms <20ms <30ms
Internal Volume
20μL 40μL
Rated Voltage
DC:24V/12V
Fluctuation of Voltage
-10%+10%
Energy Saving Circuit
12V/24V: 0.8W / /
Insulation grade
F
Insulation rade
IP40 IP54 IP40
