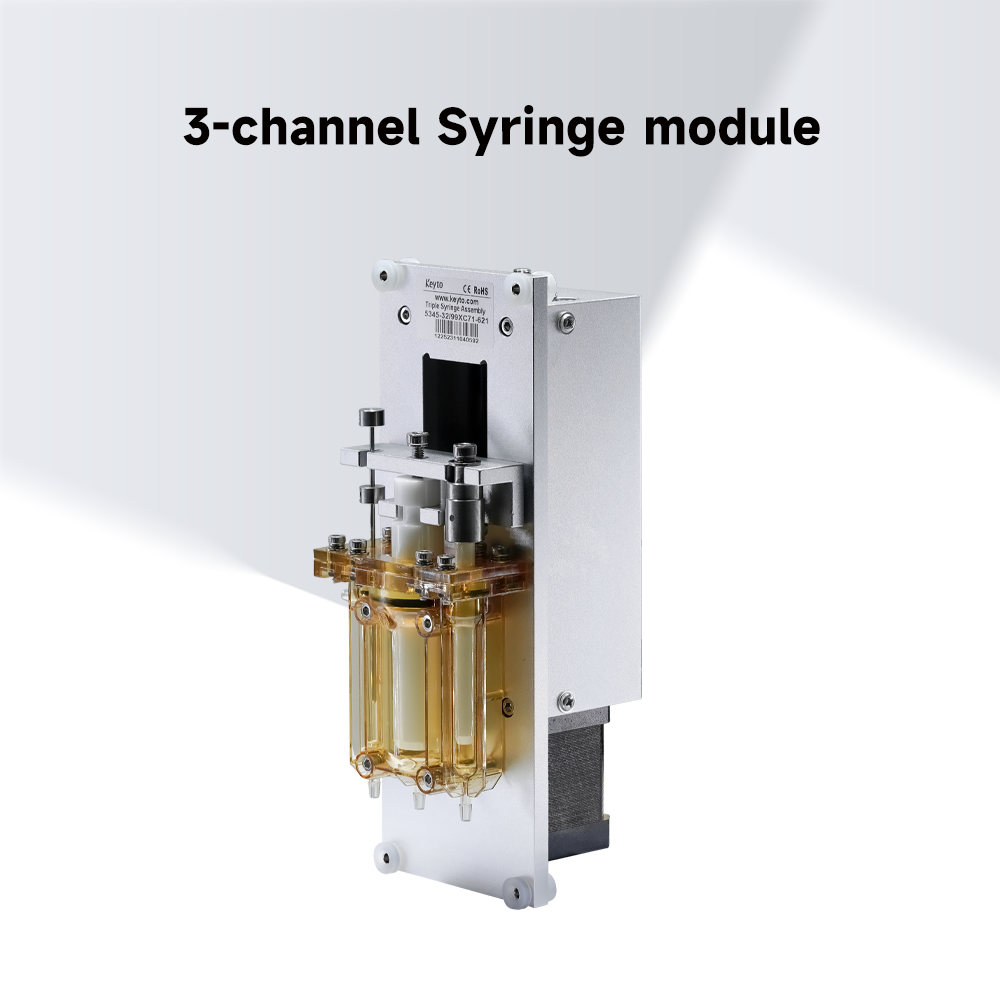

3-channel Syringe module
3-channel Syringe module
Key Parameters:
Wetted materials
Syringe volume
Reference Model:
5345
WhatsApp Contact
Online Message
Model Comparison
3-channel Syringe module
Comparable Products
Single Channel Syringe Module
Multi-channel Syringe module
Multi-channel Syringe Module Integrated Valves
Model Comparison
Back
Overview
Parameters

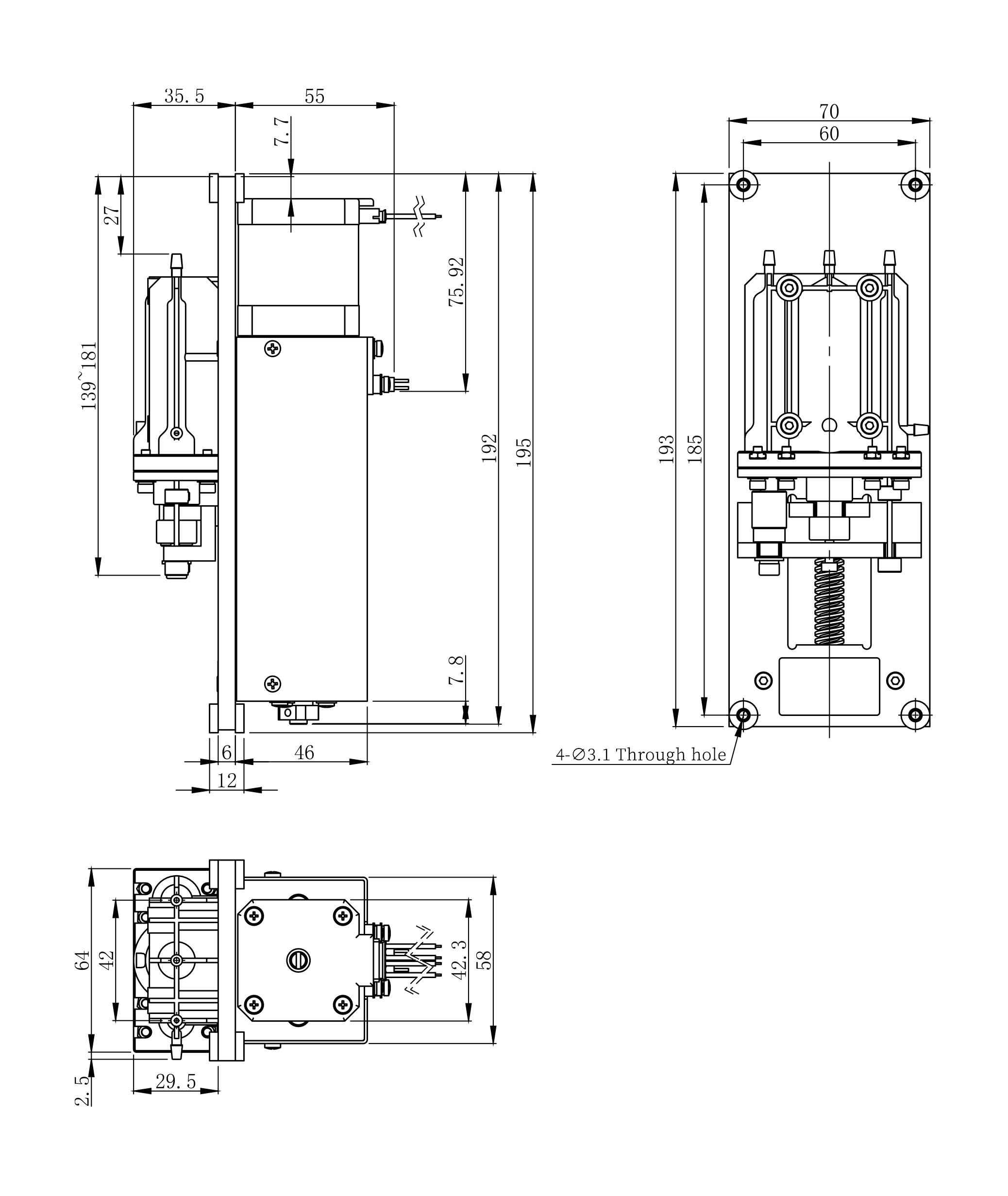

2D View
3D View
Parameter 5345 3-channel Syringe module
Volume (μL) 50 8050 1130
Stroke (mm) 25 40 40
Lead (mm) 5
Stroke per step (mm/step) 0.025
Volume per step (μL/step) 0.0502 5.0264 0.7068
Plunger materials 316L Zirconia Zirconia
Motor angle (°) 1.8
Motor current (A) 2
Presicion 0.02
Life span 2 million cycles
CV CV<1.2%(Measured at a displacement range of no less than 2%)；
CV<1%(Measured at a displacement range of no less than 10%)
