3 Way Miniature Rocker Solenoid Valve Base-mounted 1033-3
3 Way Miniature Rocker Solenoid Valve Base-mounted 1033-3
The 1033 rocker-style solenoid valve by Keyto is a microfluidic control component offering a high flow rate of up to 7.5 g/s, exceeding typical models. It features robust pressure resistance, a long service life of over 10 million cycles, and superior waterproof and chemical resistance. Keyto provides this valve in multiple configurations, including two-way, three-way, expansion, and threaded designs, with separable valve lines to meet diverse application needs. Its versatility and durability make it ideal for precision sampling and integrated manifolds.
Key Parameters:
voltage
wetted material
Reference Model:
1033-3
WhatsApp Contact
Online Message
Comparison/Performance
3 Way Miniature Rocker Solenoid Valve Base-mounted 1033-3
Comparable Products
Comparison/Performance
Back
Overview
Parameters

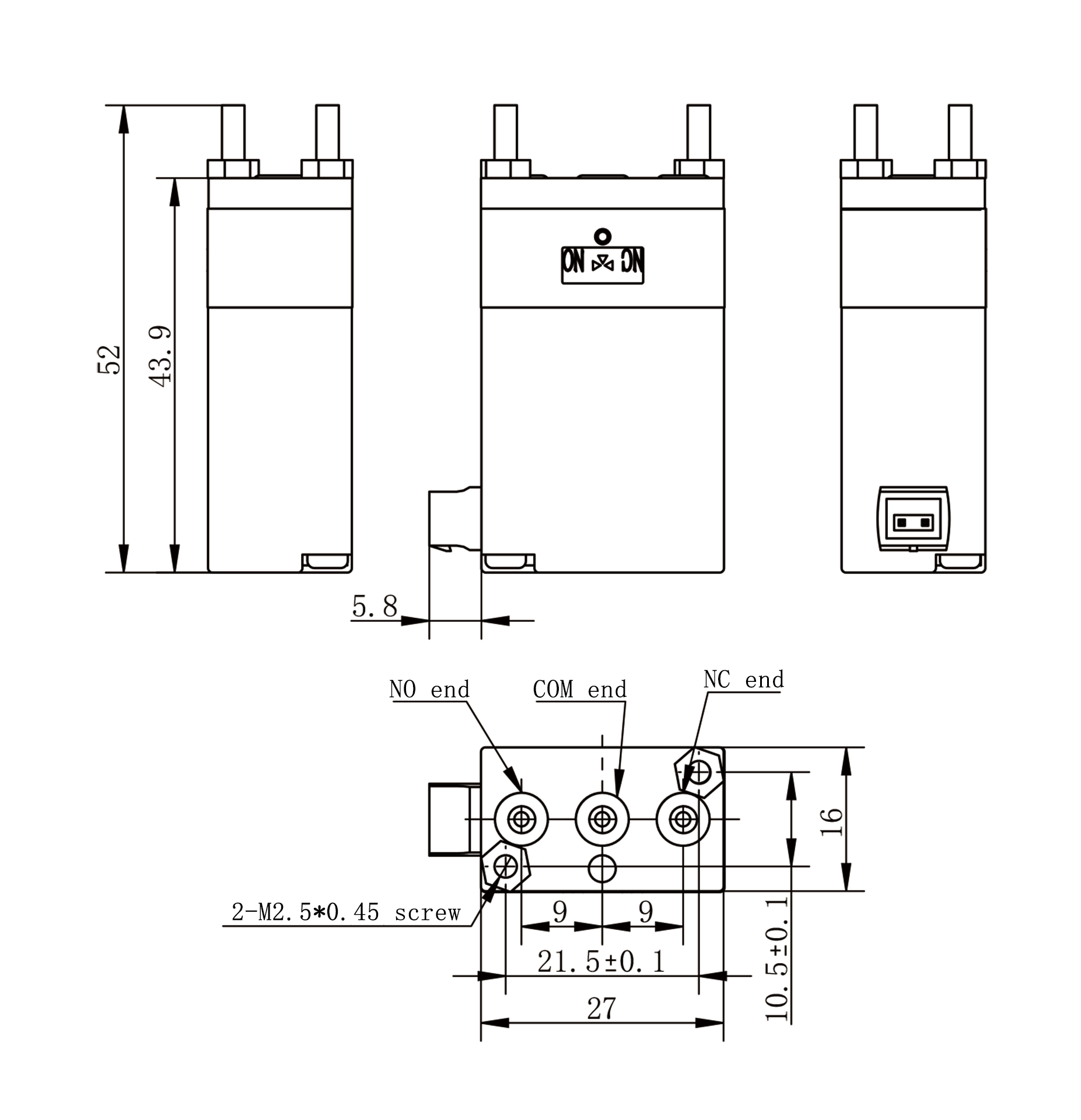

2D View
3D View
Valve type 1033-3 base mounted solenoid valve
Valve construction
Rocker type diaphragm valve-3 way
Number of ports
3(Specified  IN port and OUT port)
Valve body material PEEK、PVDF
Diaphragm material EPDM、FFKM
Voltage 12V/24V
Orifice 1.6mm
Withstand pressure -75KPa~250KPa
Flow rate 6.5g/s(25℃,50KPa,Under pure water conditions)
