1033 2-way Tubing Type Solenoid Valve
1033 2-way Tubing Type Solenoid Valve
The 1033 rocker-style solenoid valve by Keyto is a microfluidic control component offering a high flow rate of up to 7.5 g/s, exceeding typical models. It features robust pressure resistance, a long service life of over 10 million cycles, and superior waterproof and chemical resistance. Keyto provides this valve in multiple configurations, including two-way, three-way, expansion, and threaded designs, with separable valve lines to meet diverse application needs. Its versatility and durability make it ideal for precision sampling and integrated manifolds.
Key Parameters:
Voltage
Wetted Material
Reference Model:
1033-2
WhatsApp Contact
Online Message
Comparison/Performance
1033 2-way Tubing Type Solenoid Valve
Comparable Products
Comparison/Performance
Back
Overview
Parameters

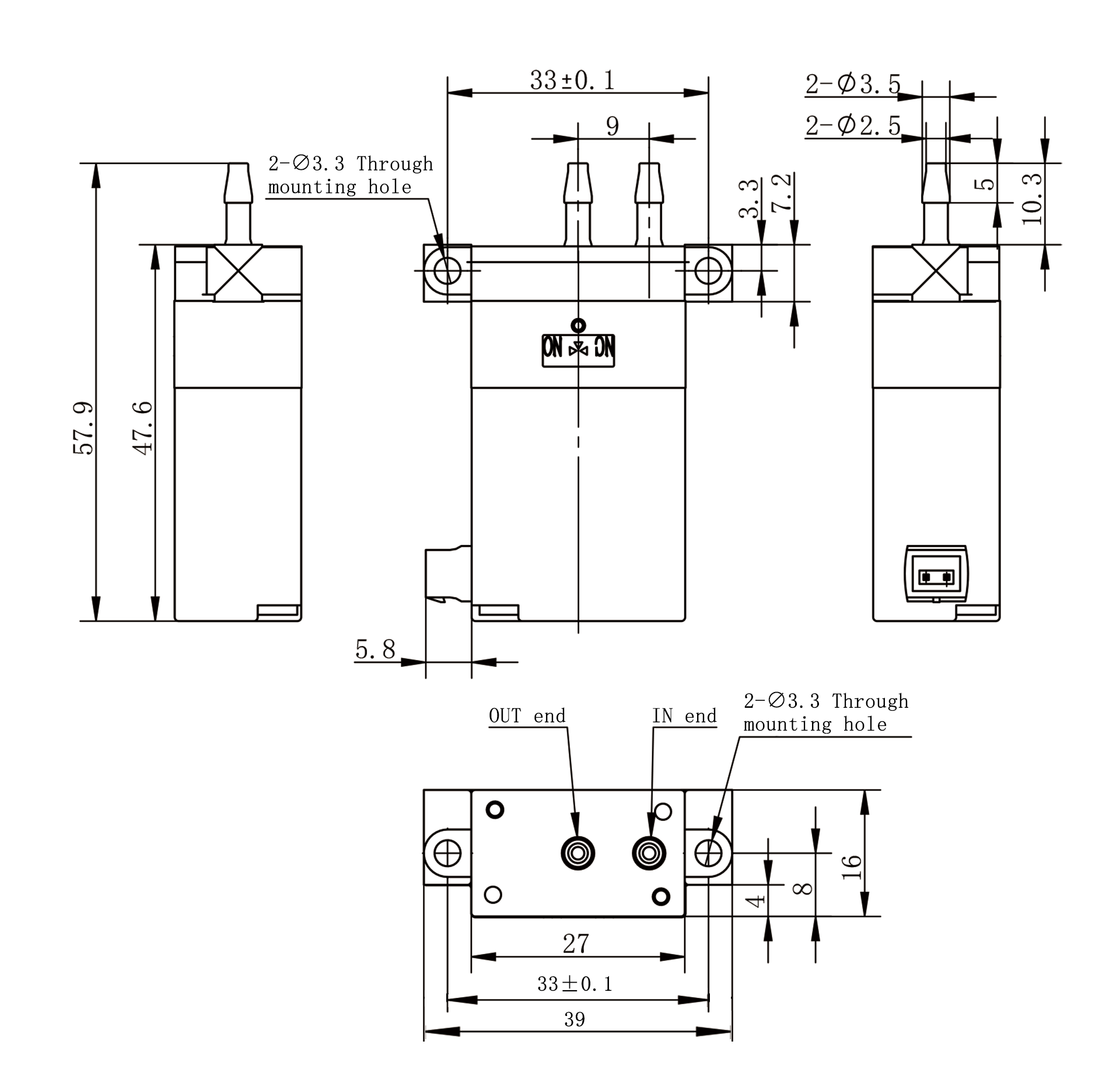

2D View
3D View
Valve Type 1033 2-way Tubing Valve
Structure Rocker Solenoid Valve, 2-way
Port Number 2(Assigned Inlet & Outlet)
Body Material PEEK、PVDF
Diaphragm Material EPDM、FFKM
Voltage 12V/24V
Orifice 1.6mm
Pressure -75KPa~250KPa
Flow Rate 6.5g/s(25℃,50KPa,Purified water)
Demo video
Product video
Factory video
