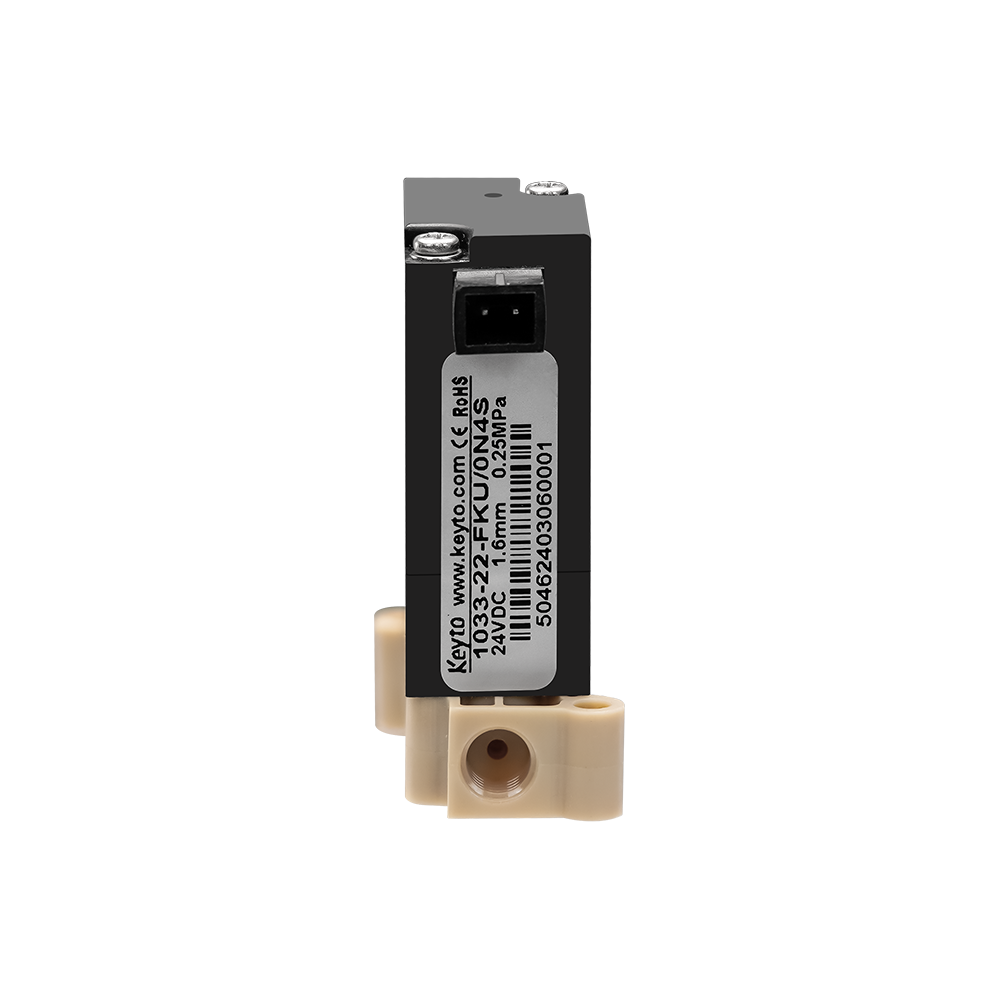

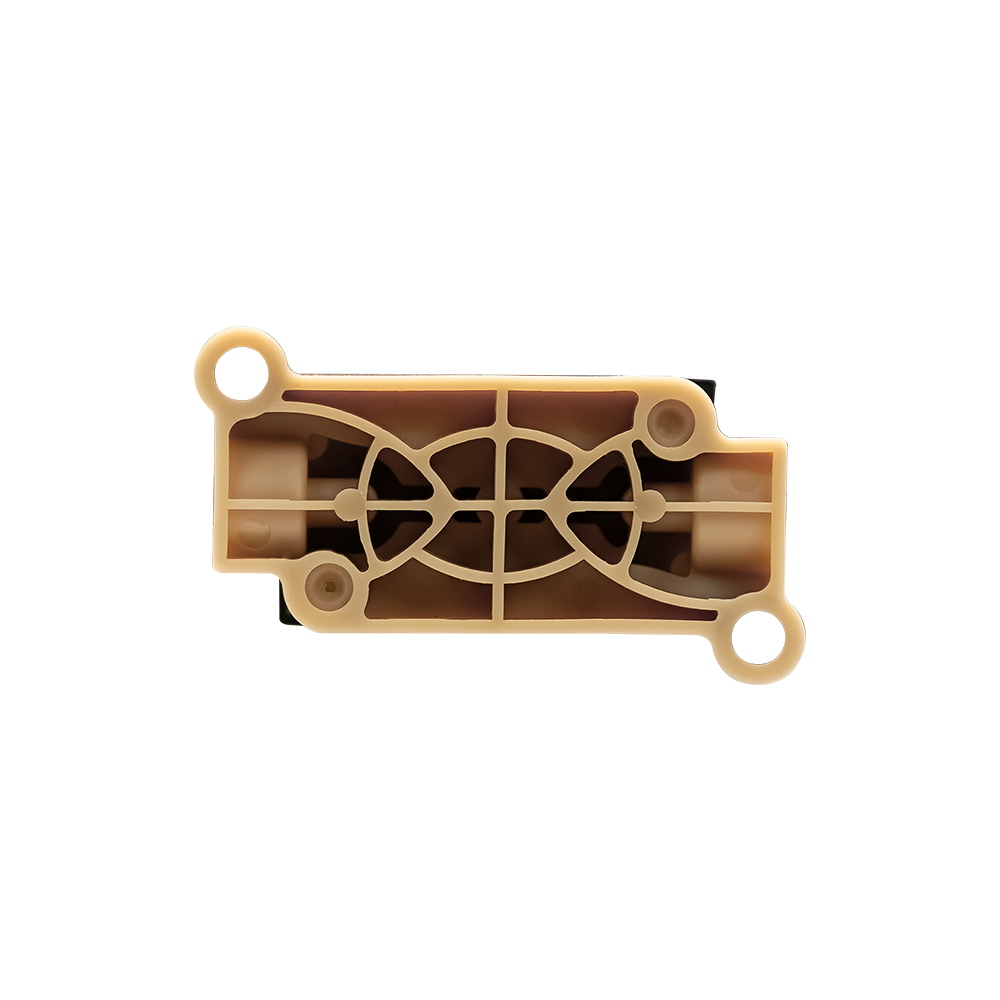

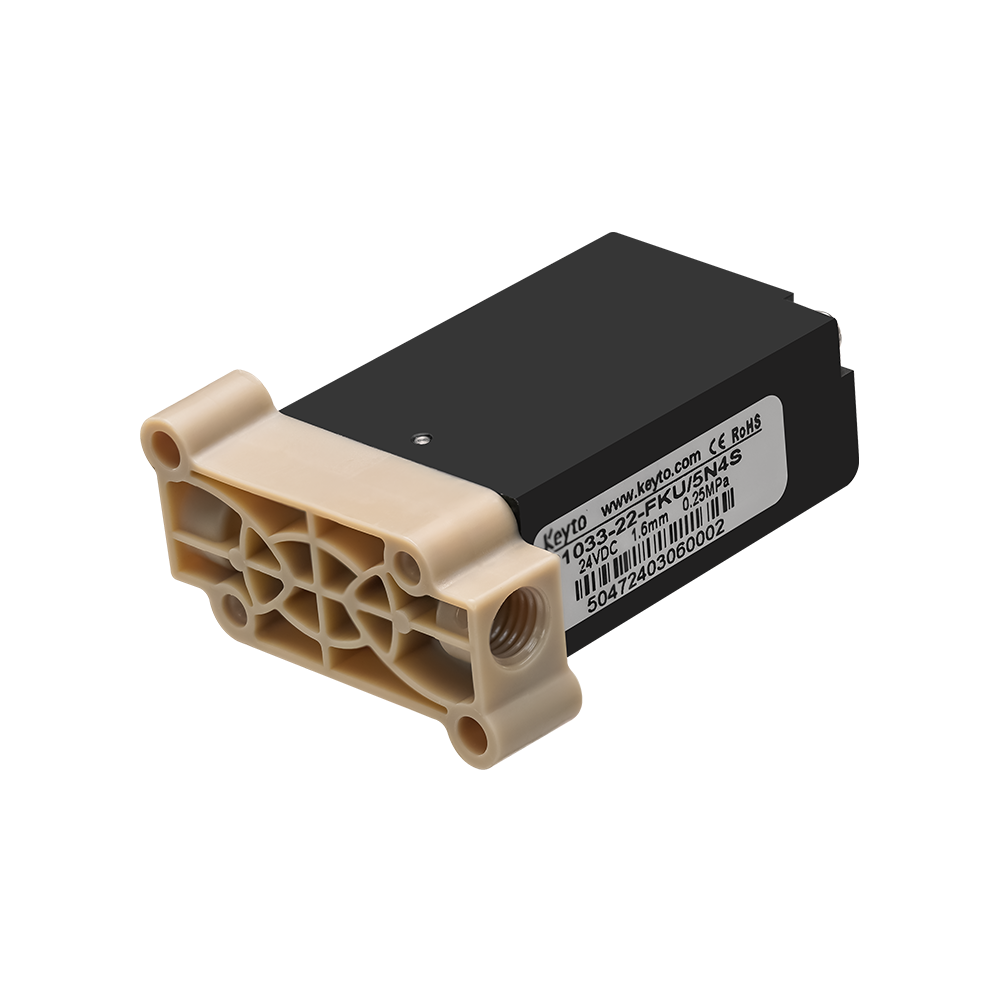

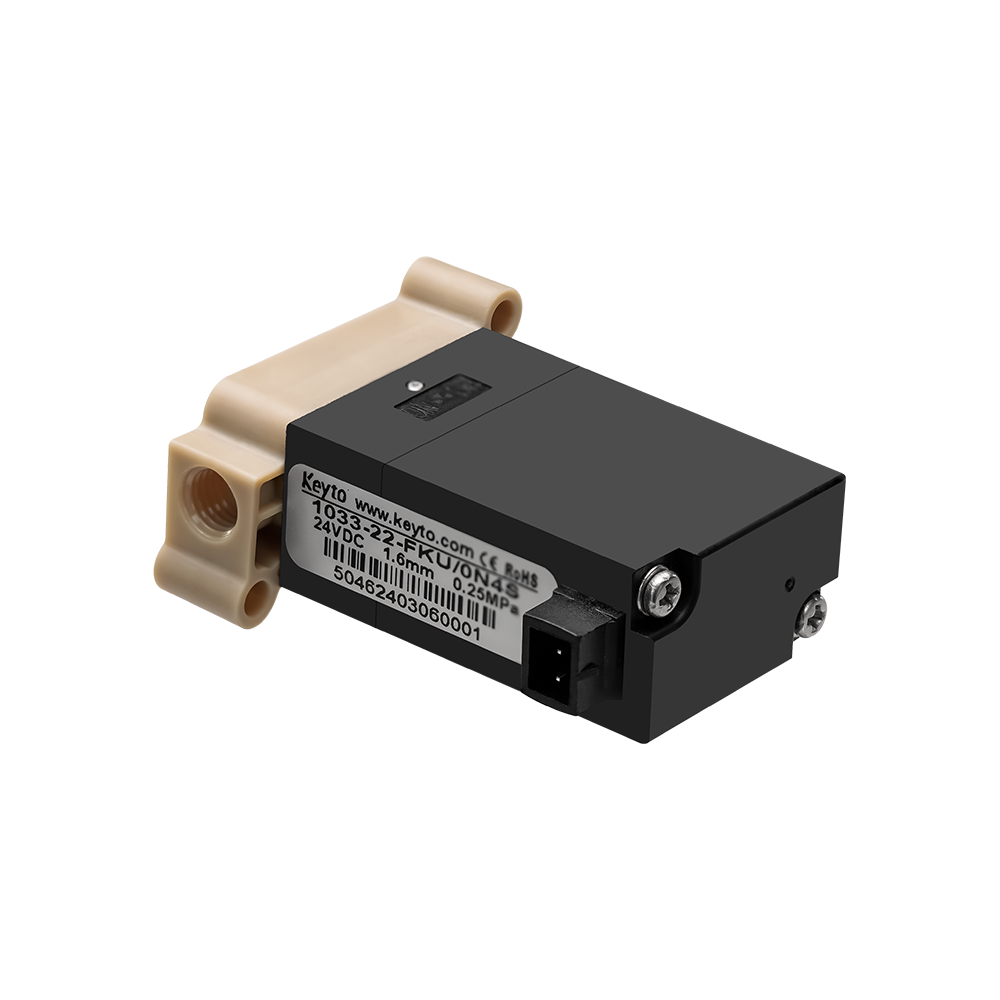

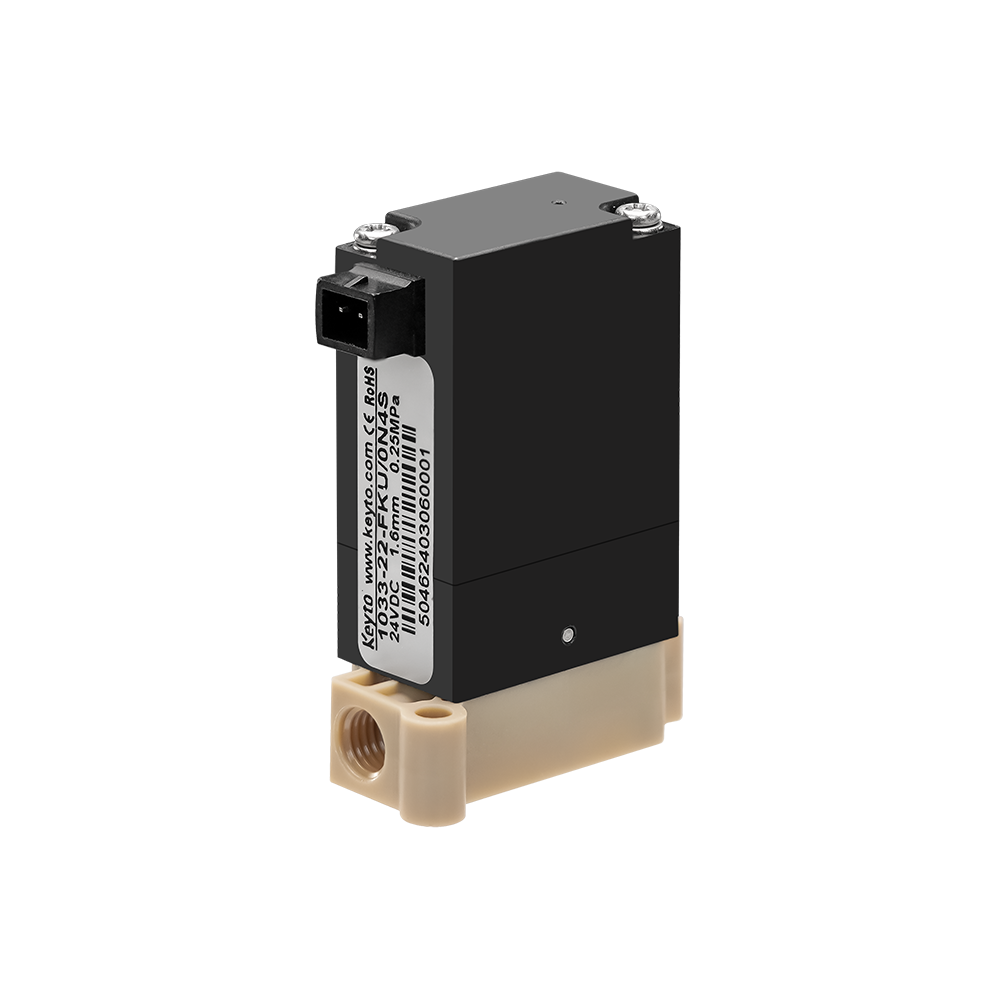

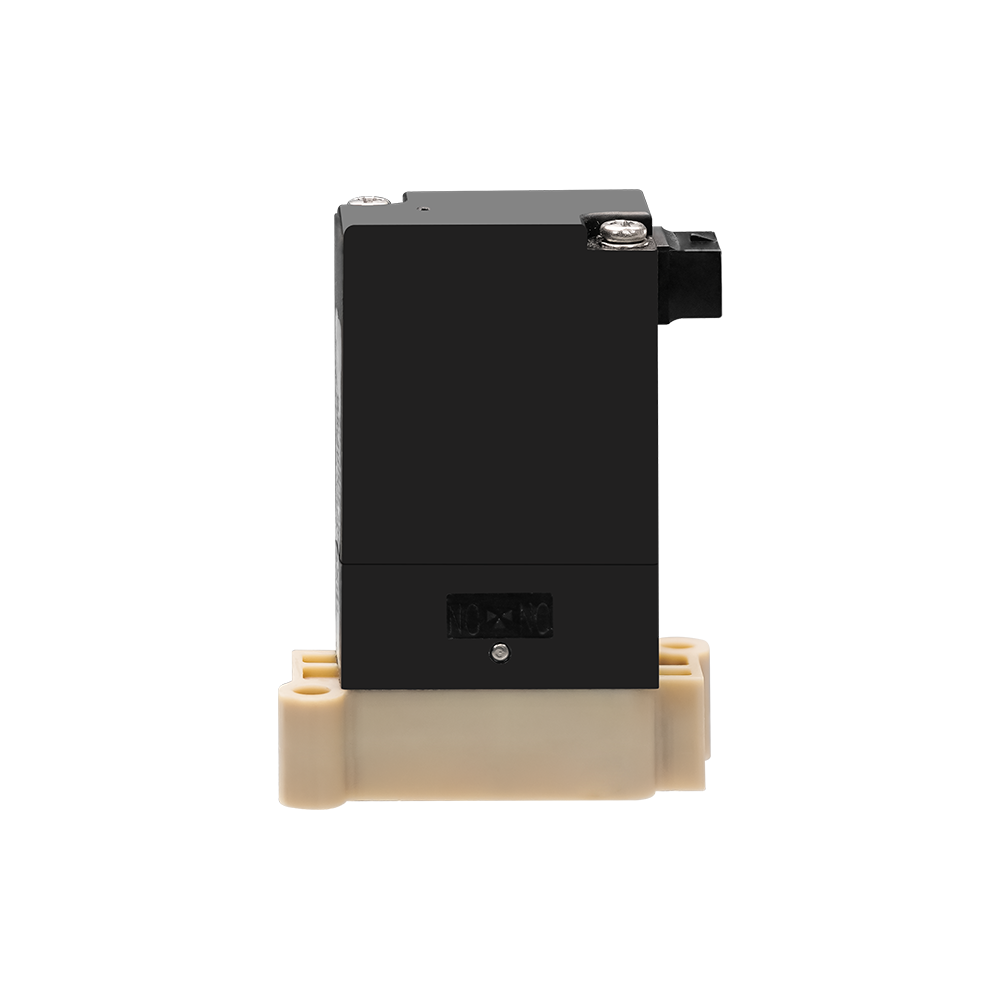

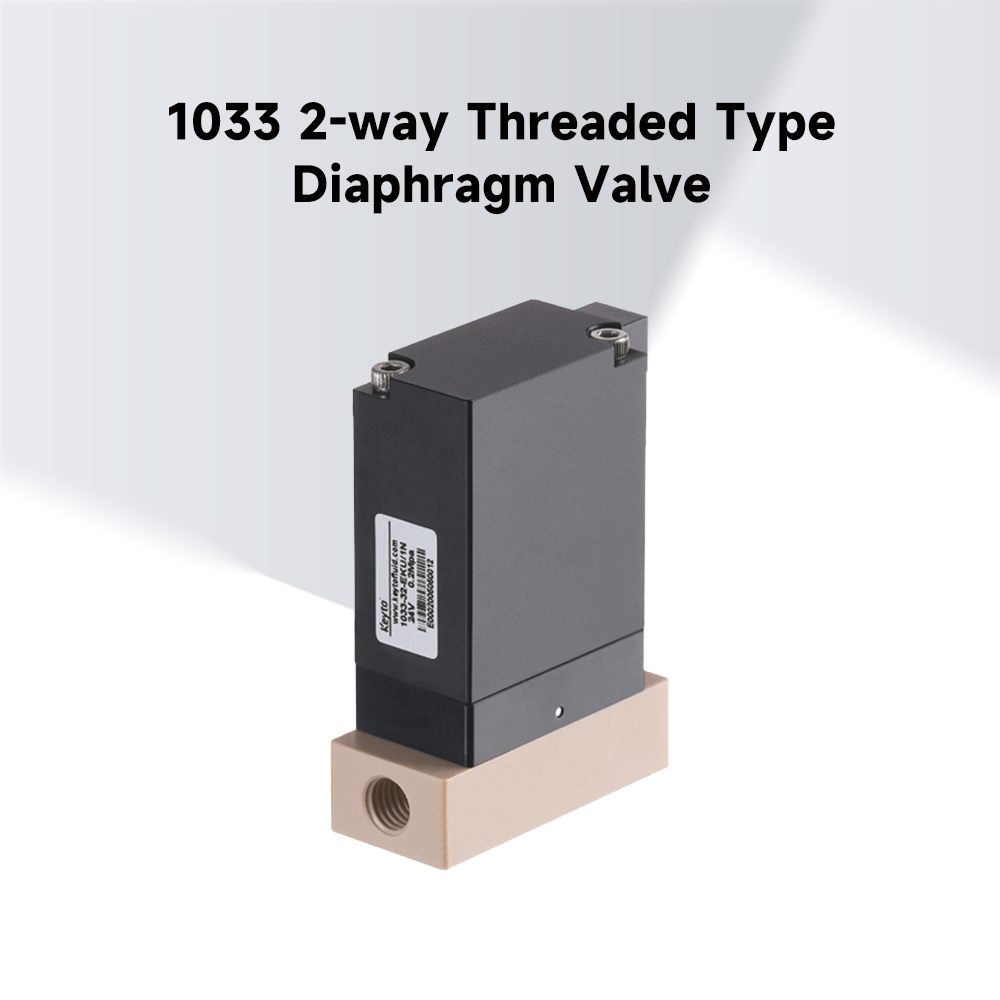

1033 2-way Threaded Type Diaphragm Valve
1033 2-way Threaded Type Diaphragm Valve
The 1033 rocker-style solenoid valve by Keyto is a microfluidic control component offering a high flow rate of up to 7.5 g/s, exceeding typical models. It features robust pressure resistance, a long service life of over 10 million cycles, and superior waterproof and chemical resistance. Keyto provides this valve in multiple configurations, including two-way, three-way, expansion, and threaded designs, with separable valve lines to meet diverse application needs. Its versatility and durability make it ideal for precision sampling and integrated manifolds.
Key Parameters:
Voltage
Wetted Material
Connection Thread
Reference Model:
1033-2
WhatsApp Contact
Online Message
Model Comparison
1033 2-way Threaded Type Diaphragm Valve
Comparable Products
1013-2 way tubing type valve
1013-3 way tubing type valve
1013-2 way tubing type valve (normally open)
1013-2 way base mounted type valve
1013-3 way base mounted type valve
1013-2 way base mounted valve (normally open)
1013-2 way threaded type valve
1013-3 way threaded type valve
1013-2 way threaded type valve (normally open)
1013-3 way Sector threaded type valve
1022-2 way tubing type valve
1022-3 way tubing type valve
1022-2 way threaded type valve
1022-3 way threaded type valve
1032-2 way tubing type valve
1032-3 way tubing type valve
1042-2 way threaded type valve
1042-2 way base mounted type valve
1042-2 way tubing type valve
1042-3 way tubing type valve
1021 2-way Base Mount Solenoid Valve
1021 3-way Base Mount Solenoid Valve
1021 2-way Base Mount Valve (Normal Open)
1021 2-way Threaded Type Solenoid Valve
1021 3-way Threaded Type Solenoid Valve
1021 2-way Tubing Type Solenoid Valve (vertical version）
1021 3-way Tubing Type Solenoid Valve (vertical version)
1021 2-way Tubing Type Solenoid Valve（vertical version）
1021 Tubing Type Solenoid Valve(horizontal version)
1021 3-way Tubing Type Solenoid Valve (horizontal version)
Model Comparison
Back
Overview
Parameters

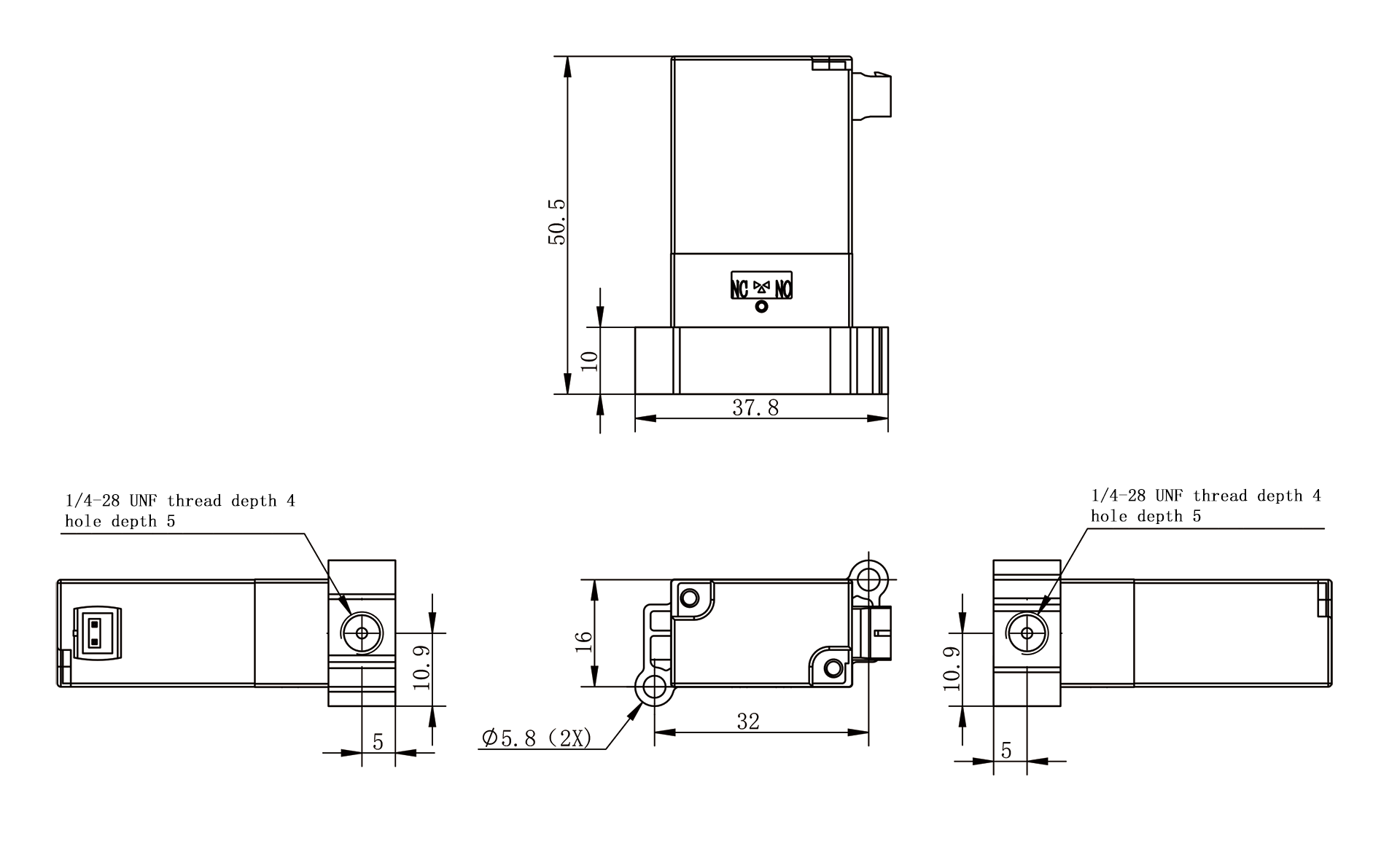

2D View
3D View
Valve Type 1033 2-way Threaded Valve
Structure Rocker Solenoid Valve, 2-way N.C.
Port Number 2（Assigned Inlet & Outlet）
Body Material PEEK、PVDF
Diaphragm Material EPDM、FFKM
Voltage 12V/24V
Orifice 1.6mm
Pressure -75KPa~250KPa
Flow Rate 6.5g/s（25℃，50KPa，Purified water）
