1042-2 way threaded type valve-Keyto Fluid

1042-2 way threaded type valve

The 1042 series solenoid diaphragm valve by Keyto is a direct-acting valve with a 4.5-5mm orifice diameter, designed for controlling the on/off flow of fluids. It offers high performance, low cost, and maintenance-free operation. Available in multiple models, it accommodates various reagents and working conditions. Its reliable design ensures optimal fluid control across diverse applications.

Key Parameters:

Voltage

Wetted material

Reference Model:

1042-2

WhatsApp Contact

Online Message

E-mail Comparison/Performance

Overview

Parameters

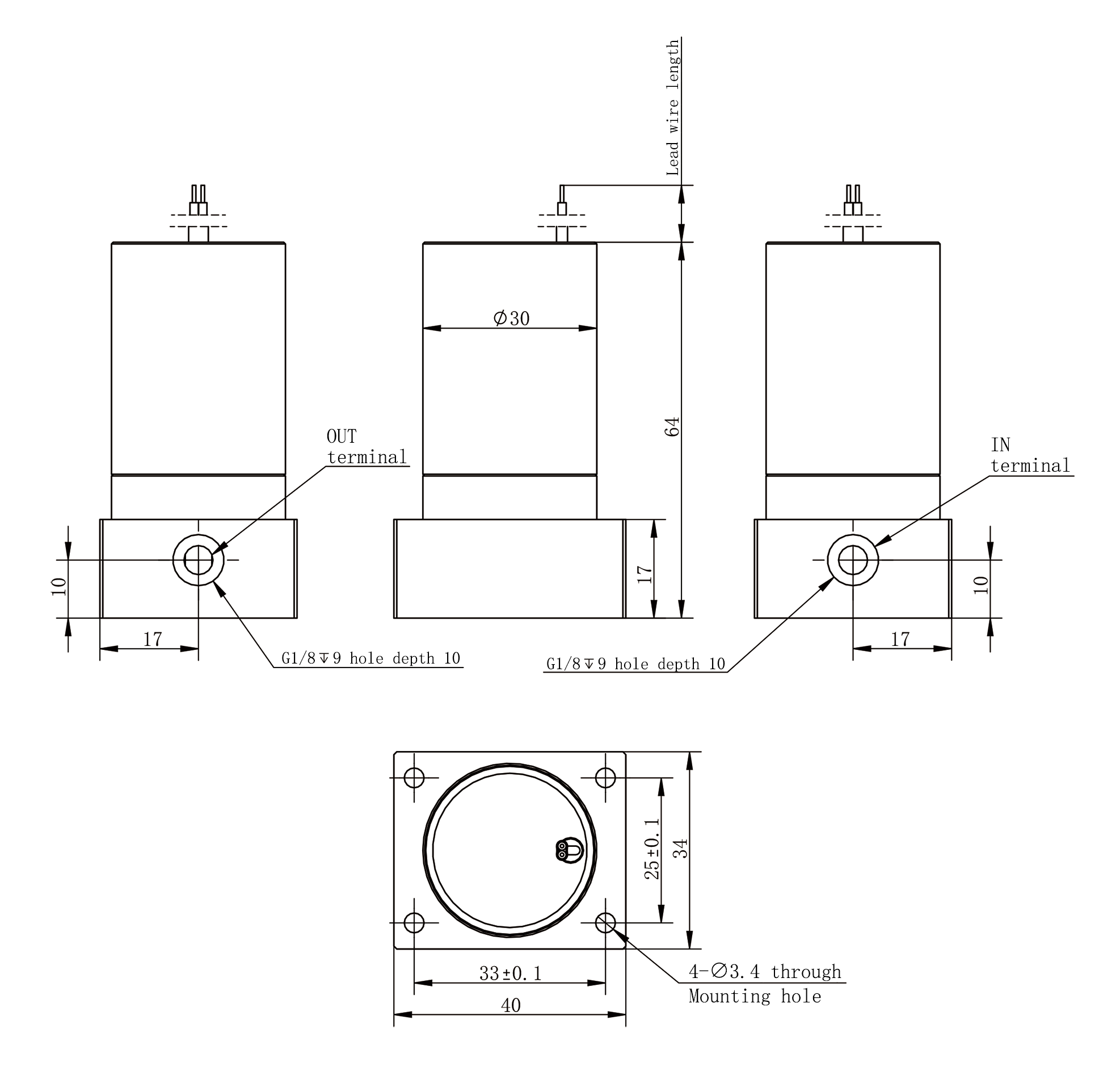

2D View

3D View

Type	1042-2 way threaded type
Structure	Direct acting diaphragm-2 way NC
No.Of Ports	2 (Specify entry and exit ends)
Body material	PPS, PVDF
Membrane material	EPDM/ETP(special fluorine rubber)
Voltage	12V/24V
Orifice	4.5mm
Flow rate	20.4g/s( 25℃, 50KPa, pure water)
