Product Category:
Base-mounted
Orifice Diameter:
4-5mm
Type:
Two-Way Normally Closed, 2/2 NC
Back

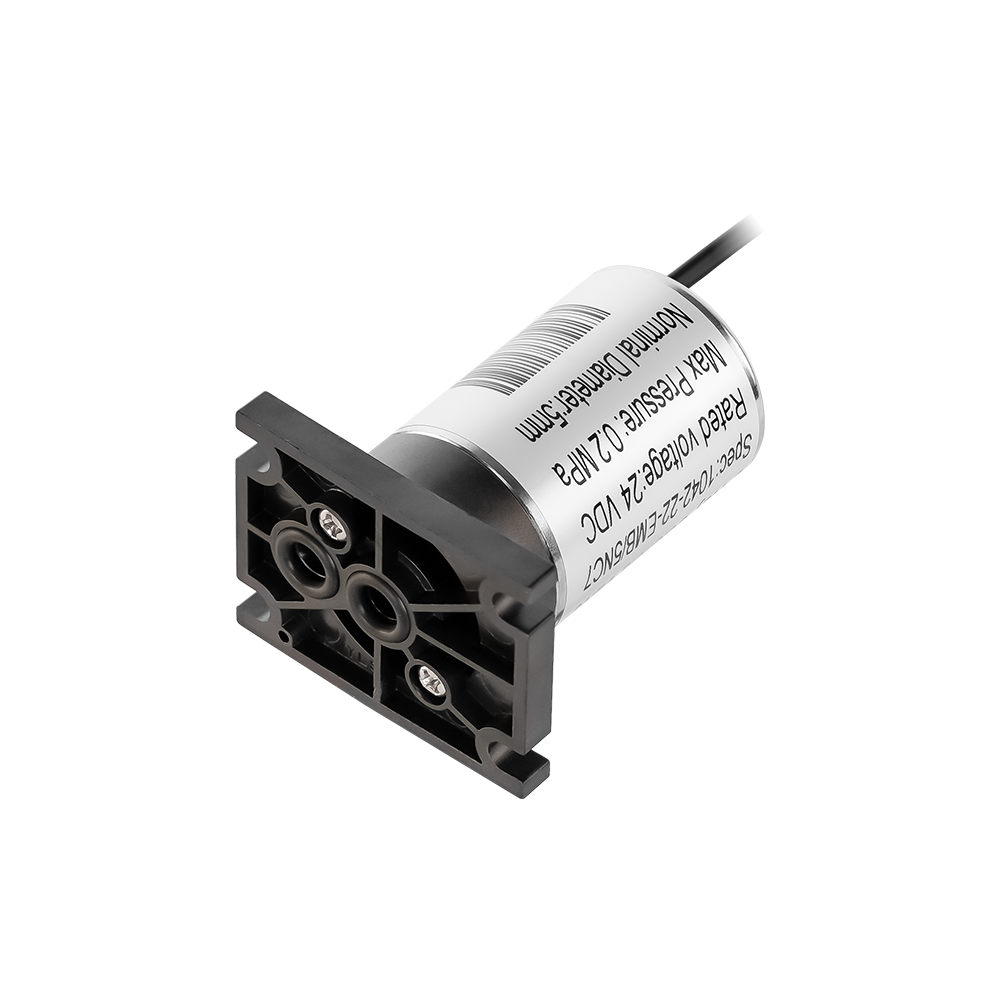

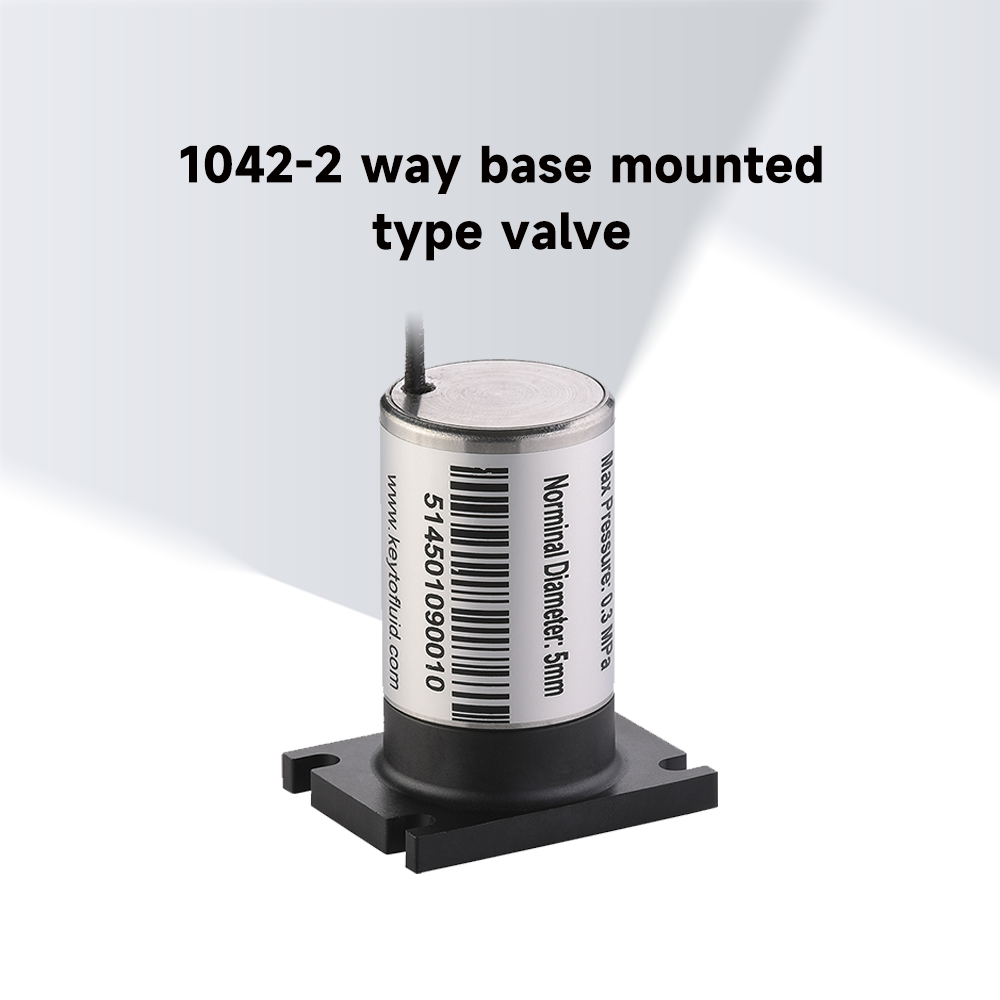

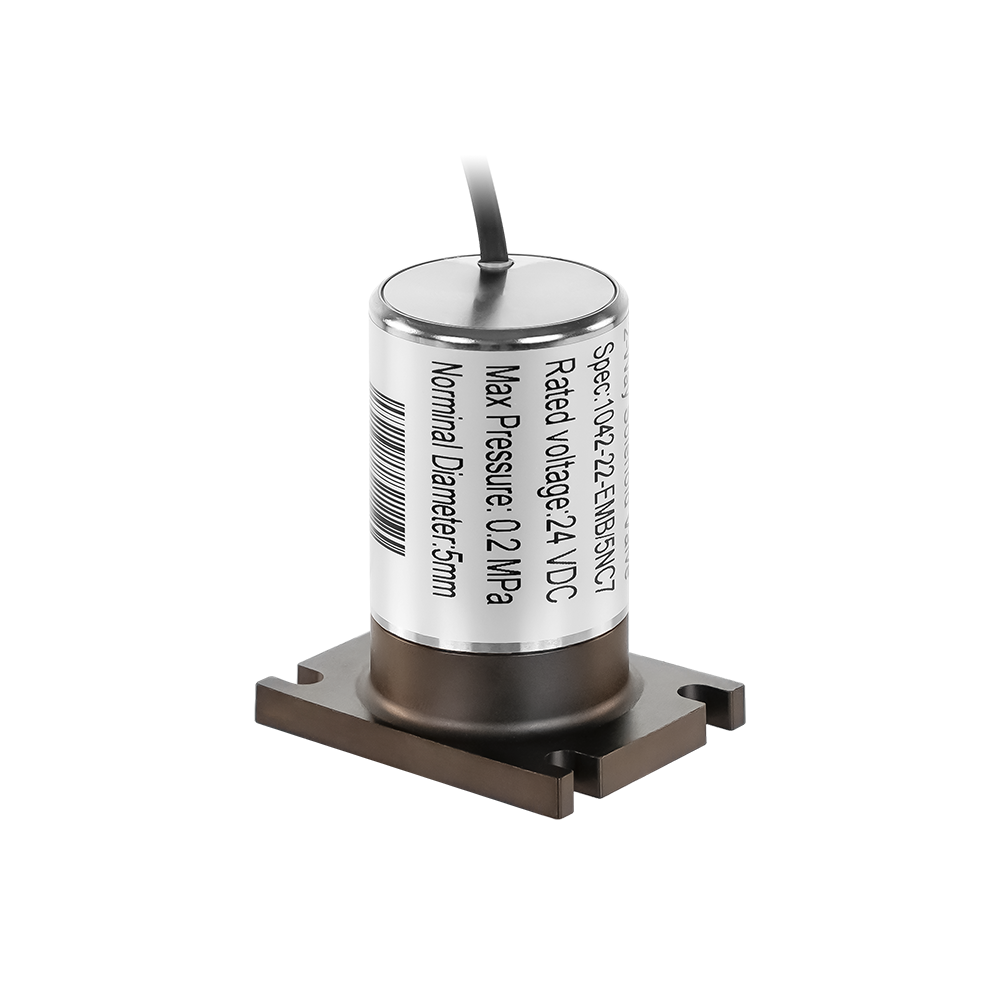

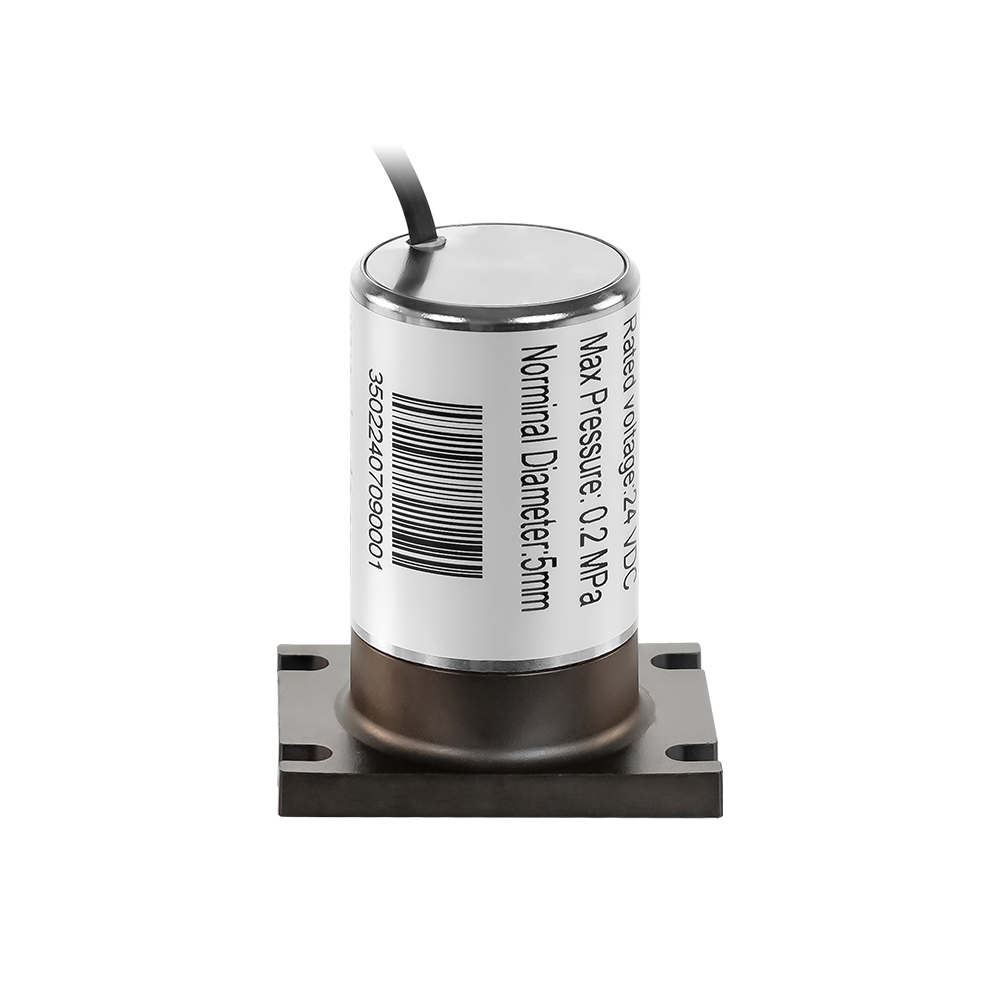

1042-2 way base mounted type valve
1042-2 way base mounted type valve
The 1042 series solenoid diaphragm valve by Keyto is a direct-acting valve with a 4.5-5mm orifice diameter, designed for controlling the on/off flow of fluids. It offers high performance, low cost, and maintenance-free operation. Available in multiple models, it accommodates various reagents and working conditions. Its reliable design ensures optimal fluid control across diverse applications.
Key Parameters:
Voltage
Wetted material
Reference Model:
1042-2
WhatsApp Contact
Online Message
Model Comparison
1042-2 way base mounted type valve
Comparable Products
1013-2 way tubing type valve
1013-3 way tubing type valve
1013-2 way tubing type valve (normally open)
1013-2 way base mounted type valve
1013-3 way base mounted type valve
1013-2 way base mounted valve (normally open)
1013-2 way threaded type valve
1013-3 way threaded type valve
1013-2 way threaded type valve (normally open)
1013-3 way Sector threaded type valve
1022-2 way tubing type valve
1022-3 way tubing type valve
1022-2 way threaded type valve
1022-3 way threaded type valve
1032-2 way tubing type valve
1032-3 way tubing type valve
1042-2 way threaded type valve
1042-2 way tubing type valve
1042-3 way tubing type valve
1021 2-way Base Mount Solenoid Valve
1021 3-way Base Mount Solenoid Valve
1021 2-way Base Mount Valve (Normal Open)
1021 2-way Threaded Type Solenoid Valve
1021 3-way Threaded Type Solenoid Valve
1021 2-way Tubing Type Solenoid Valve (vertical version）
1021 3-way Tubing Type Solenoid Valve (vertical version)
1021 2-way Tubing Type Solenoid Valve（vertical version）
1021 Tubing Type Solenoid Valve(horizontal version)
1021 3-way Tubing Type Solenoid Valve (horizontal version)
SD61 Direct-operated Diaphragm Valve
Model Comparison
Back
Overview
Parameters
2D View
3D View
Type 1042-2 way base mounted type
Structure Direct acting diaphragm-2 way NC
No.Of Ports 2 (Specify entry and exit ends)
Body material PPS
Membrane material
 EPDM/ETP(special fluorine rubber)
Voltage 12V/24V
Orifice 5mm
Flow rate 34g/s(25℃, 50KPa , pure water）
Demo video
Product video
Factory video
