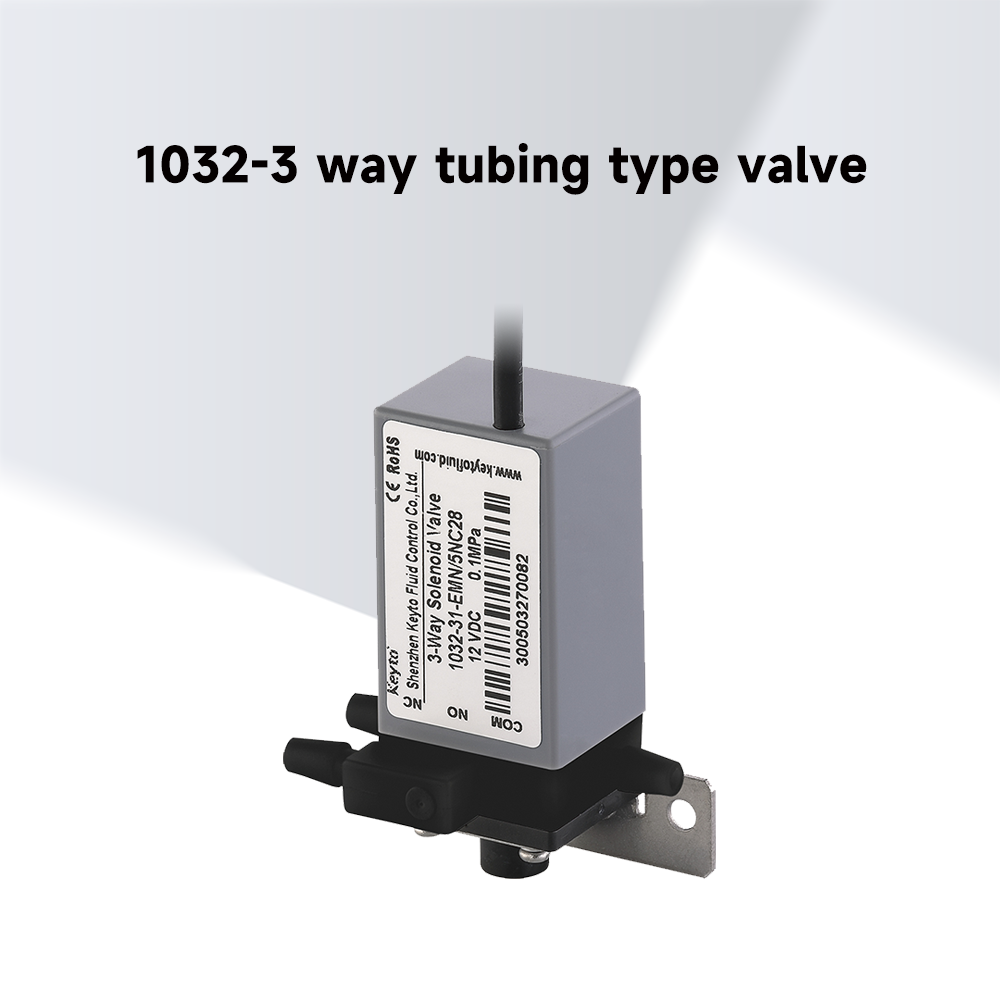

1032-3 way tubing type valve
1032-3 way tubing type valve
The 1032 series solenoid diaphragm valve by Keyto is a direct-acting valve with a 2.5mm orifice diameter, designed for controlling the on/off flow of fluids. It offers high performance, low cost, and maintenance-free operation. Available in multiple models, it accommodates various reagents and working conditions. Its reliable design ensures optimal fluid control across diverse applications.
Key Parameters:
Voltage
Wetted material
Reference Model:
1032-3
WhatsApp Contact
Online Message
Model Comparison
1032-3 way tubing type valve
Comparable Products
1013-2 way tubing type valve
1013-3 way tubing type valve
1013-2 way tubing type valve (normally open)
1013-2 way base mounted type valve
1013-3 way base mounted type valve
1013-2 way base mounted valve (normally open)
1013-2 way threaded type valve
1013-3 way threaded type valve
1013-2 way threaded type valve (normally open)
1013-3 way Sector threaded type valve
1022-2 way tubing type valve
1022-3 way tubing type valve
1022-2 way threaded type valve
1022-3 way threaded type valve
1032-2 way tubing type valve
1042-2 way threaded type valve
1042-2 way base mounted type valve
1042-2 way tubing type valve
1042-3 way tubing type valve
1021 2-way Base Mount Solenoid Valve
1021 3-way Base Mount Solenoid Valve
1021 2-way Base Mount Valve (Normal Open)
1021 2-way Threaded Type Solenoid Valve
1021 3-way Threaded Type Solenoid Valve
1021 2-way Tubing Type Solenoid Valve (vertical version）
1021 3-way Tubing Type Solenoid Valve (vertical version)
1021 2-way Tubing Type Solenoid Valve（vertical version）
1021 Tubing Type Solenoid Valve(horizontal version)
1021 3-way Tubing Type Solenoid Valve (horizontal version)
SD61 Direct-operated Diaphragm Valve
Model Comparison
Back
Overview
Parameters

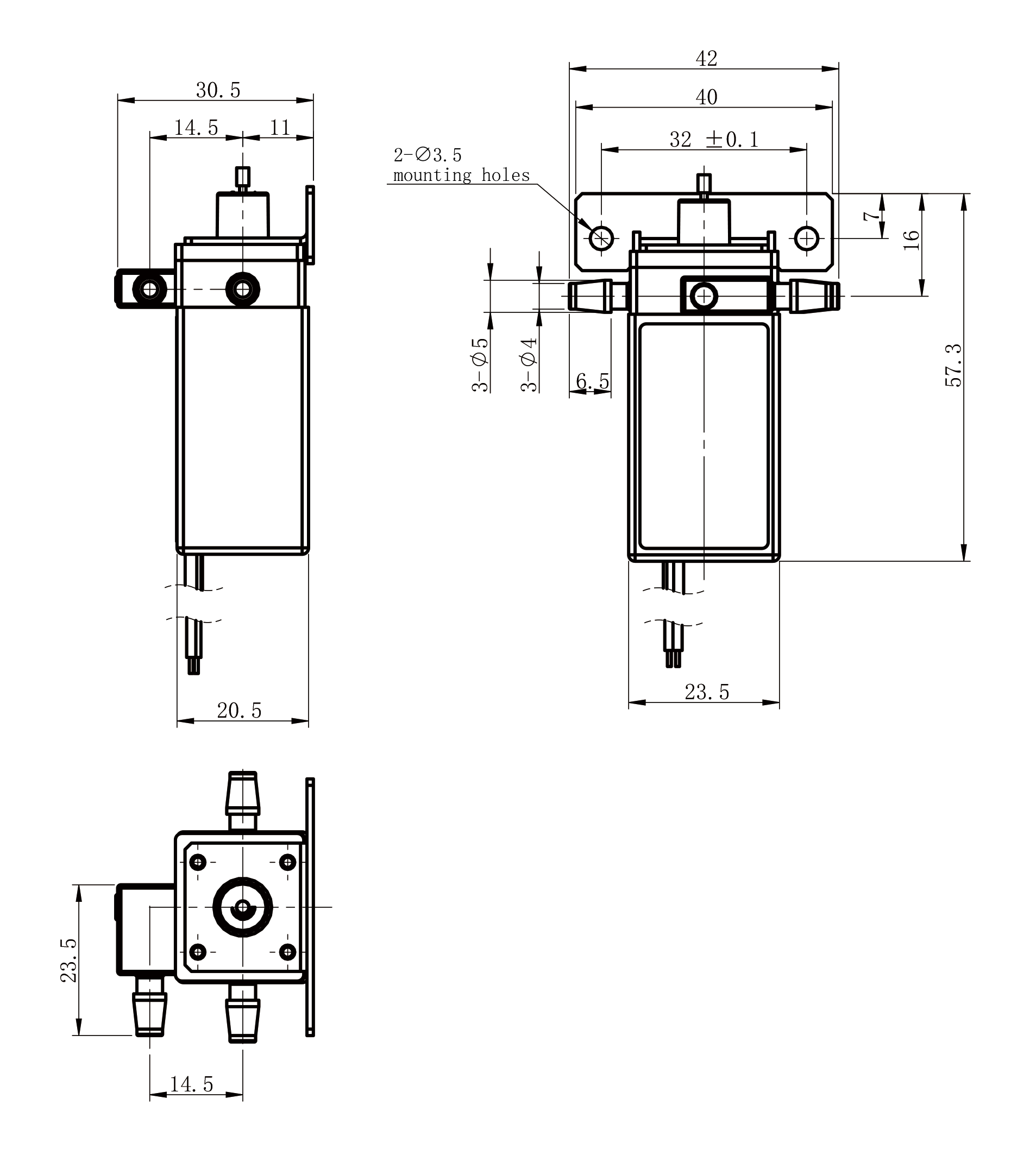

2D View
3D View
Type 1032-3 tube connection type
Structure Direct acting diaphragm-3 way
No.Of Ports 3 (Specify entry and exit ends)
Size of tube Suitable for tube diameter of 2.5mm~3.5mm inner diameter hose (Shore hardness of 55~75 degrees), the hose is too soft, need to attach a small cable to increase the sealing reliability
Body material POM
Membrane material EPDM
Voltage 12V/24V
Orifice 2.5mm
Flow rate 8.5g/s(25℃, 50KPa, pure water)
