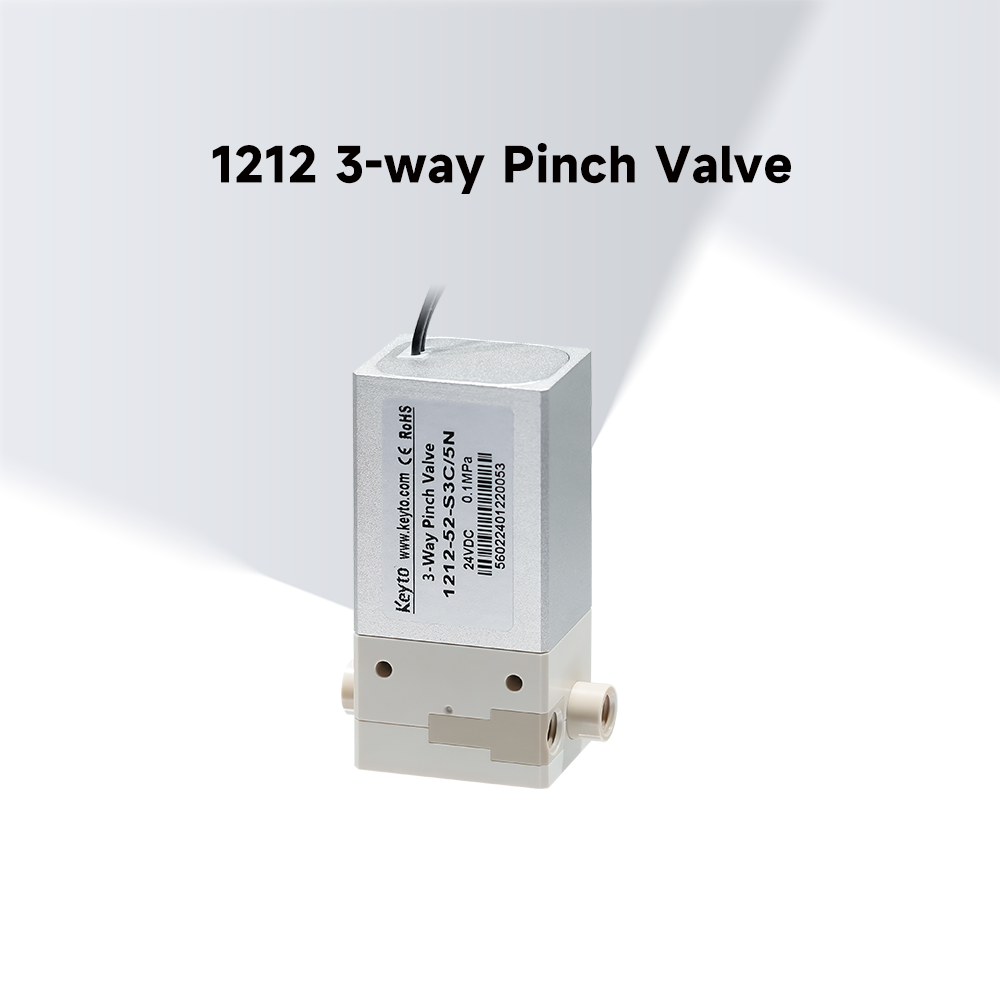

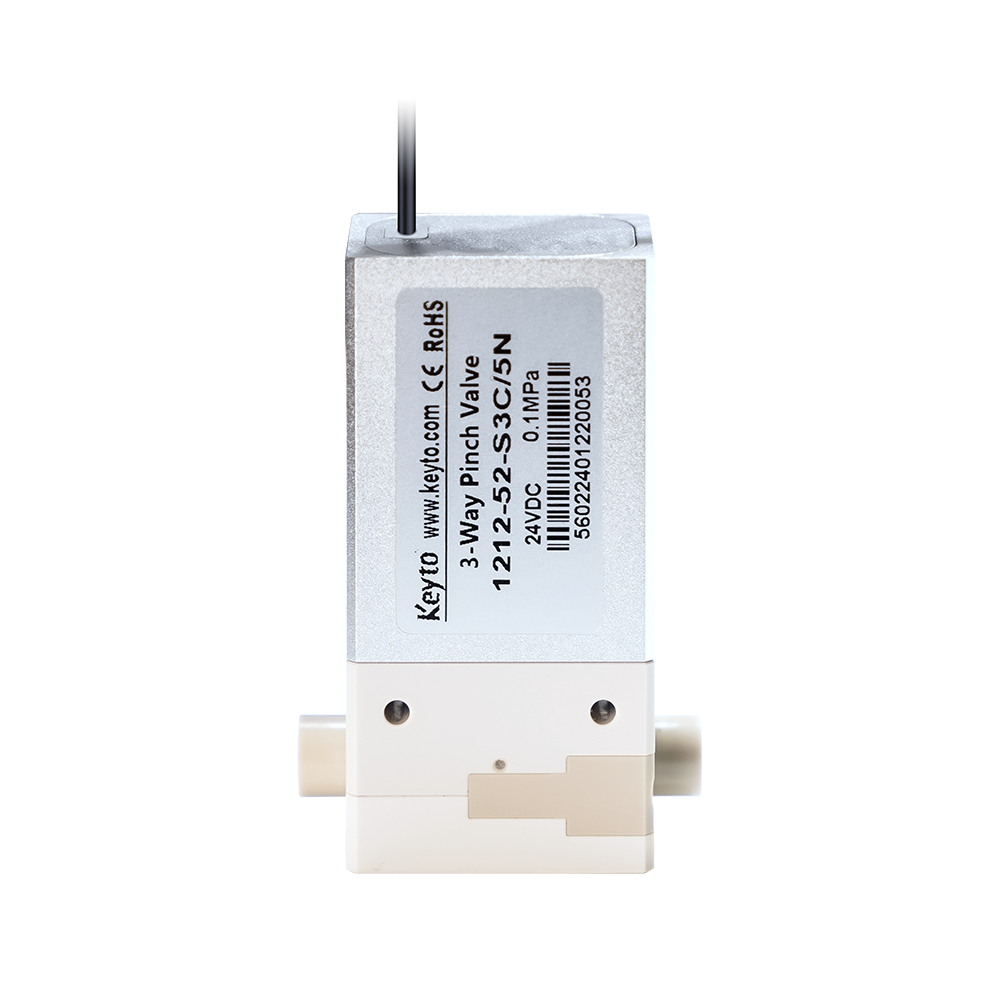

1212 3-way Pinch Valve

The 1212 solenoid valve by Keyto is a 3-way pinch valve with a service life of up to 500 million cycles, designed with special materials. Its built-in tube design reduces internal volume to 10μL, enabling ultra-micro liquid transfer with minimal cross-contamination. With a rapid response speed of under 40ms, it supports flexible liquid path switching in medical, laboratory, and industrial applications. The valve's new appearance design ensures simple and convenient installation.

Key Parameters:

Voltage

Fixing method

Reference Model:

1212-5

WhatsApp Contact

Online Message

E-mail Comparison/Performance

1212 3-way Pinch Valve

Comparable Products

1213 3-Way Pinch Valve

1224 2-way N.C. Pinch Valve

1224 2-way N.O. Pinch Valve

1269 2-way Pinch Valve

1269 3-way Pinch Valve

Comparison/Performance

Back

Overview

Parameters

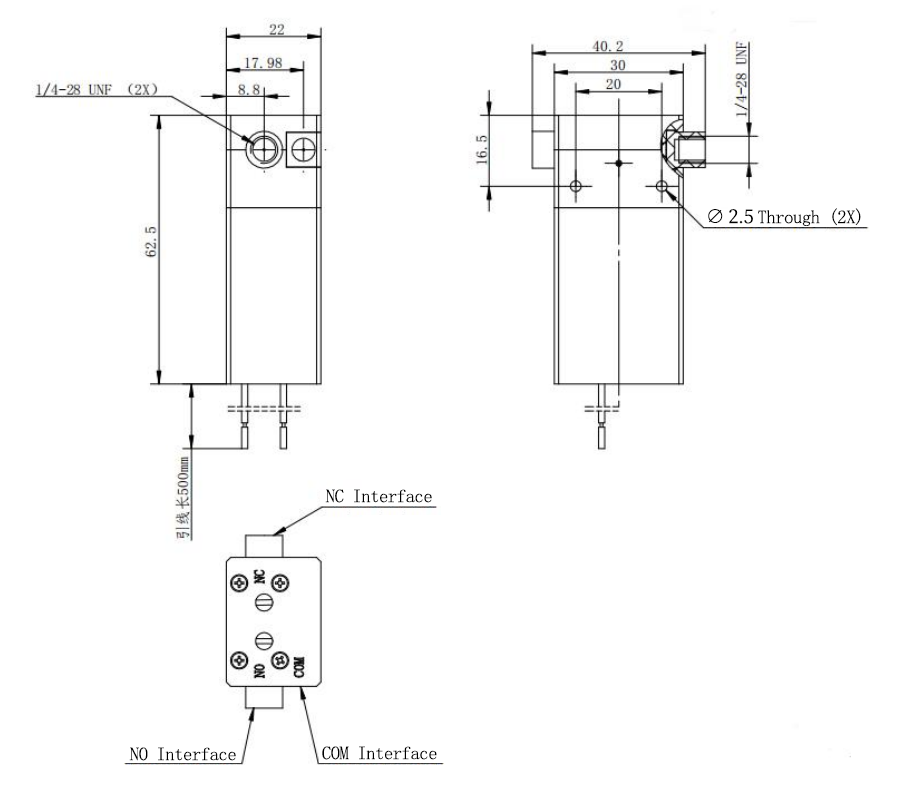

2D View

3D View

Valve Type	3-Way Pinch Valve
Orifice Diameter	0.5 mm
Connector Material	PEEK
Flow Rate	CV: 0.004
Dead Volume	0
Internal Volume	10 μL
Tubing Material	FKM
Ambient Temperature	5°C ~ 55°C
Media Temperature	5°C ~ 40°C
Pressure Resistance	-75 kPa ~ 150 kPa
Power Consumption	3.5 W
Response Time	< 40 ms
Lifetime	5 million cycles
Customization Notes	Wire length/terminal can be customized
