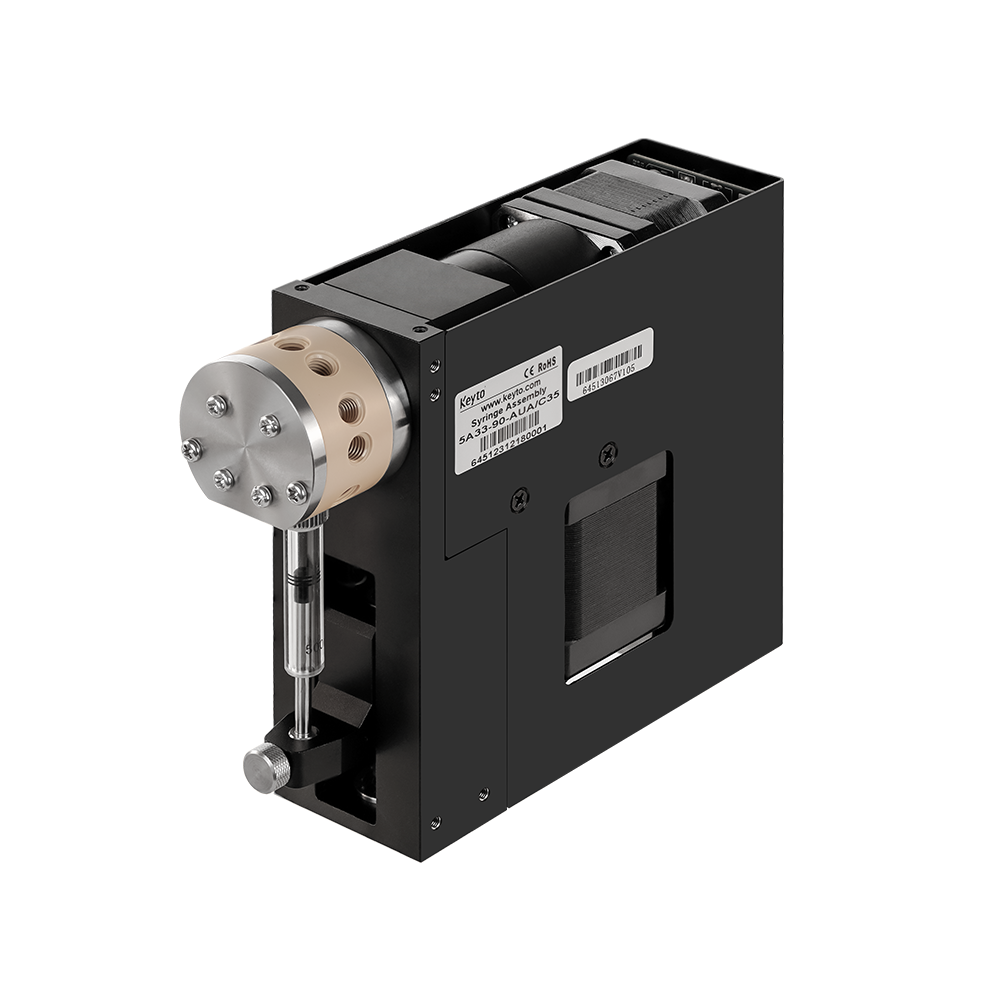

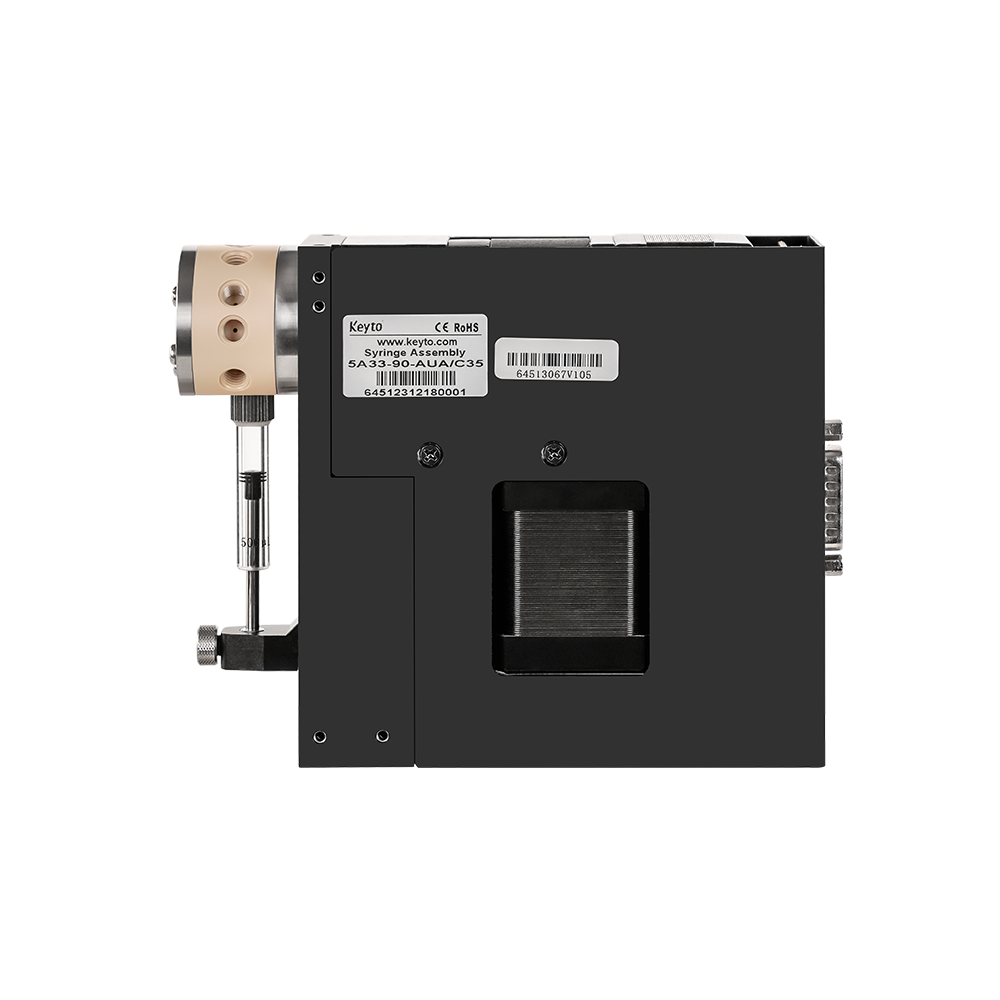

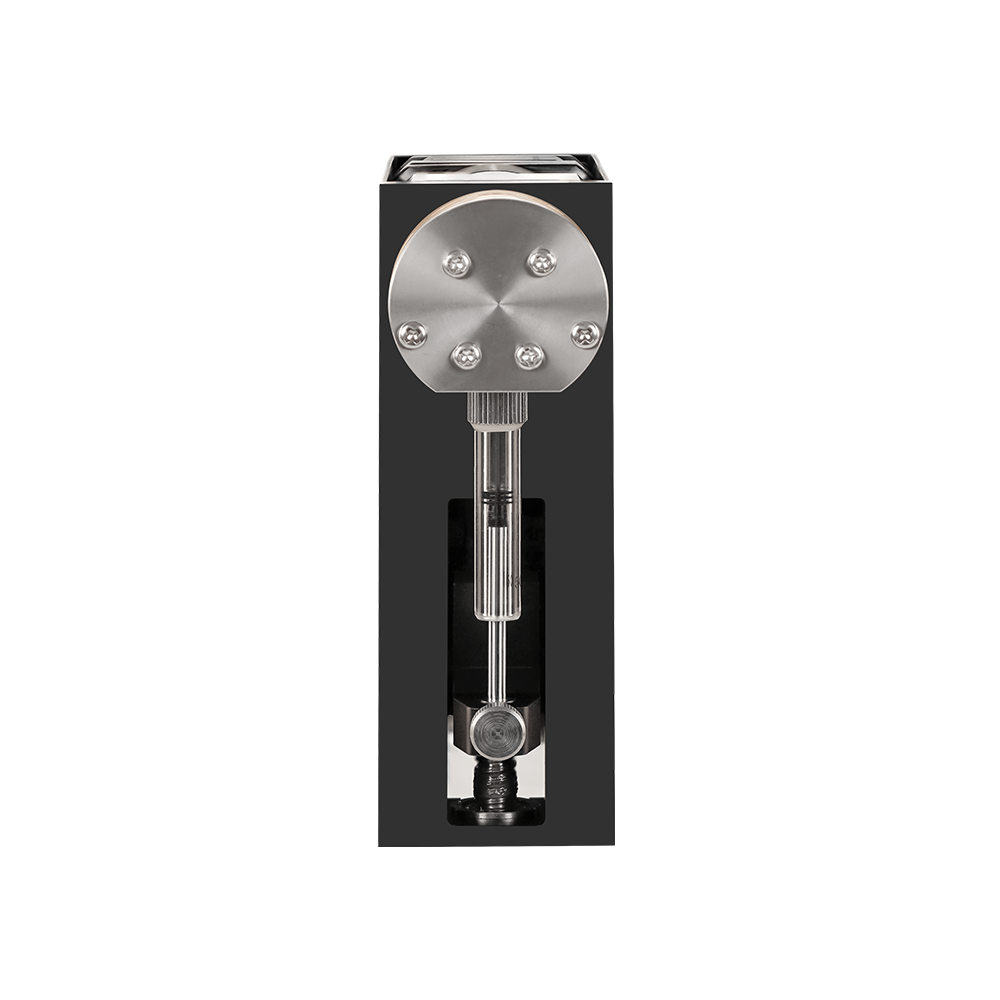

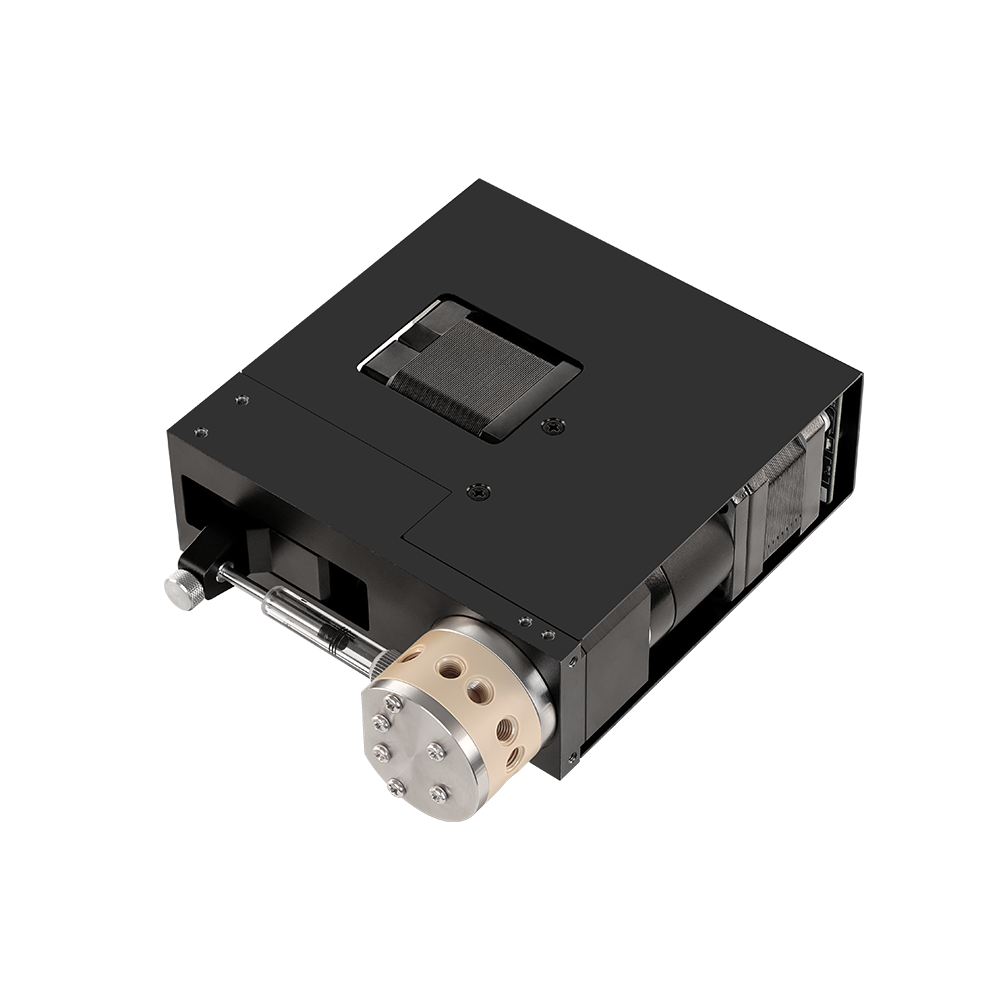

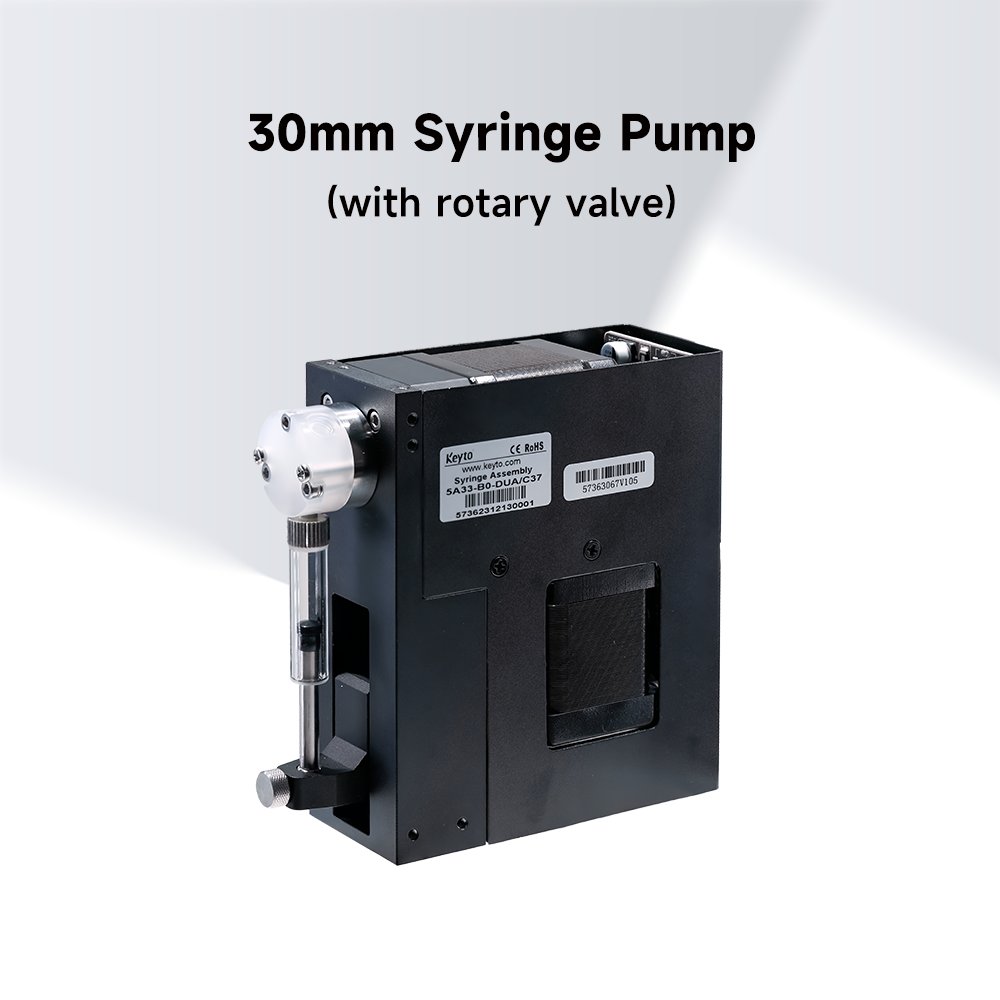

30mm Syringe Pump (with rotary valve)
30mm Syringe Pump (with rotary valve)
This integrated module combines a glass syringe with a rotary shear valve or solenoid valve, enabling compact design and versatile channel switching for various applications. It supports syringe volumes from 100μL to 5.0mL with a wide speed range (1.2s~20min) and adjustable parameters for optimized liquid handling. Equipped with a built-in control module and RS232, RS485, and CAN interfaces, it enables up to 15 pumps to operate in coordination. The maintenance-free design, with integrated movement counters, ensures long-term reliability and simplifies service tracking.
Key Parameters:
Rotary Valve Type
Wetted Material
Thread Type
Communication Protocol
Reference Model:
5A33
WhatsApp Contact
Online Message
Model Comparison
30mm Syringe Pump (with rotary valve)
Comparable Products
60mm Syringe Pump (with rotary valve)
60mm Syringe Pump (4-channel with rotary valves)
60mm Syringe Pump (with solenoid valve)
30mm Syringe Pump (with solenoid valve)
Model Comparison
Back
Overview
Parameters

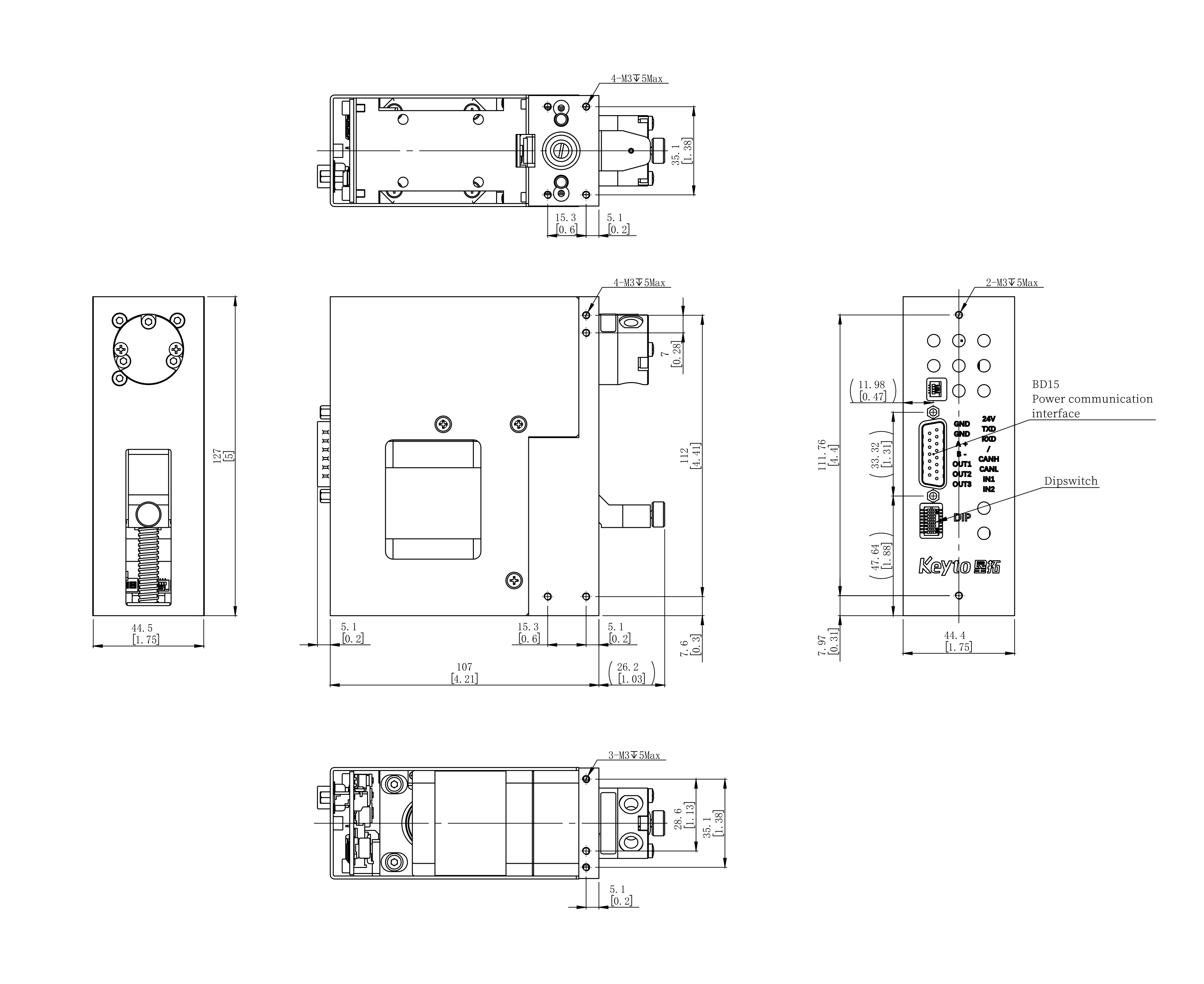

2D View
3D View

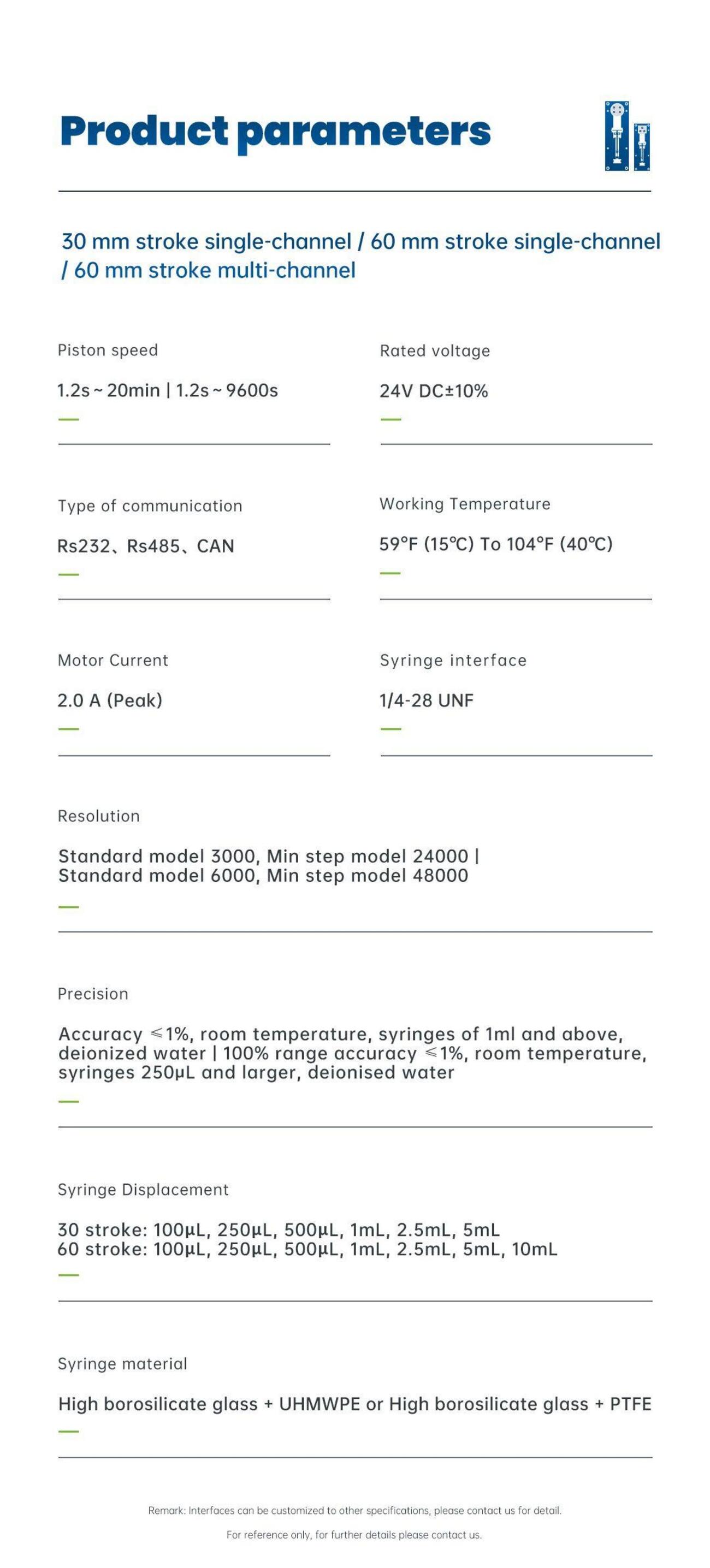

Product Syringe Pump(with rotary valve)
Accuracy 100% range, Inaccuracy ≤ 1% (room temperature, 1ml and above syringes, DI water)
CV

100% range CV≤0.1% (room temperature, 1ml and above syringes, DI water)
Full-stroke Steps 3000
Full-stroke mm 30
Step Resolution
 Standard mode 3000 step/30mm，
microsteps 24000 step/30mm
Syringe Sizes 100μL、250μL、500μL、1.0mL、2.5mL、5.0mL

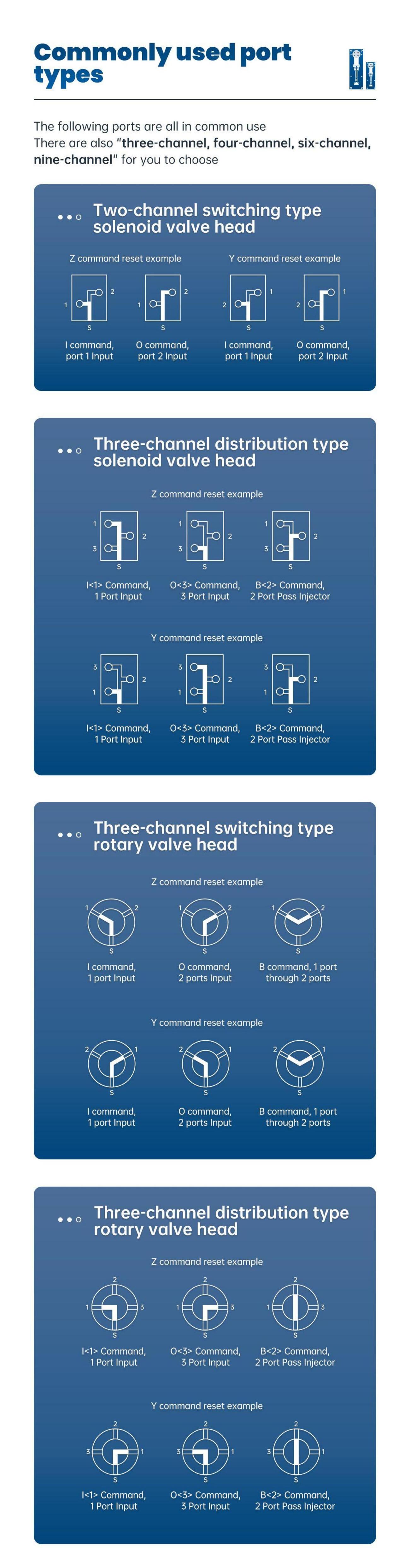

Rotary Valve Type up to 12-port rotary valve
Fluid Contact Syringe and Valve Material
 Borosilicate Glass and UHMWPE or PTFE (seal)
Stator/Rotar：PEEK+PTFE、PEEK+UHMW-PE、Ceramic
Thread Type 1/4-28 UNF、M6

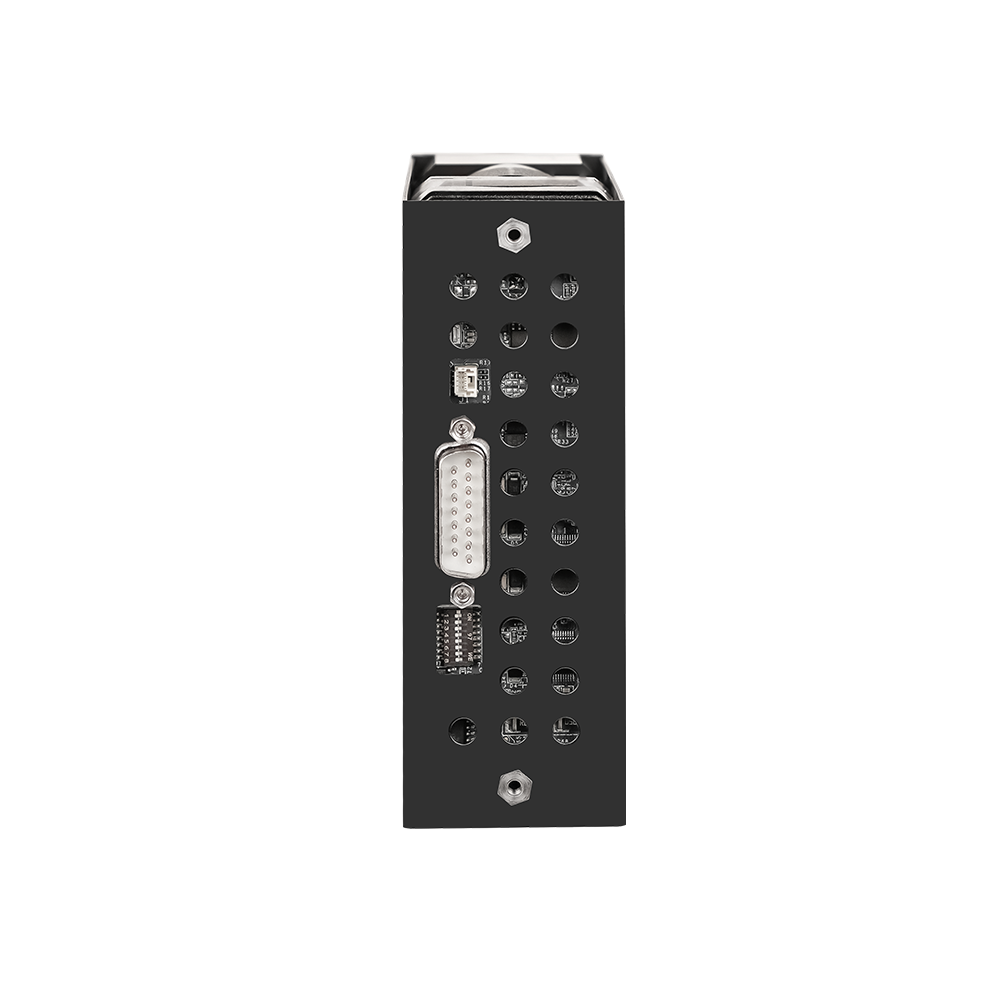

Interface Type
 RS232/RS485/CAN
Communication Rates
RS232/RS485 9600 or 38400 baud
CAN - 100K, 125K, 250K, 500K, 1M bps
Voltage DC 24V
Footprint(mm) 127(H)*44.5(W)*108(D)

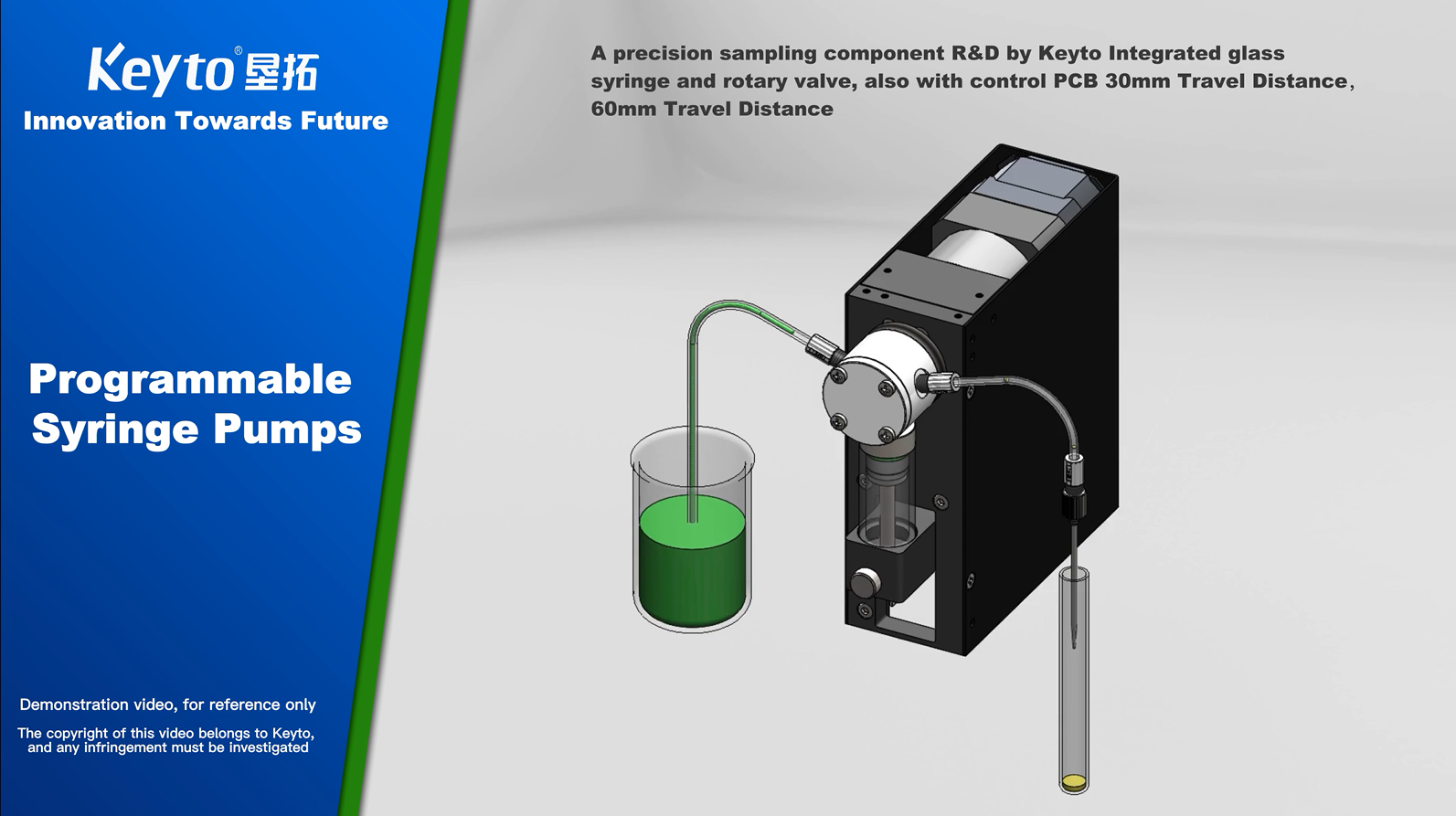

Demo video
