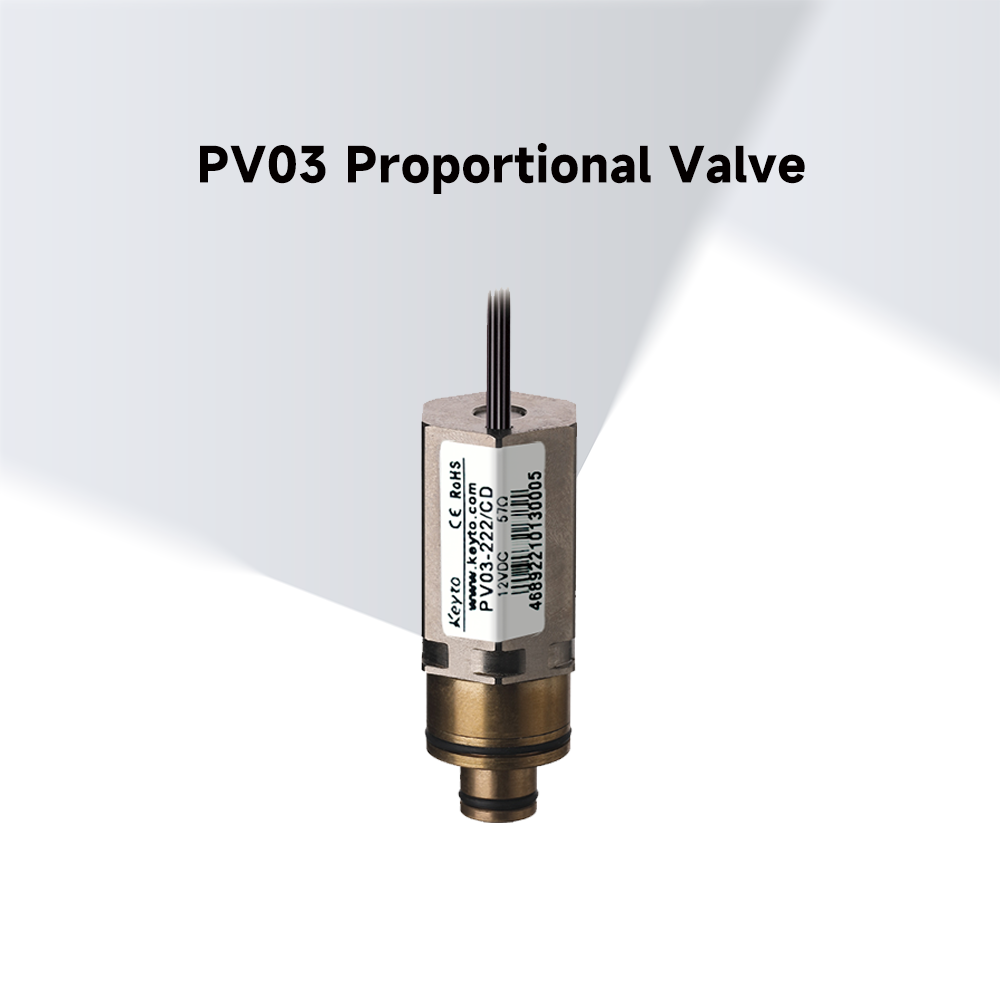

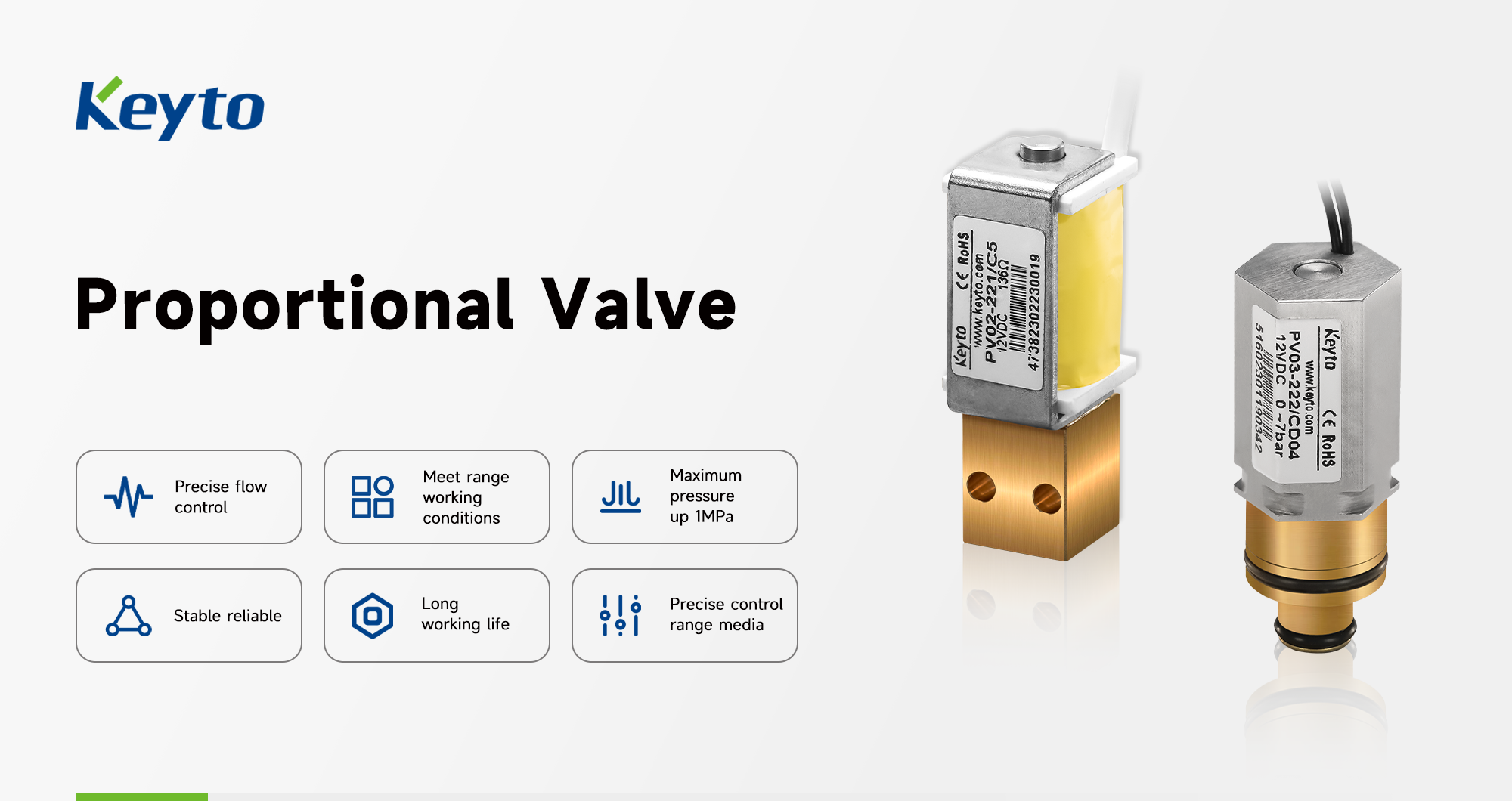

PV03 Proportional Valve
PV03 Proportional Valve

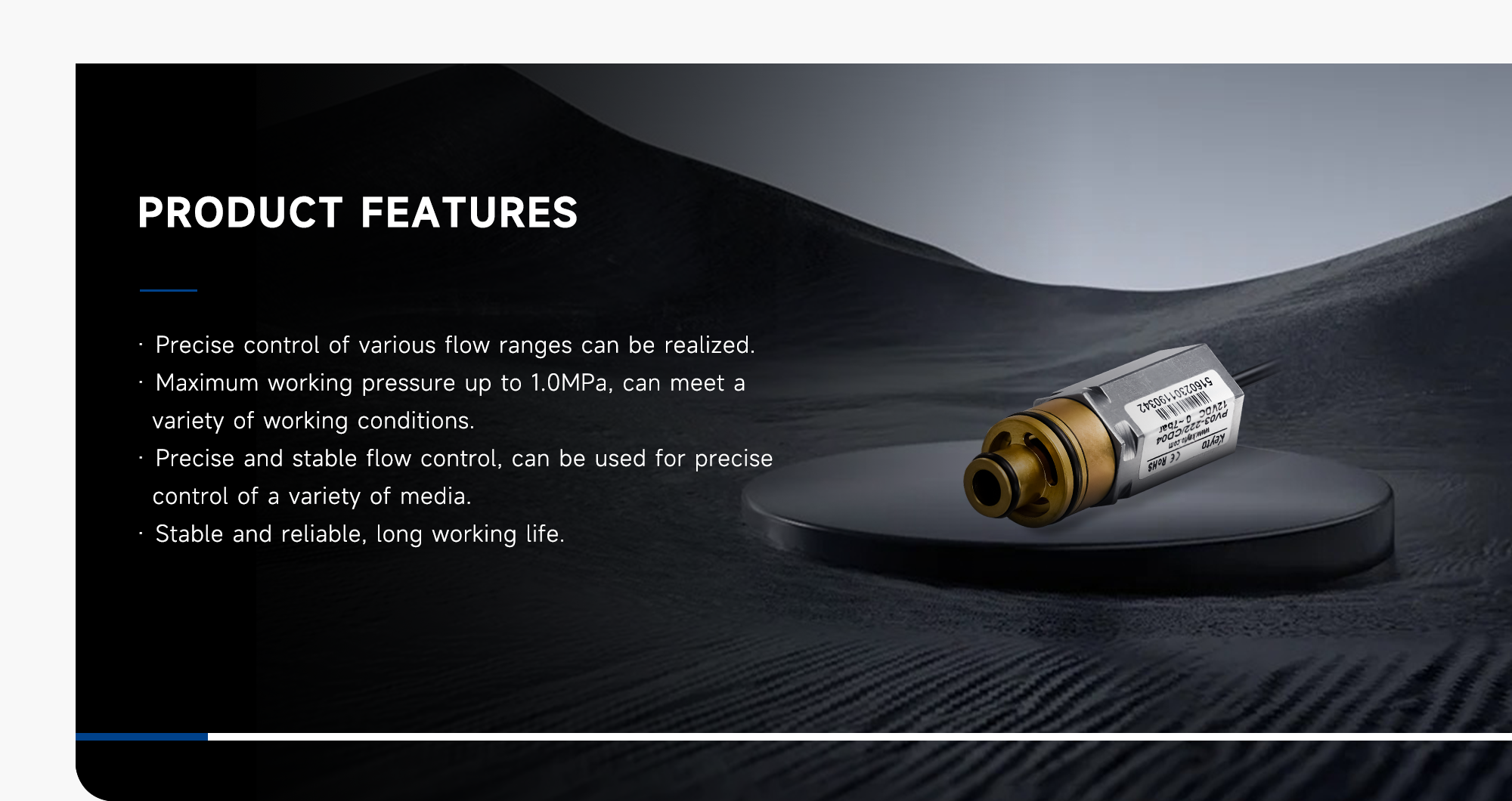

The PV03 series proportional valve by Keyto offers precise control of gas flow in ventilator systems, with spool flow paths ranging from 2.3mm to 4.5mm and a maximum flow rate of 180L/min. It supports both open and closed-loop control, with adjustable DC current or PWM input and optional flow or pressure sensor integration. Designed for high-flow applications, it ensures stable and accurate flow regulation. The PV03 provides reliable performance in demanding medical environments.
Key Parameters:
Structure
Connection Types
Specifications
Reference Model:
PV03
WhatsApp Contact
Online Message
Model Comparison
PV03 Proportional Valve
Comparable Products

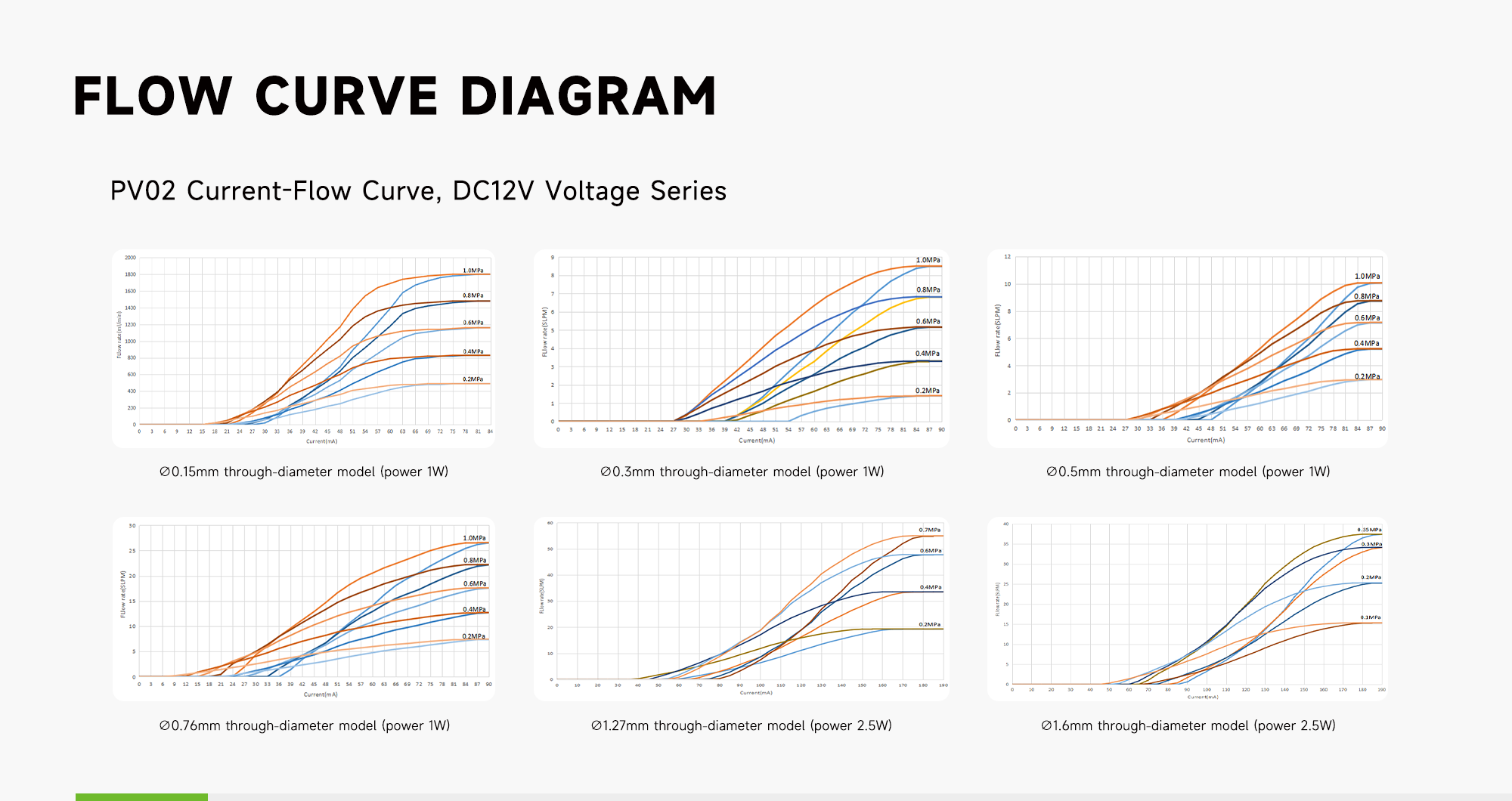

PV02 Proportional Valve
Model Comparison
Back
Overview
Parameters
2D View
3D View

Valve Structure

Two-Way Normally Closed

Wetted Metal Materials

Brass, Soft Magnetic Alloy

Wetted Non-Metal Materials

FKM (optional)

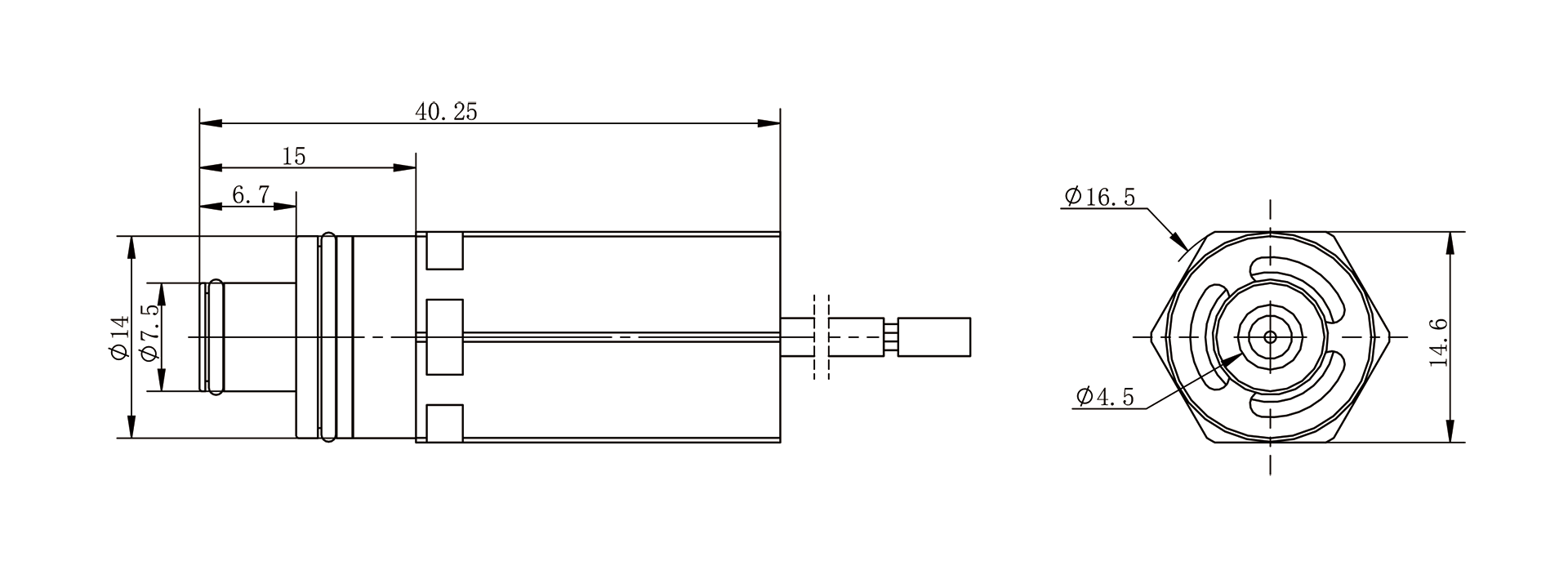

Dimensions

14.6 × 16.5 × 40.25 mm

Number of Ports

2

Voltage Options

6V, 12V, 24V

Orifice Diameter

2.3 mm, 4.5 mm

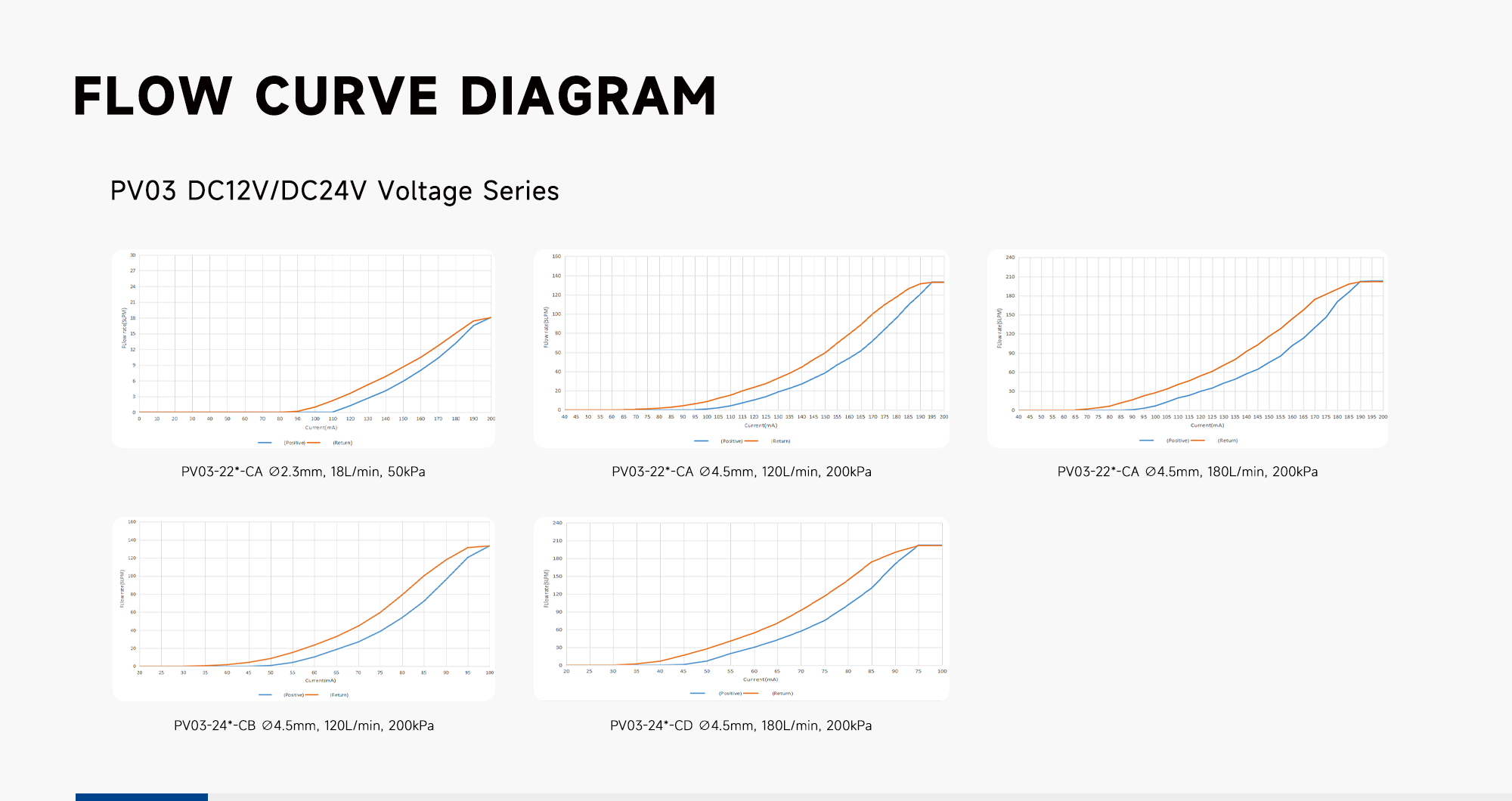

Maximum Flow Rate

20 L/min, 120 L/min, 180 L/min (optional)
Demo video
Product video
Factory video
Keyto Machining Factory
Keyto Quality Control （1）
Recommended

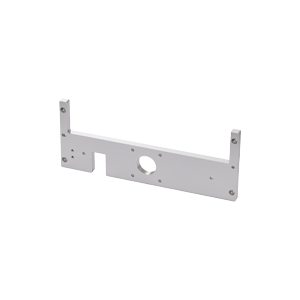

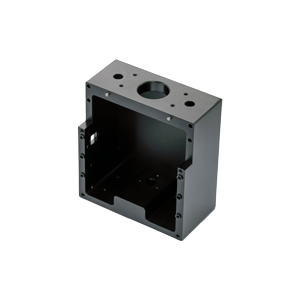

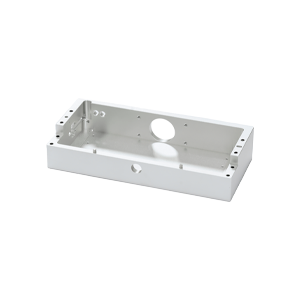

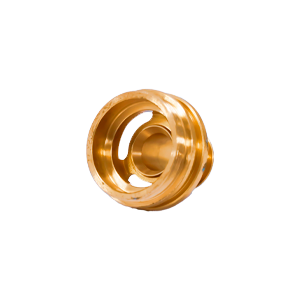

Metal Case① (for reference only)
