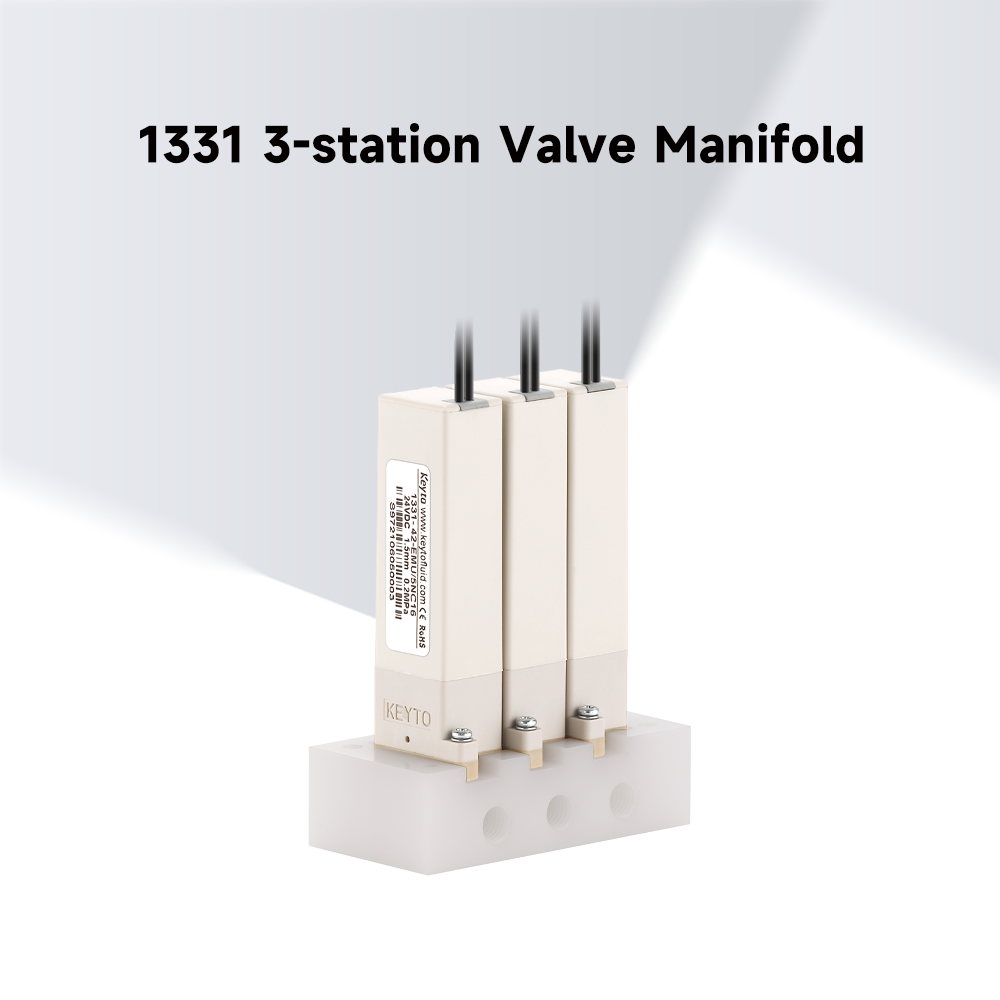

1331 3-station Valve Manifold
1331 3-station Valve Manifold
This solenoid valve manifold offers multiple customizable configurations with different port numbers, arrangements, and mounting options to meet diverse application needs. It features low dead volume, high chemical compatibility with wetted materials like PTFE, POM, EPDM, and FKM, and operates with a lifespan exceeding 2 million cycles. Designed for high performance, low cost, and maintenance-free use, it ensures long-term reliability. Comprehensive system packages and quality service enhance its value and application flexibility.
Key Parameters:
Voltage
Wetted Materials
Port Connection
Reference Model:
1331-4
WhatsApp Contact
Online Message
Model Comparison
1331 3-station Valve Manifold
Comparable Products
1341 4-station Valve Manifold
1351 5-station Valve Manifold
1361 6-station Valve Manifold
1384 Circular Shape 8-station Valve Manifold
1321 2-station Valve Manifold
1341 4-station Valve Manifold
1362 Double Row 4-station Valve Manifold
Gradient Proportional Solenoid Valve Group
Gradient Proportional Solenoid Valve Group
Model Comparison
Back
Overview
Parameters

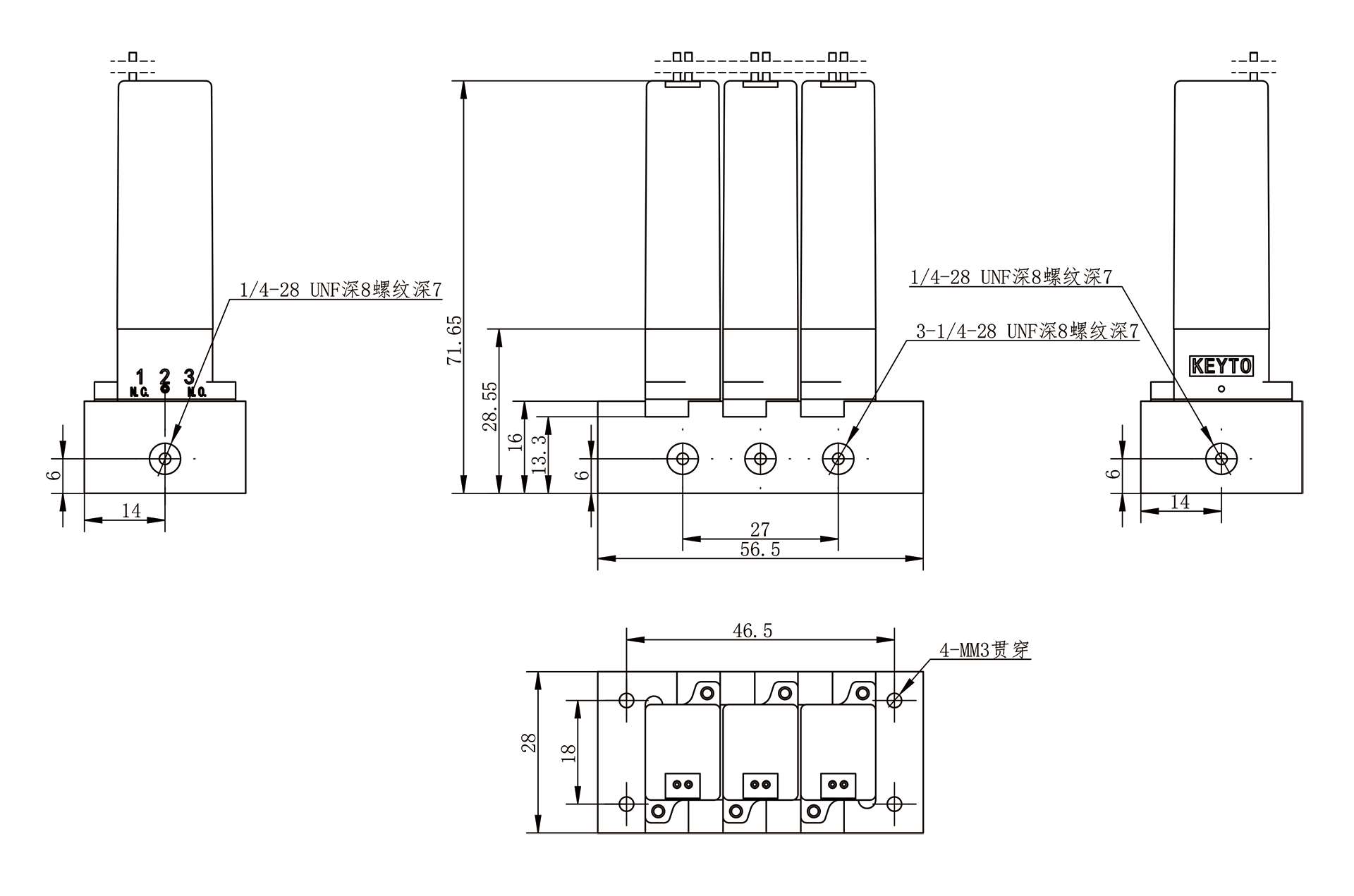

2D View
3D View

Valve Type

1331-4 Valve Manifold

Valve Structure

Rocker Type

Number of Ports

2 (Common Ports) + 1 (Optional Common Port) + 3 (Branch Ports)

Valve Body Materials

POM, PMMA, PTFE, PVDF

Diaphragm Materials

EPDM, FKM, FFKM, Special Fluororubber

Voltage

12V / 24V

Orifice Diameter

1.5 mm

Flow Rate

4.5 g/s

Power Consumption

2.8 W

Pressure Resistance

-70 kPa ~ 250 kPa
