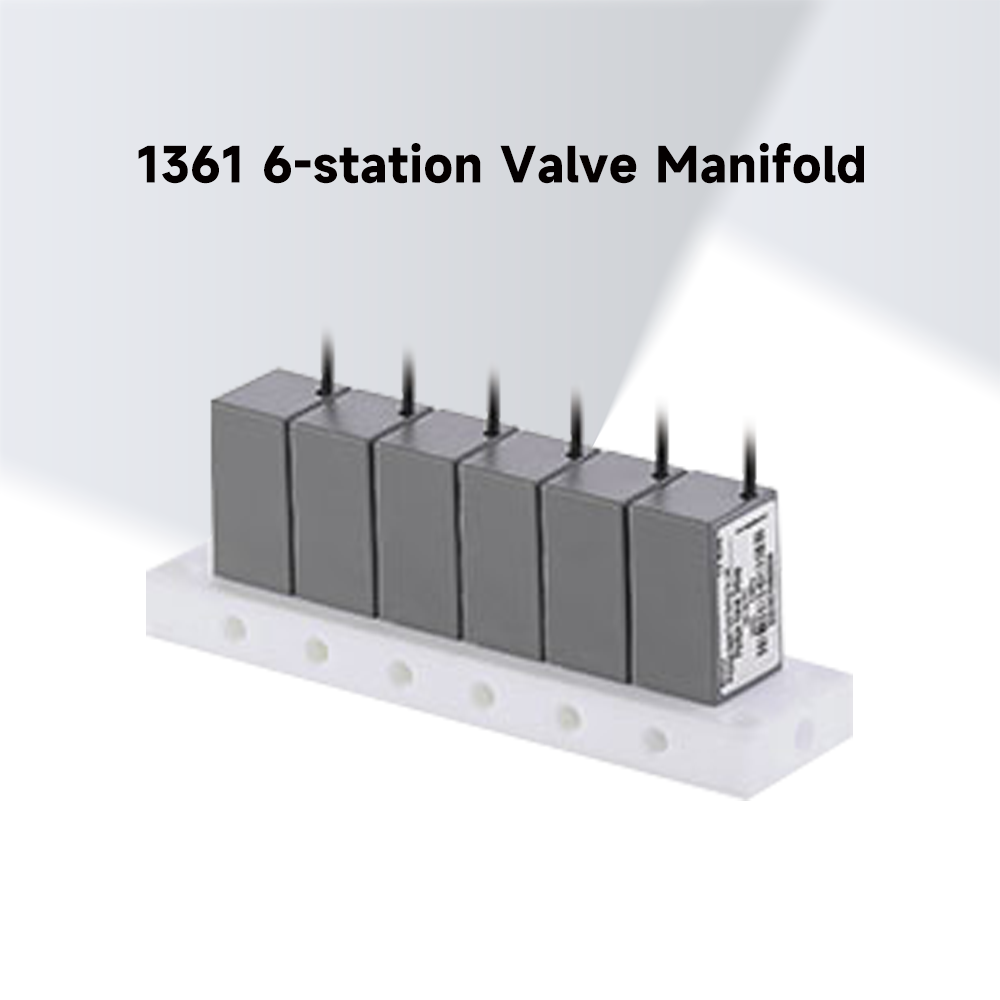

1361 6-station Valve Manifold

This solenoid valve manifold offers multiple customizable configurations with different port numbers, arrangements, and mounting options to meet diverse application needs. It features low dead volume, high chemical compatibility with wetted materials like PTFE, POM, EPDM, and FKM, and operates with a lifespan exceeding 2 million cycles. Designed for high performance, low cost, and maintenance-free use, it ensures long-term reliability. Comprehensive system packages and quality service enhance its value and application flexibility.

Key Parameters:

Voltage

Wetted Materials

Reference Model:

1361-2

WhatsApp Contact

Online Message

E-mail Comparison/Performance

1361 6-station Valve Manifold

Comparable Products

1341 4-station Valve Manifold

1351 5-station Valve Manifold

1384 Circular Shape 8-station Valve Manifold

1321 2-station Valve Manifold

1331 3-station Valve Manifold

1341 4-station Valve Manifold

1362 Double Row 4-station Valve Manifold

Gradient Proportional Solenoid Valve Group

Comparison/Performance

Back

Overview

Parameters

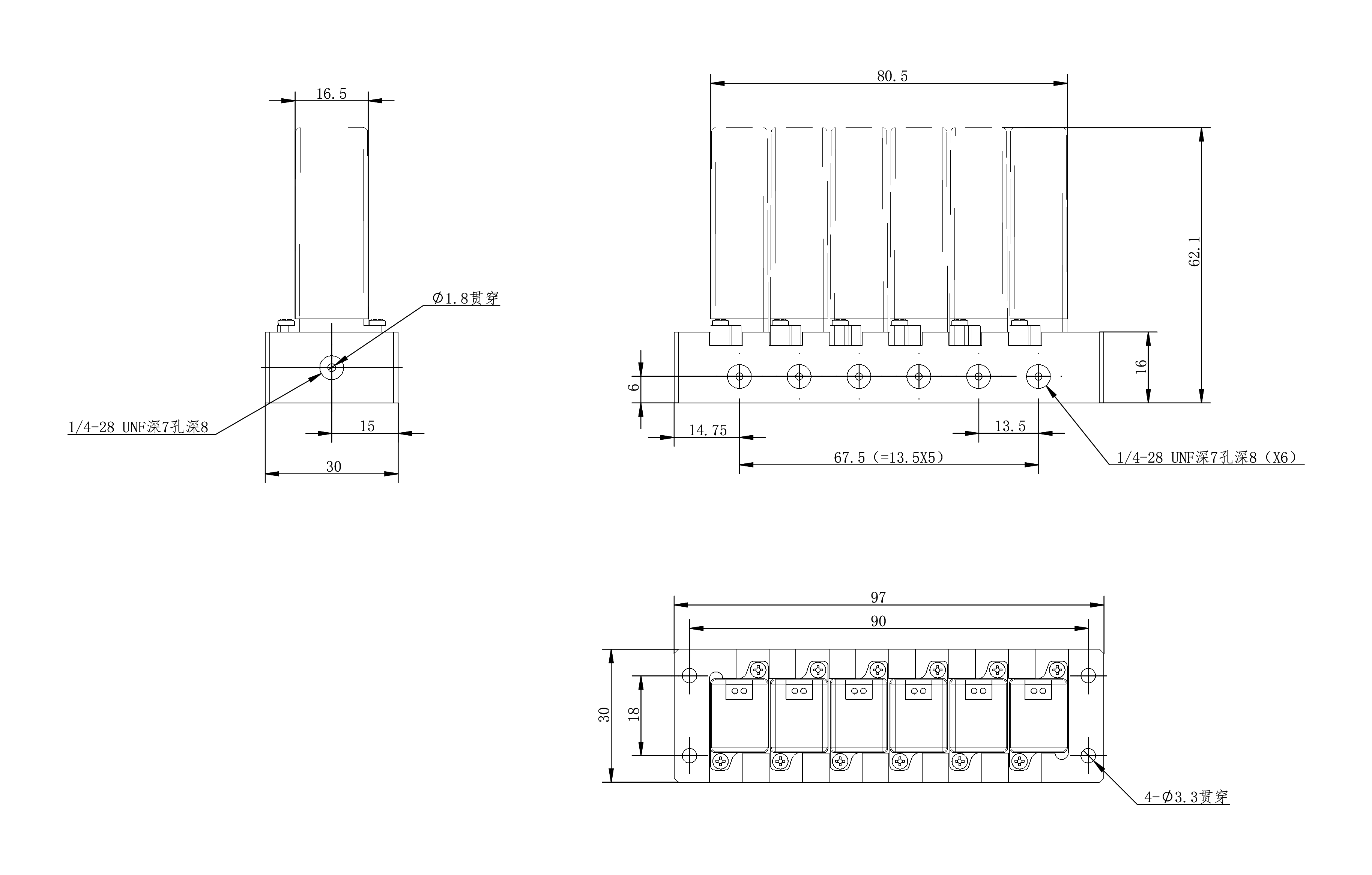

2D View

3D View

Valve Type	1361-2 Valve Manifold
Valve Structure	Direct-acting
Number of Ports	2 (Common Ports) + 1 (Optional Common Port) + 6 (Branch Ports)
Valve Body Materials	PTFE, PVDF, POM
Diaphragm Materials	ETP, FFKM
Voltage	12V / 24V
Orifice Diameter	2 mm
Flow Rate	5 g/s (at 25°C, 50 kPa, with pure water)
Power Consumption	4.2 W
Pressure Resistance	-70 kPa ~ 200 kPa
