Product Category:
Threaded
Orifice Diameter:
1.6-2mm
Type:
Two-Way Normally Closed, 2/2 NC
Back

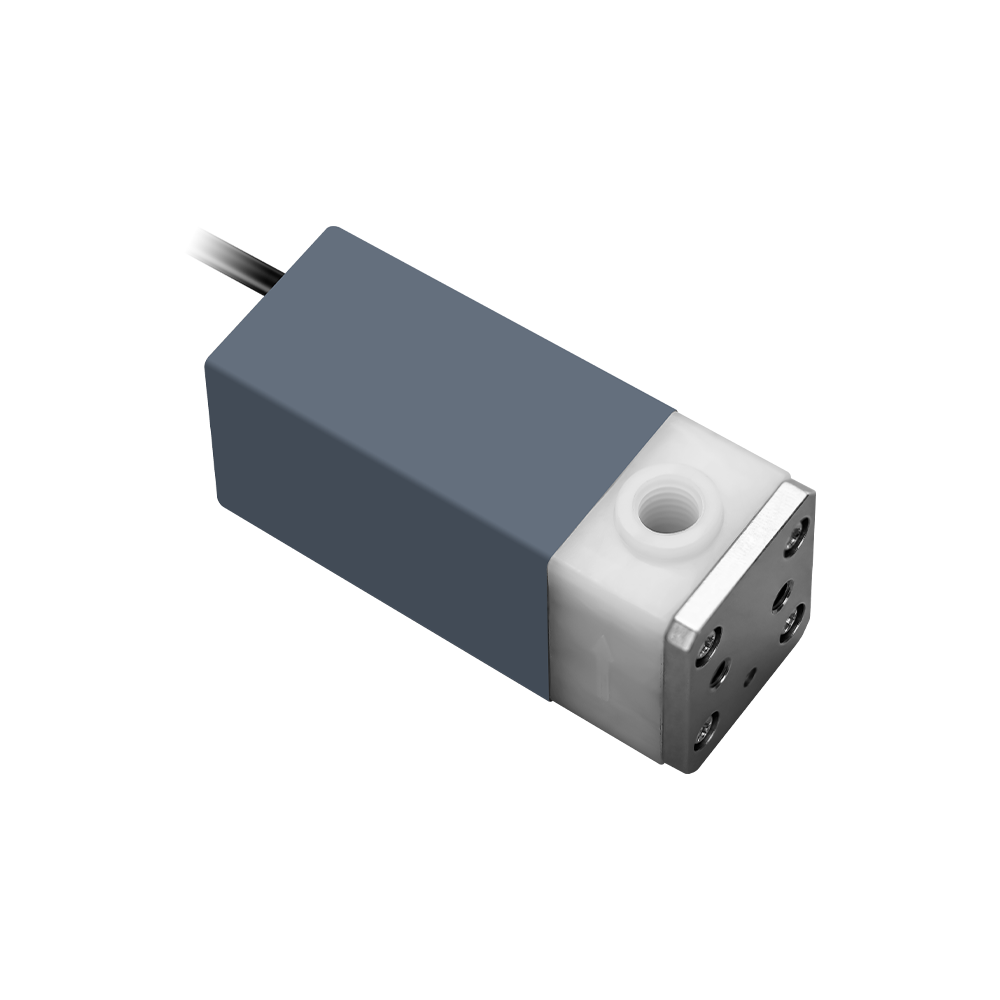

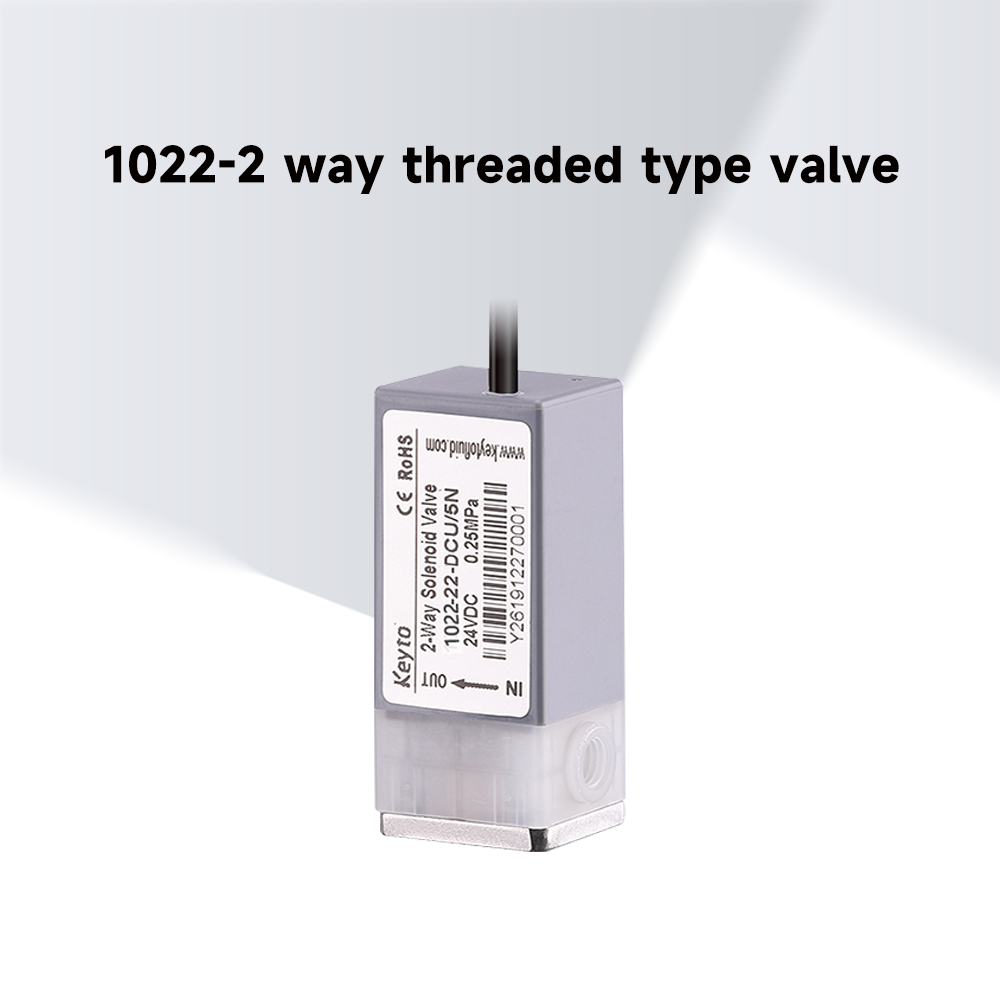

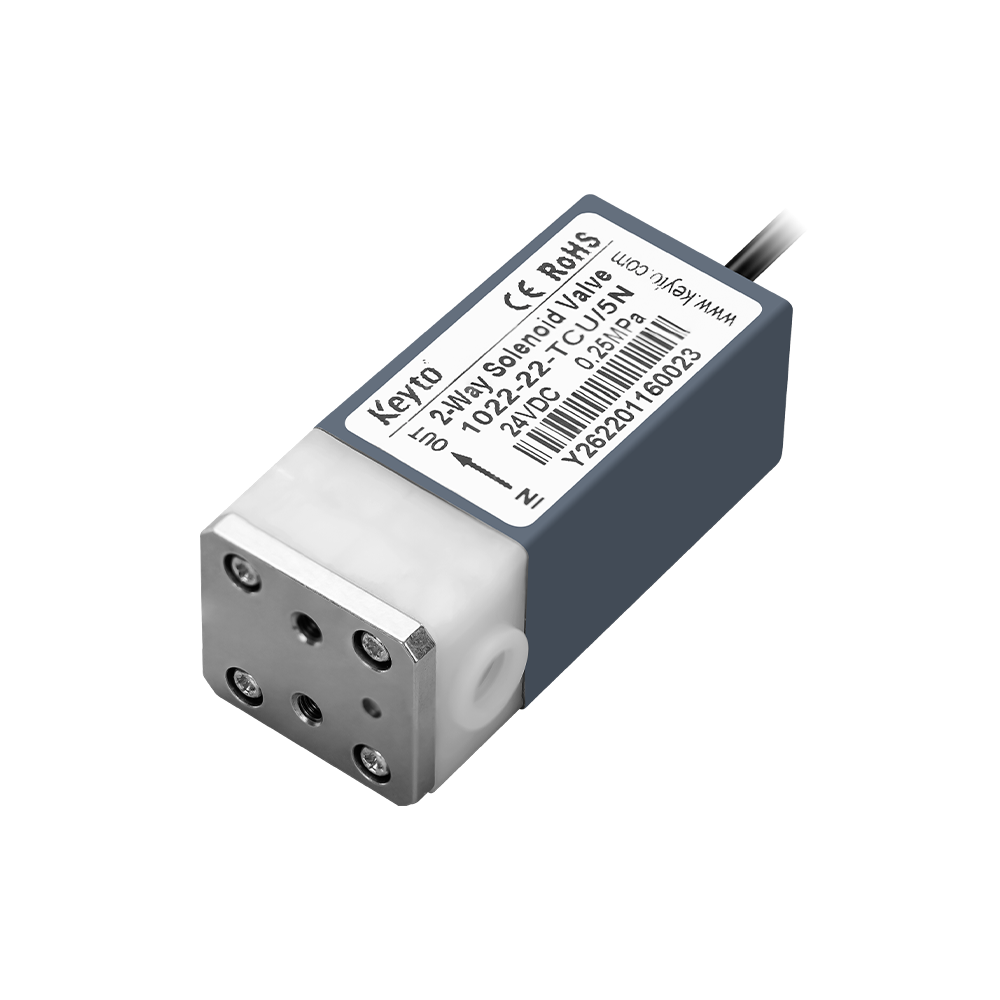

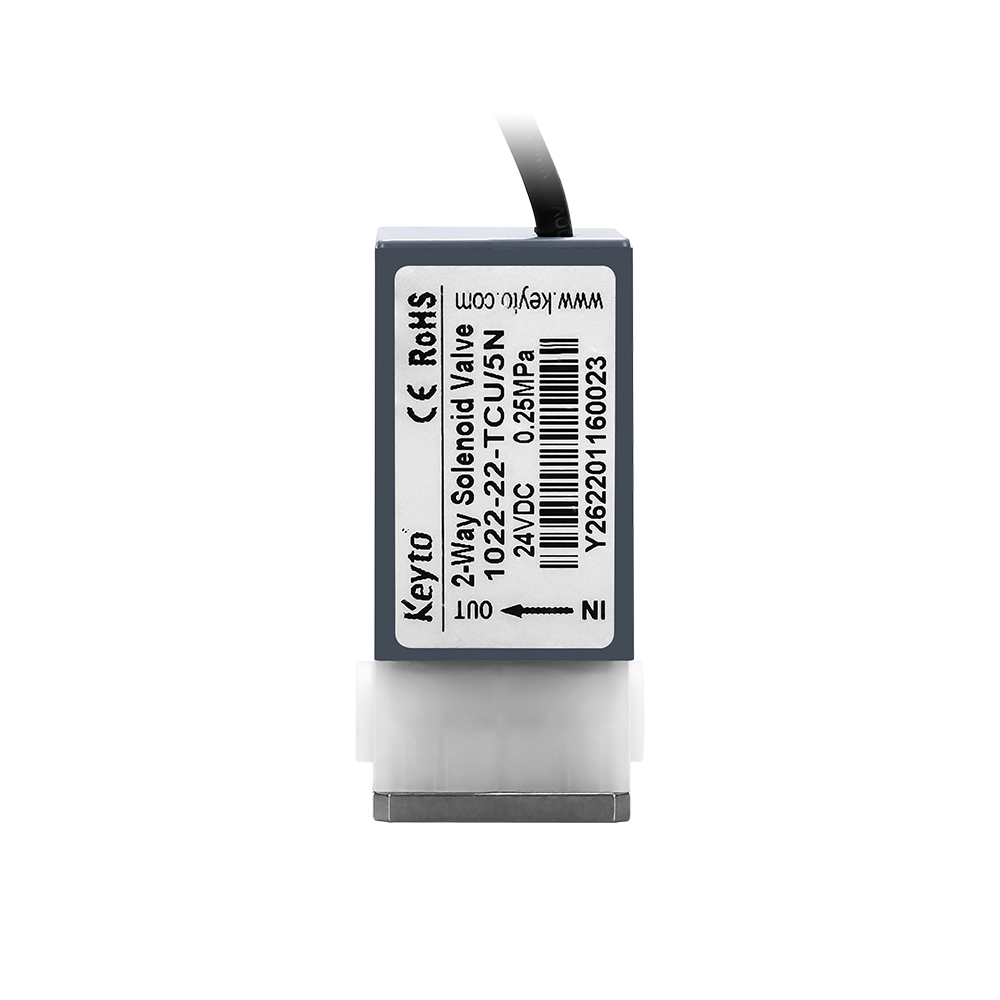

1022-2 way threaded type valve
1022-2 way threaded type valve
The 1022 series solenoid diaphragm valve by Keyto is a direct-acting valve with a 2mm orifice diameter, designed for controlling the on/off flow of fluids. It offers high performance, low cost, and maintenance-free operation. Available in multiple models, it accommodates various reagents and working conditions. Its reliable design ensures optimal fluid control across diverse applications.
Key Parameters:
Voltage
Wetted material
Reference Model:
1022-2
WhatsApp Contact
Online Message
Model Comparison
1022-2 way threaded type valve
Comparable Products
1013-2 way tubing type valve
1013-3 way tubing type valve
1013-2 way tubing type valve (normally open)
1013-2 way base mounted type valve
1013-3 way base mounted type valve
1013-2 way base mounted valve (normally open)
1013-2 way threaded type valve
1013-3 way threaded type valve
1013-2 way threaded type valve (normally open)
1013-3 way Sector threaded type valve
1022-2 way tubing type valve
1022-3 way tubing type valve
1022-3 way threaded type valve
1032-2 way tubing type valve
1032-3 way tubing type valve
1042-2 way threaded type valve
1042-2 way base mounted type valve
1042-2 way tubing type valve
1042-3 way tubing type valve
1021 2-way Base Mount Solenoid Valve
1021 3-way Base Mount Solenoid Valve
1021 2-way Base Mount Valve (Normal Open)
1021 2-way Threaded Type Solenoid Valve
1021 3-way Threaded Type Solenoid Valve
1021 2-way Tubing Type Solenoid Valve (vertical version）
1021 3-way Tubing Type Solenoid Valve (vertical version)
1021 2-way Tubing Type Solenoid Valve（vertical version）
1021 Tubing Type Solenoid Valve(horizontal version)
1021 3-way Tubing Type Solenoid Valve (horizontal version)

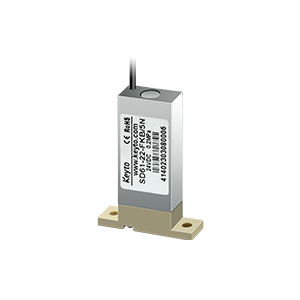

SD61 Direct-operated Diaphragm Valve
Model Comparison
Back
Overview
Parameters

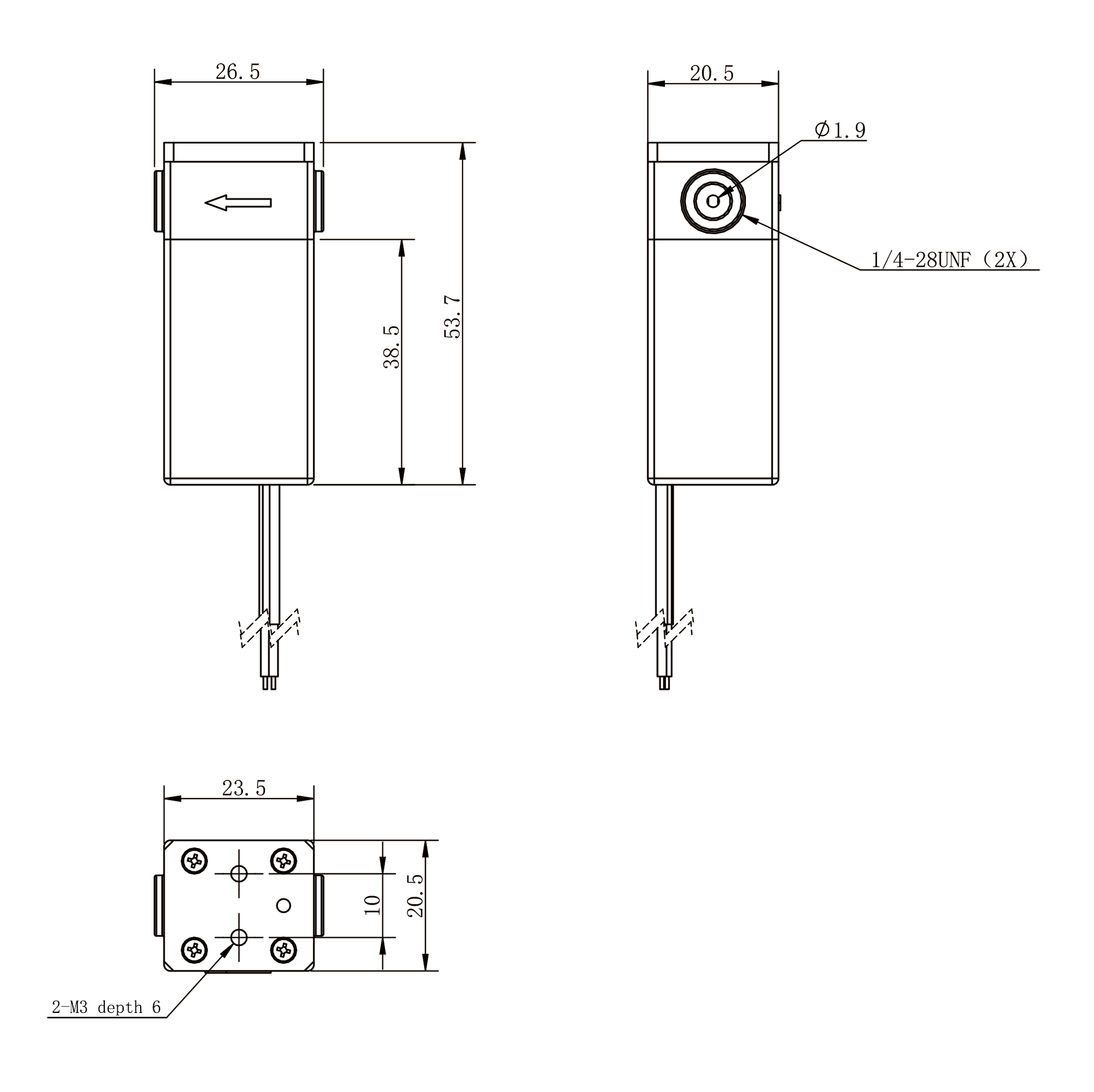

2D View
3D View
Type 1022-2 threaded type
Structure Direct acting diaphragm-2 way NC
No. Of Ports

2 (Specify entry and exit ends)
Body material POM, PVDF, PTFE
Membrane material EPDM, FKM, FFKM
Voltage 12V/24V
Orifice 2mm
Flow rate 6.8g/s( 25°C, 50KPa, pure water)
Demo video
Product video
Factory video
Keyto Machining Factory
Keyto Quality Control （1）
Recommended

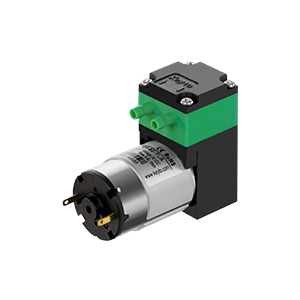

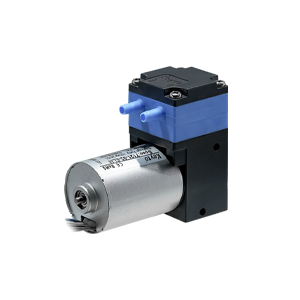

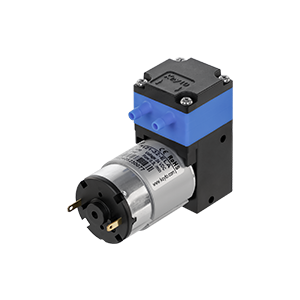

7121 30 Diaphragm Pump
7121 60 Diaphragm Pump
7121 30 Diaphragm Pump with Brush
7121 60 Diaphragm Pump with Brush

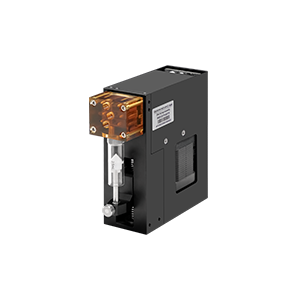

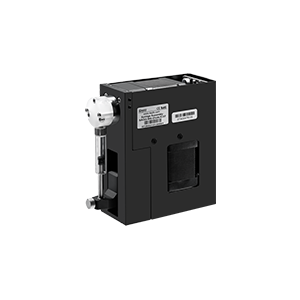

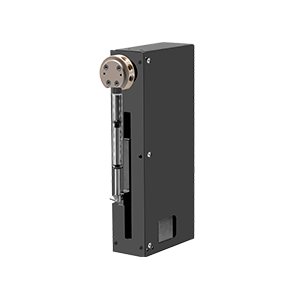

60mm Syringe Pump (with rotary valve)

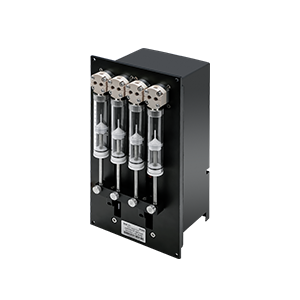

60mm Syringe Pump (4-channel with rotary valves)
