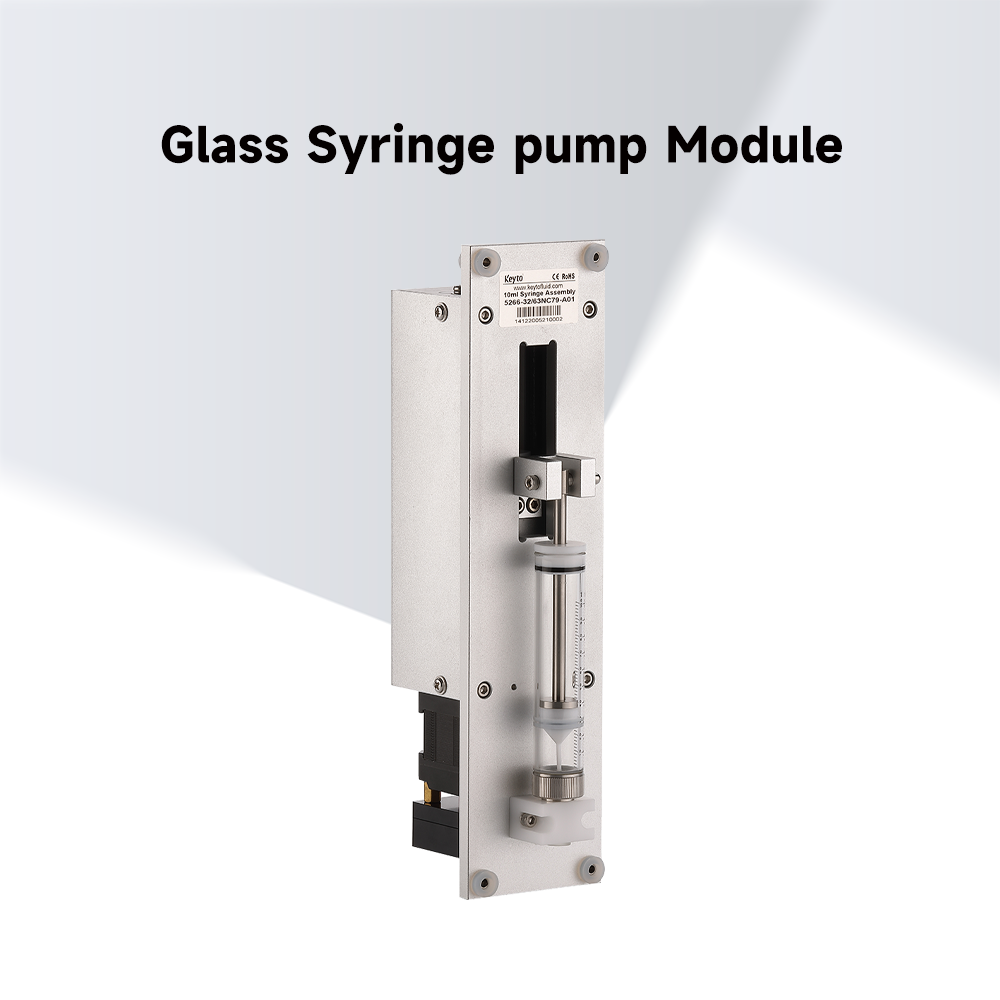

Glass Syringe Pump Module
Glass Syringe Pump Module
Key Parameters:
Wetted Materials
Syringe Volumn
Reference Model:
5262
WhatsApp Contact
Online Message
Comparison/Performance
Glass Syringe Pump Module
Comparable Products
Comparison/Performance
Back
Overview
Parameters

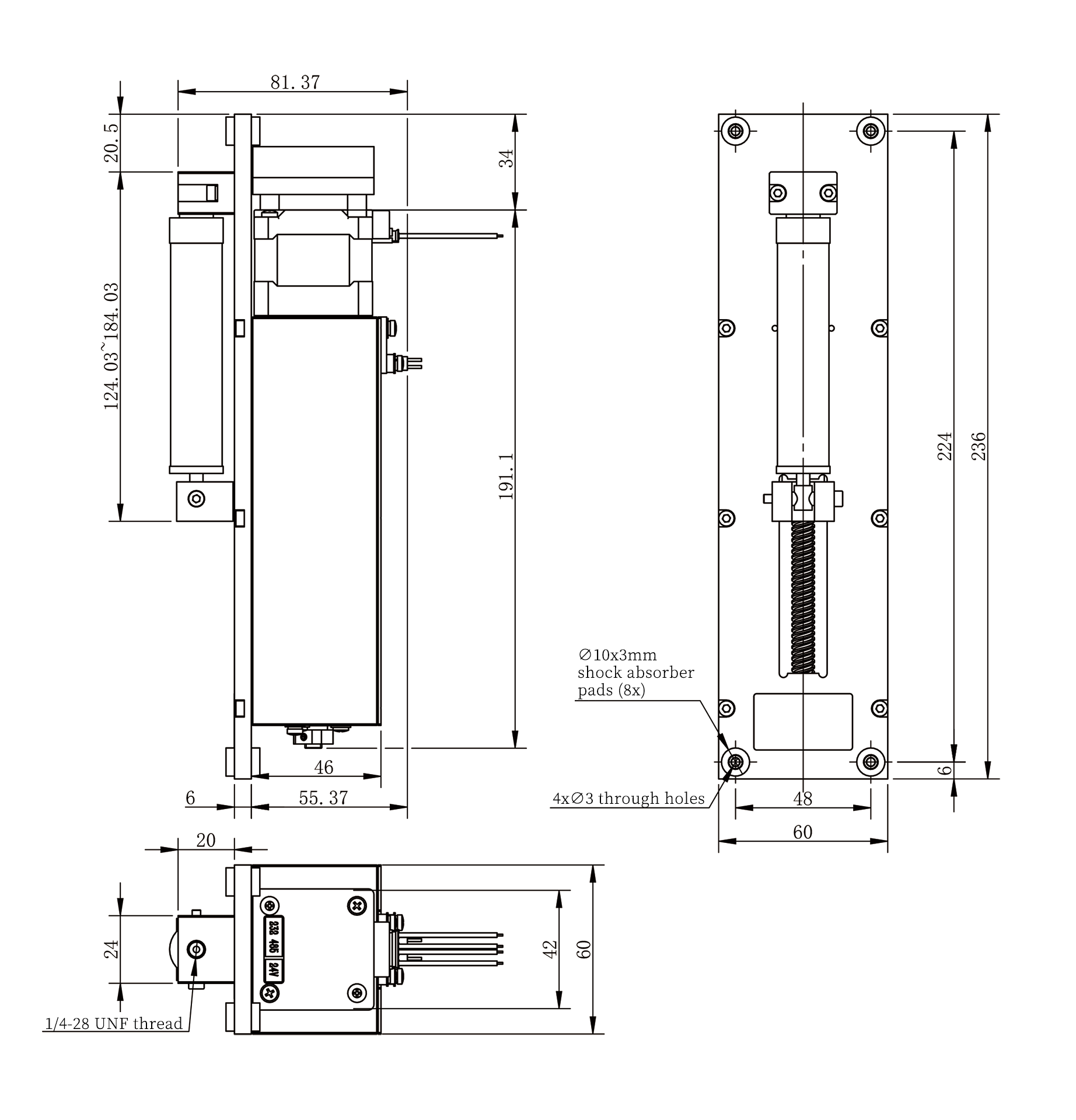

2D View
3D View
Type Glass Syringe pump Module
Optional glass volume 100μL, 250μL, 500μL, 1mL, 2.5mL, 5mL, 10mL
Sealing material
Borosilicate+PTFE
Stroke mm
60
Lead mm 6 2.5
Stroke per step  mm/step 0.03 0.0125
Volume per step  μL/step 0.0005*V 0.0002083*V
Motor step angle 1.8 °
Motor Current A 1.2
Dispense precision 0.02
Dispense CV ≤1.5% (2% stroke, 21-25°C static air environment, DI water)
Life cycle ul grade: 3 million times / ml grade: 2 million times
Interface 1/4-28 UNF and M6
