Category:
Glass Plunger
Back

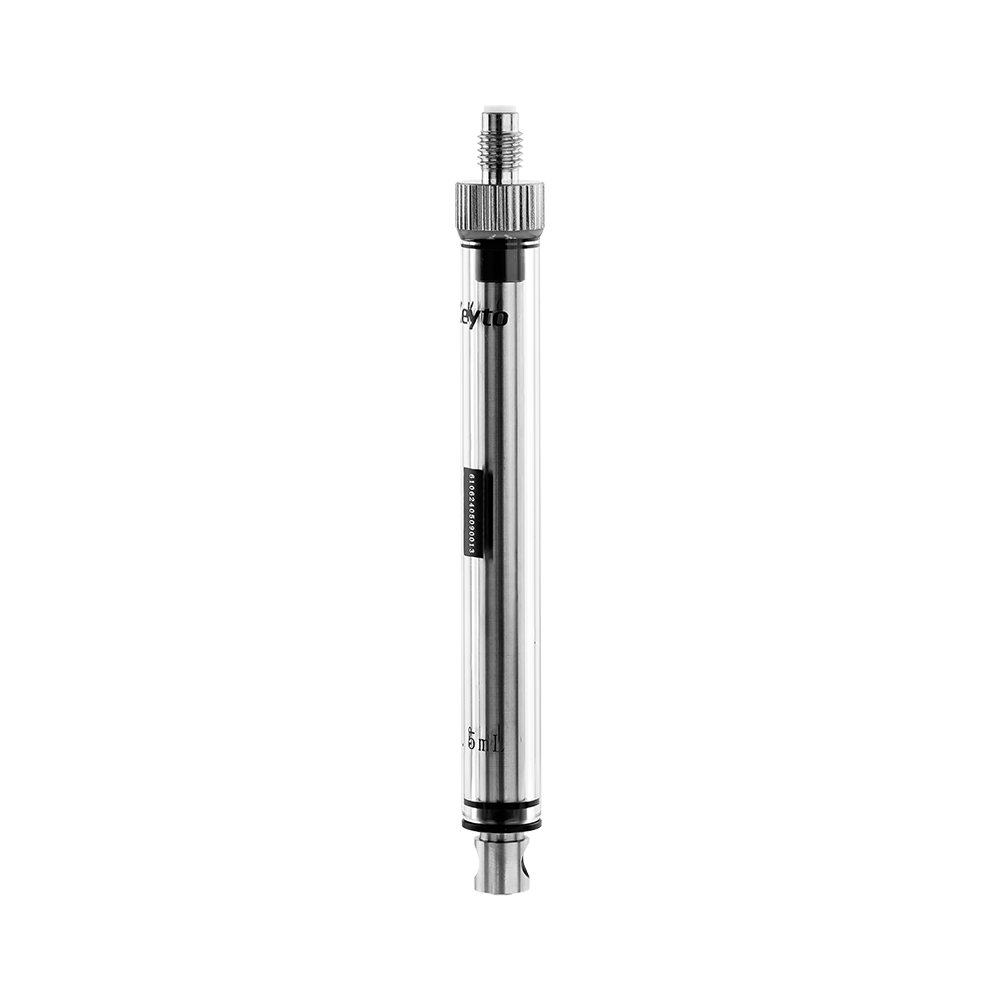

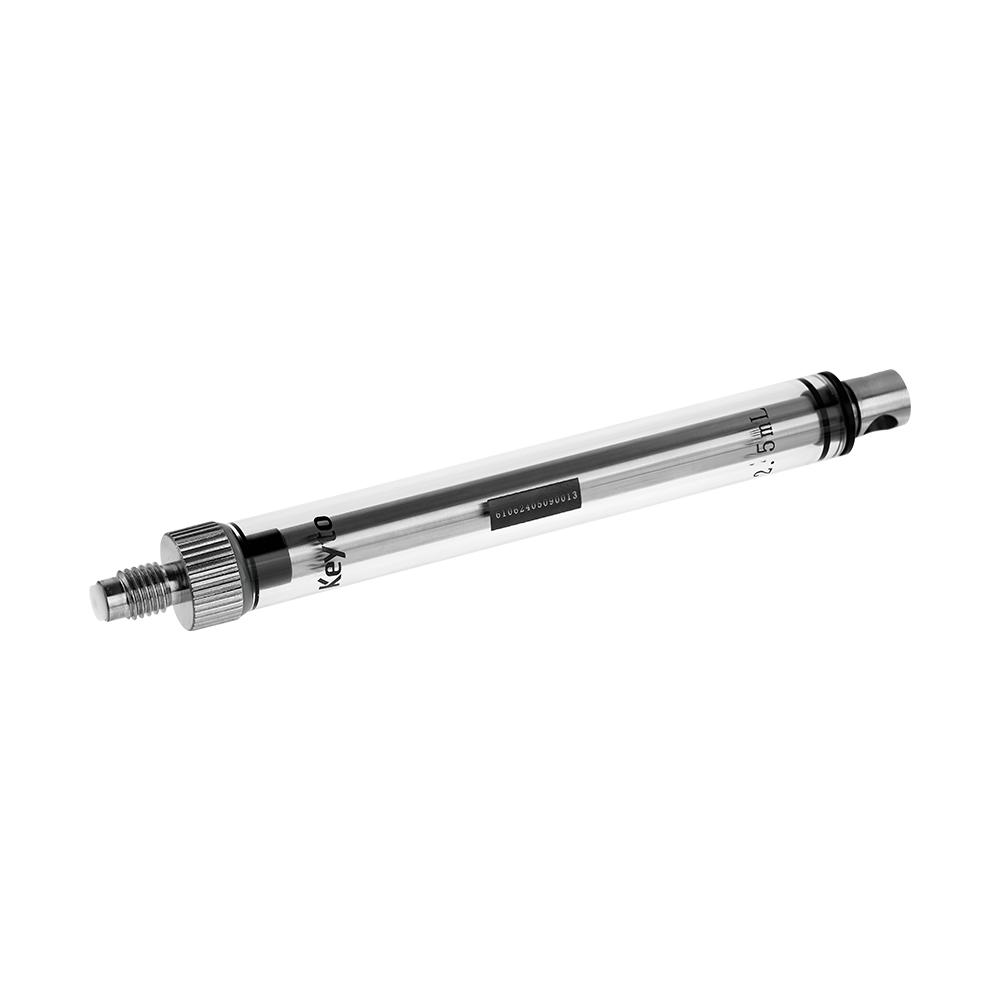

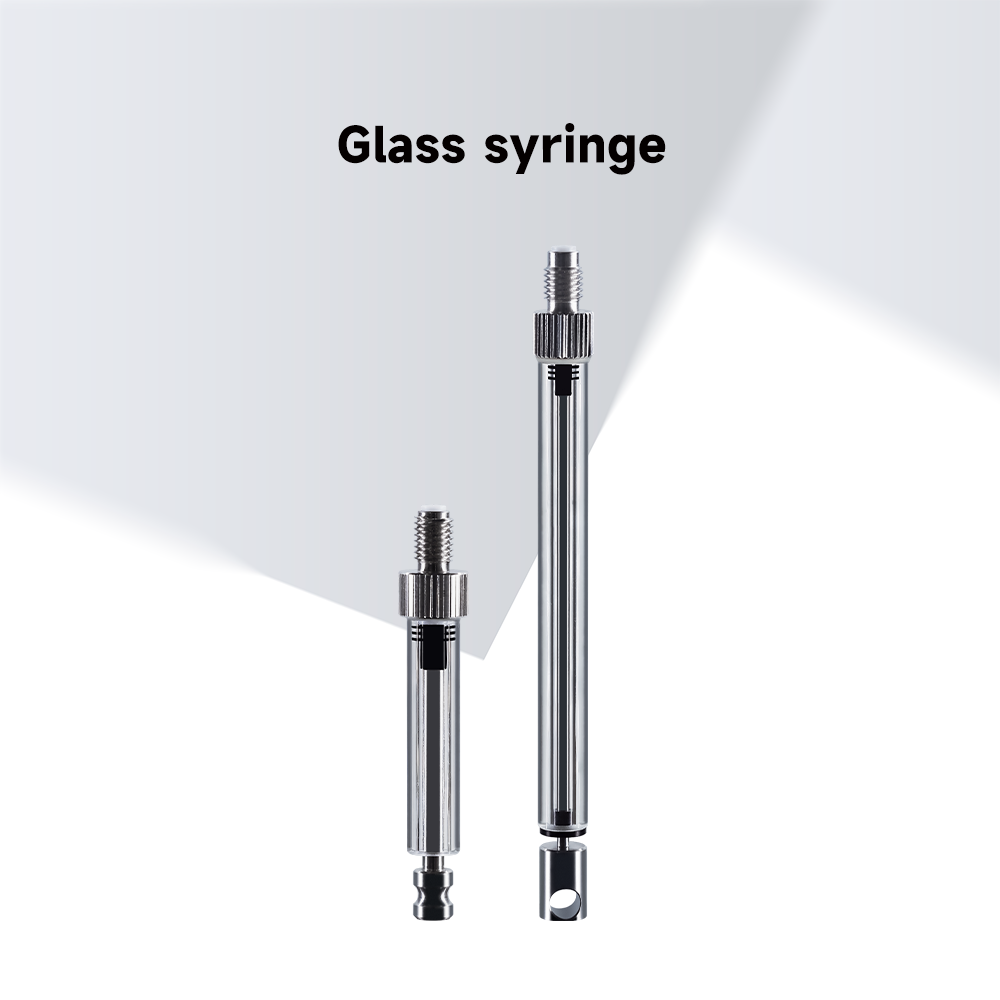

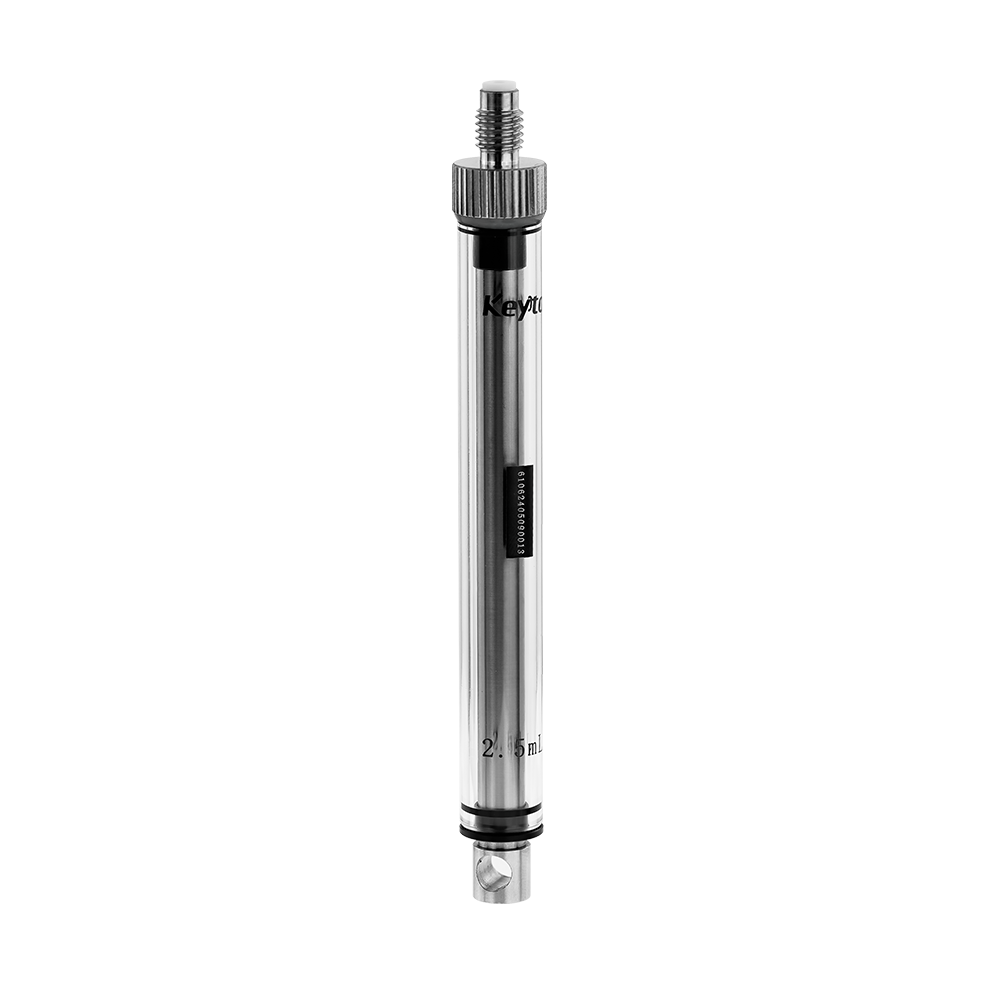

Glass syringe
Glass syringe
Key Parameters:
Volume
Stroke
Plunger Material
Reference Model:
2K
WhatsApp Contact
Online Message
Model Comparison
Glass syringe
Comparable Products
Plastic syringe
Model Comparison
Back
Overview
Parameters

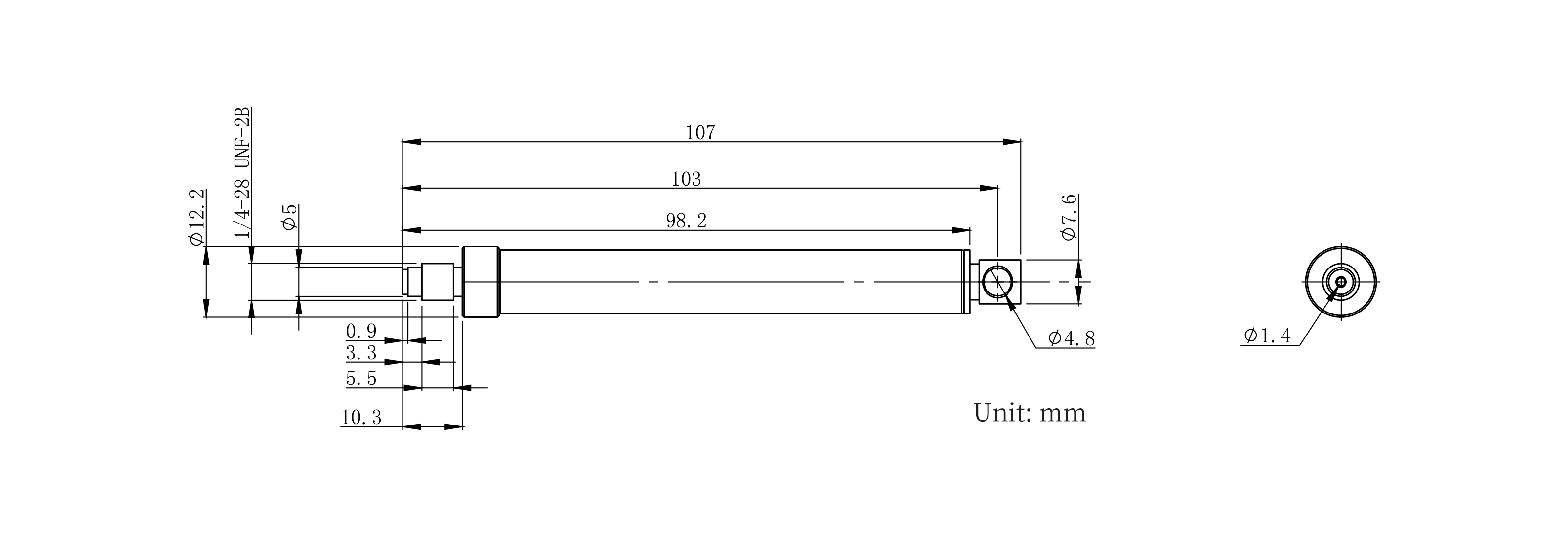

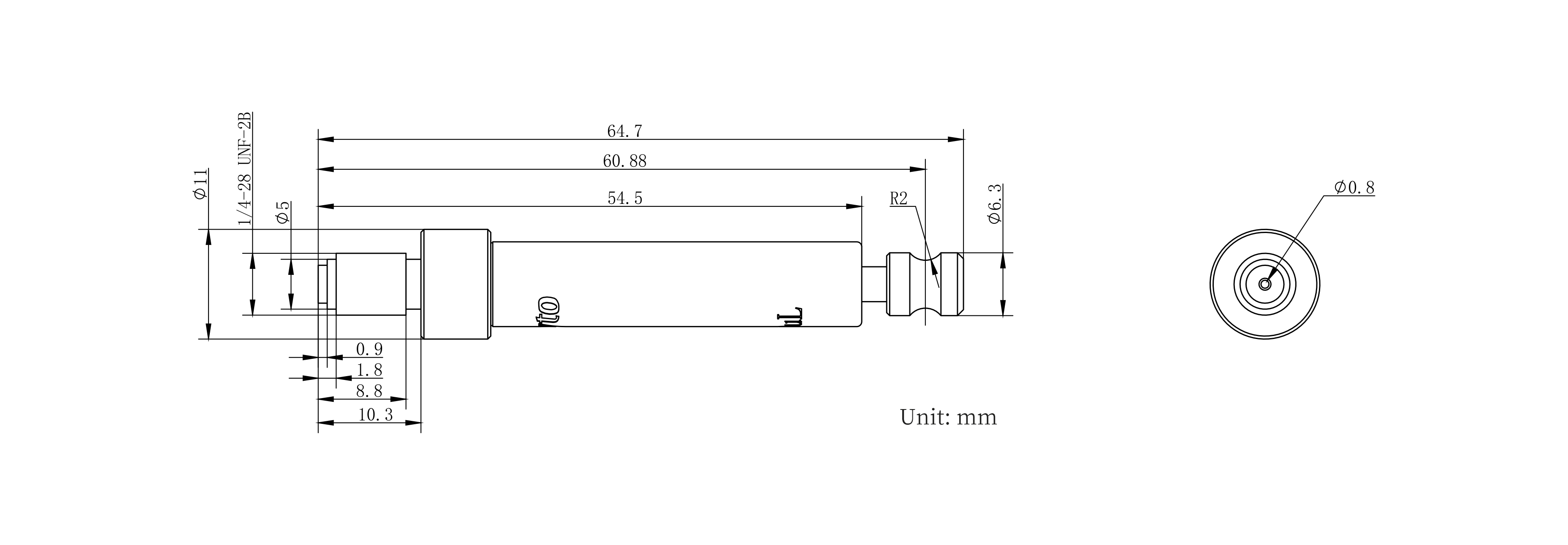

2D View
3D View

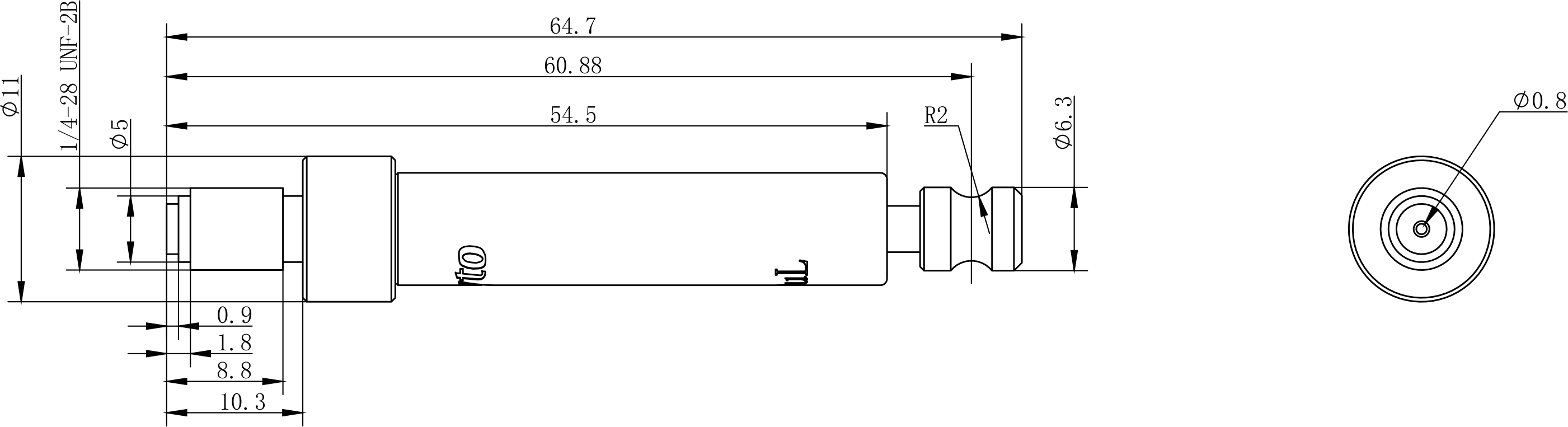

Type 30mm stroke glass syringe
Syringe Volume
 100μL 250μL 500μL 1mL 2.5mL 5mL
Model 2K01-30 2K02-30 2K05-30 2K10-30 2K25-30 2K50-30
Stroke (mm)
 30
Glass Material
 borosilicate
Service life cycle
 PTFE活塞：40万全行程      UHMWPE活塞：80万全行程
Dispense precision
 2%
CV 1.50%
Pressure resistance
Pressure drop ≤ 0.6kPa in 20s under 0.6MPa air pressure

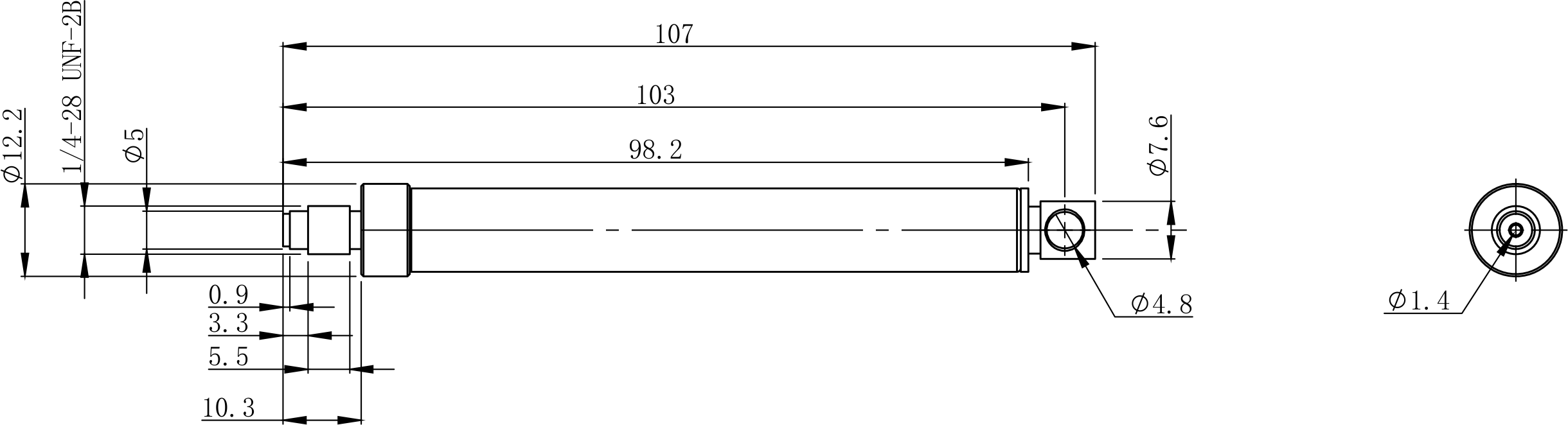

Type 60mm stroke glass syringe
Syringe Volume 100μL 250μL 500μL 1mL 2.5mL 5mL 10mL
Model 2K01-60 2K02-60 2K05-60 2K10-60 2K25-60 2K50-60 2K1A-60
Stroke (mm) 60
Glass Material borosilicate
Service life cycle PTFE活塞：40万全行程      UHMWPE活塞：80万全行程
Dispense precision 2%
CV 1.50%
Pressure resistance Pressure drop ≤ 0.6kPa in 20s under 0.6MPa air pressure
