Syringe Pump 4 channel with Rotary Valves

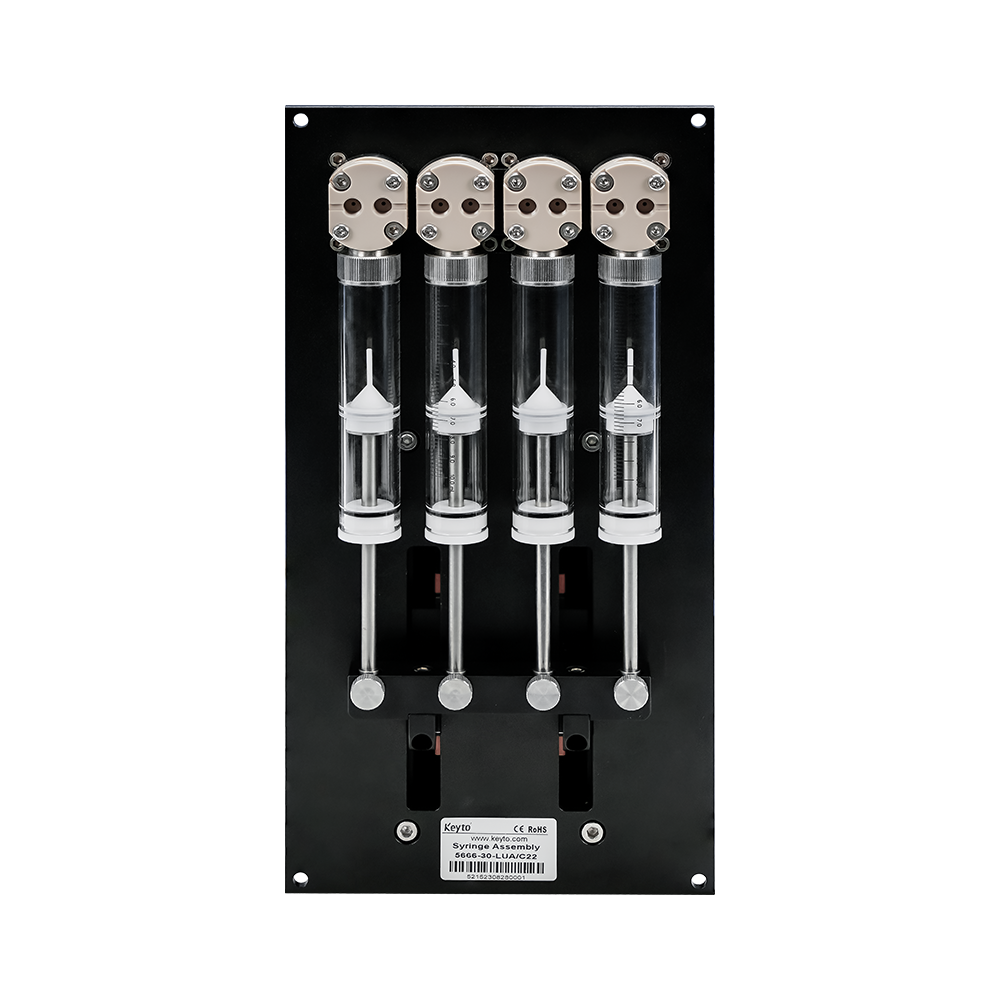

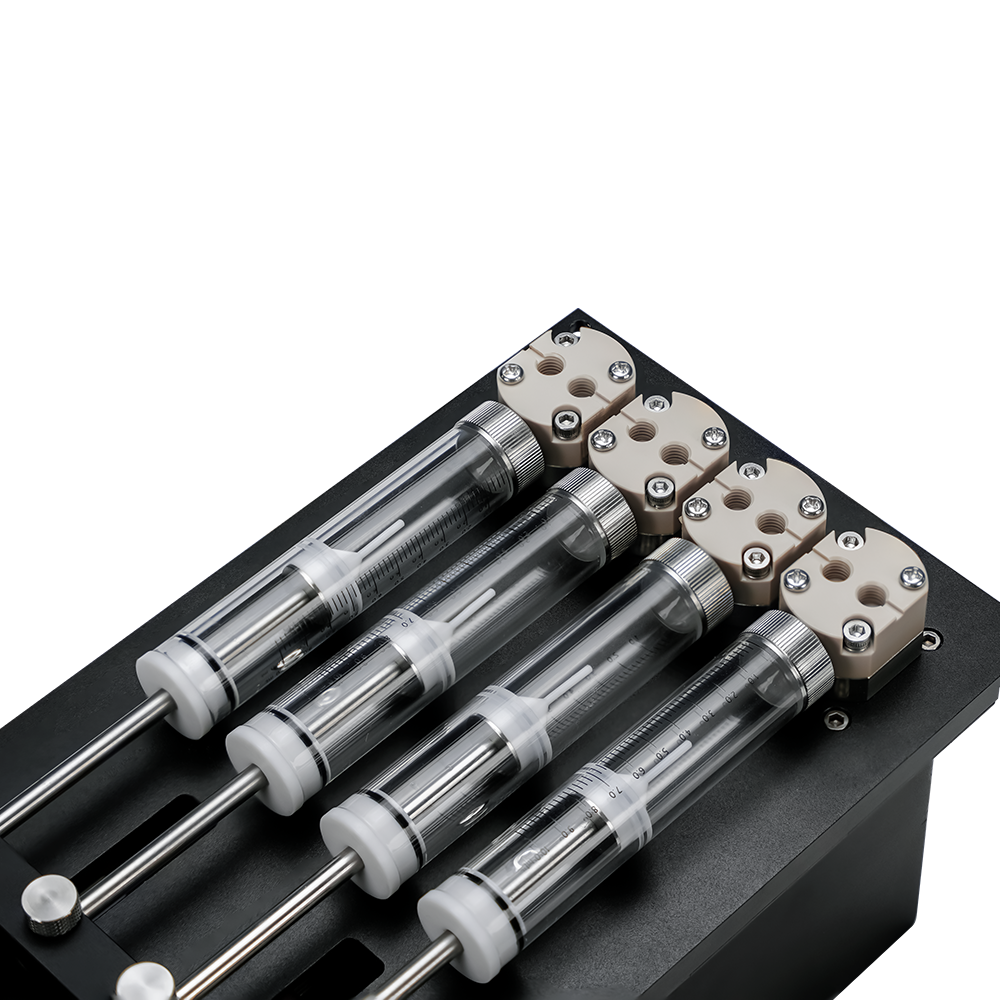

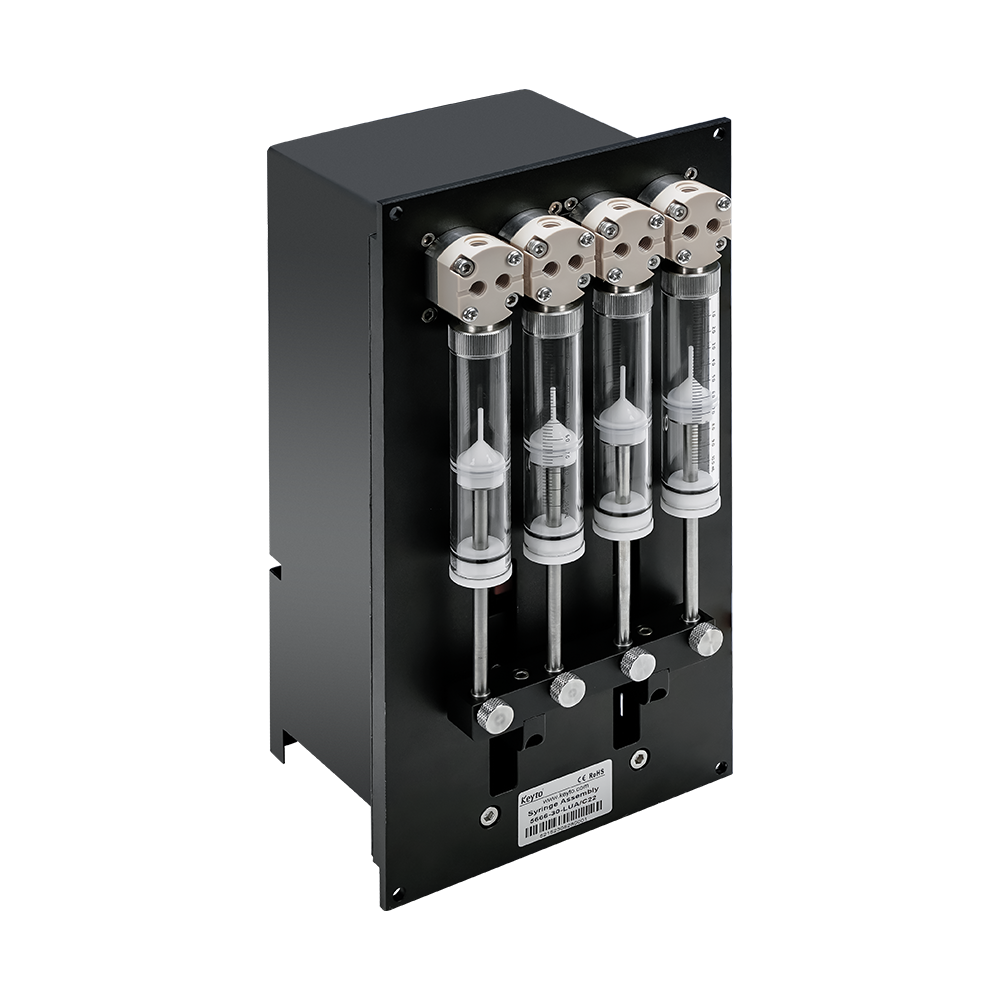

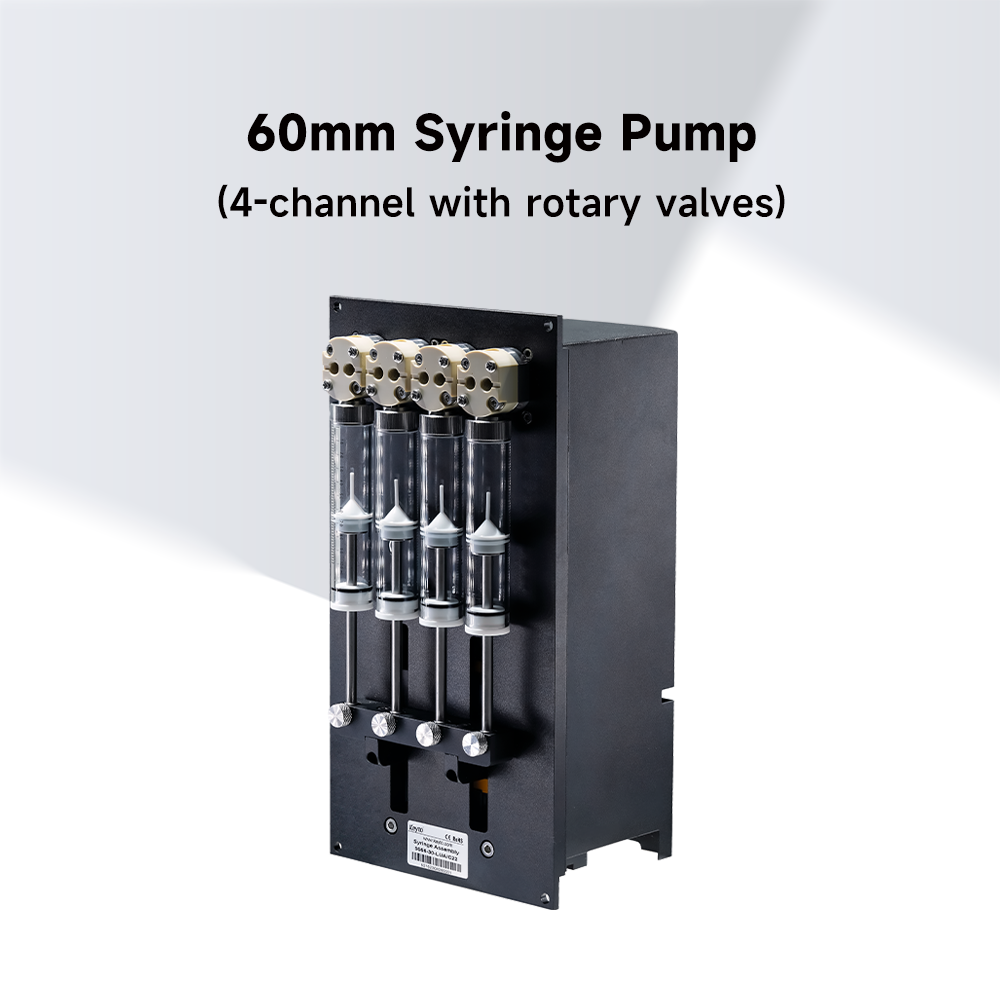

60mm Syringe Pump (4-channel with rotary valves)

This compact syringe pump supports standard and micro-step modes, with full stroke increments of 6000 and 48000 respectively, and is compatible with glass syringes ranging from 100μL to 1.0mL. Featuring RS232, RS485, and CAN communication interfaces, it offers adjustable speeds and precise control with a ball screw and linear encoder for step-loss detection. Its high-precision performance and easy maintenance ensure reliable operation throughout the lifecycle.

Key Parameters:

Rotary Valve Type

Wetted Material

Thread Type

Communication Protocol

Reference Model:

5666

WhatsApp Contact

Online Message

E-mail Model Comparison

60mm Syringe Pump (4-channel with rotary valves)

Comparable Products

60mm Syringe Pump (with rotary valve)

60mm Syringe Pump (with solenoid valve)

30mm Syringe Pump (with solenoid valve)

30mm Syringe Pump (with rotary valve)

Model Comparison

Back

Overview

Parameters

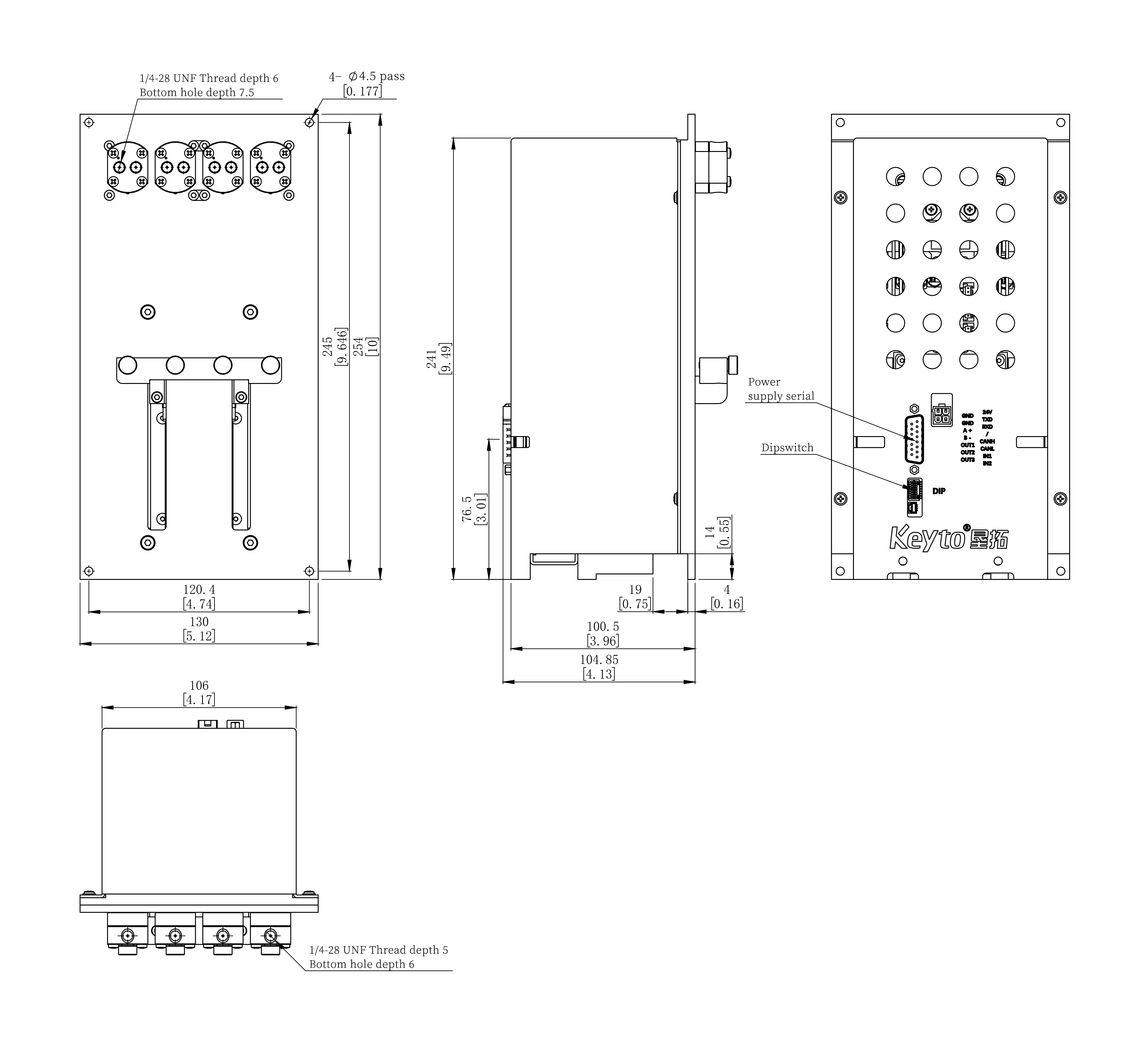

2D View

3D View

Product	60mm Syringe Pump(with rotary valve)
Accuracy	100% range, Inaccuracy ≤ 1% (room temperature, 250μL and above syringes, DI water)
CV	100% range CV ≤0.5% (room temperature, 250μL and above syringes, DI water)
Step Resolution	6000
Full-stroke mm	60
Step Resolution	Standard mode 6000 step/60mm, microsteps 48000 step/60mm
Syringe Sizes	100μL、250μL、500μL、1.0 mL
Rotary Valve Type	Three-Way Distribution Three-Way Non-Distribution
Fluid Contact Syringe and Valve Material	Borosilicate Glass and UHMWPE or PTFE (seal) Stator/Rotar：PEEK+PTFE、PEEK+UHMW-PE、Ceramic
Thread Type	1/4-28 UNF

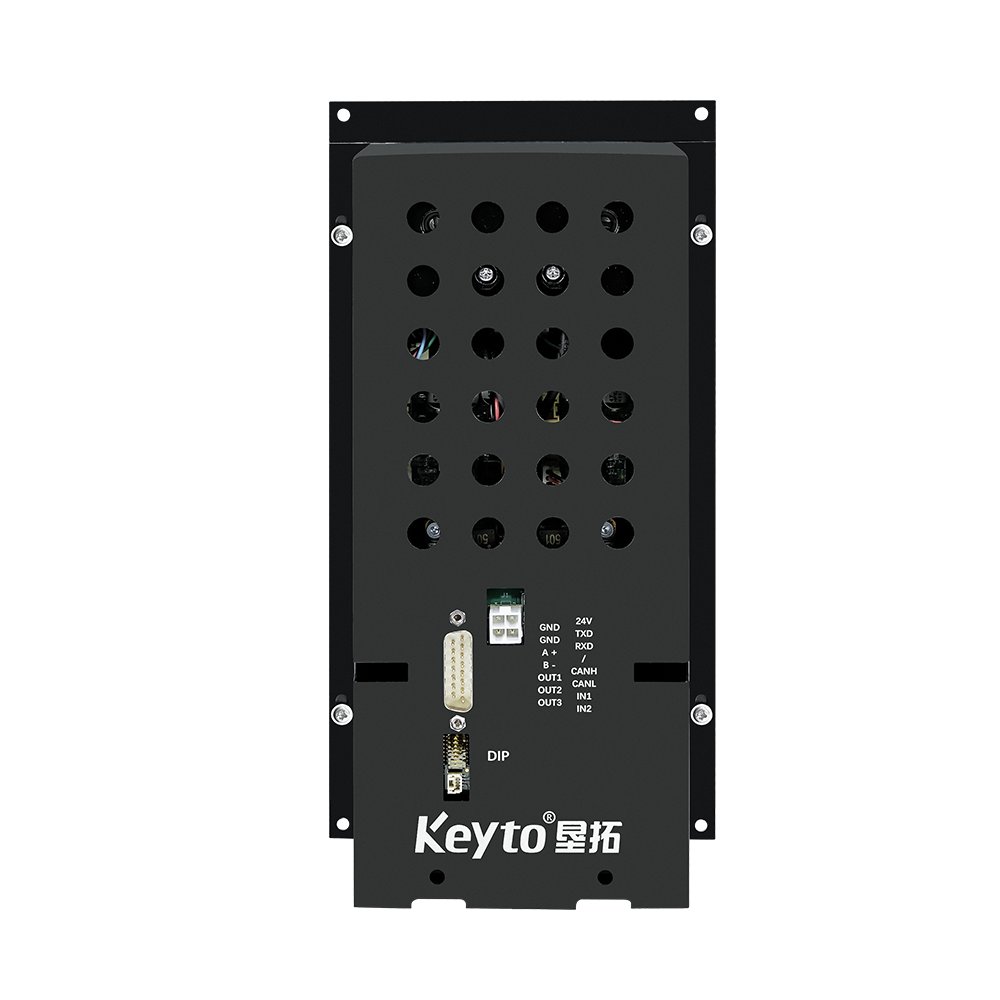

Interface Type	RS232/RS485/CAN
Communication Rates	RS232/RS485 9600 or 38400 baud CAN - 100K, 125K, 250K, 500K, 1M bps
Voltage	DC 24V
Footprint(mm)	254(H)130(W)100.5(D)
