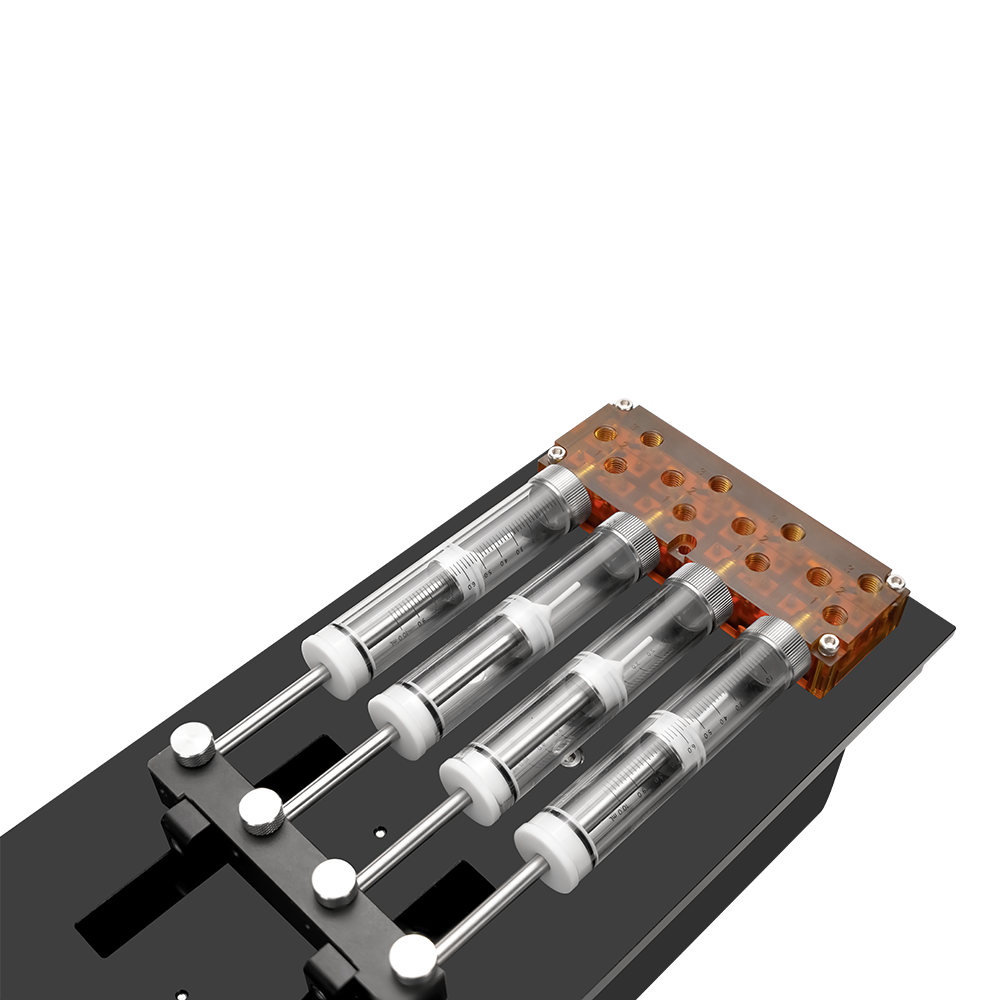

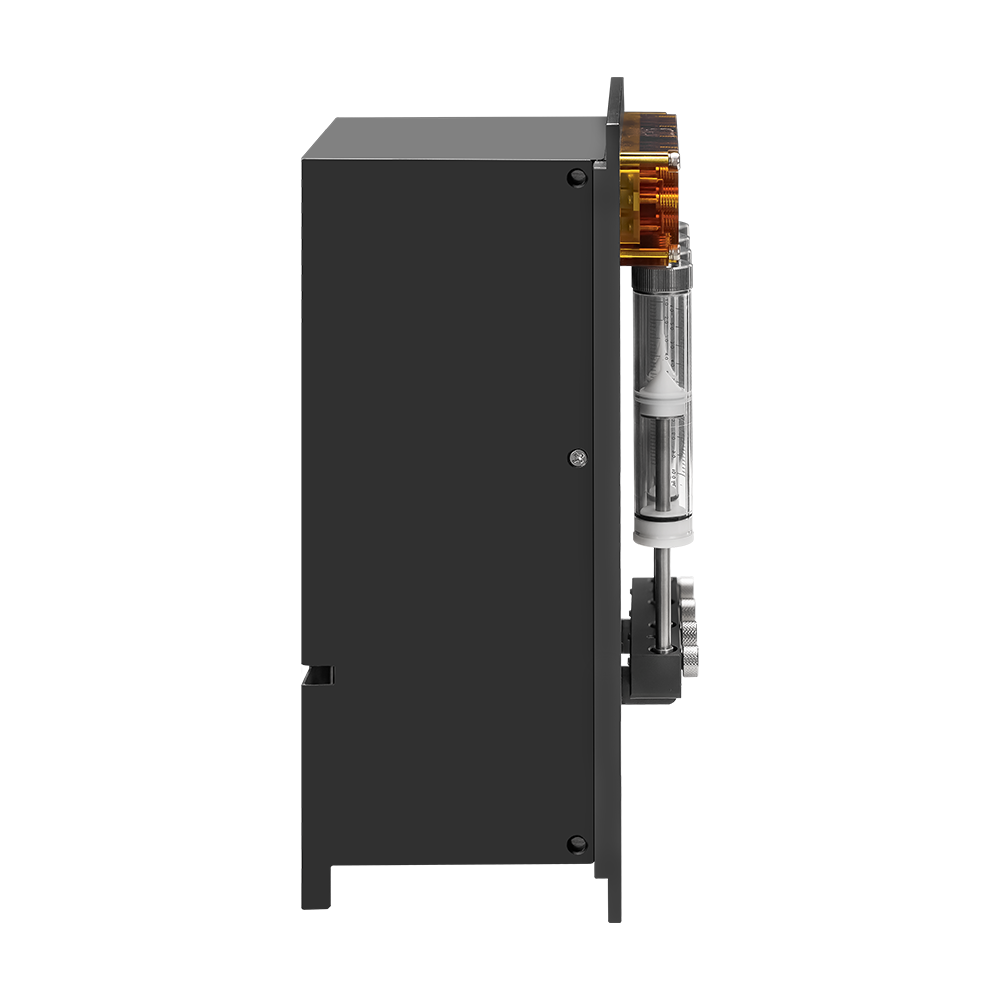

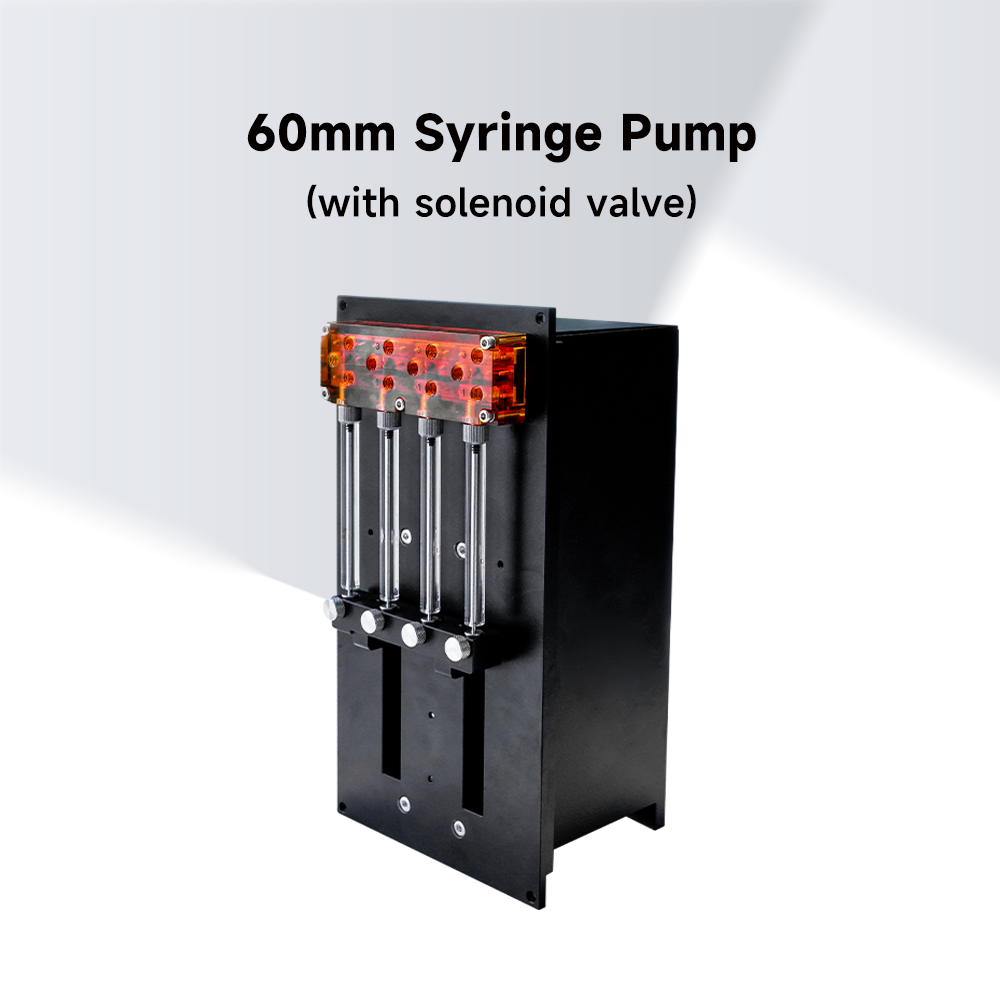

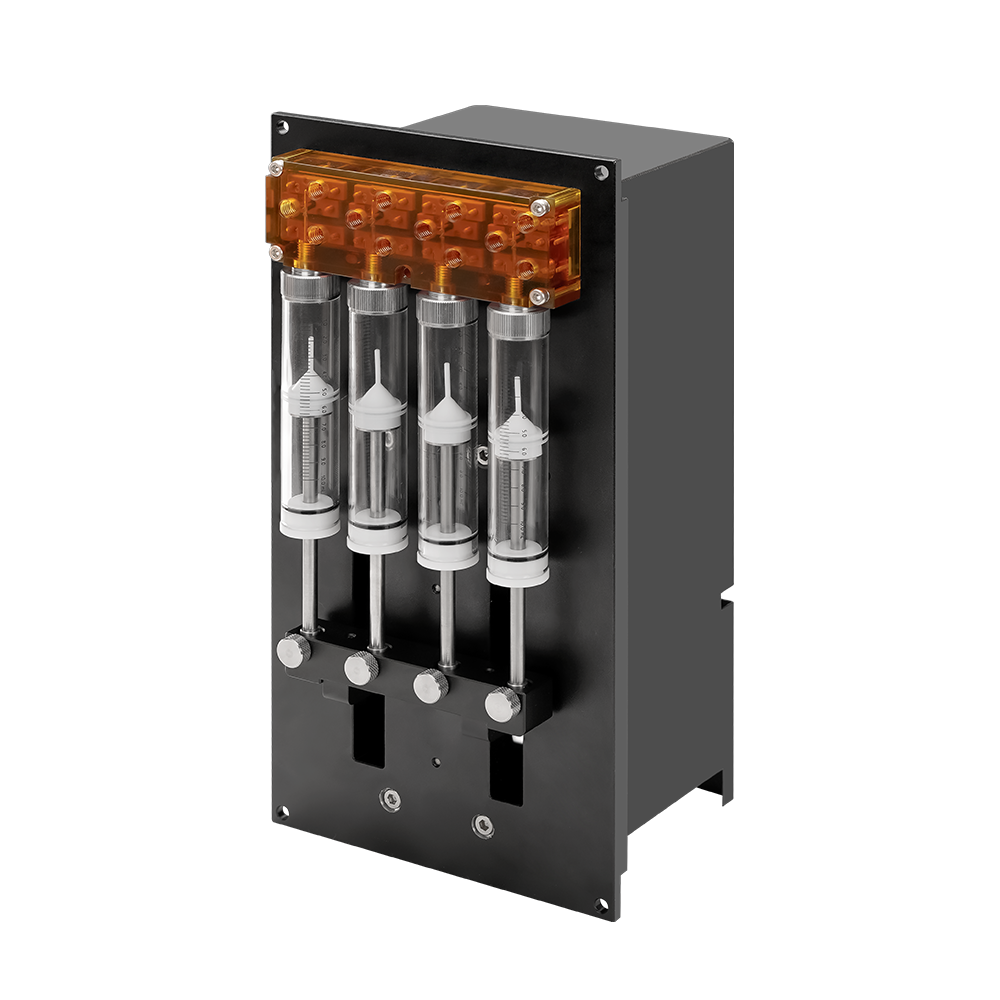

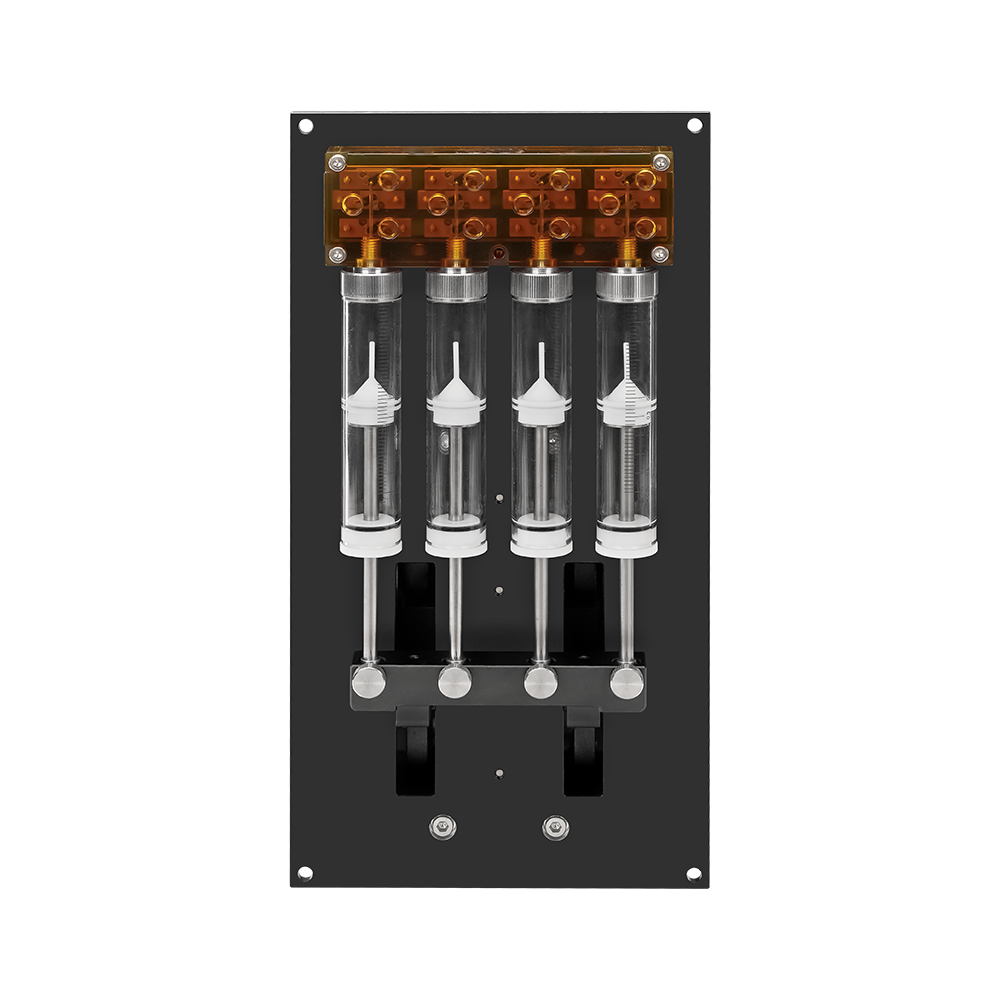

60mm Syringe Pump (with solenoid valve)
60mm Syringe Pump (with solenoid valve)
This compact syringe pump supports standard and micro-step modes, with full stroke increments of 6000 and 48000 respectively, and is compatible with glass syringes ranging from 100μL to 1.0mL. Featuring RS232, RS485, and CAN communication interfaces, it offers adjustable speeds and precise control with a ball screw and linear encoder for step-loss detection. Its high-precision performance and easy maintenance ensure reliable operation throughout the lifecycle.
Key Parameters:
Solenoid Valve Type
Wetted Material
Thread Type
Communication Protocol
Reference Model:
5666
WhatsApp Contact
Online Message
Model Comparison
60mm Syringe Pump (with solenoid valve)
Comparable Products
60mm Syringe Pump (with rotary valve)
60mm Syringe Pump (4-channel with rotary valves)
30mm Syringe Pump (with solenoid valve)
30mm Syringe Pump (with rotary valve)
Model Comparison
Back
Overview
Parameters

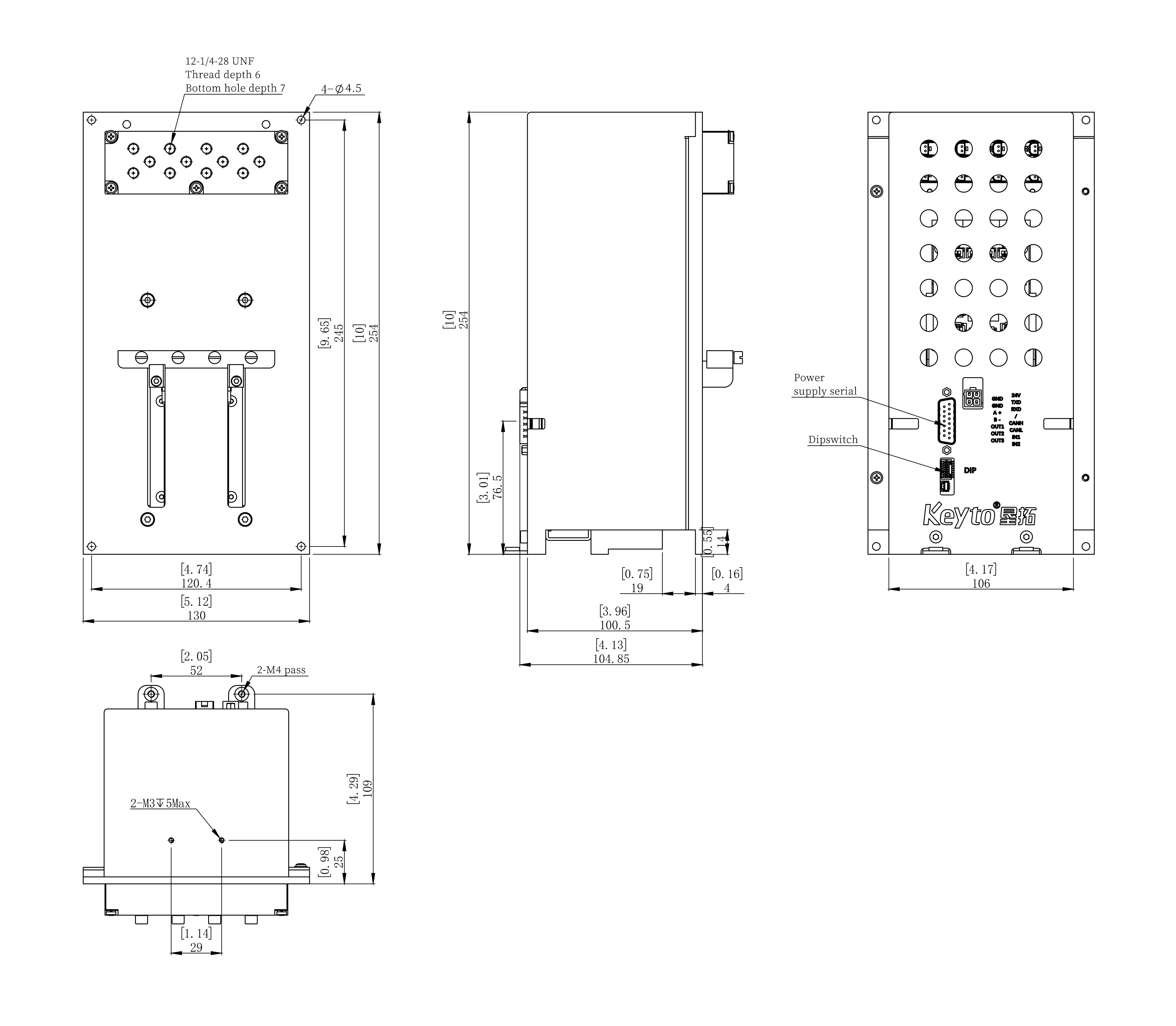

2D View
3D View
Product 60mm Syringe Pump(with solenoid valve)
Accuracy 100% range, Inaccuracy ≤ 1% (room temperature, 250μL and above syringes, DI water)
CV 100% range CV ≤0.5% (room temperature, 250μL and above syringes, DI water)
Full-stroke Steps 6000
Full-stroke mm 60
Step Resolution Standard mode 6000 step/60mm，microsteps 48000 step/60mm
Syringe Sizes 100μL、250μL、500μL、1.0 mL
Valve Type Three-Way Distribution  Solenoid Valve
Fluid Contact Syringe and Valve Material Borosilicate Glass and UHMWPE or PTFE (seal)
Stator/Rotar：PEEK+PTFE、PEEK+UHMW-PE、Ceramic
Thread Type 1/4-28 UNF

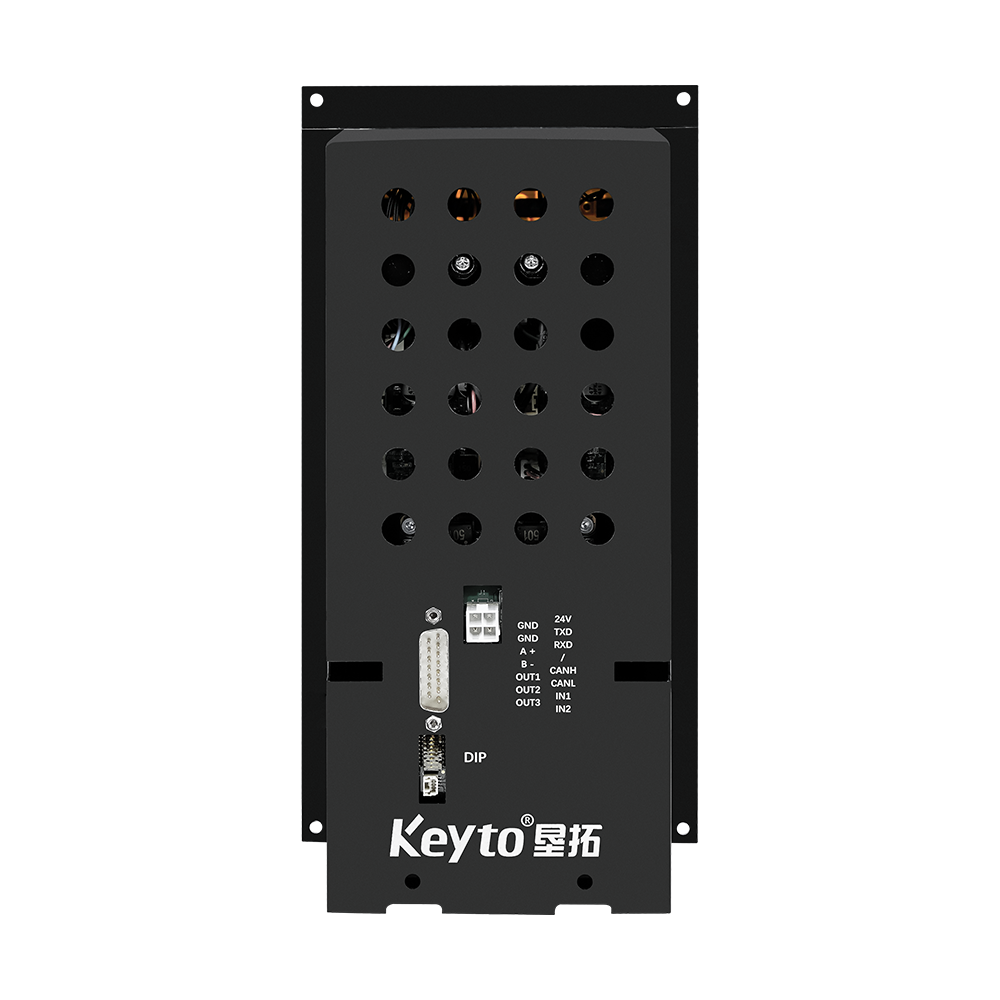

Interface Type RS232/RS485/CAN
Communication Rates
RS232/RS485 9600 or 38400 baud
CAN - 100K, 125K, 250K, 500K, 1M bps
Voltage DC 24V
Footprint(mm) 254(H)*130(W)*100.5(D)
