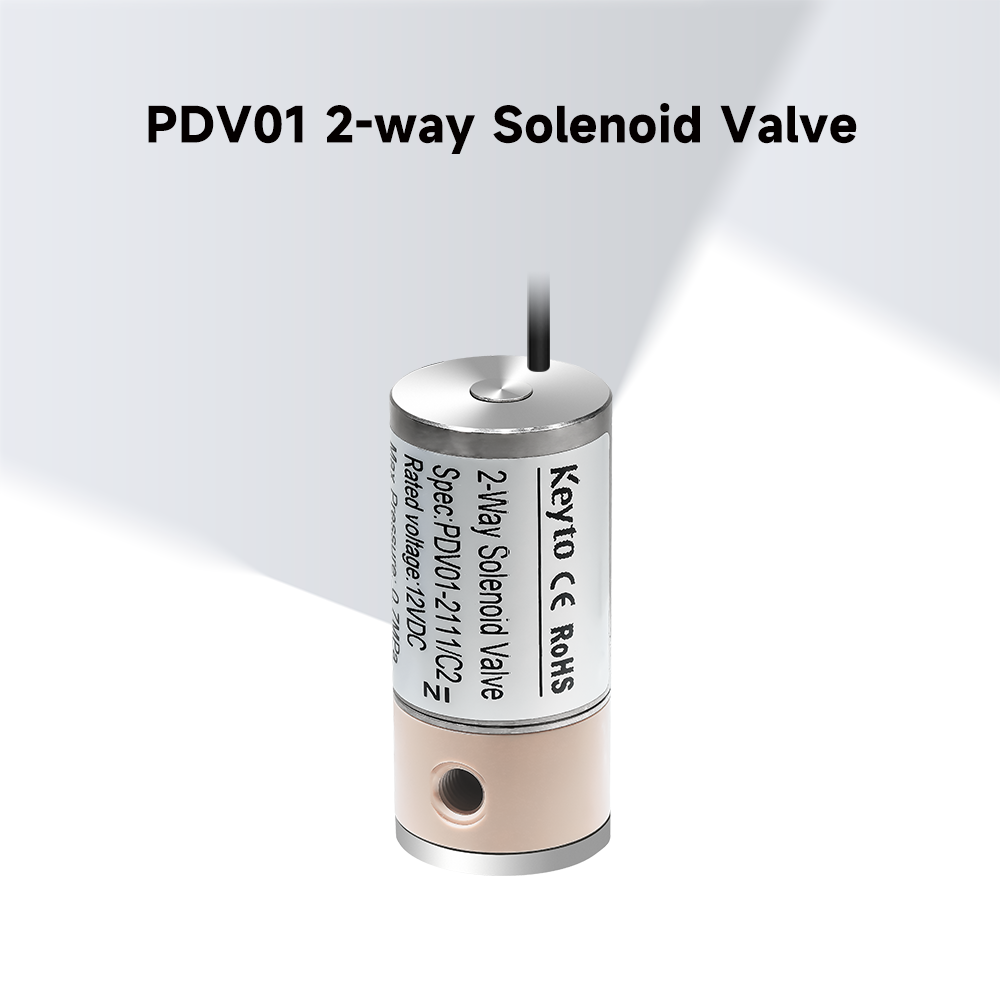

2 Way Direct-operated Miniature Solenoid Valve PDV01

The PDV series solenoid diaphragm valve features an isolated design with pure plastic diaphragms to ensure fluid never contacts other valve components. It offers excellent corrosion resistance and rapid switching, with a switching time under 20ms. Available in 2/2 normally closed and 2/3 valve types, its compact size meets diverse installation requirements. With a lifespan exceeding 10 million cycles, it delivers long-lasting performance.

Key Parameters:

Voltage

Valve Body

Conection

Pressure

Reference Model:

PDV01-2

WhatsApp Contact

Online Message

E-mail Comparison/Performance

Parameters

Valve Type	Direct-operated Solenoid Valve
Structure	2-way two position
Port Number	2-way
Orifice	1.5mm
CV Value	0.03
Applicable Medium	Strong acids, strong bases, high-temperature fluids, air, organic solvents, etc.
Diaphragm Material	PTFE
Pressure（IN –OUT) COM-NC/NO	0-700kPa
Leakage	0
Response Time	<20ms
Dead Volume	0
Voltage Fluctuation Range	From -10% to +10%
Power	12V: 5.2W；24V: 5.2W
