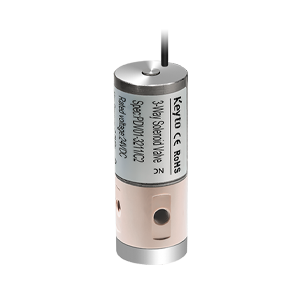

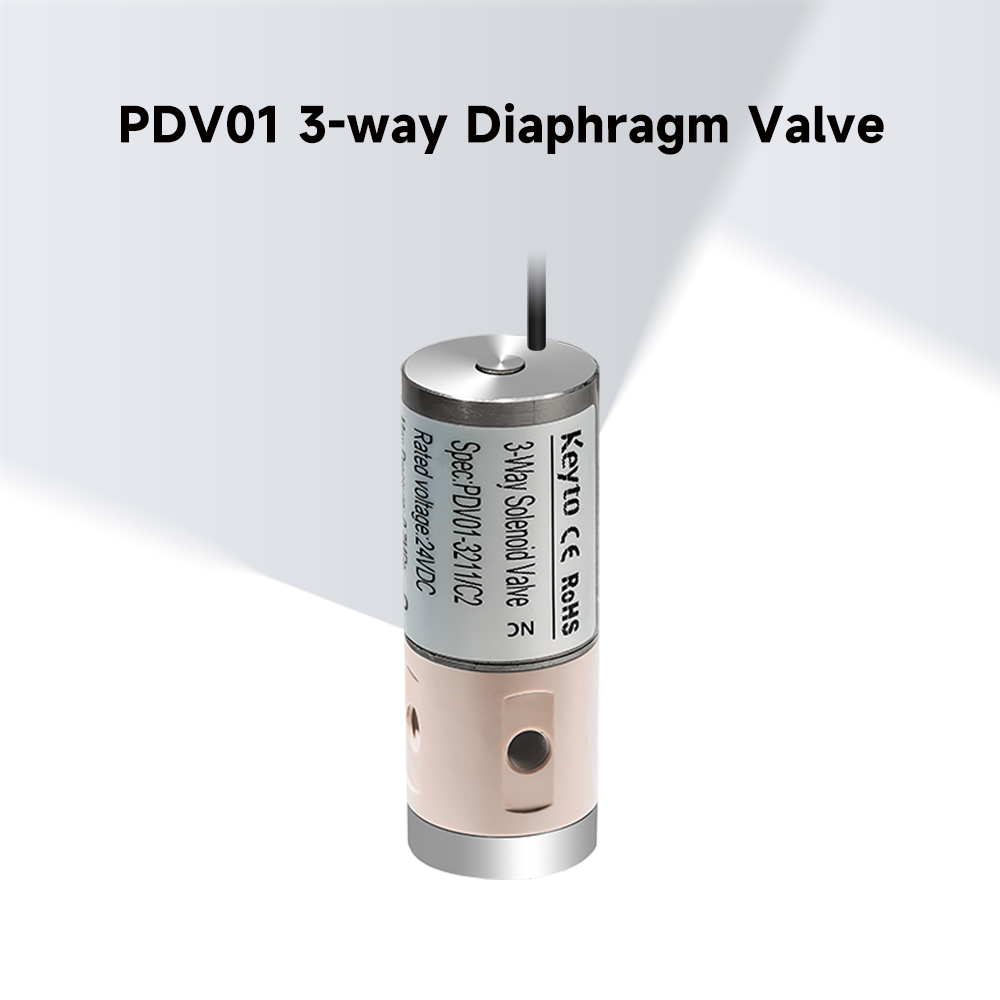

PDV01 3-way Diaphragm Valve
PDV01 3-way Diaphragm Valve
The PDV series solenoid diaphragm valve features an isolated design with pure plastic diaphragms to ensure fluid never contacts other valve components. It offers excellent corrosion resistance and rapid switching, with a switching time under 20ms. Available in 2/2 normally closed and 2/3 valve types, its compact size meets diverse installation requirements. With a lifespan exceeding 10 million cycles, it delivers long-lasting performance.
Key Parameters:
Voltage
Body Material
Connection
Pressure
Reference Model:
PDV01-3
WhatsApp Contact
Online Message
Model Comparison
PDV01 3-way Diaphragm Valve
Comparable Products
1013-2 way tubing type valve
1013-3 way tubing type valve
1013-2 way tubing type valve (normally open)
1013-2 way base mounted type valve
1013-3 way base mounted type valve
1013-2 way base mounted valve (normally open)
1013-2 way threaded type valve
1013-3 way threaded type valve
1013-2 way threaded type valve (normally open)
1013-3 way Sector threaded type valve
1022-2 way tubing type valve
1022-3 way tubing type valve
1022-2 way threaded type valve
1022-3 way threaded type valve
1032-2 way tubing type valve
1032-3 way tubing type valve
1042-2 way threaded type valve
1042-2 way base mounted type valve
1042-2 way tubing type valve
1042-3 way tubing type valve
1021 2-way Base Mount Solenoid Valve
1021 3-way Base Mount Solenoid Valve
1021 2-way Base Mount Valve (Normal Open)
1021 2-way Threaded Type Solenoid Valve
1021 3-way Threaded Type Solenoid Valve
1021 2-way Tubing Type Solenoid Valve (vertical version）
1021 3-way Tubing Type Solenoid Valve (vertical version)
1021 2-way Tubing Type Solenoid Valve（vertical version）
1021 Tubing Type Solenoid Valve(horizontal version)
1021 3-way Tubing Type Solenoid Valve (horizontal version)
Model Comparison
Back
Parameters
Valve Structure
 Direct-operated Valve
Valve Type
3-way three position
Port Number
3
Orifice
1.5mm
CV  Value
0.03
Applicable Medium Strong acids, strong bases, high-temperature fluids, air, organic solvents, etc.
Diaphragm
PTFE
Pressure（IN –OUT)
COM-NC/NO
0~700kPa
Leakage
 0
Response Time
<20ms
Dead Volume
 0
Voltage Fluctuation Range
From -10% to +10%
Power
12V: 5.2W；24V: 5.2W


Demo video
Product video
Factory video

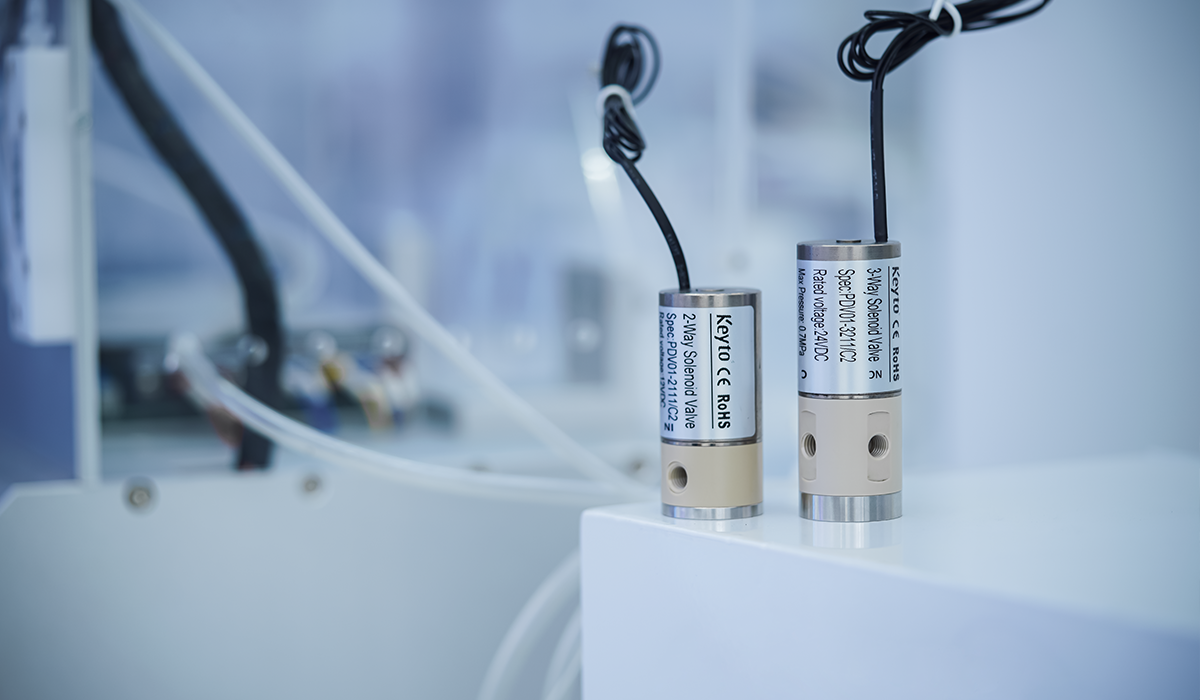

PDV01 Solenoid Valve
Keyto Machining Factory
Keyto Quality Control （1）
Recommended
1012 Square Threaded Type Diaphragm Valve
1012 Round Threaded Solenoid Valve

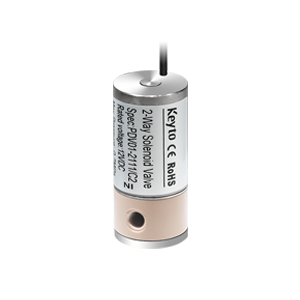

PDV01 2-way Solenoid Valve
