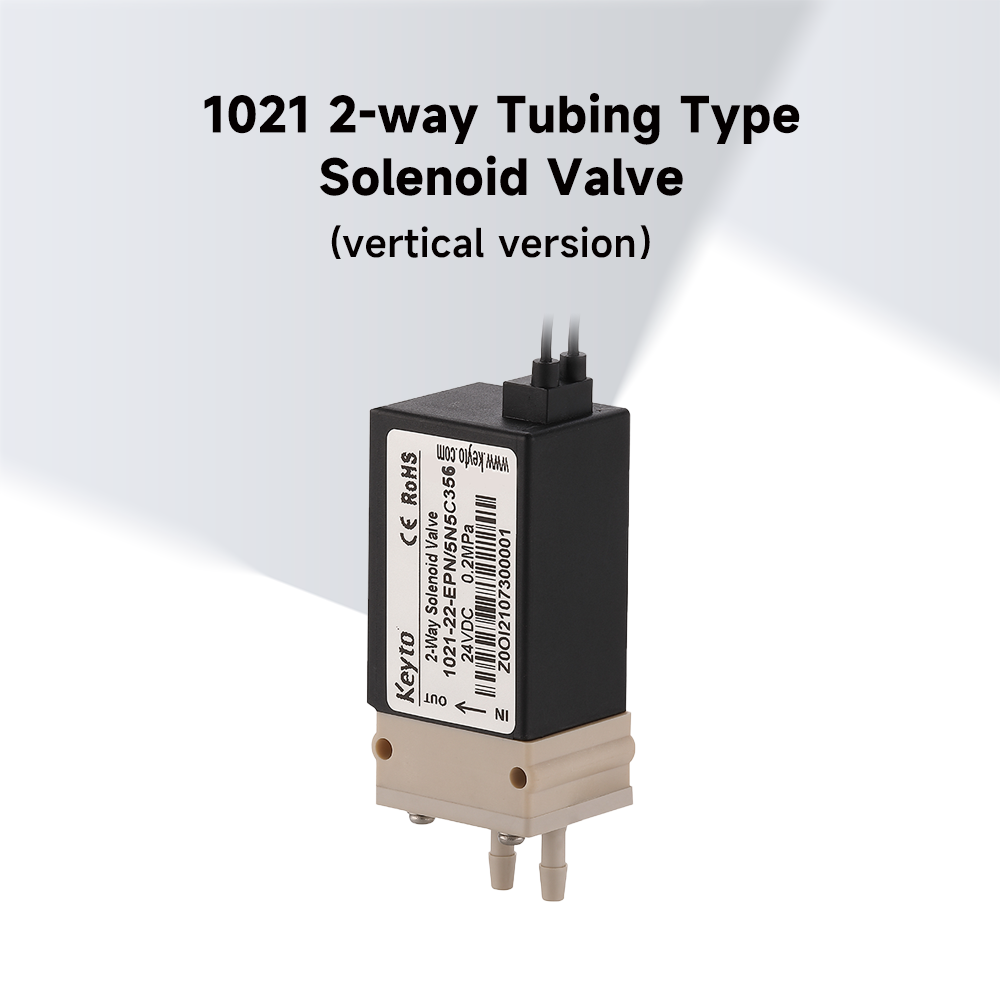

1021 2-way Tubing Type Solenoid Valve (vertical version)
1021 2-way Tubing Type Solenoid Valve (vertical version)
The 1021 series solenoid valve features a 2.0mm orifice diameter with a flow capacity of Cv≥0.065 and a flow rate of ≥11 mL/s, providing precise on/off and reversing control for liquid circuits. With its life span of up to 5 million cycles, it offers high performance and reliability. Available in anti-crystallization and fully waterproof versions, the valve meets diverse needs in fluid control. Keyto offers multiple configurations, including expansion, threaded, and substrate models, to accommodate various working conditions.
Key Parameters:
Voltage
Wetted material
Reference Model:
1021-2
WhatsApp Contact
Online Message
Comparison/Performance
1021 2-way Tubing Type Solenoid Valve (vertical version)
Comparable Products
Comparison/Performance
Back
Overview
Parameters

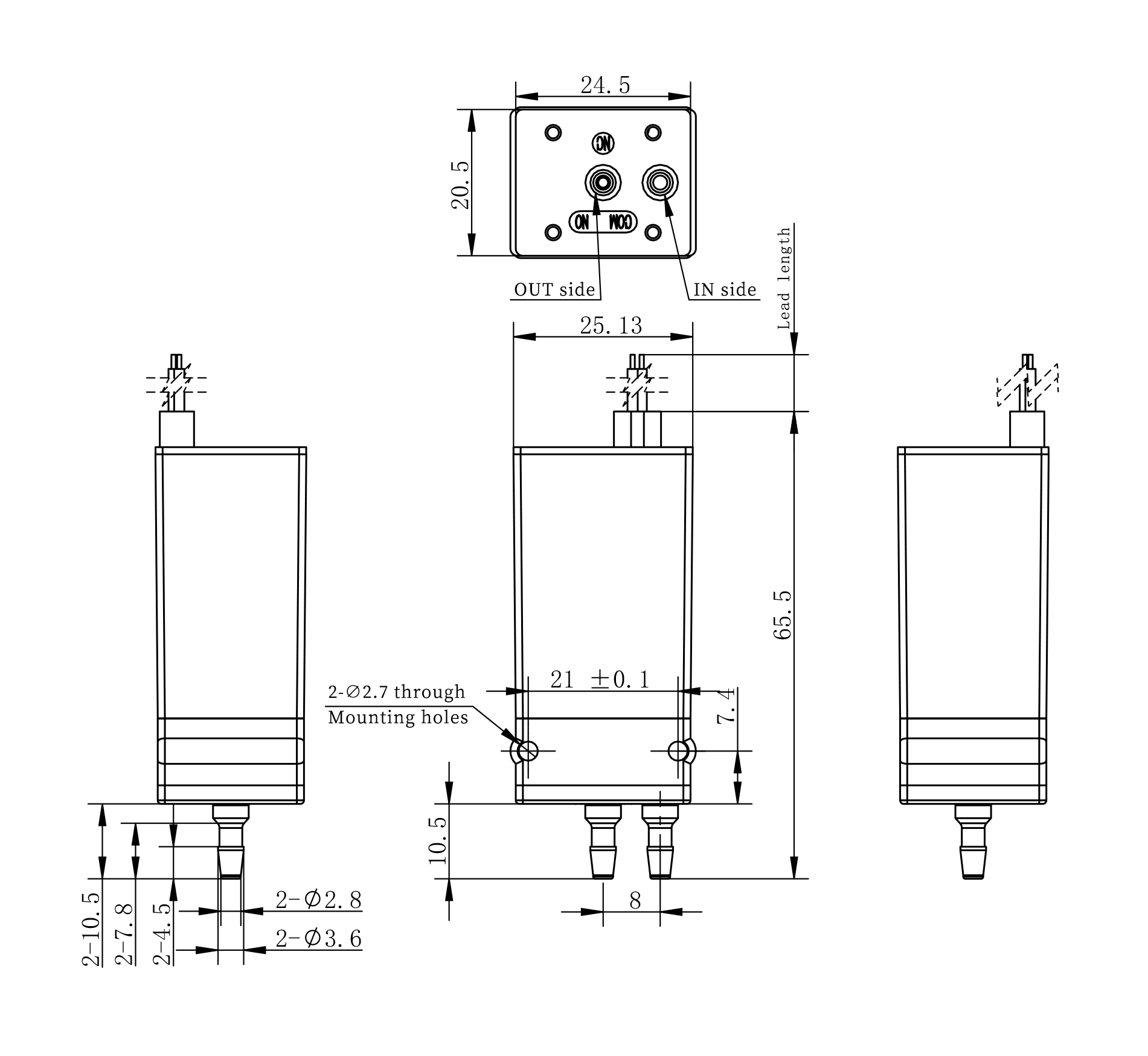

2D View
3D View
Valve Type 1021 2-way Tubing Type Valve
Structure Direct-operated Diaphragm Valve, 2-way N.C.
Port Number 2(Assigned Inlet & Outlet)
Conection Dimension Suit for inner diameter, 1.8mm~2.4mm silicone tube, Shore Hardness 55 to 75
Body Material PPS(Selected based on the needs of the medium, if it's th strong acid and alkali, please  communicate with Keyto for specific specifications)
Diaphragm Material EPDM/ETP/FFKM
Voltage 12V/24V
Orifice 2mm
Flow Rate 11g/s(25℃,50KPa,Purified water)
