2 Way Micro Solenoid Diaphragm Valve Normally Open 1021-4

The 1021 series solenoid valve features a 2.0mm orifice diameter with a flow capacity of Cv≥0.065 and a flow rate of ≥11 mL/s, providing precise on/off and reversing control for liquid circuits. With its life span of up to 5 million cycles, it offers high performance and reliability. Available in anti-crystallization and fully waterproof versions, the valve meets diverse needs in fluid control. Keyto offers multiple configurations, including expansion, threaded, and substrate models, to accommodate various working conditions.

Key Parameters:

Voltage

Wetted Material

Reference Model:

1021-4

WhatsApp Contact

Online Message

E-mail Comparison/Performance

Comparison/Performance

Back

Overview

Parameters

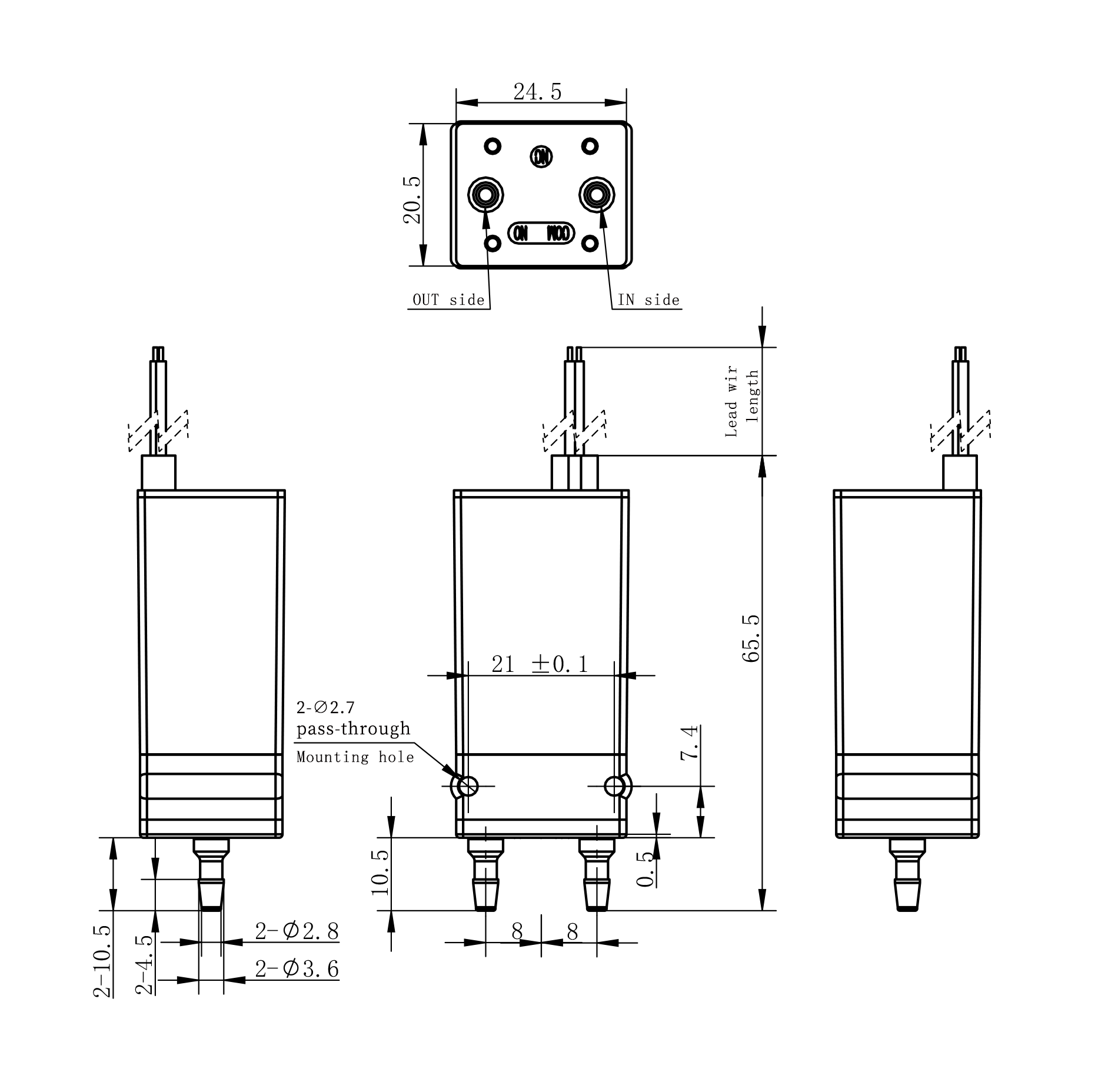

2D View

3D View

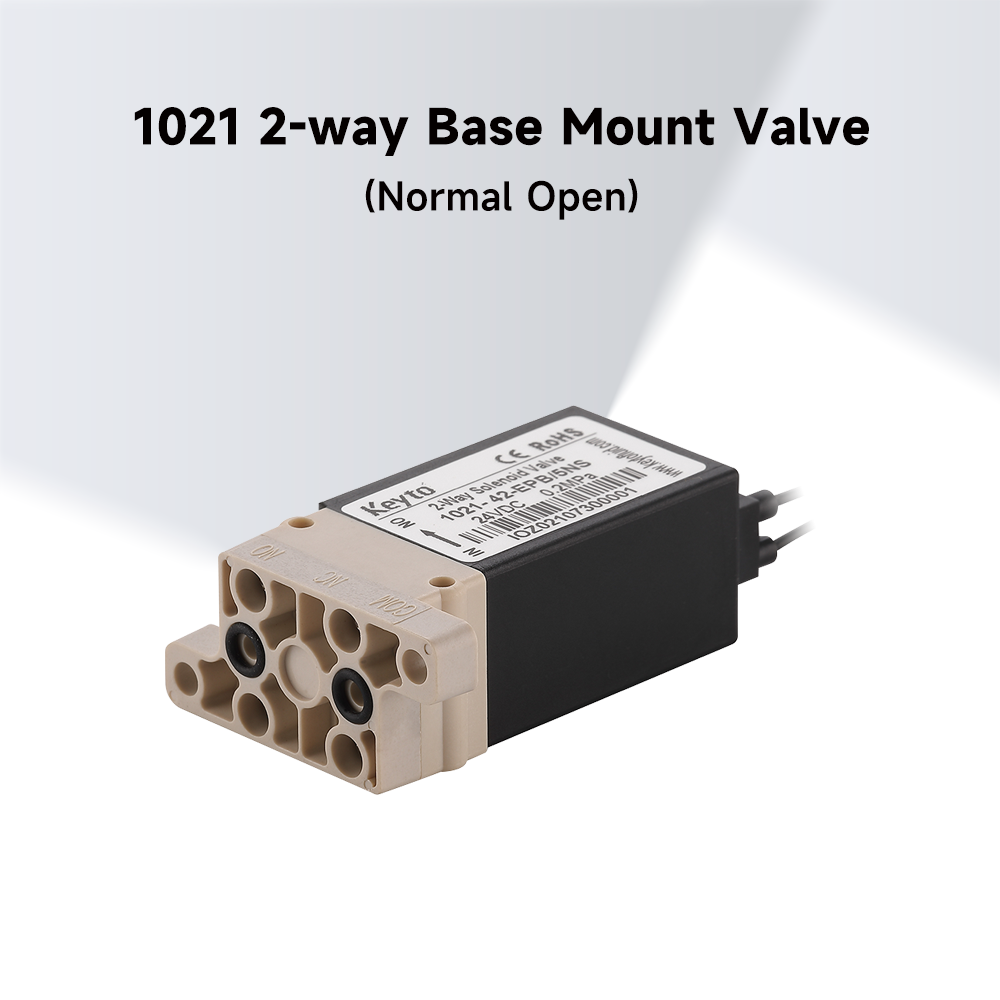

Valve Type	1021-4 Base Mount Valve
Structure	Direct-operated Solenoid Valve, 2-way N.O.
Port Number	2（Assigned inlet & outlet）
Body Material	PPS（Selected based on the needs of the medium, if it's th strong acid and alkali, please communicate with Keyto for specific specifications）
Diaphragm Material	EPDM/ETP/FFKM
Voltage	12V/24V
Orifice	2mm
Flow Rate	11g/s(25℃，50KPa ，Purified water）
