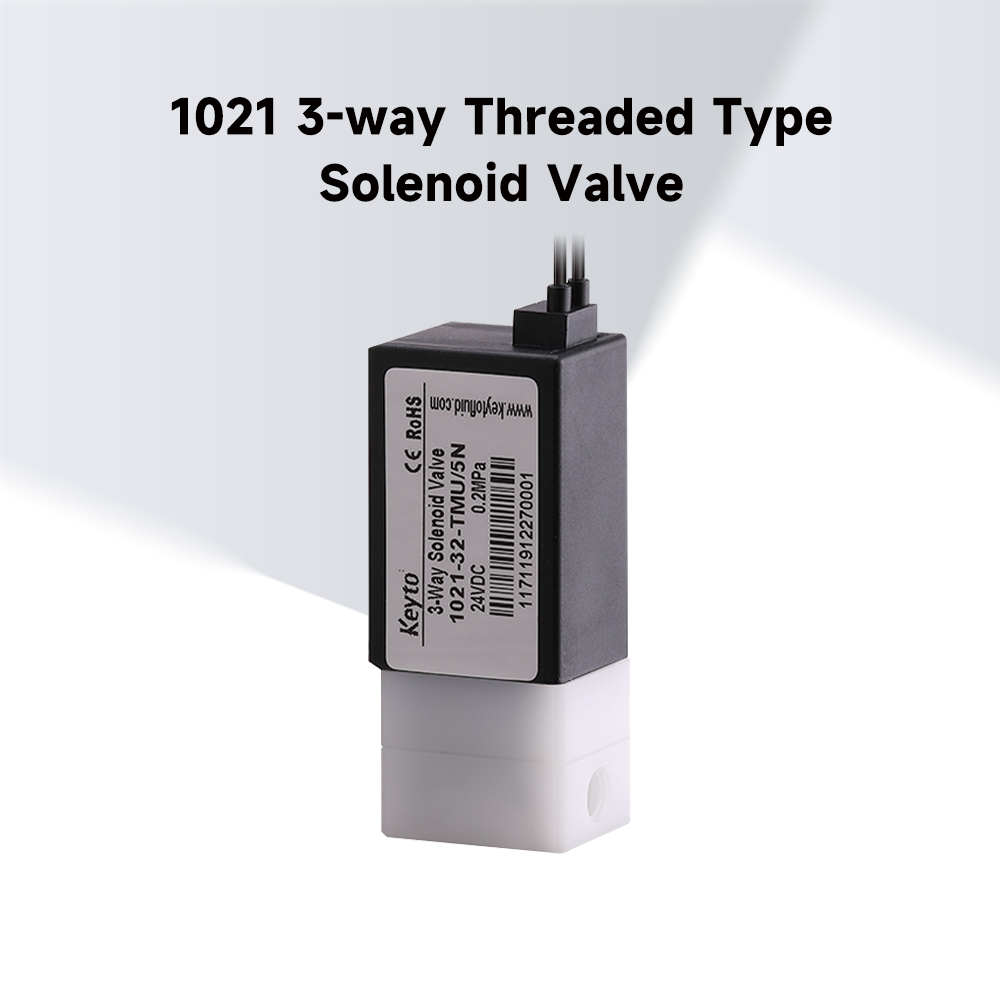

3 Way Miniature Solenoid Valve Diaphragm 1021-3

The 1021 series solenoid valve features a 2.0mm orifice diameter with a flow capacity of Cv≥0.065 and a flow rate of ≥11 mL/s, providing precise on/off and reversing control for liquid circuits. With its life span of up to 5 million cycles, it offers high performance and reliability. Available in anti-crystallization and fully waterproof versions, the valve meets diverse needs in fluid control. Keyto offers multiple configurations, including expansion, threaded, and substrate models, to accommodate various working conditions.

Key Parameters:

Voltage

Wetted Material

Reference Model:

1021-3

WhatsApp Contact

Online Message

E-mail Comparison/Performance

Overview

Parameters

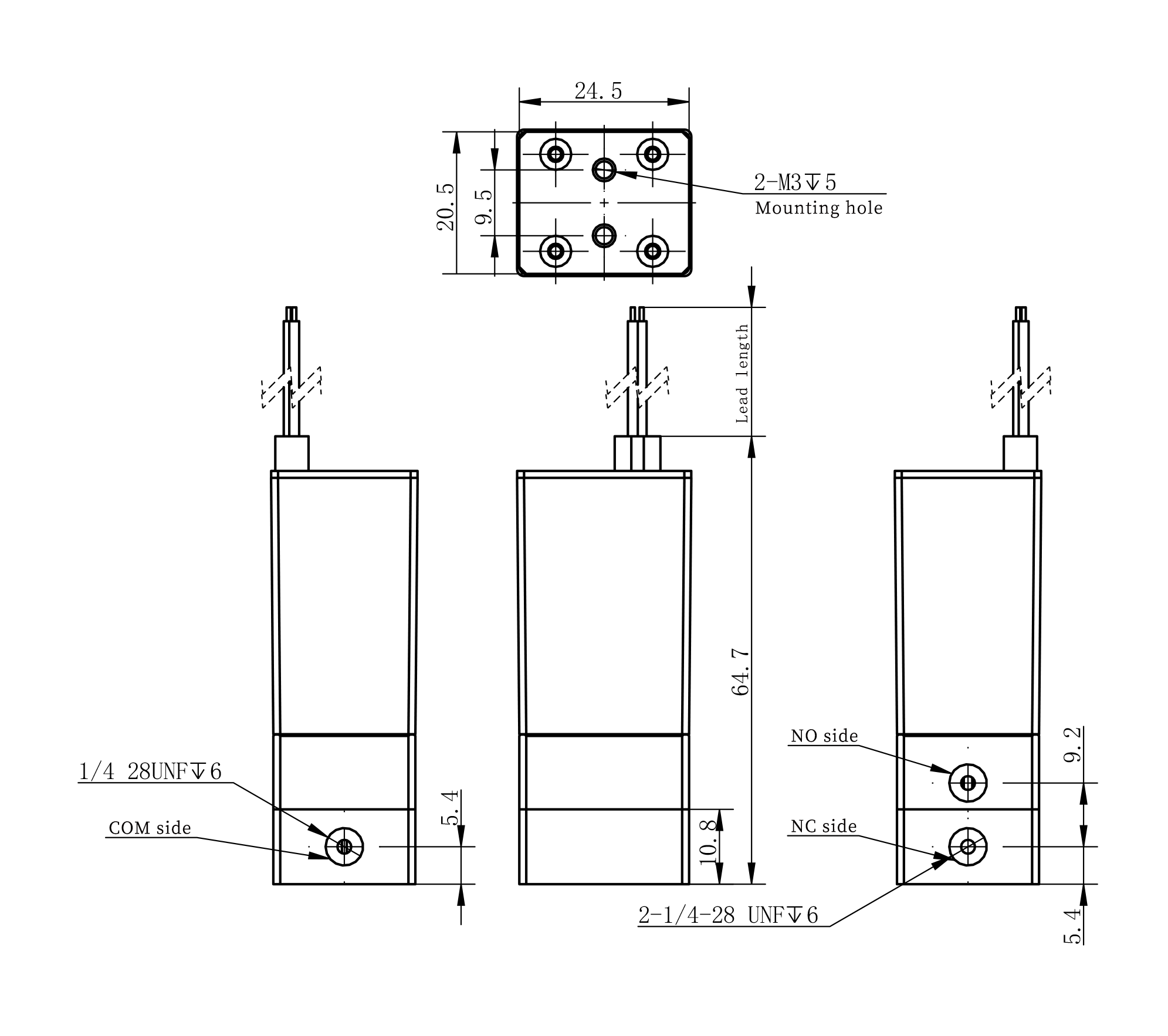

2D View

3D View

Valve Type	1021 3-way Threaded Type Valve
Structure	Direct-operated Diaphragm Valve, 3-way
Port Number	3（Assigned Inlet & Outlet）
Body Material	POM、PVDF、PPS
Diaphragm Material	EPDM/ETP/FFKM
Voltage	12V/24V
Orifice	2mm
Flow Rate	11g/s(25℃，50KPa，Purified water）
